Body Control Module: Diagrams

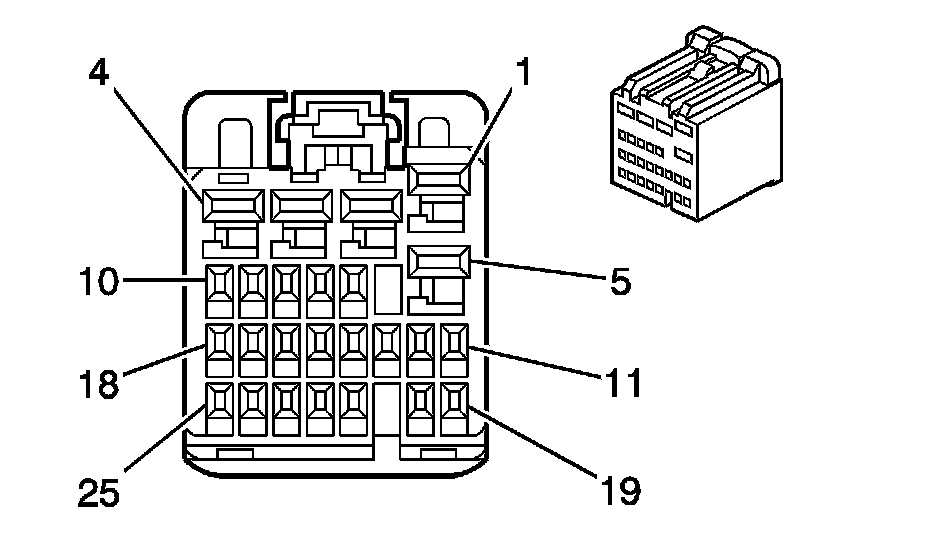

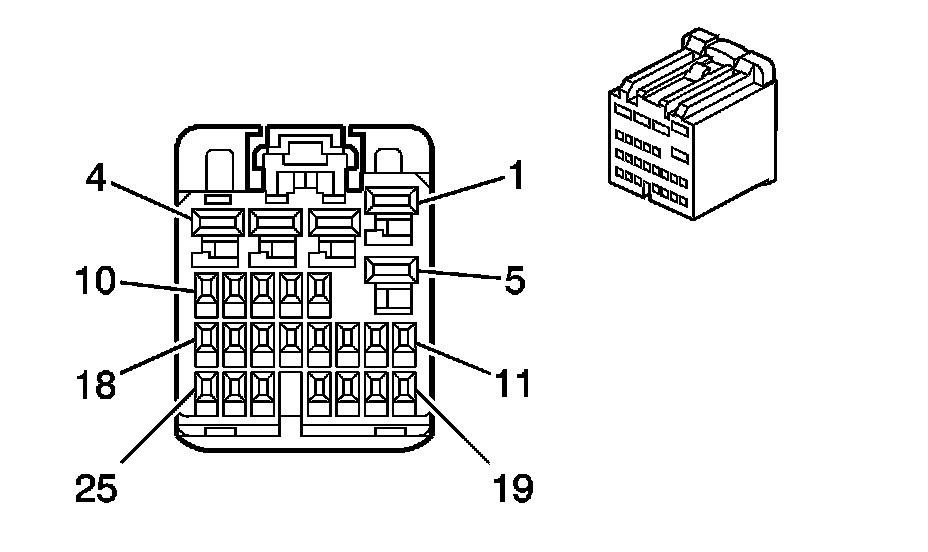

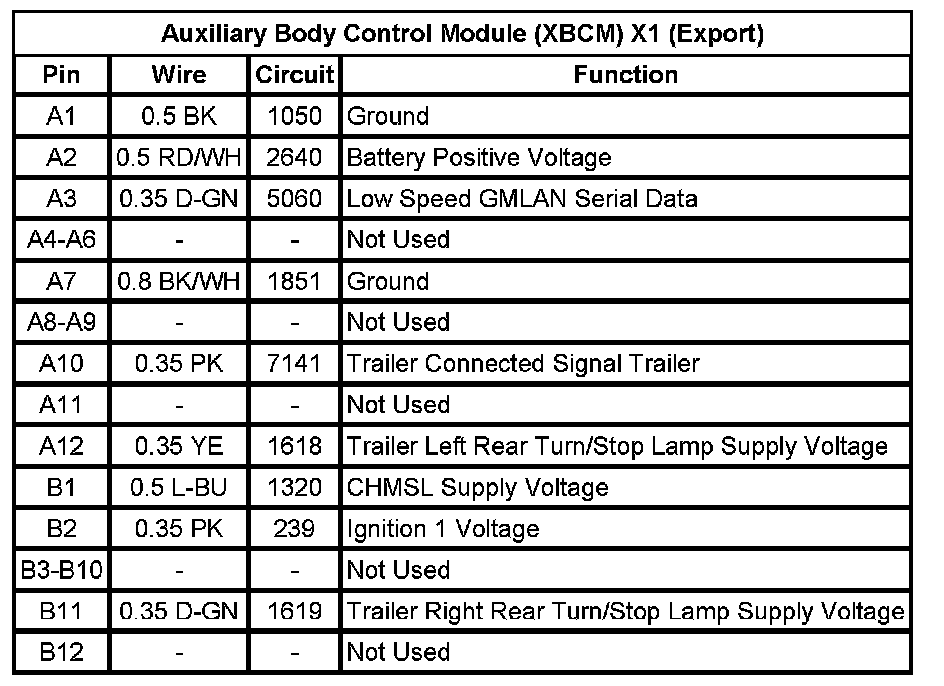

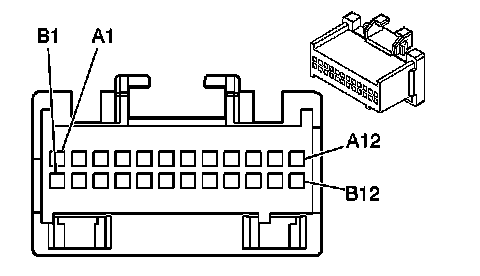

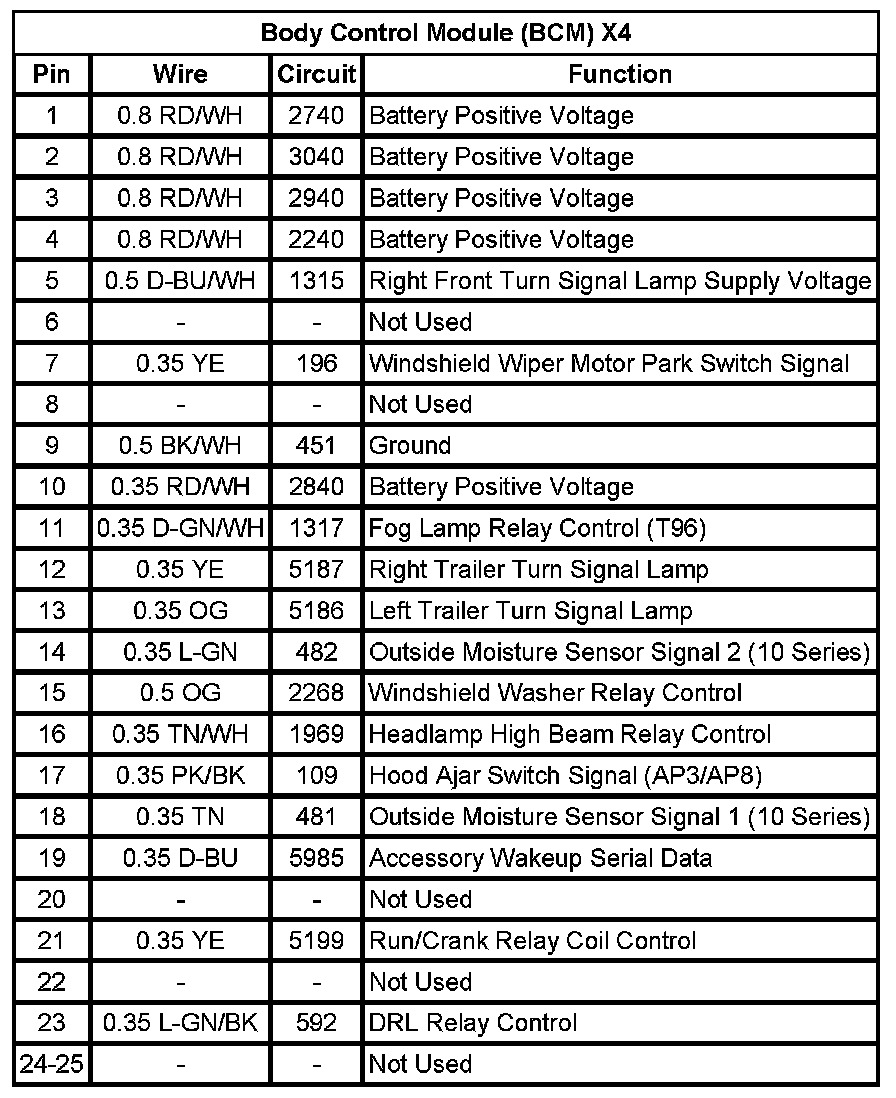

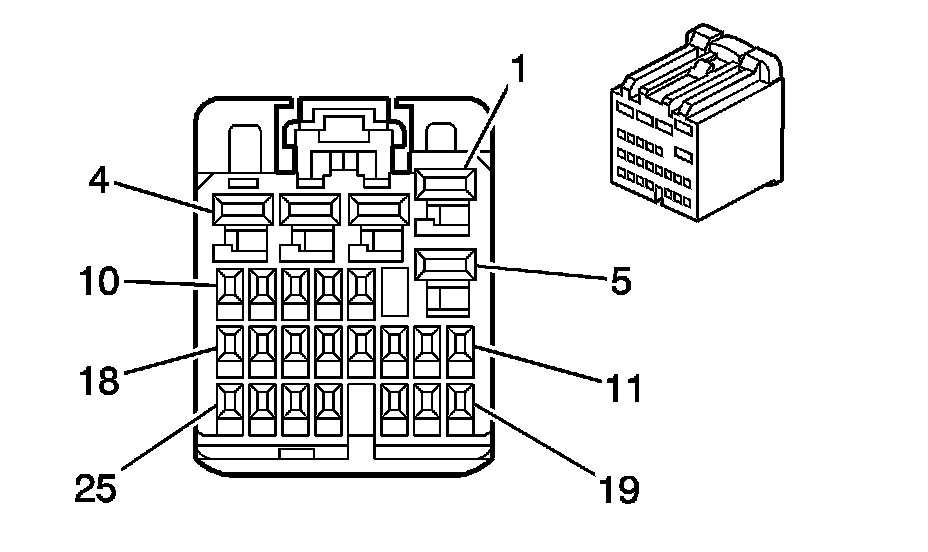

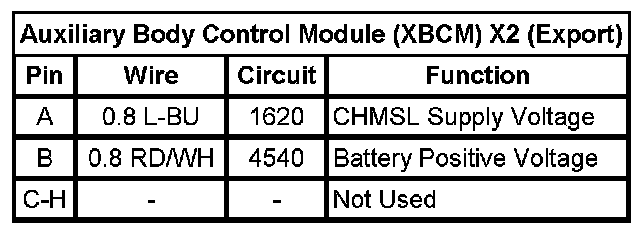

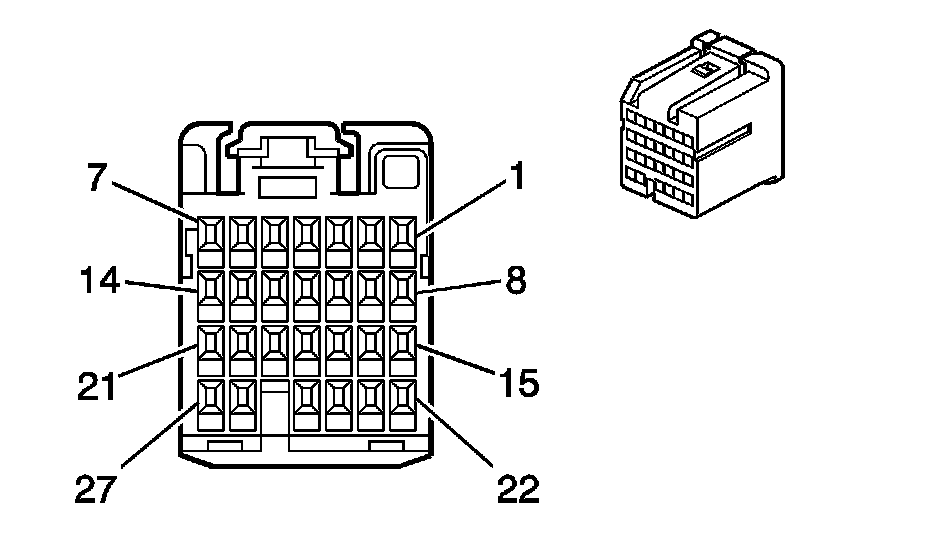

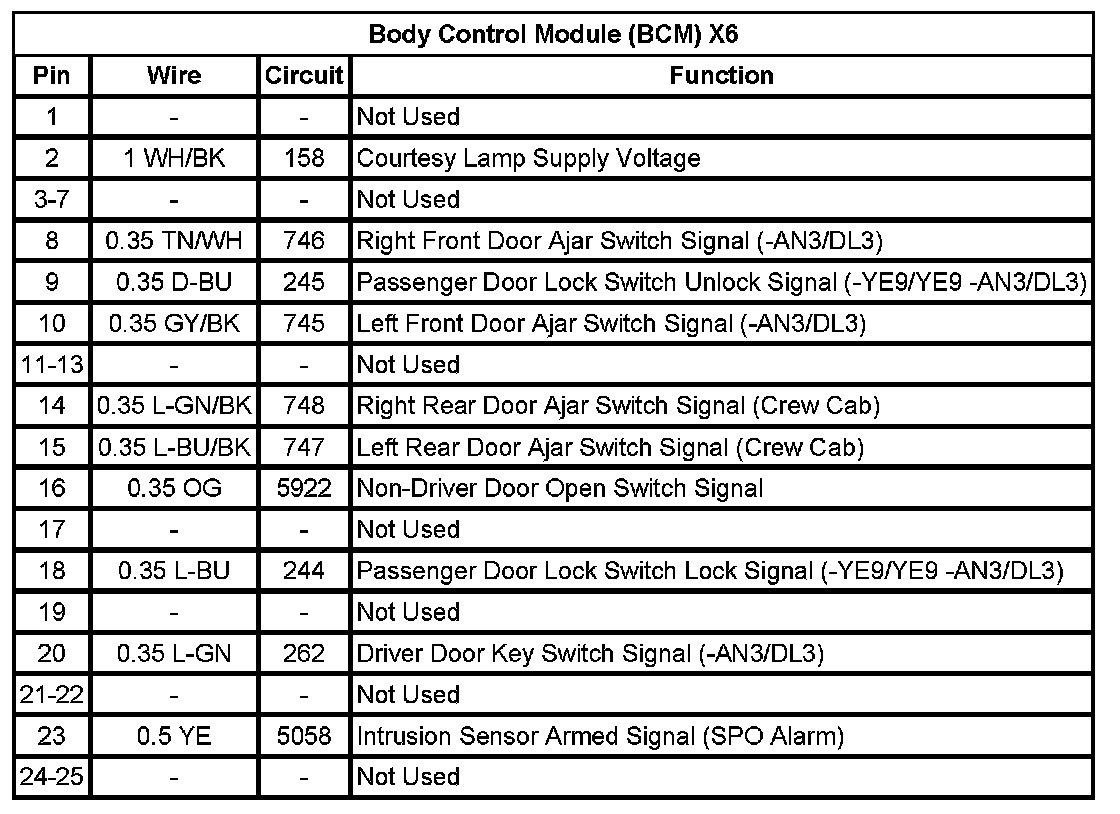

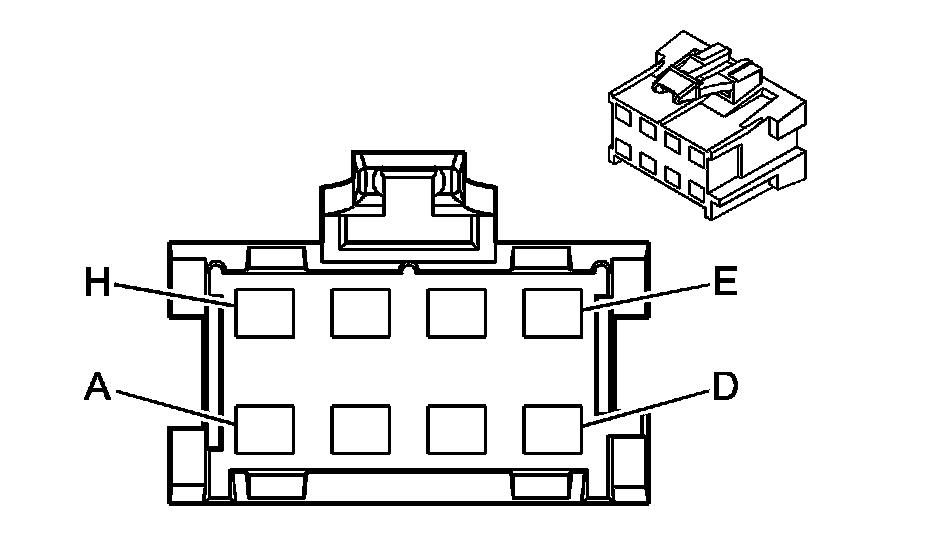

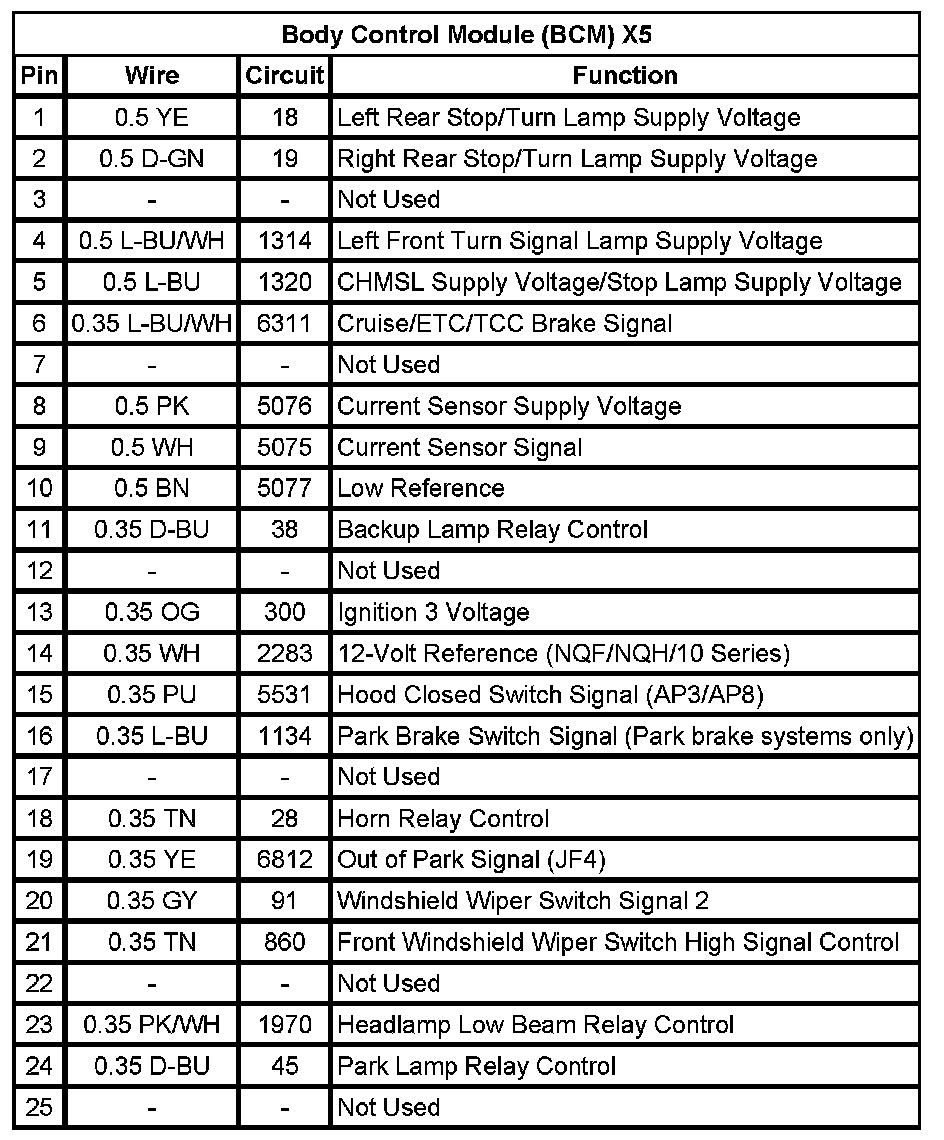

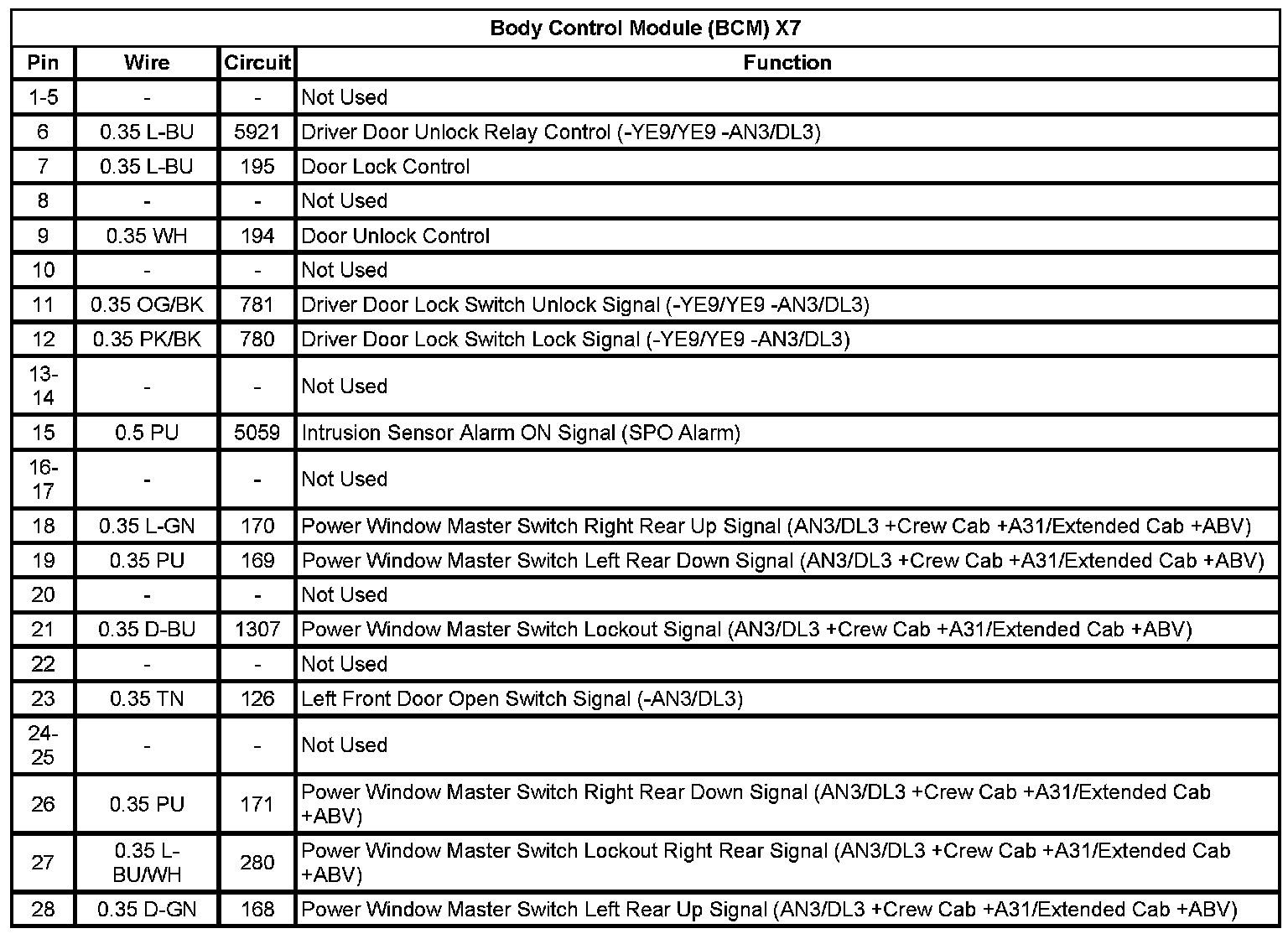

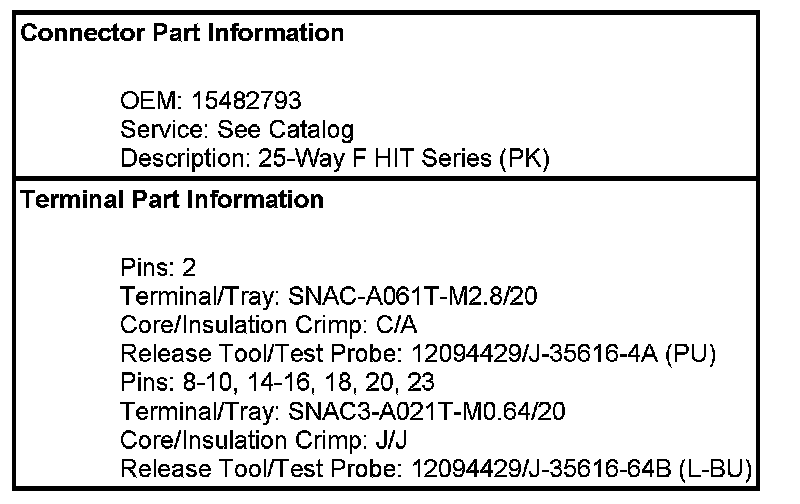

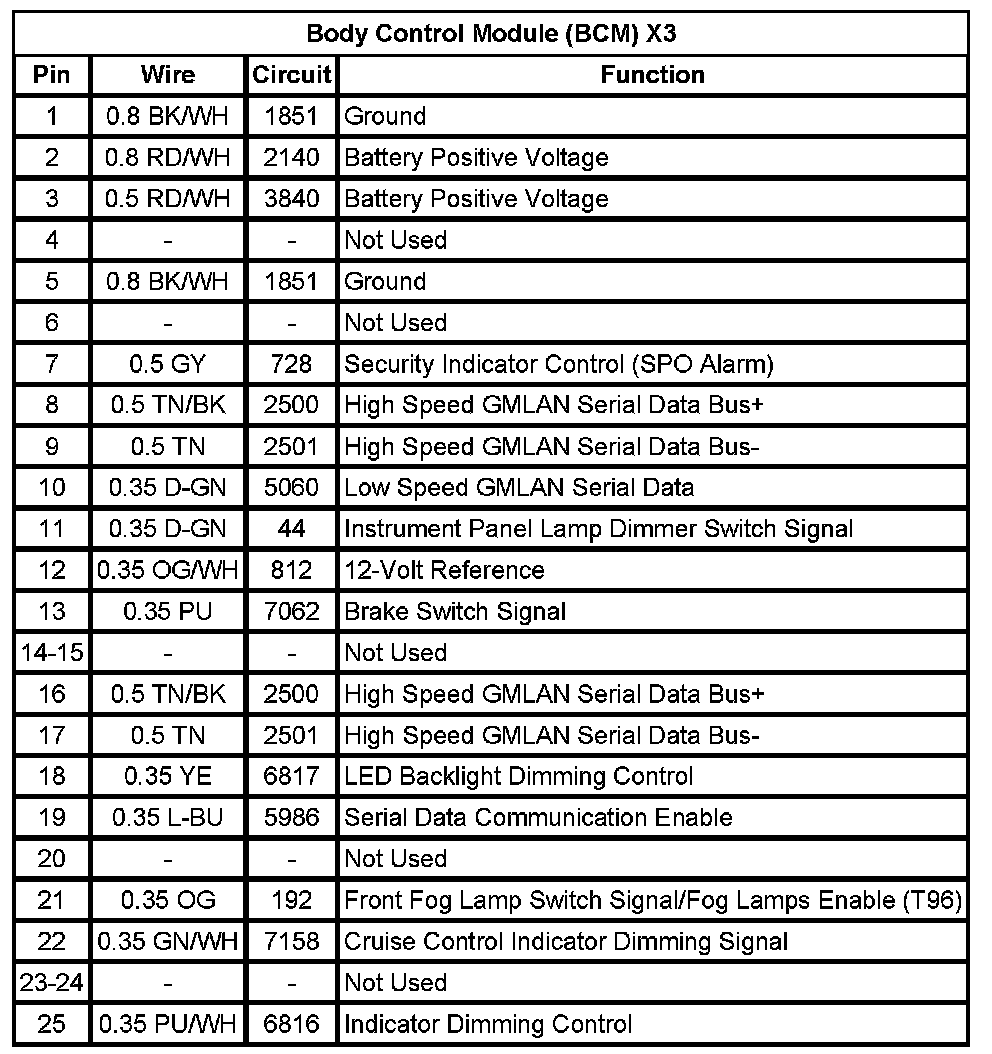

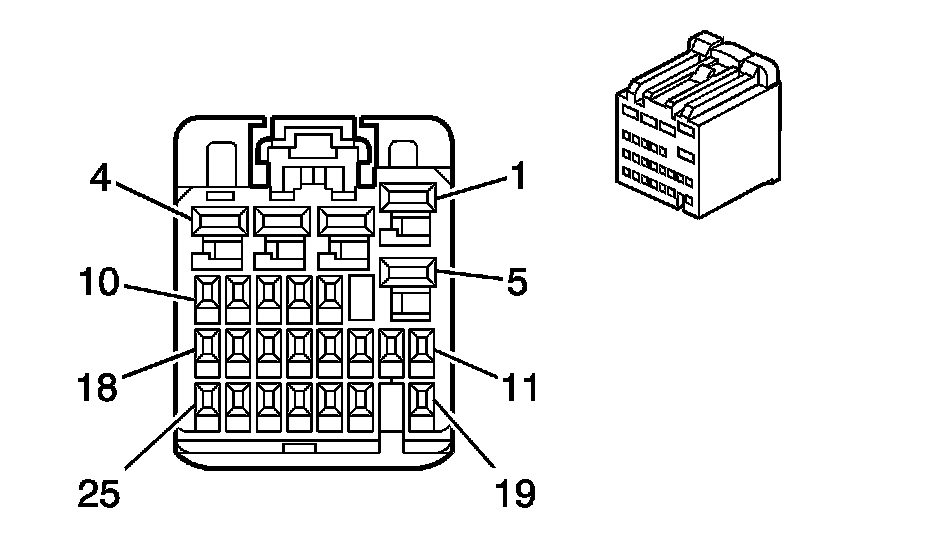

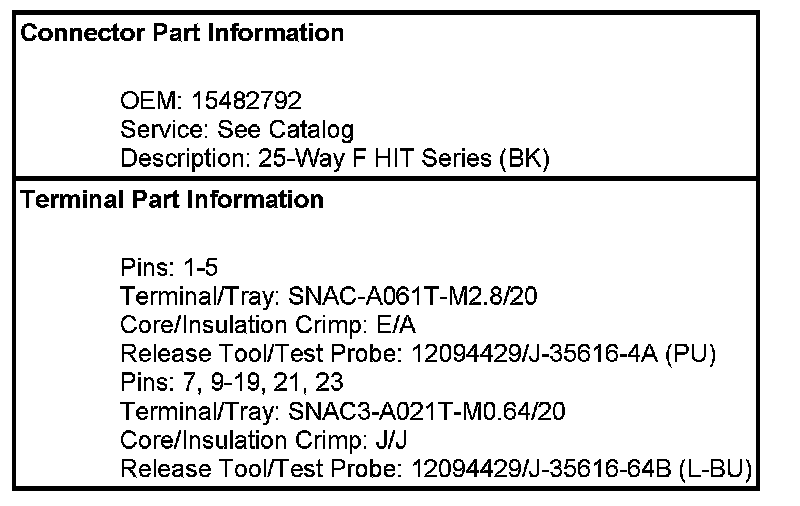

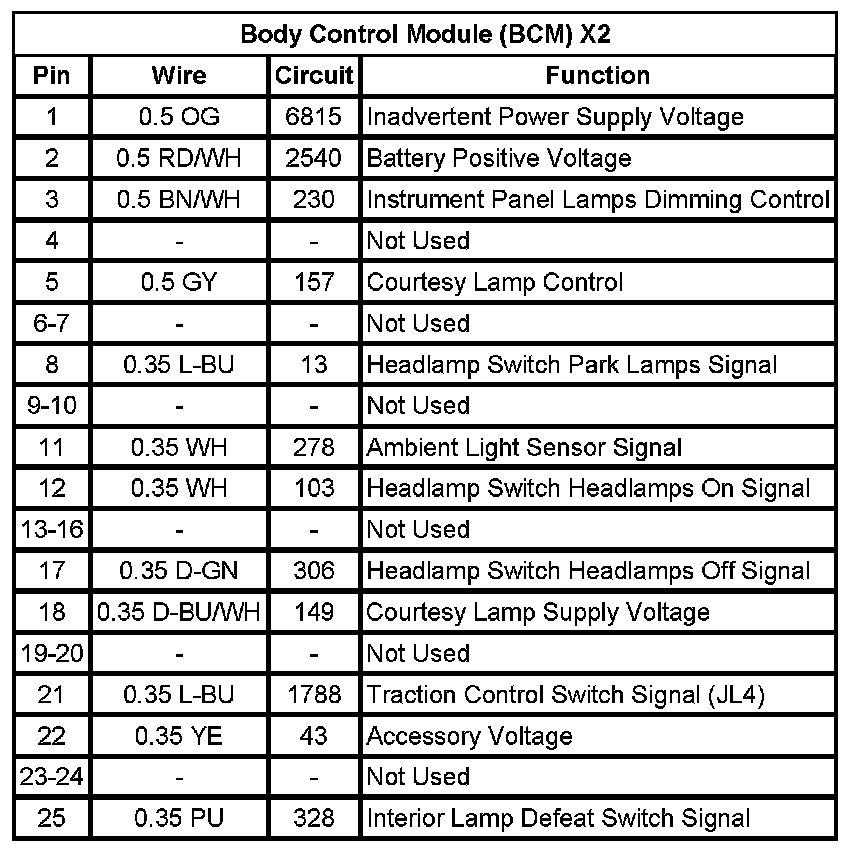

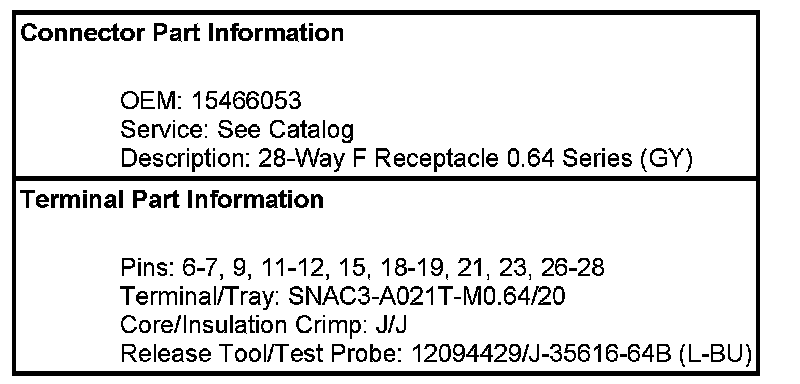

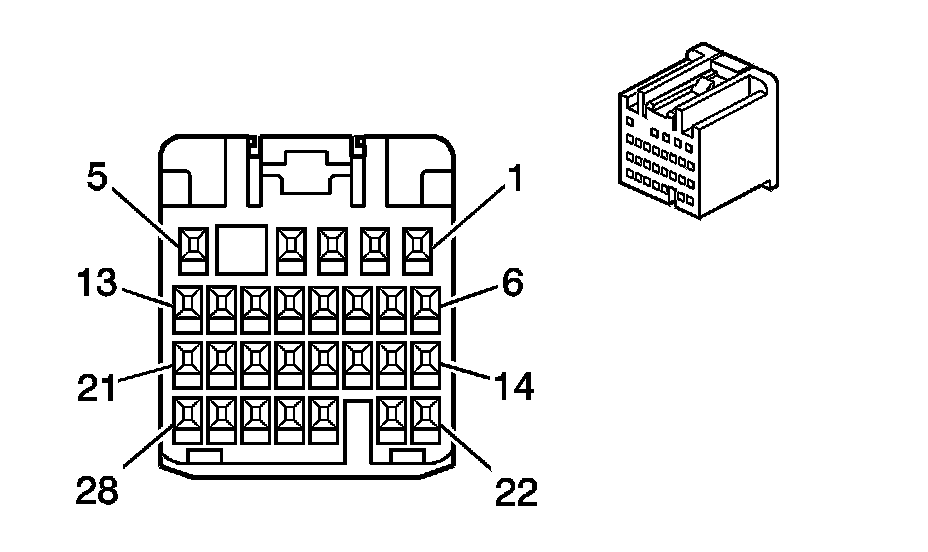

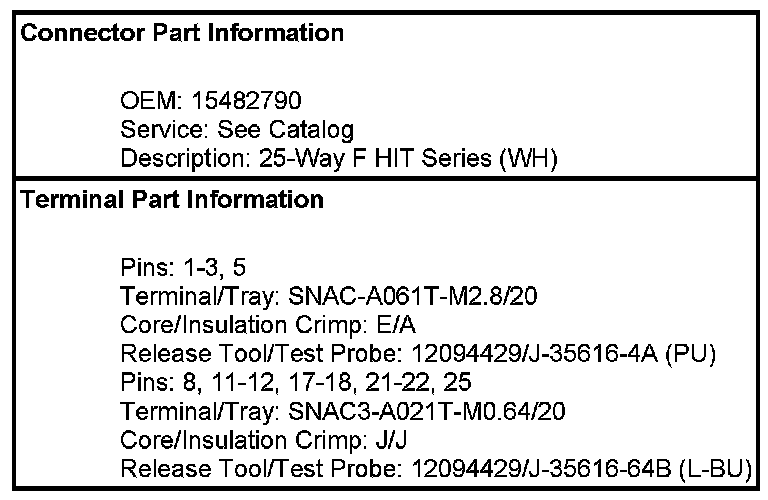

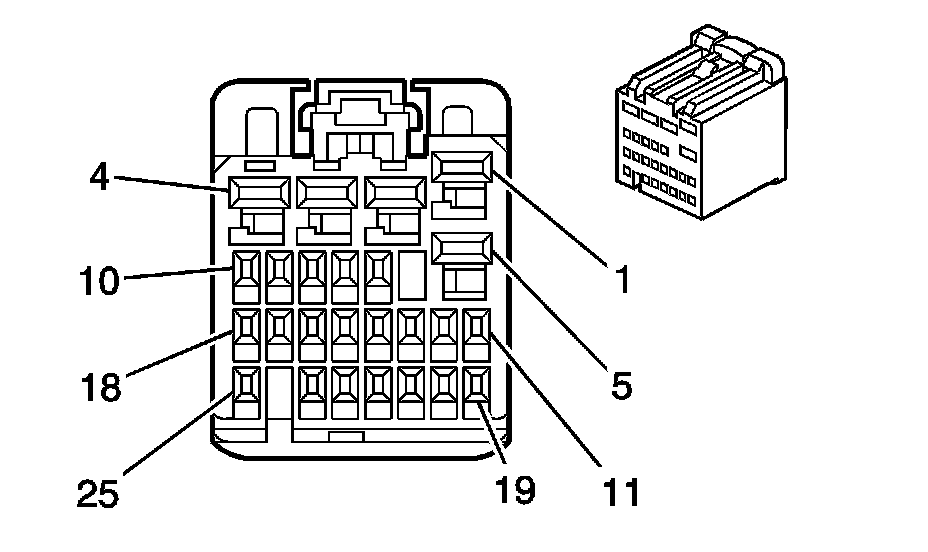

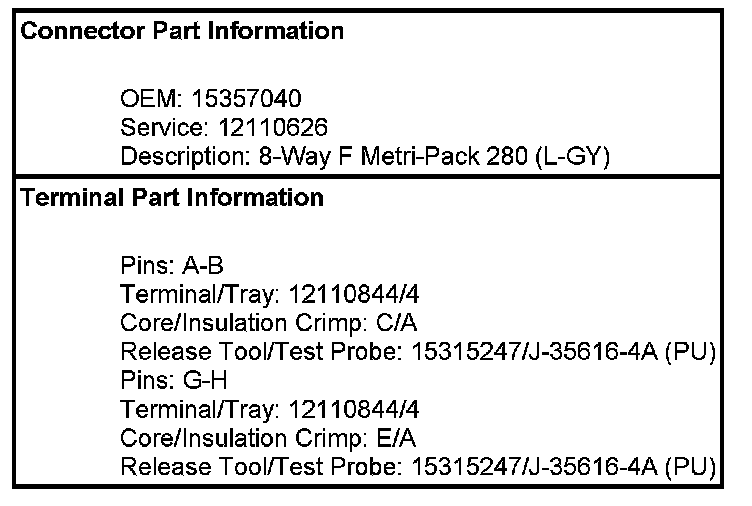

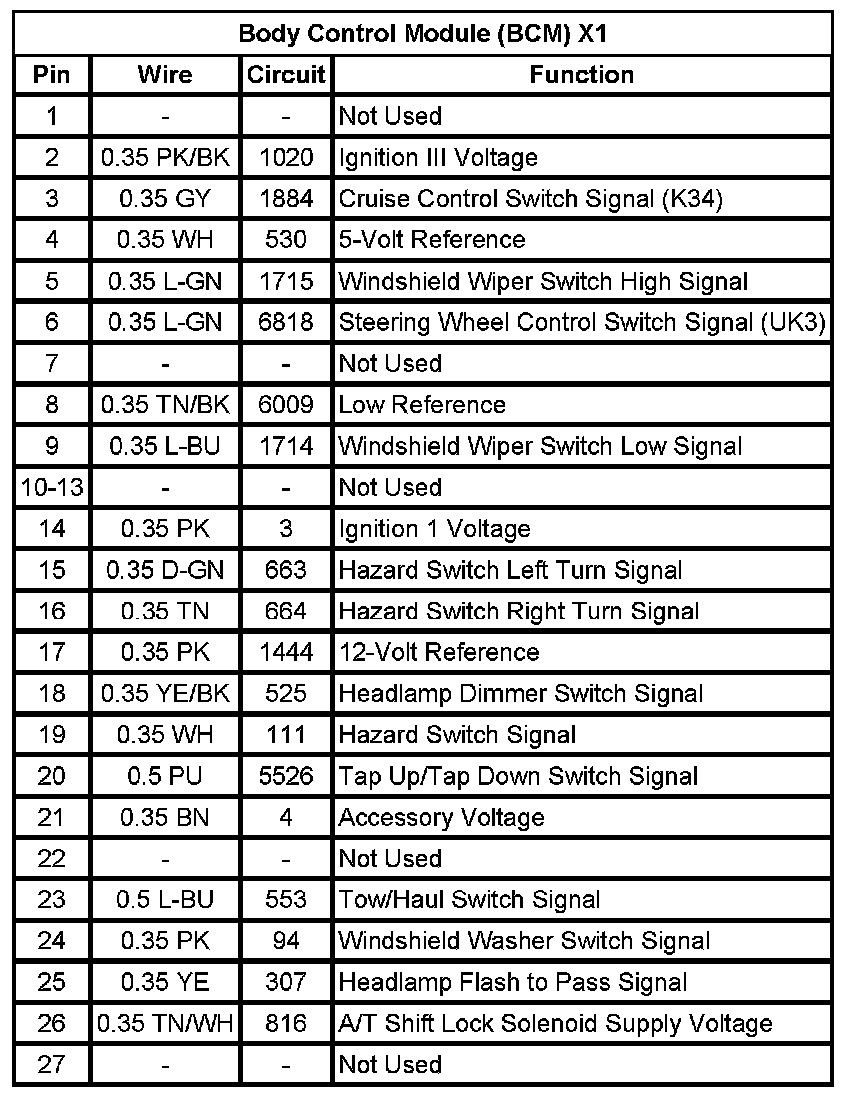

Component Connector End ViewsAuxiliary Body Control Module (XBCM) X1 (Export)Auxiliary Body Control Module (XBCM) X2 (Export)Auxiliary Body Control Module (XBCM) X1 (Export)Auxiliary Body Control Module (XBCM) X2 (Export)Body Control Module (BCM) X1Body Control Module (BCM) X2Body Control Module (BCM) X3Body Control Module (BCM) X4Body Control Module (BCM) X5Body Control Module (BCM) X6Body Control Module (BCM) X7
![]()
