Daytime Running Lamp Relay: Locations





DRL PCB Relay

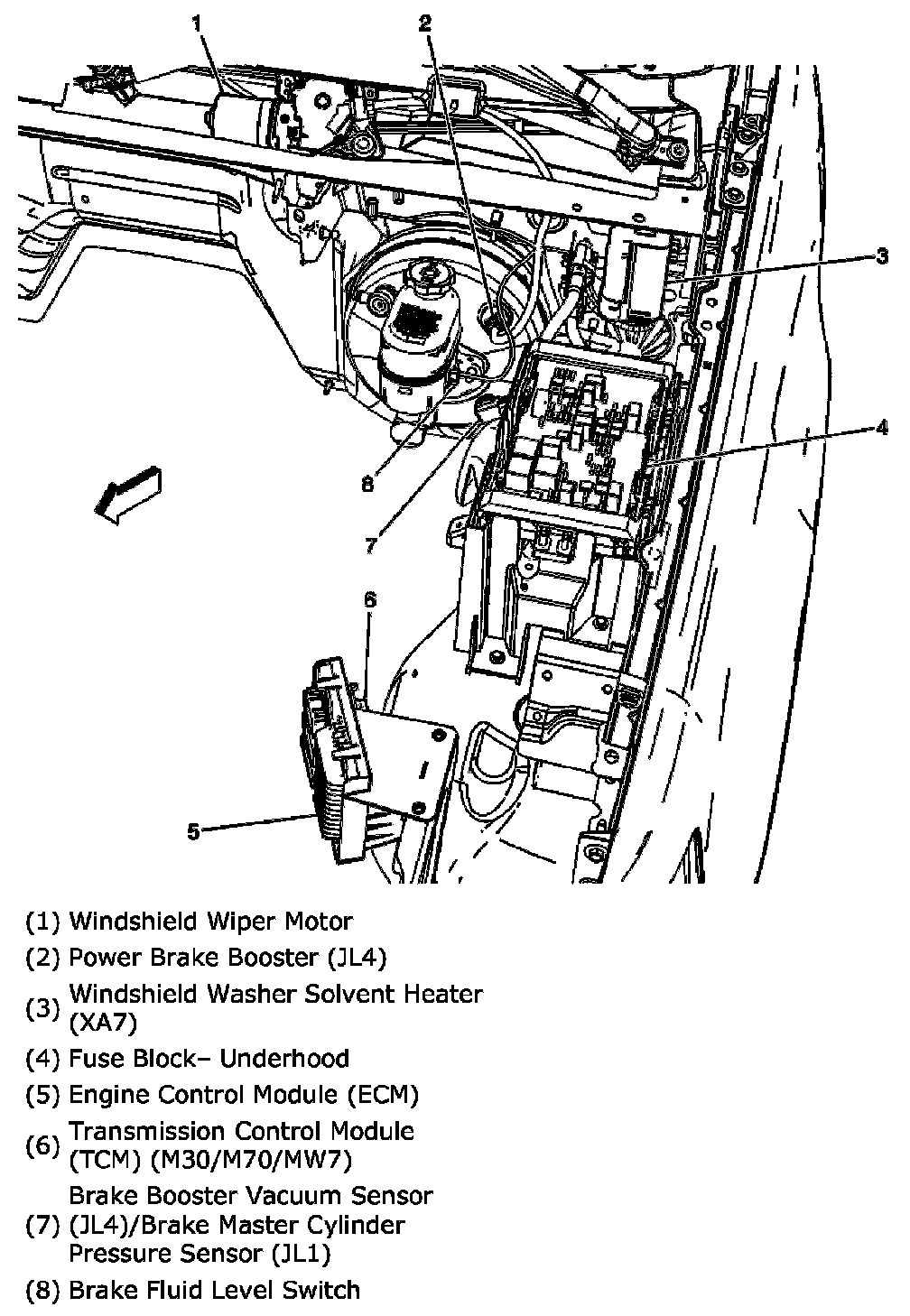

Technical service diagram





DRL PCB Relay is located in the underhood fuse block. The underhood fuse block is located on the left side of the engine compartment.

Important: DRL PCB Relay is a non-serviceable Printed Circuit Board (PCB) relay and is internal to the block Printed Circuit Board (PCB) Relay Testing.
