Alarm Module: Diagrams

Component Connector End Views - Continued

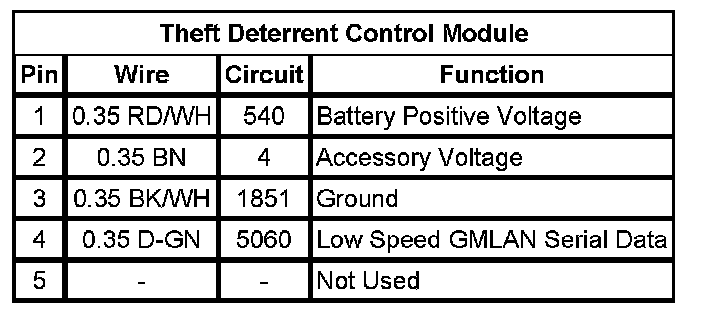

Theft Deterrent Control Module

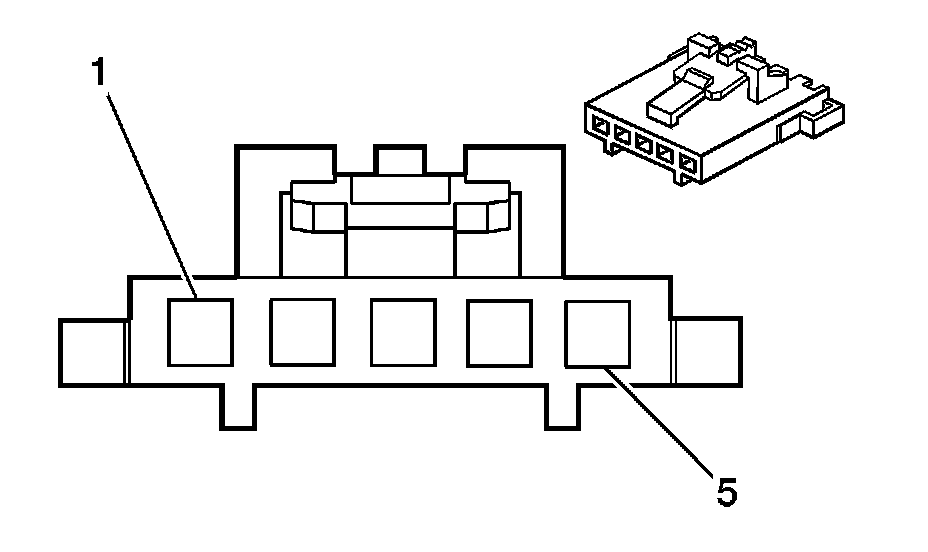

Technical service diagram

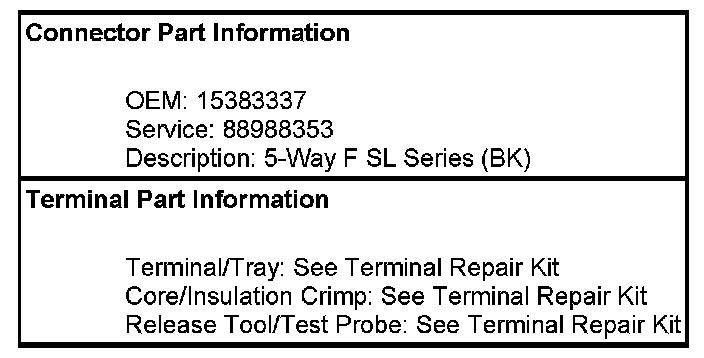

Technical service diagram

Technical service diagram
