Electrical Diagrams

Data Communication Schematics

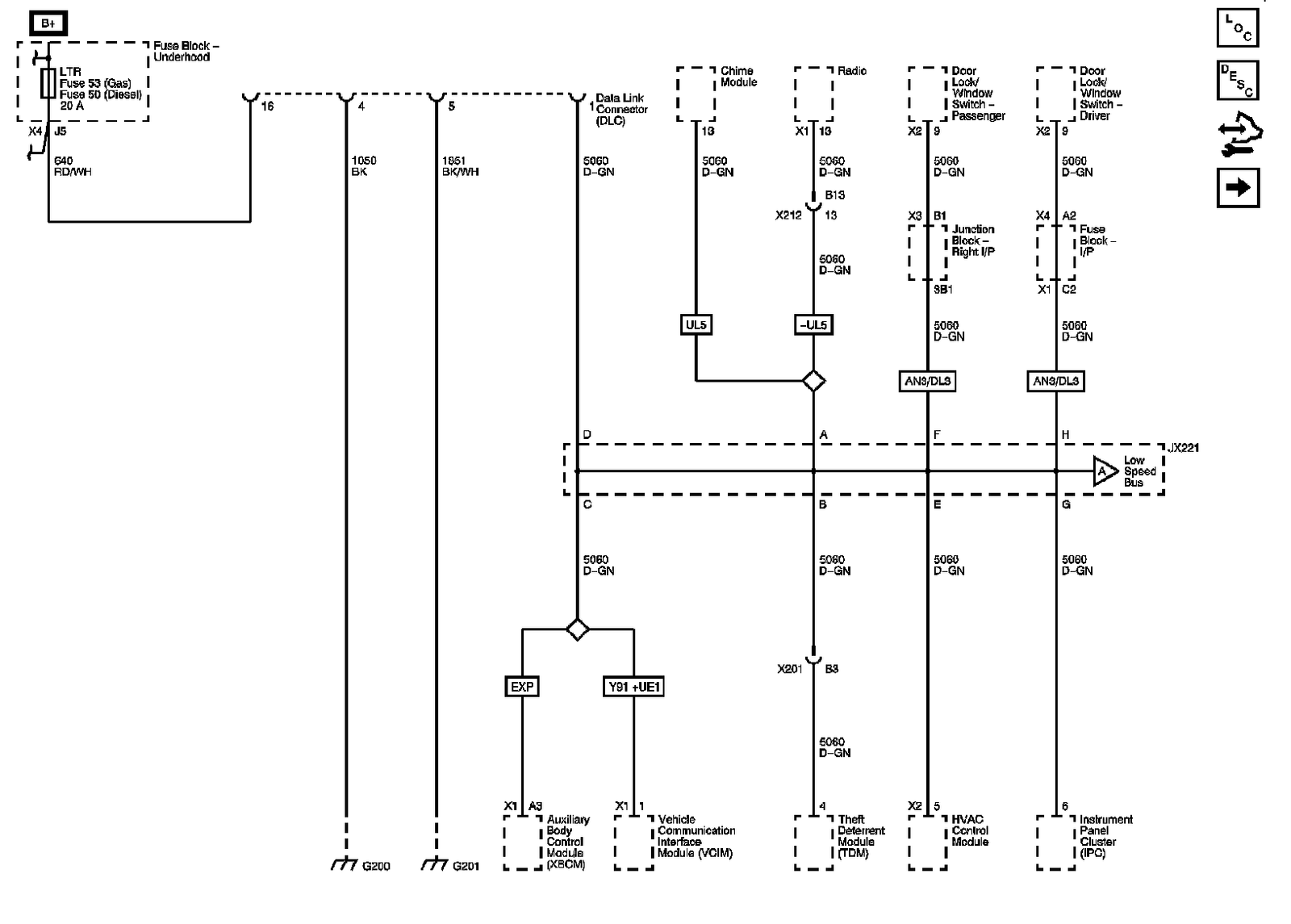

Low Speed Bus - 1 of 3

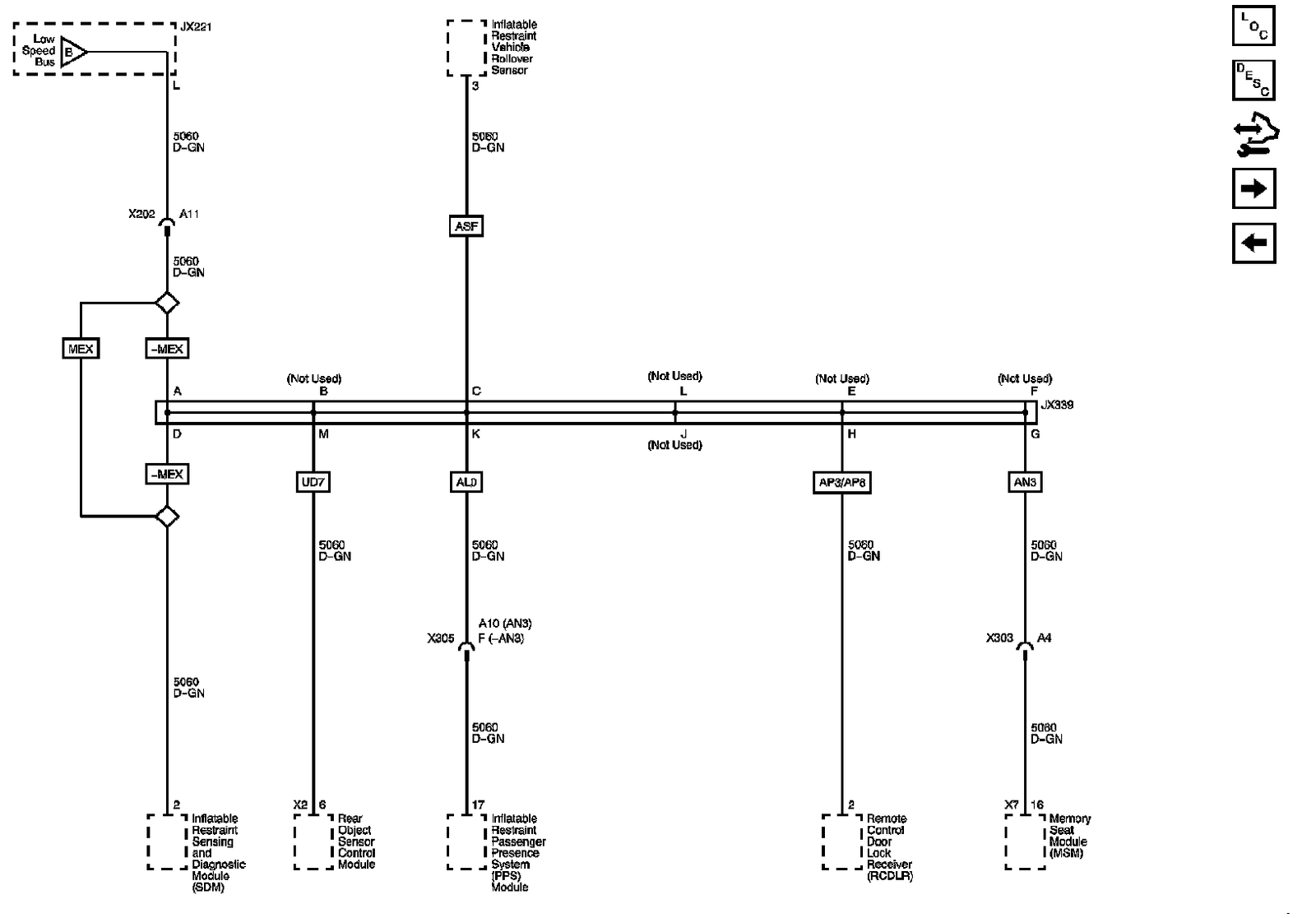

Low Speed Bus - 2 of 3

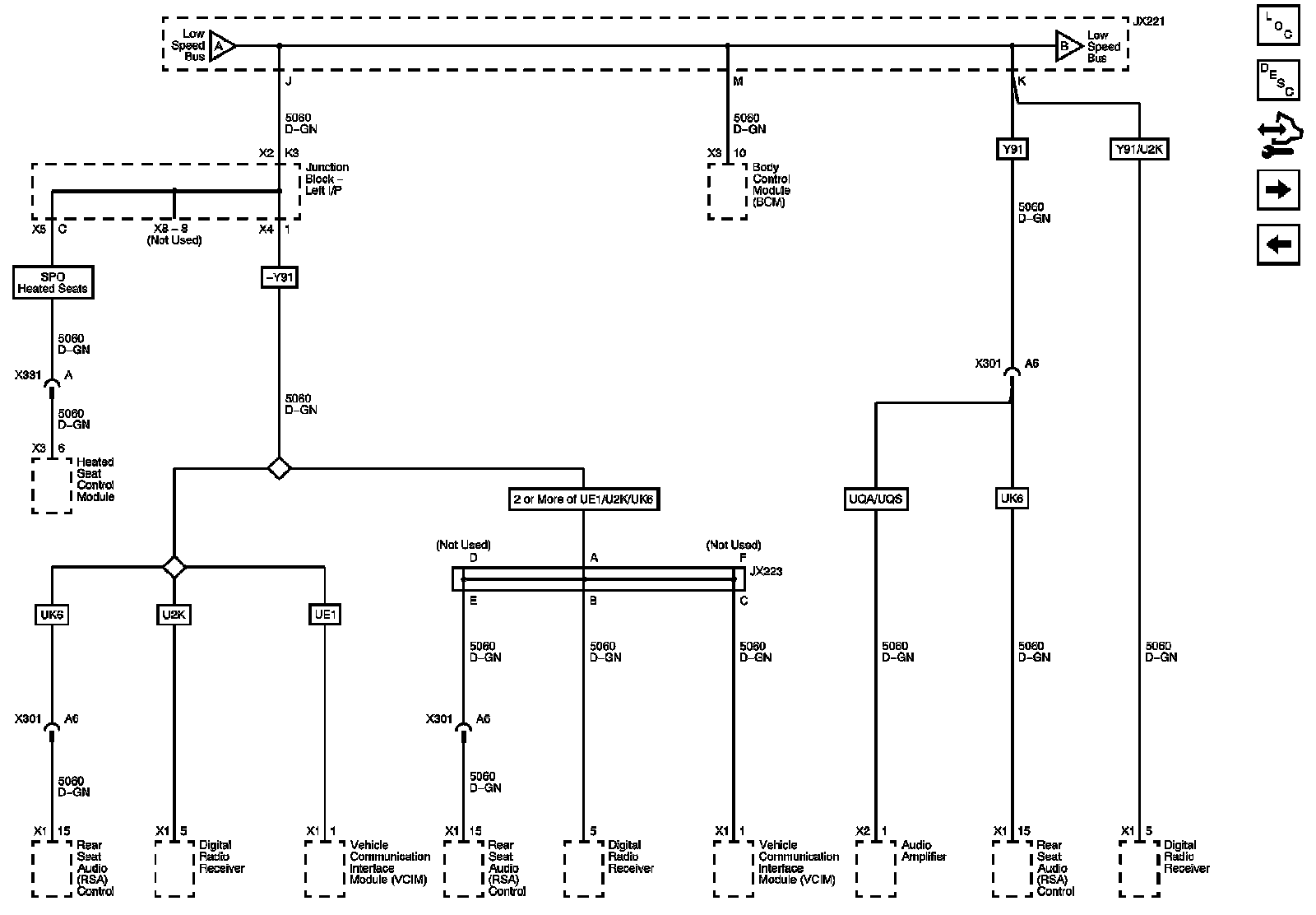

Low Speed Bus - 3 of 3

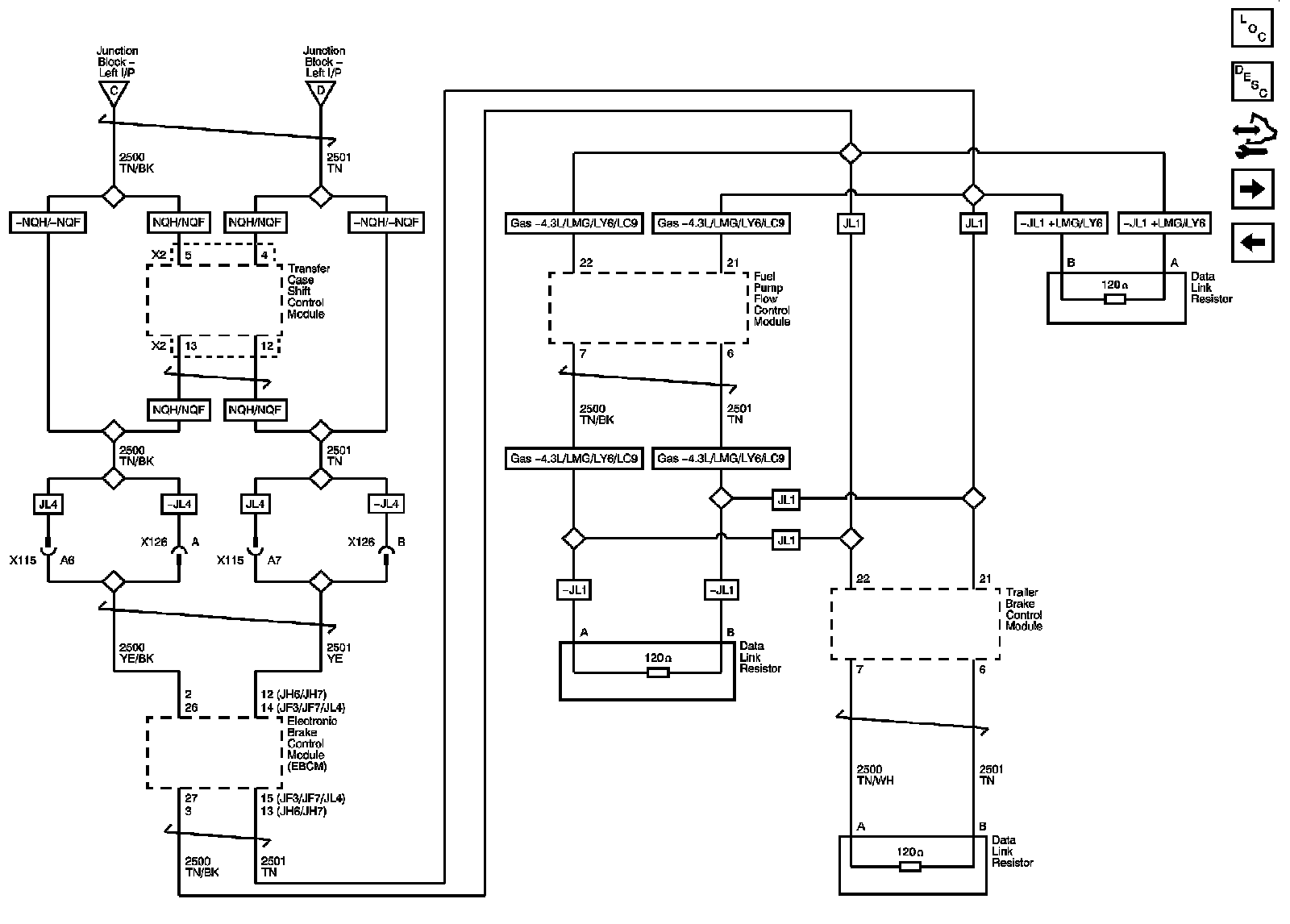

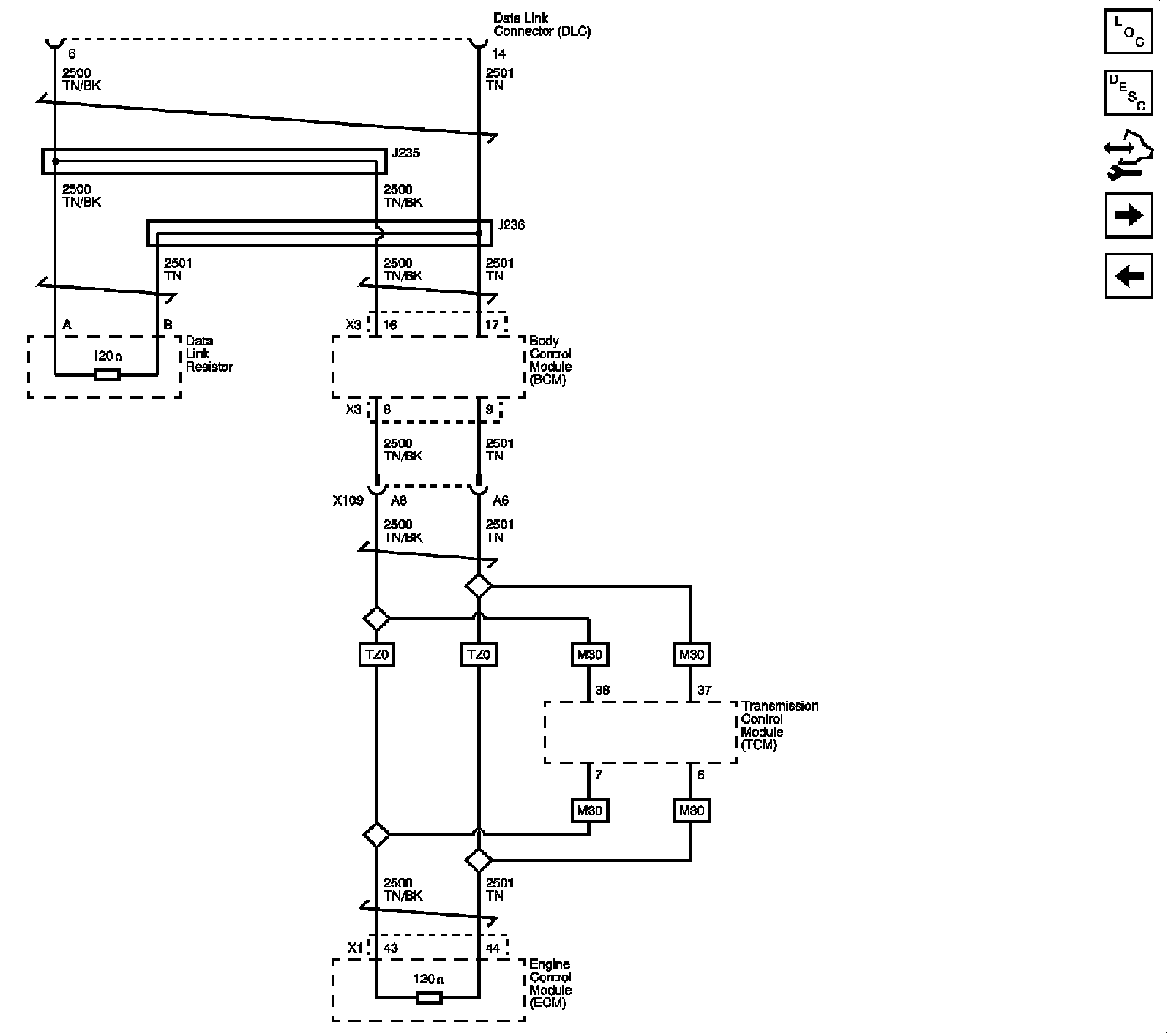

High Speed Bus - 1 of 4 (except MEX)

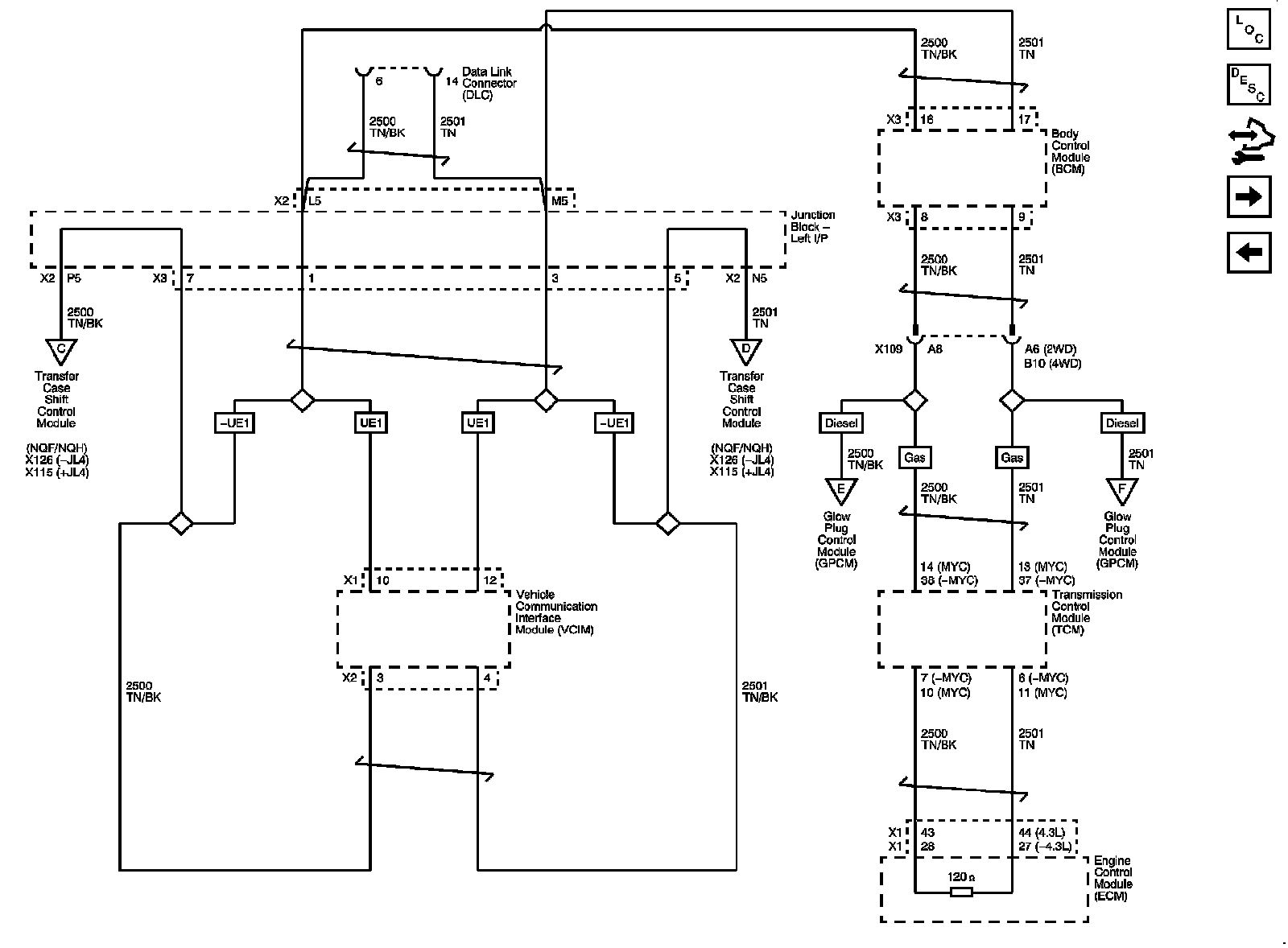

High Speed Bus - 2 of 4 (except MEX)

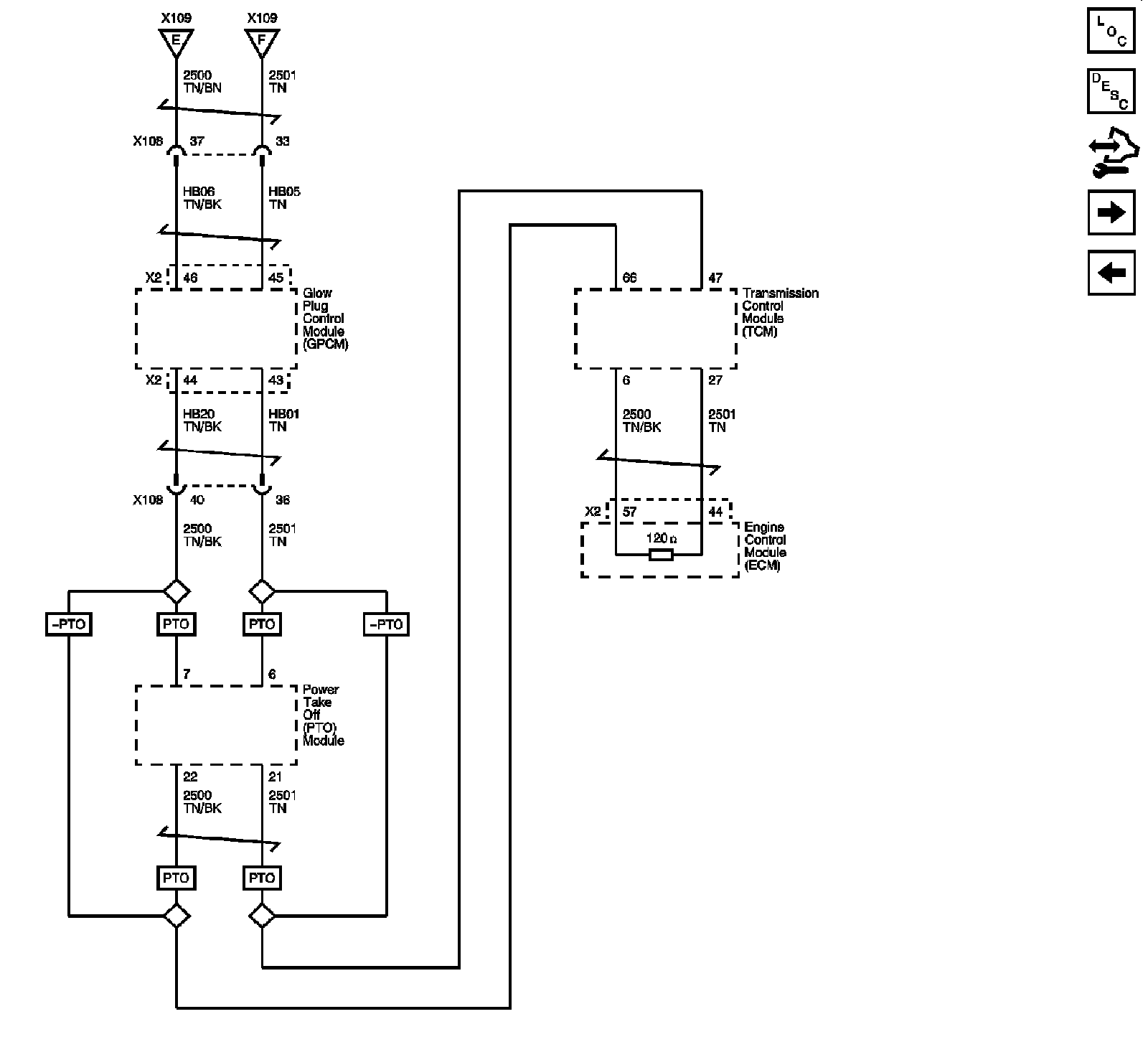

High Speed Bus - 3 of 4 (Diesel)






High Speed Bus - 4 of 4 (MEX)






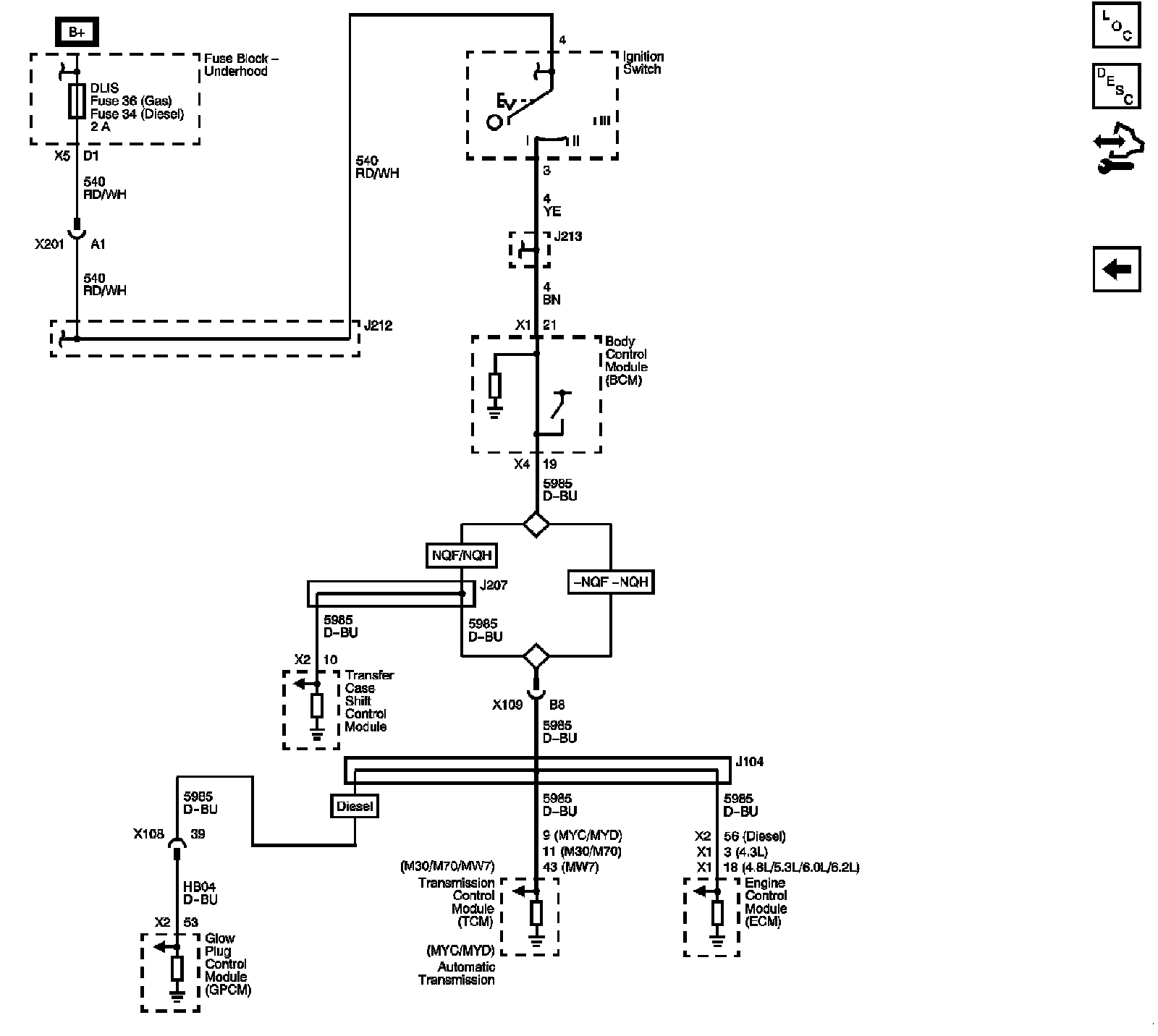

Serial Data Communication Enable

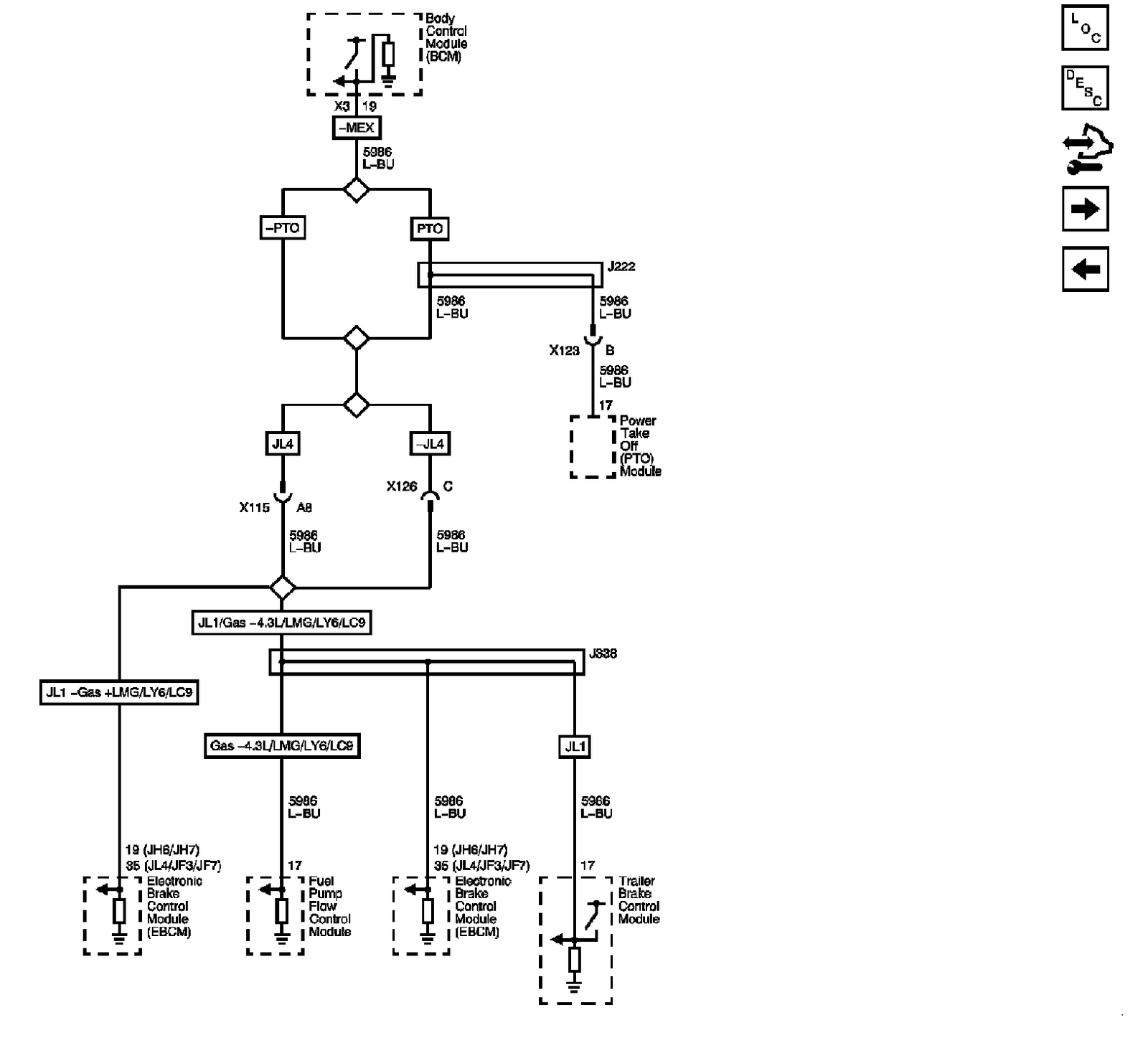

Accessory Wakeup Serial Data






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Location. Locations
