Home › Manual › Repair and Diagnosis › Specifications › Mechanical Specifications › Transfer Case › MP 1222/1225/1226-NQG - Transfer Case

Back to category Back to top Search Manual

Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

MP 1222/1225/1226-NQG - Transfer Case

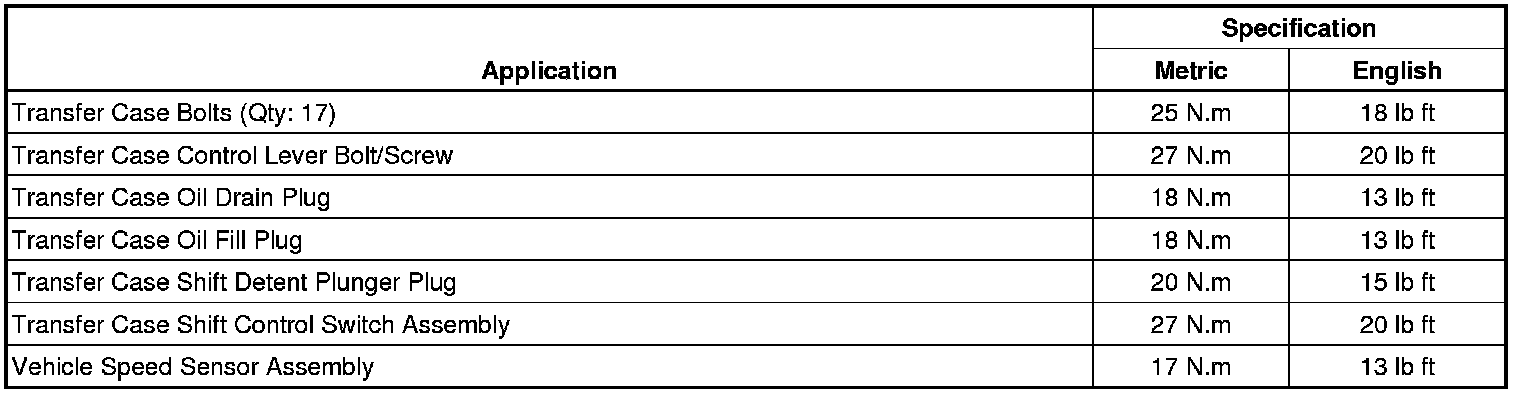

Fastener Tightening Specifications

Devin's Silverado Repair Manual
2008 Chevrolet Silverado 1500 LS · VIN 1GCEC19C58Z150516

Technical source: Operation CHARM supplied archive.
Verify all vehicle-specific fitment before repair.
