Upfitter Provision Diagrams

Upfitter Provision Schematics

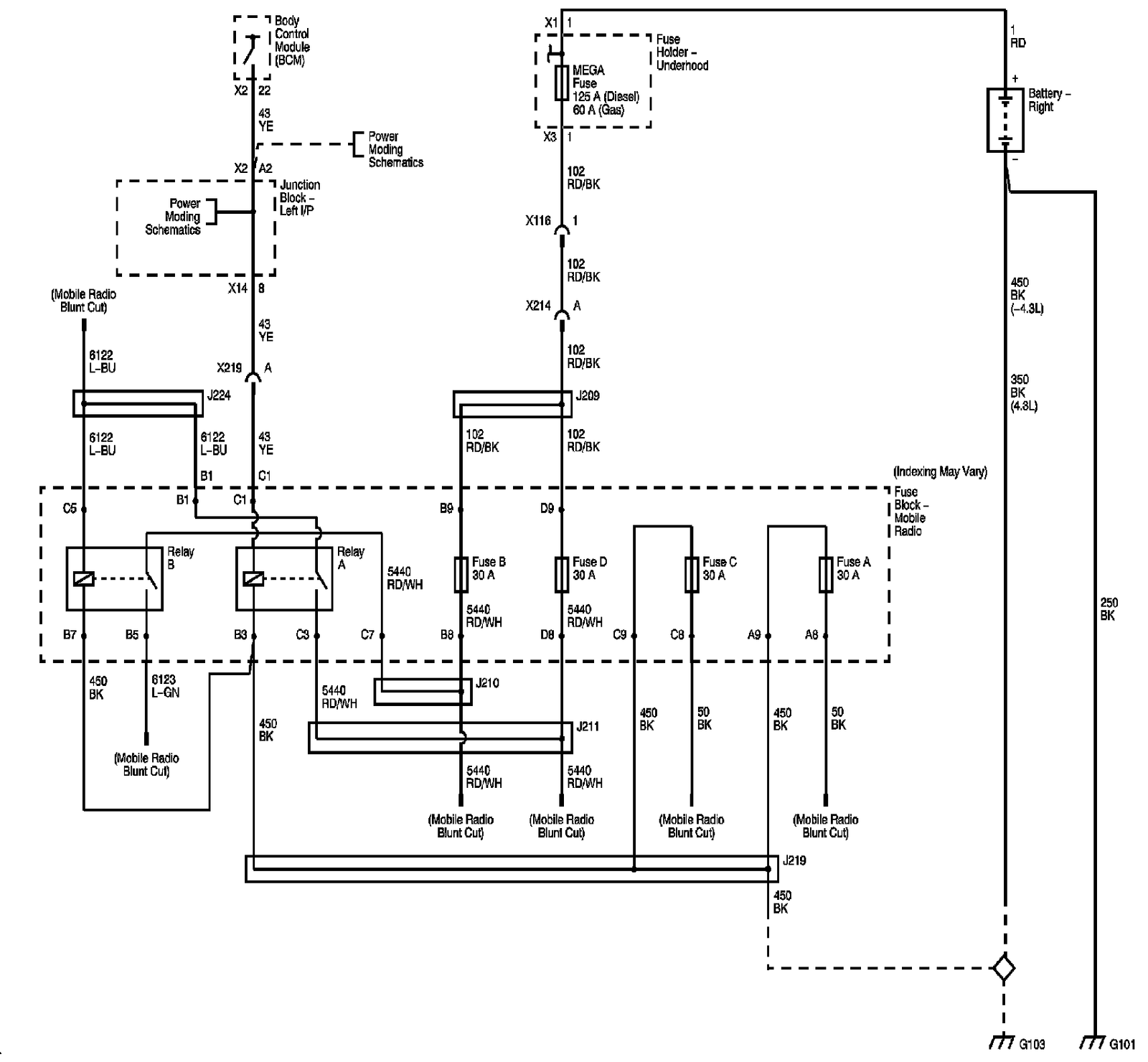

Mobile Radio Power (9L4)

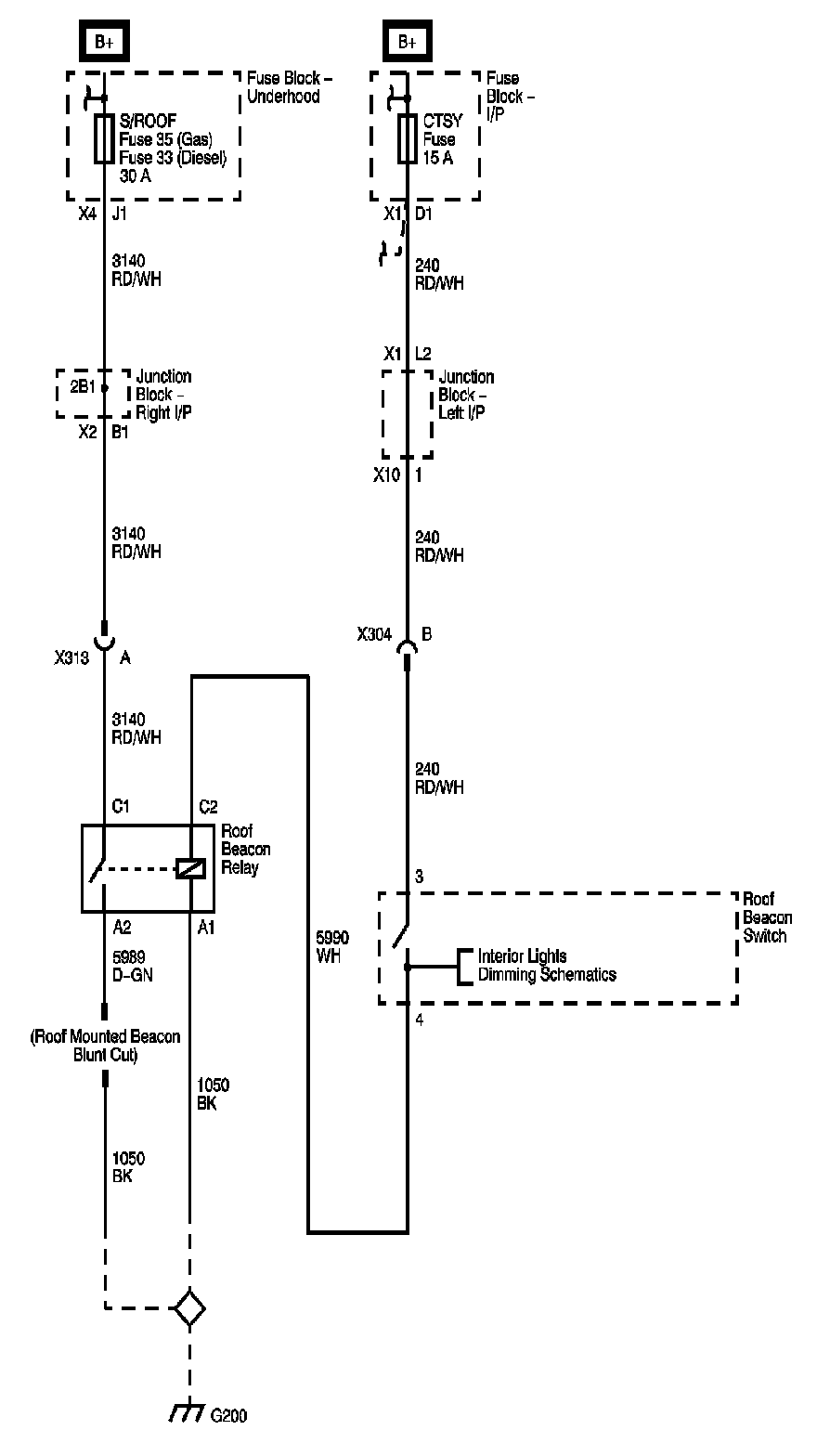

Roof Beacon Wiring (TRW)

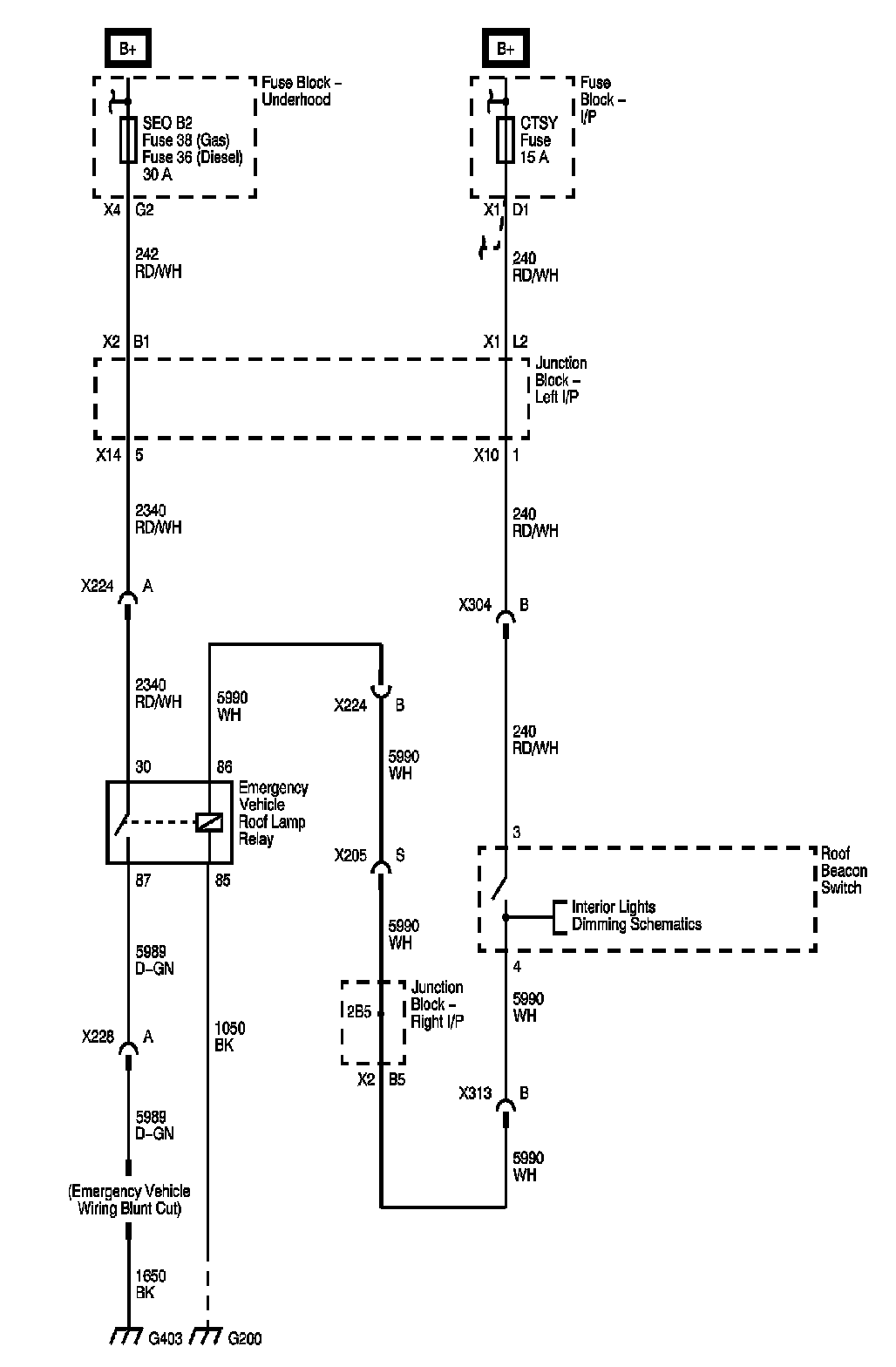

Emergency Vehicle Wiring (5Y0)

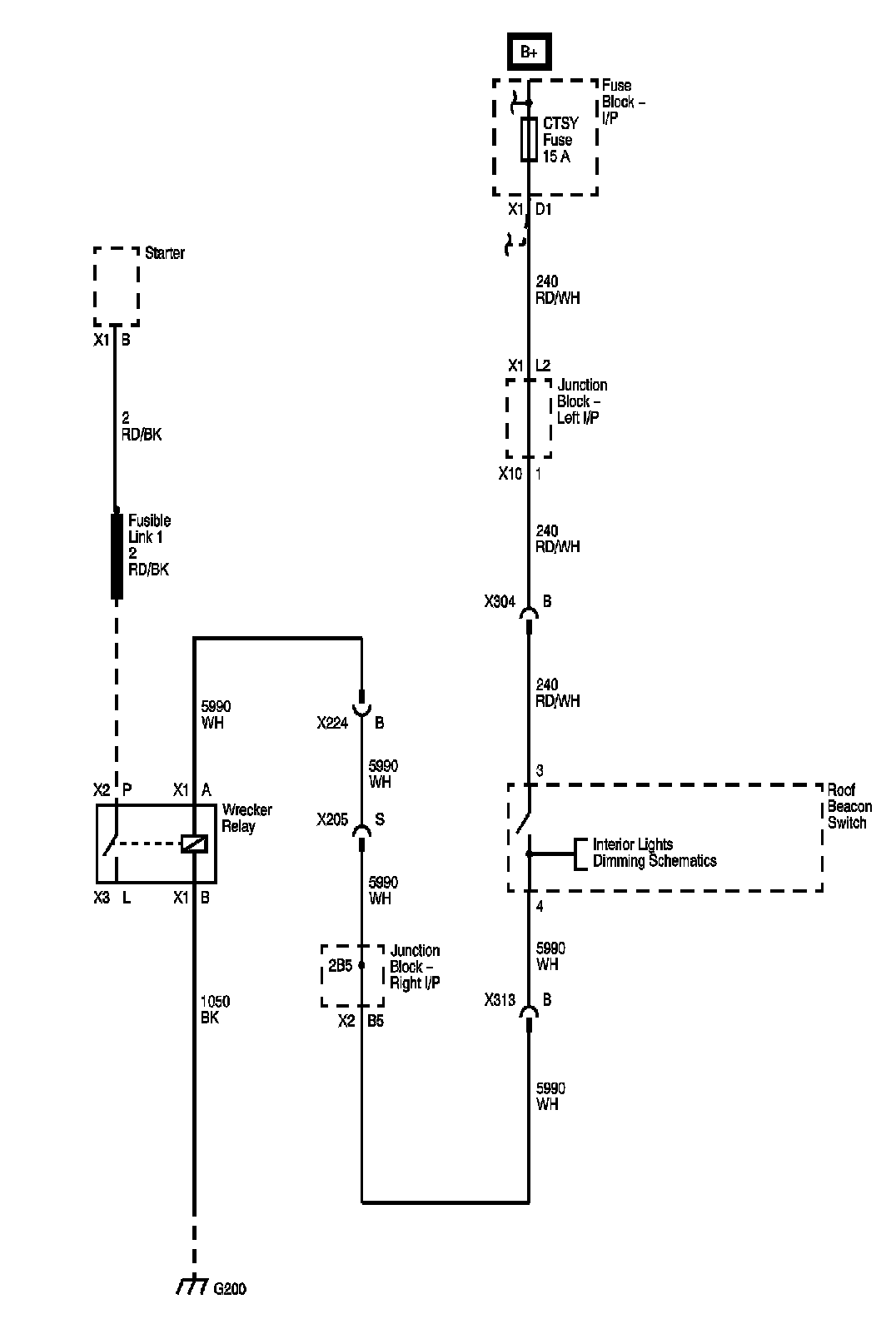

Wrecker Wiring (5X7)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
