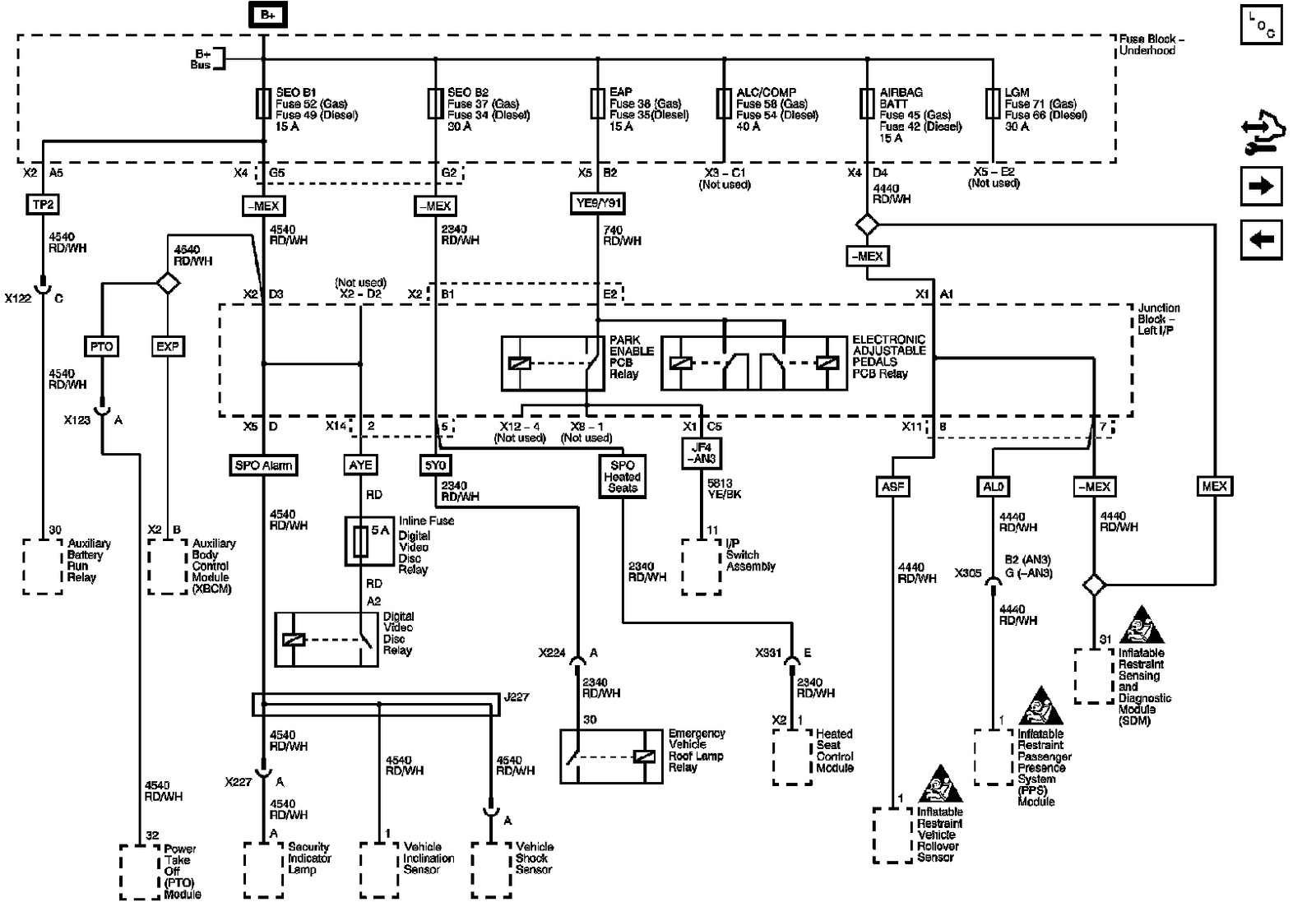

Power Distribution Diagram 15

AIRBAG BATT, ALC COMP, EAP, LGM, SEO B1 and SEO B2 Fuses






Next Diagram: Power Distribution Diagram 16

Previous Diagram: Power Distribution Diagram 14

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
