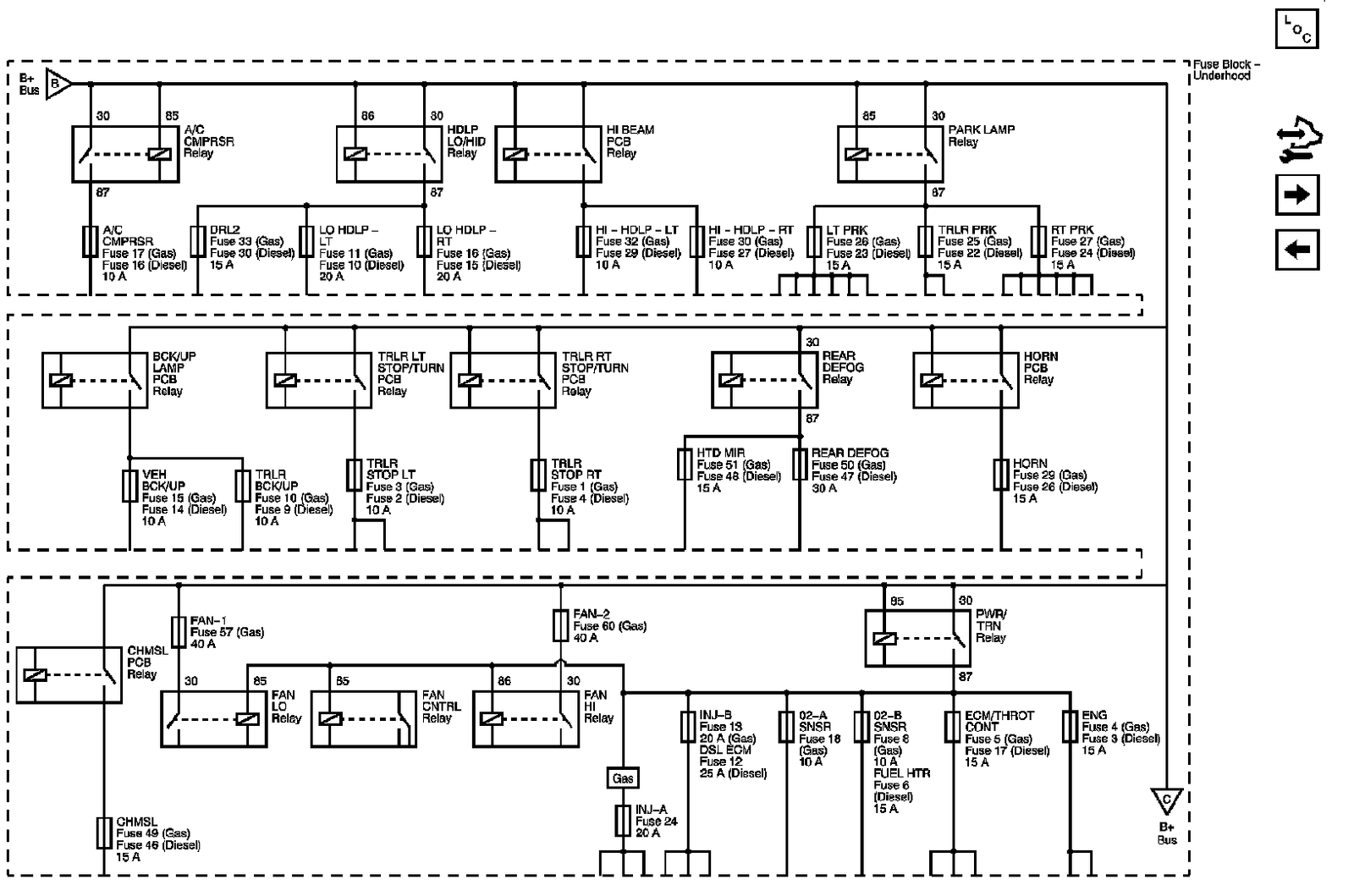

Power Distribution Diagram 3

B+ Bus - 2 of 3






Next Diagram: Power Distribution Diagram 4

Previous Diagram: Power Distribution Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
