Antilock Brakes / Traction Control Systems

Antilock Brake System Schematics

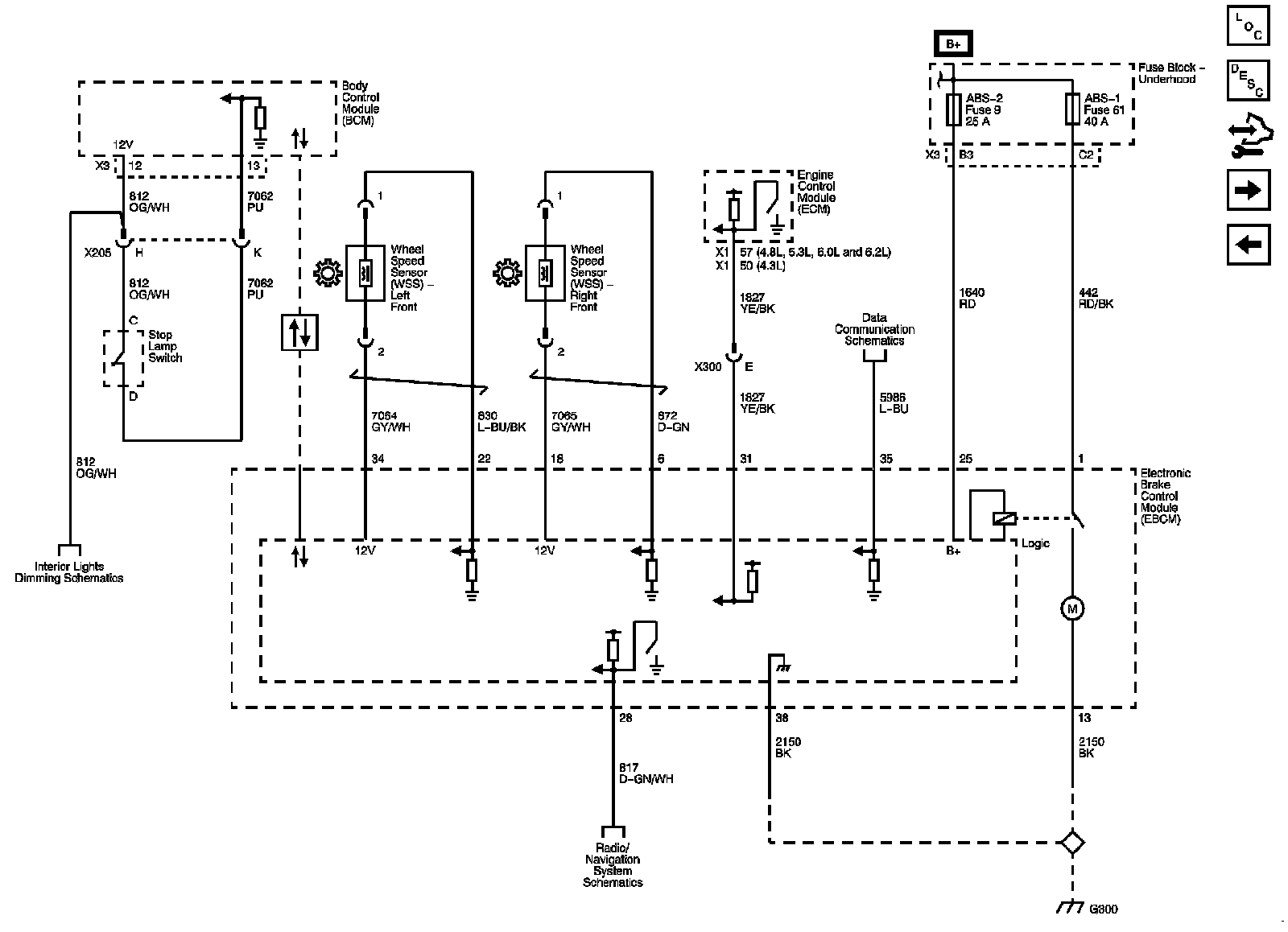

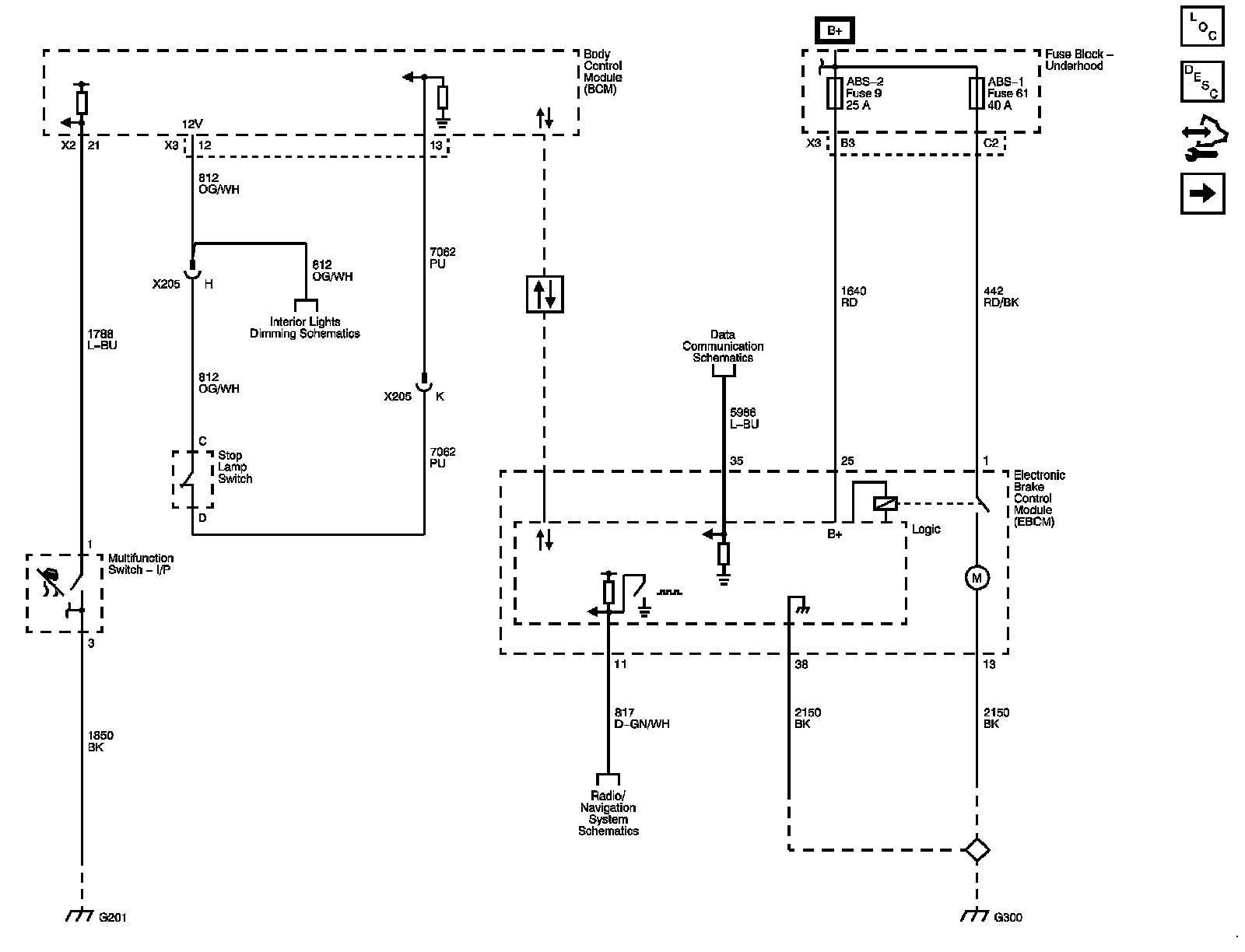

Module Power, Ground, Serial Data, Pump Motor and Brake Switch (JL4)

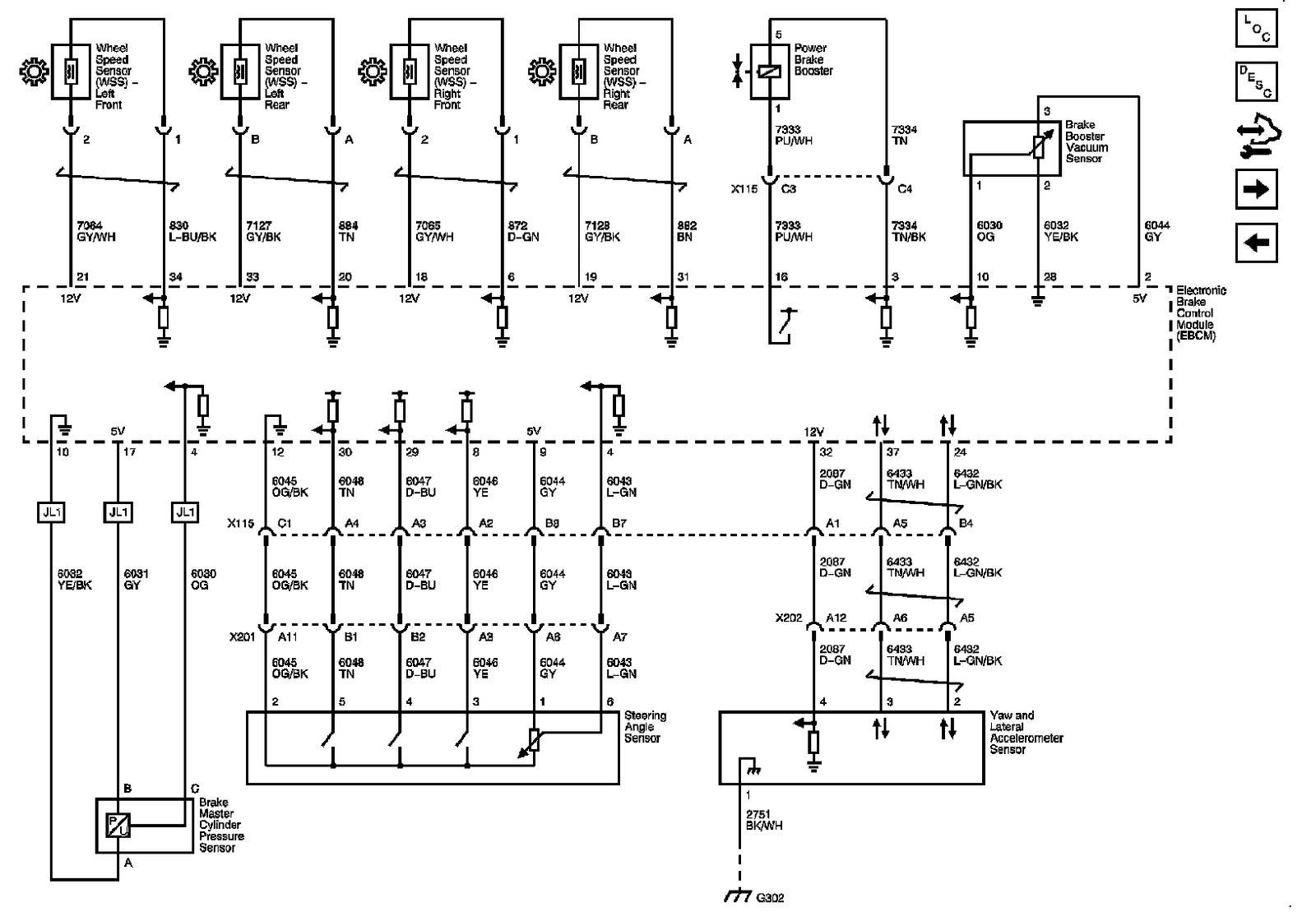

Sensor (JL4)

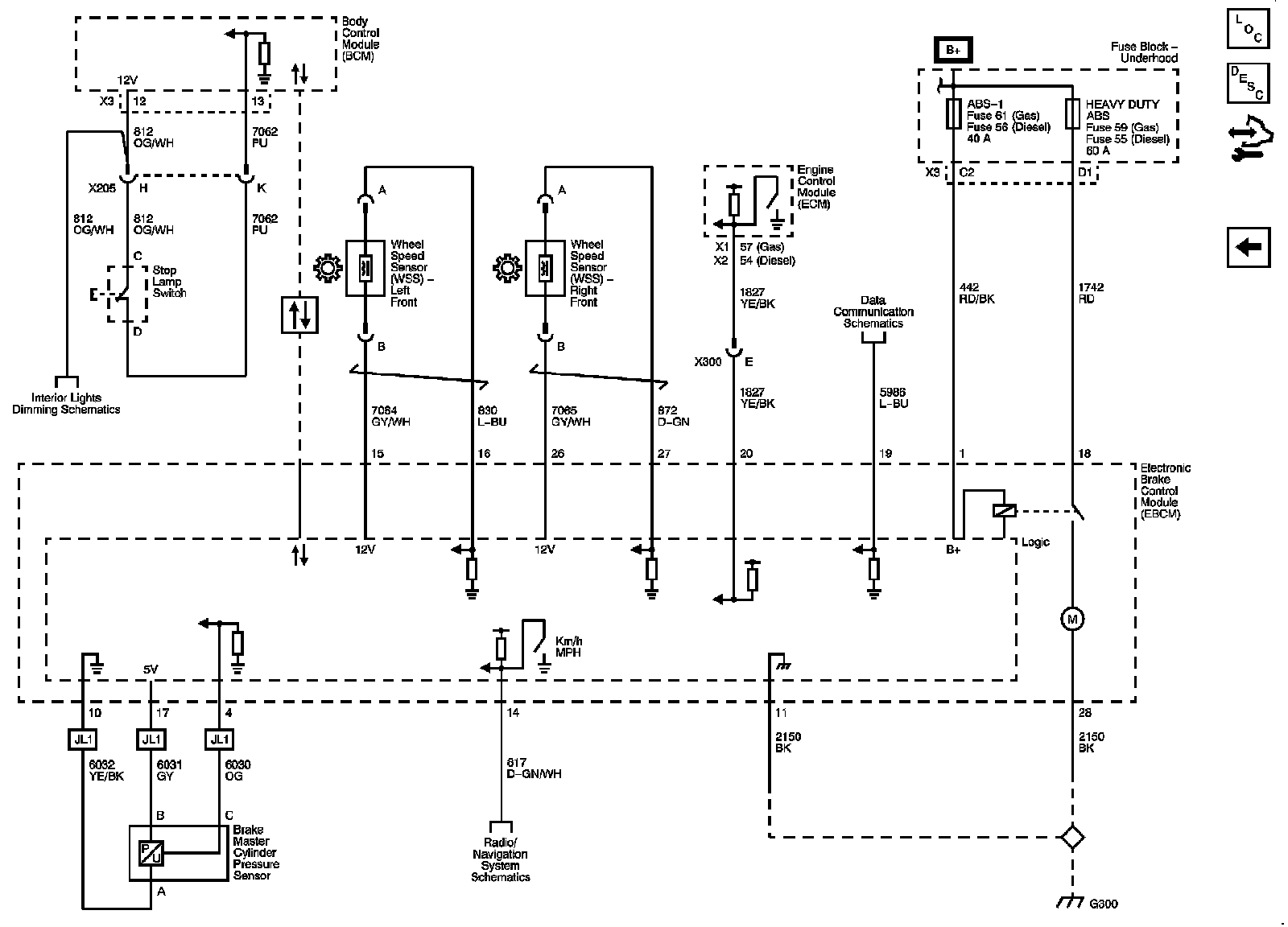

JF3/JF7






JH6/JH7






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Location. Locations
