Body Control Systems

Body Control System Schematics

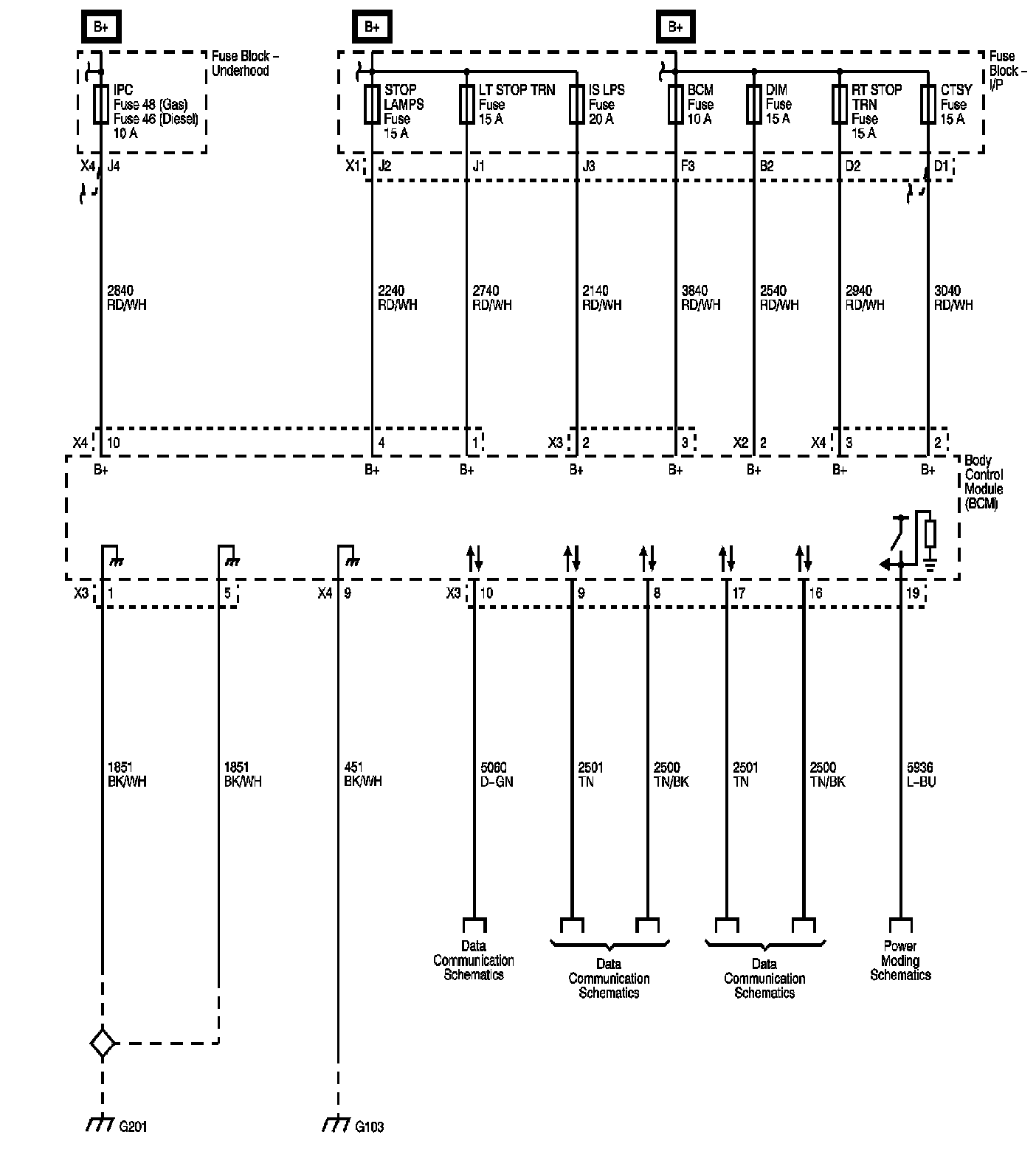

Module Power, Ground and Serial Data References

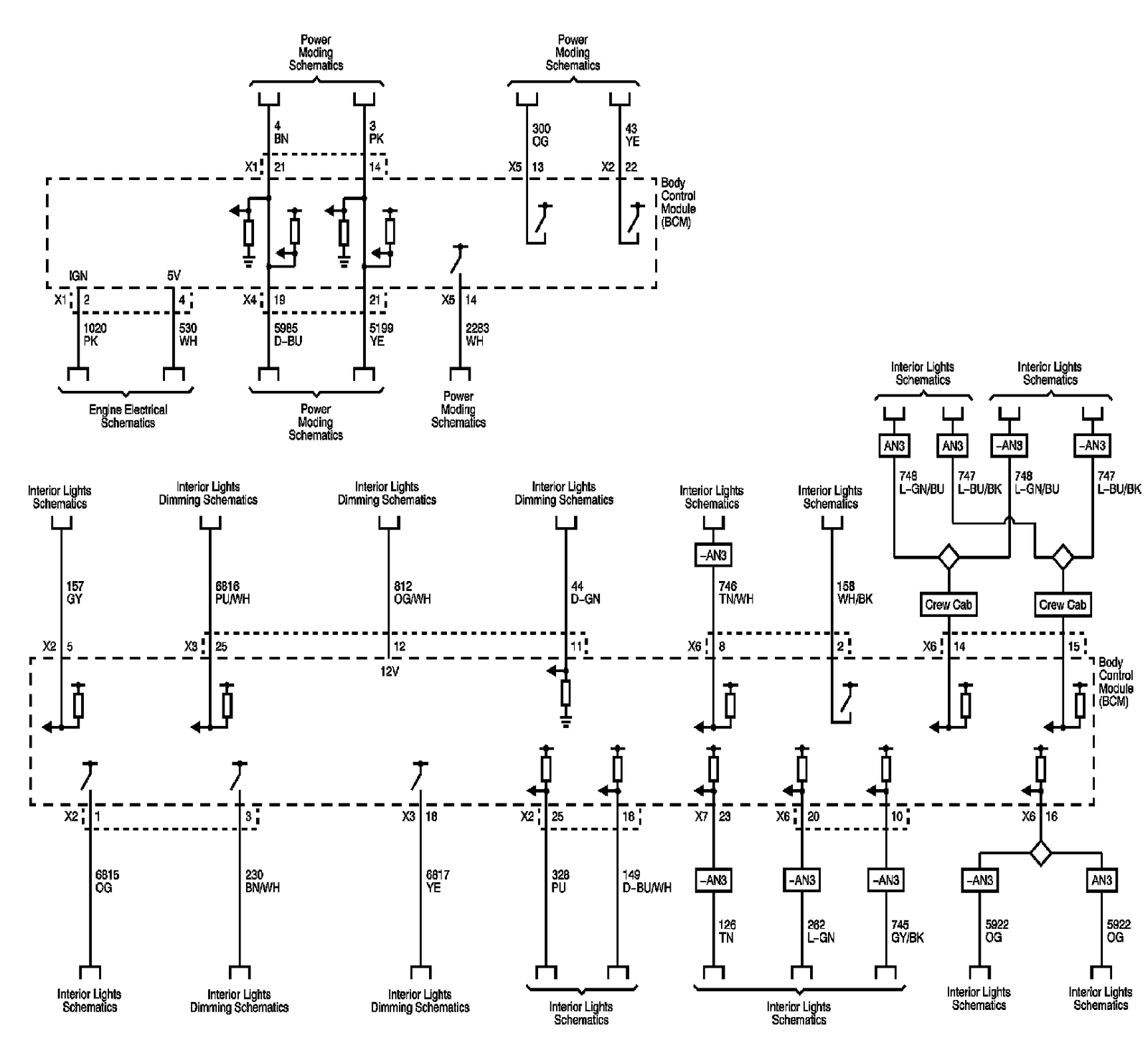

Power Moding and Interior Light References

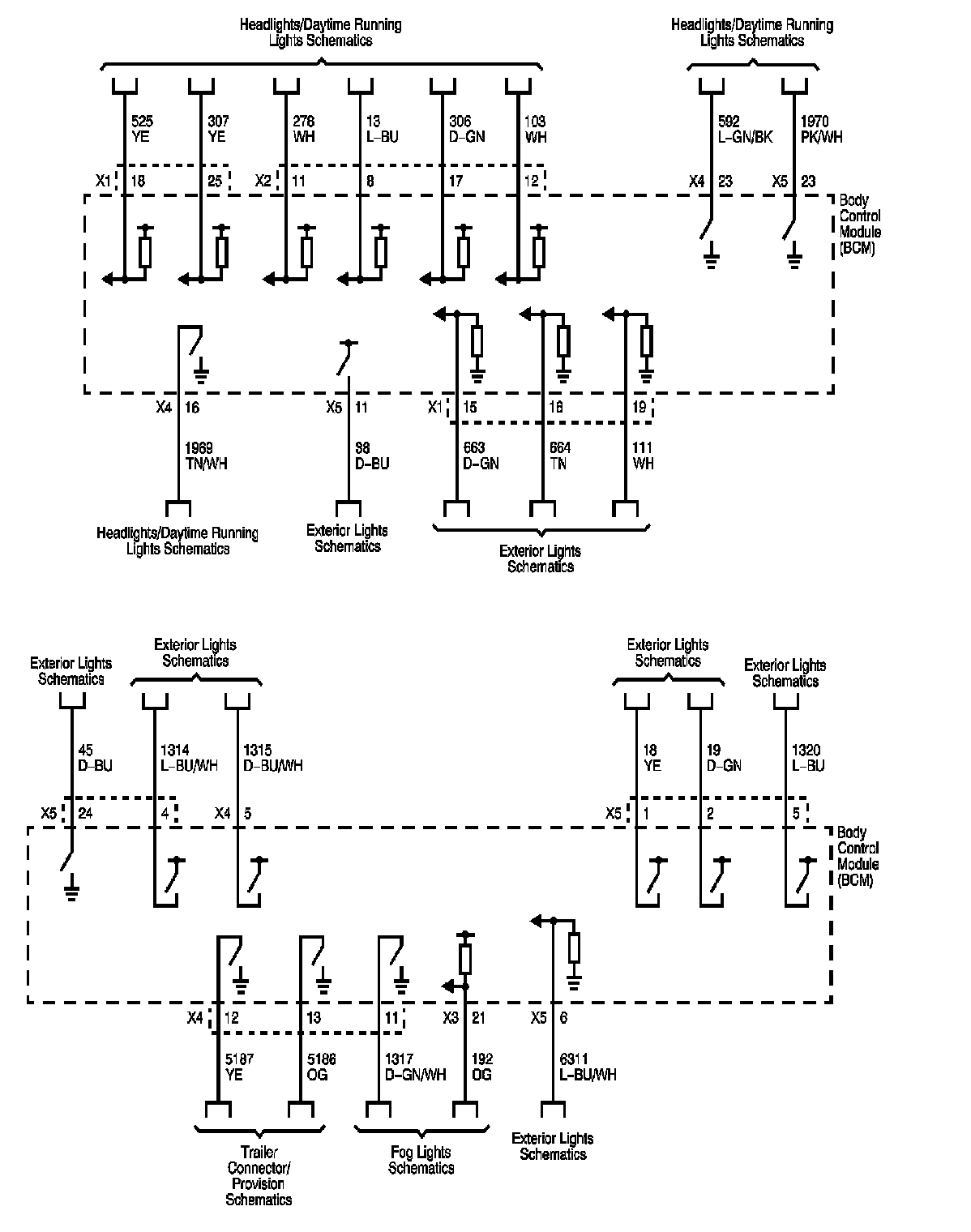

Exterior Light References

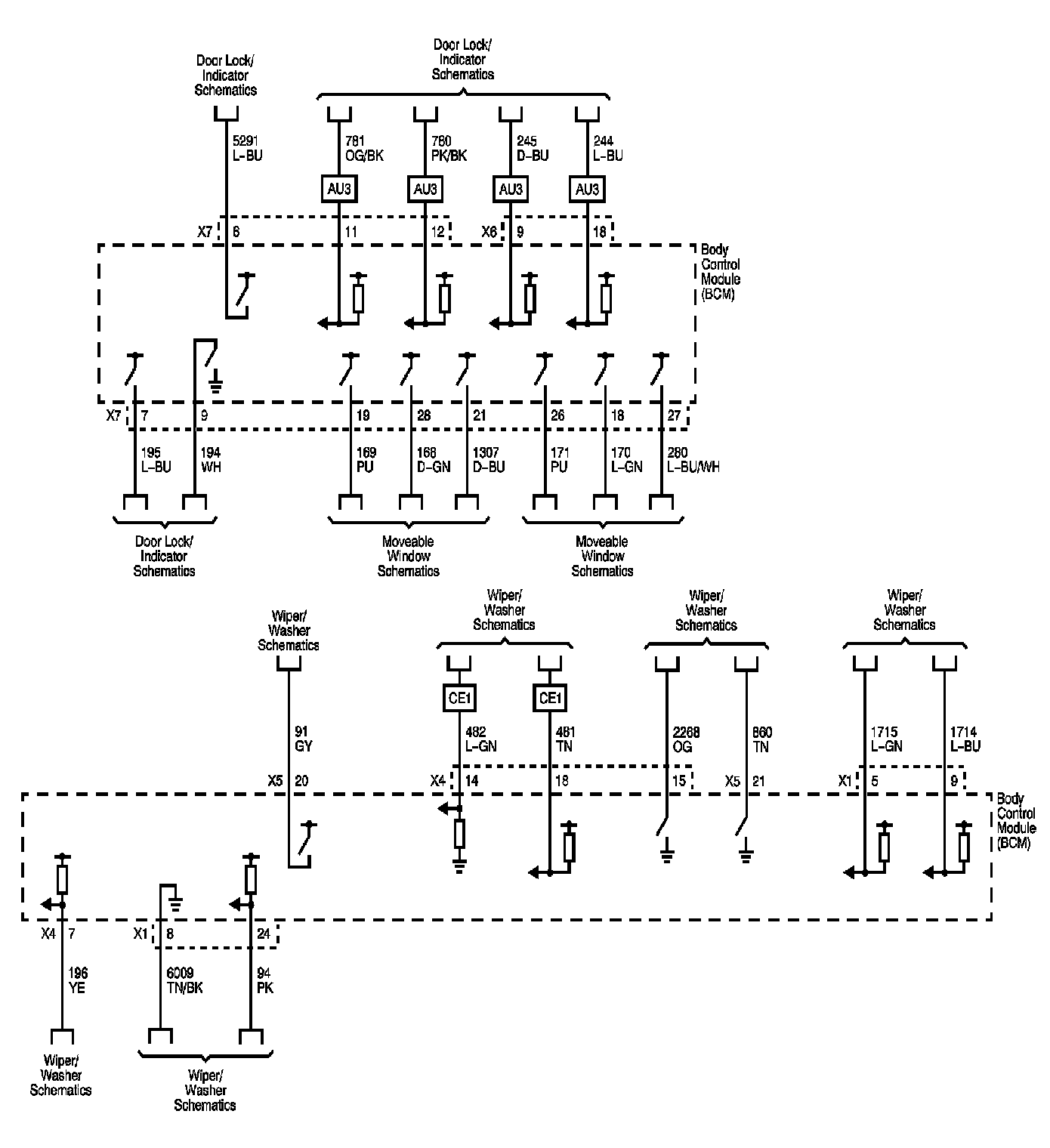

Vehicle Access and Wiper References

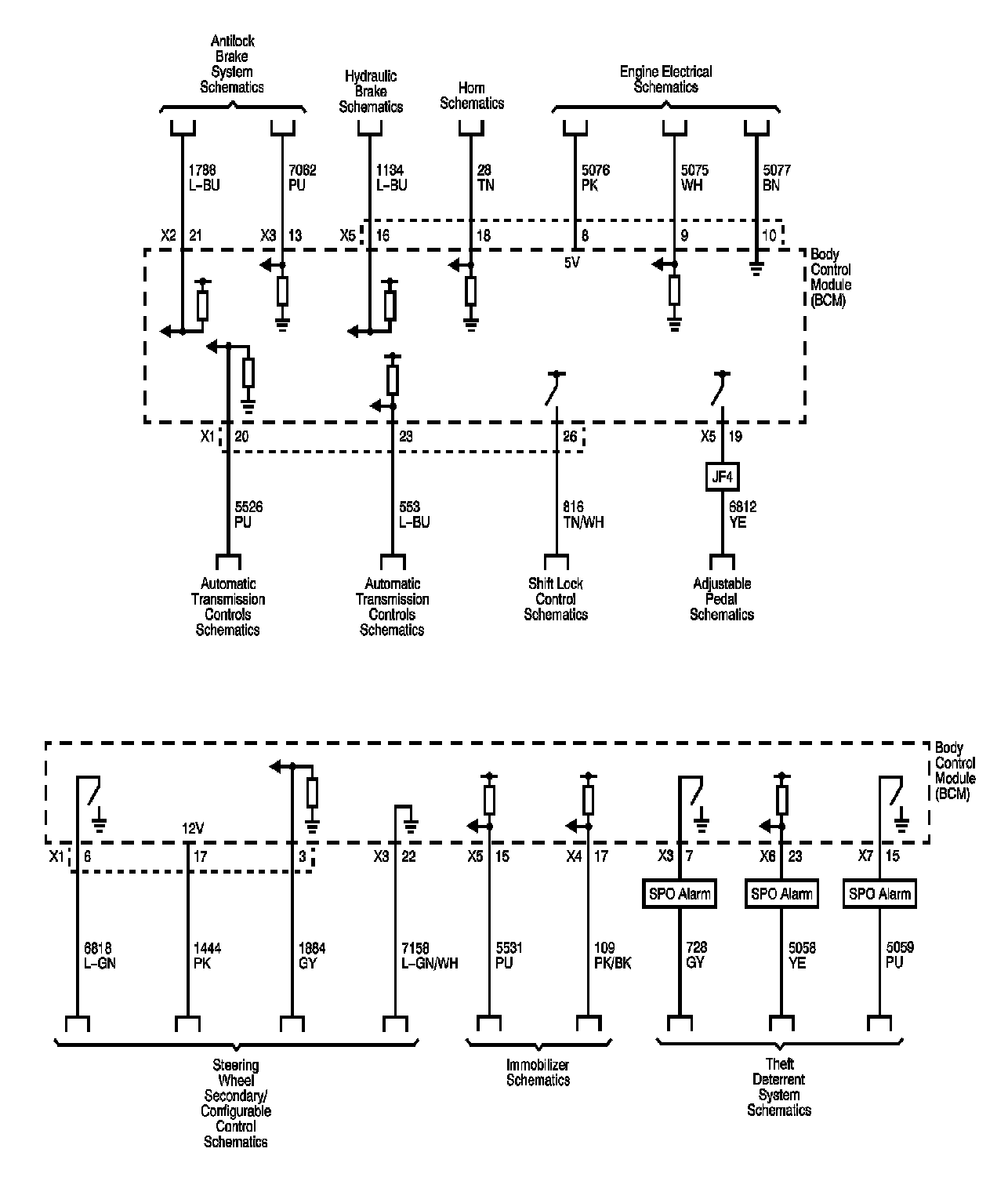

Brake, Horn, Transmission, Theft and Secondary/Configurable References






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
