Cooling Fan Pulley Replacement

Cooling Fan Pulley Replacement

Removal Procedure





1. Remove the drive belt. Refer to Drive Belt Replacement () .
2. Remove the fan clutch. Refer to Fan Clutch Replacement (Diesel) () .

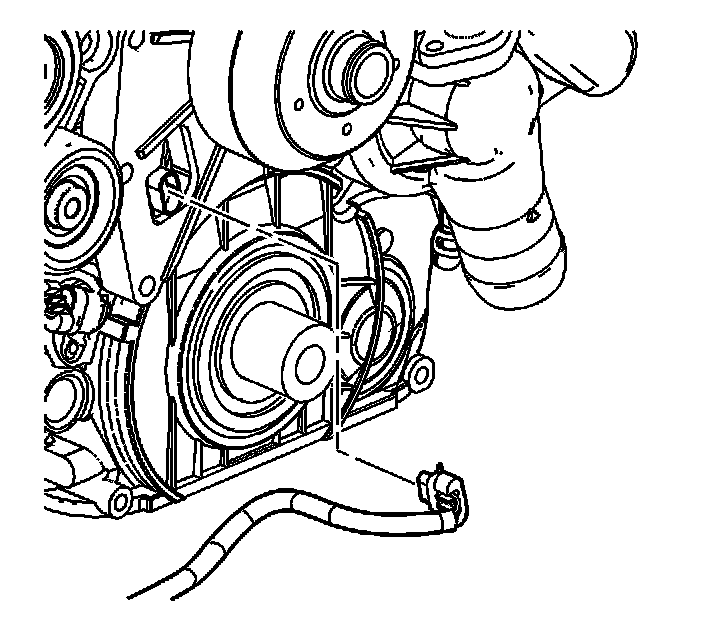

3. Disconnect the camshaft position (CMP) sensor electrical connector.

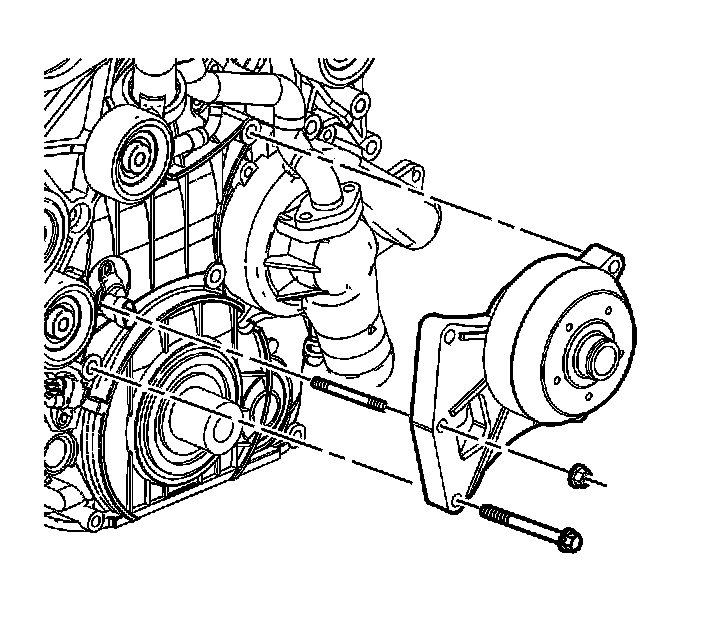

4. Remove the fan pulley bolts/nuts.
5. Remove the fan pulley.



Installation Procedure





1. Install the fan pulley.
Notice: Refer to Fastener Notice .


2. Install the fan pulley bolts/nuts.

Tighten the bolts/nuts to 41 N.m (30 lb ft).





3. Connect the CMP sensor electrical connector.
4. Install the fan clutch. Refer to Fan Clutch Replacement (Diesel) () .
5. Install the drive belt. Refer to Drive Belt Replacement () .
