Security Lamp/Indicator

Component Connector End Views - Continued

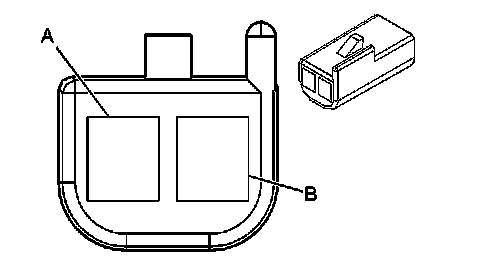

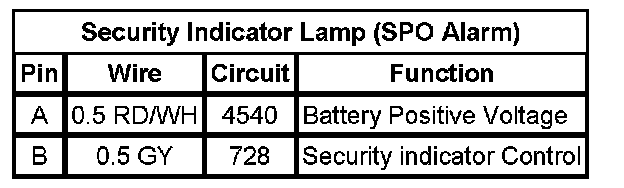

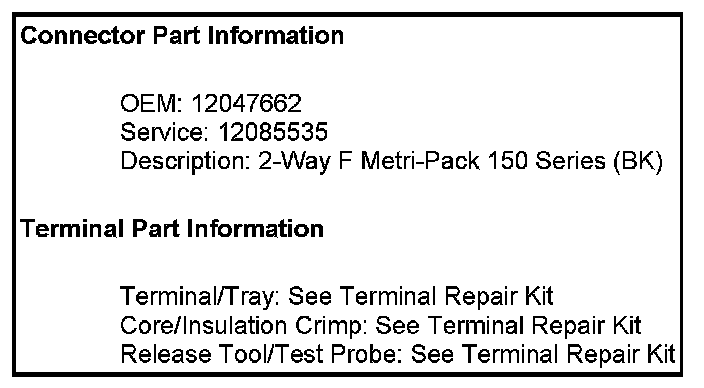

Security Indicator Lamp (SPO Alarm)

Technical service diagram

Technical service diagram

Technical service diagram
