Power Seat Motor
Component Connector End Views - Continued

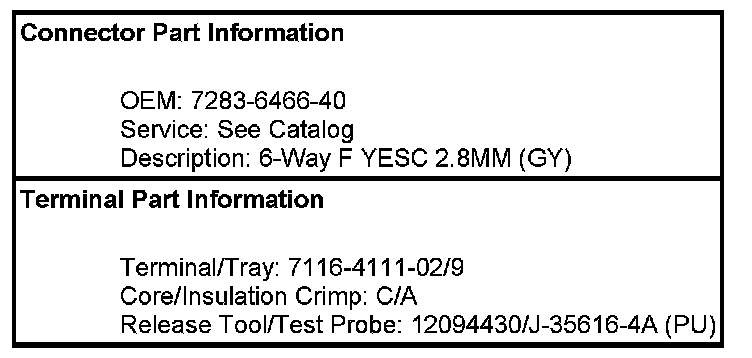

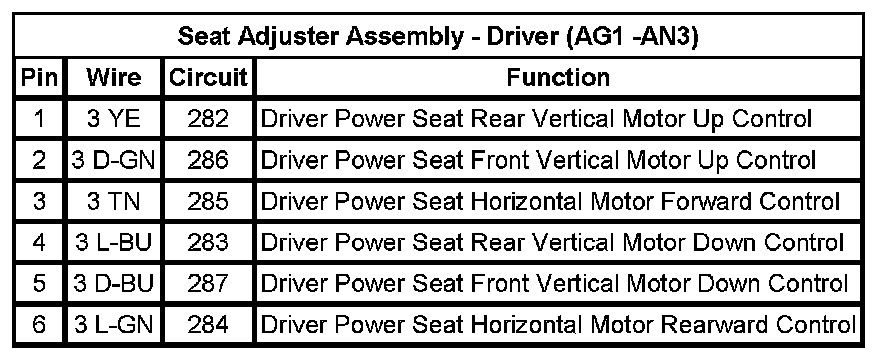

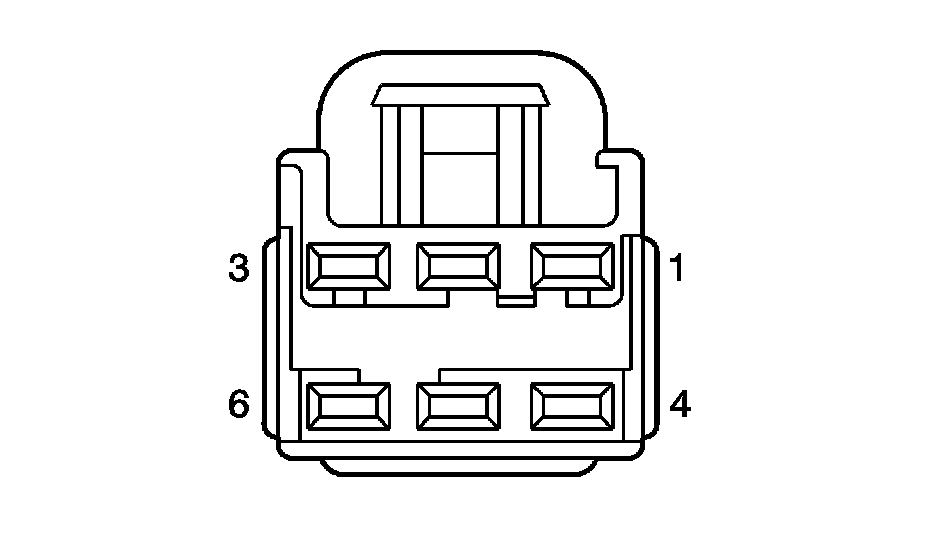

Seat Adjuster Assembly - Driver (AG1 -AN3)

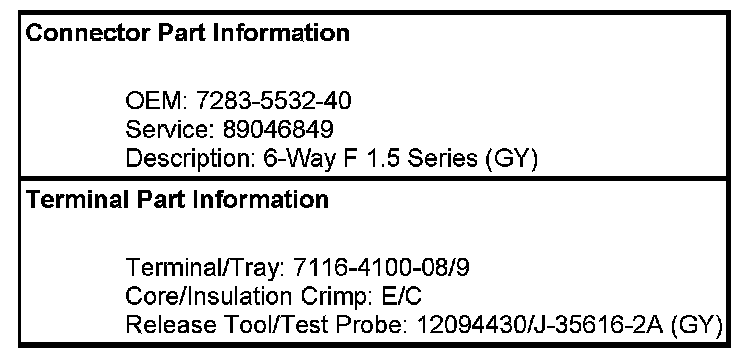

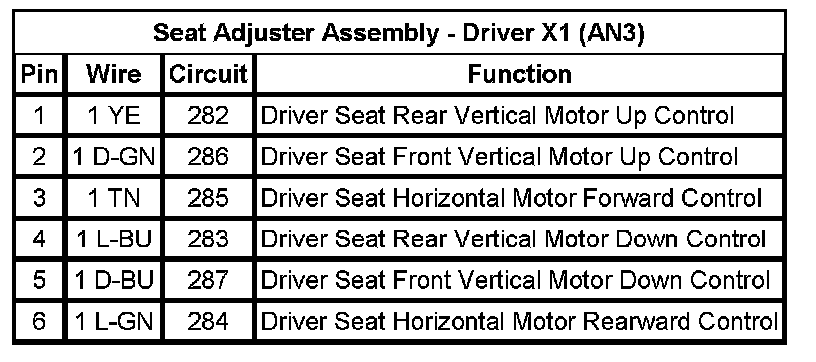

Seat Adjuster Assembly - Driver X1 (AN3)

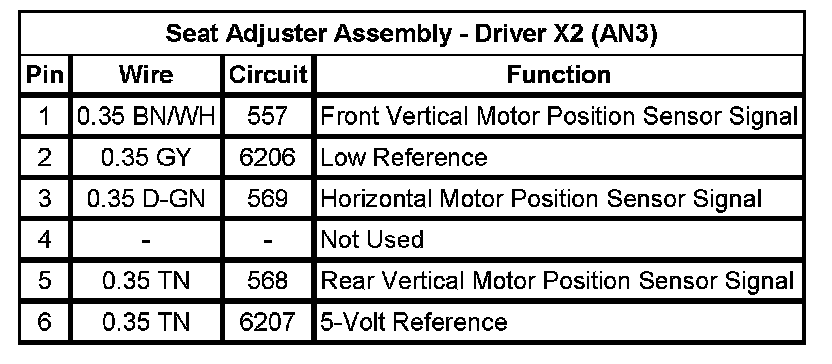

Seat Adjuster Assembly - Driver X2 (AN3)

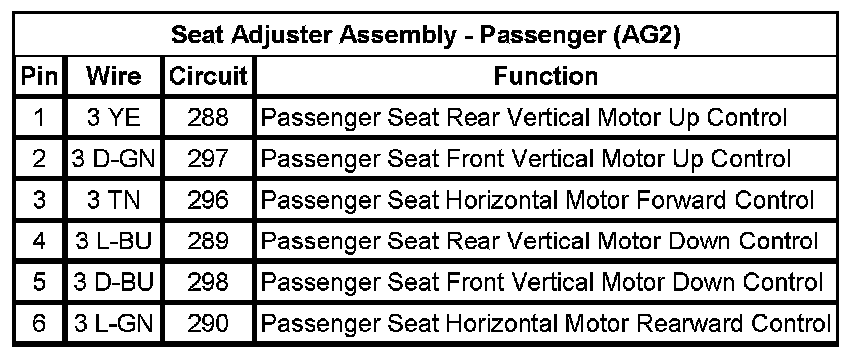

Seat Adjuster Assembly - Passenger (AG2)

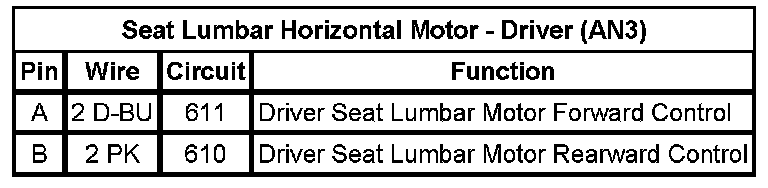

Seat Lumbar Horizontal Motor - Driver (AN3)
Telescoping Actuator C1:

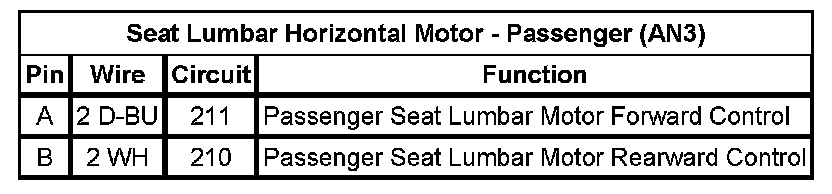

Seat Lumbar Horizontal Motor - Passenger (AN3)
Telescoping Actuator C1:

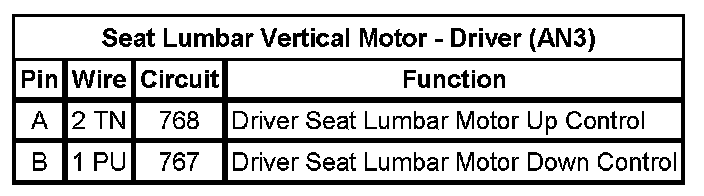

Seat Lumbar Vertical Motor - Driver (AN3)
Telescoping Actuator C1:

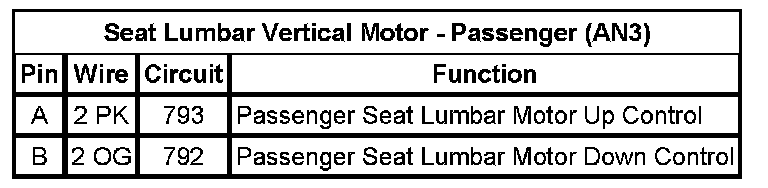

Seat Lumbar Vertical Motor - Passenger (AN3)
Telescoping Actuator C1:

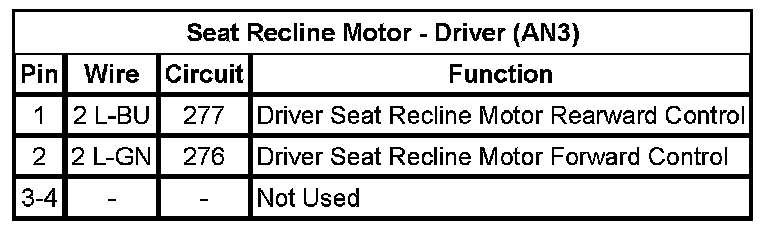

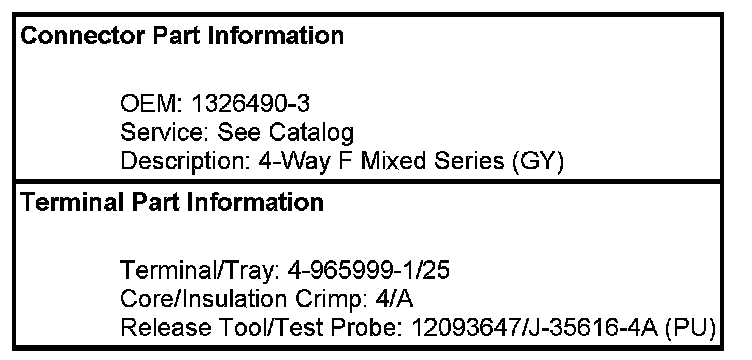

Seat Recline Motor - Driver (AN3)

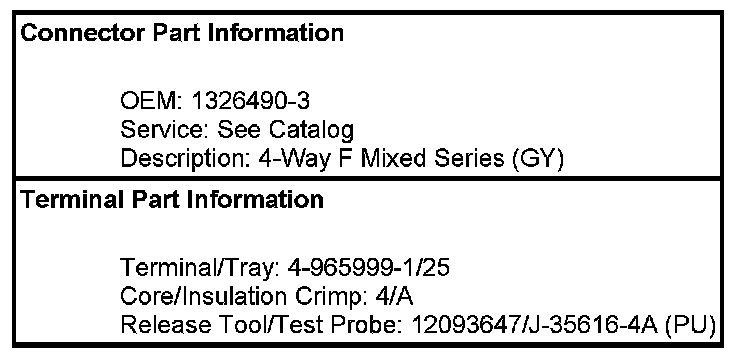

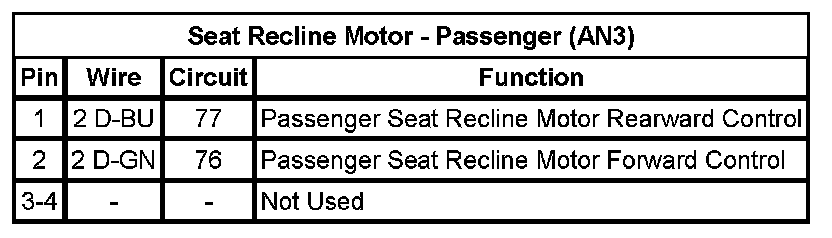

Seat Recline Motor - Passenger (AN3)
