X303

Inline Harness Connector End Views

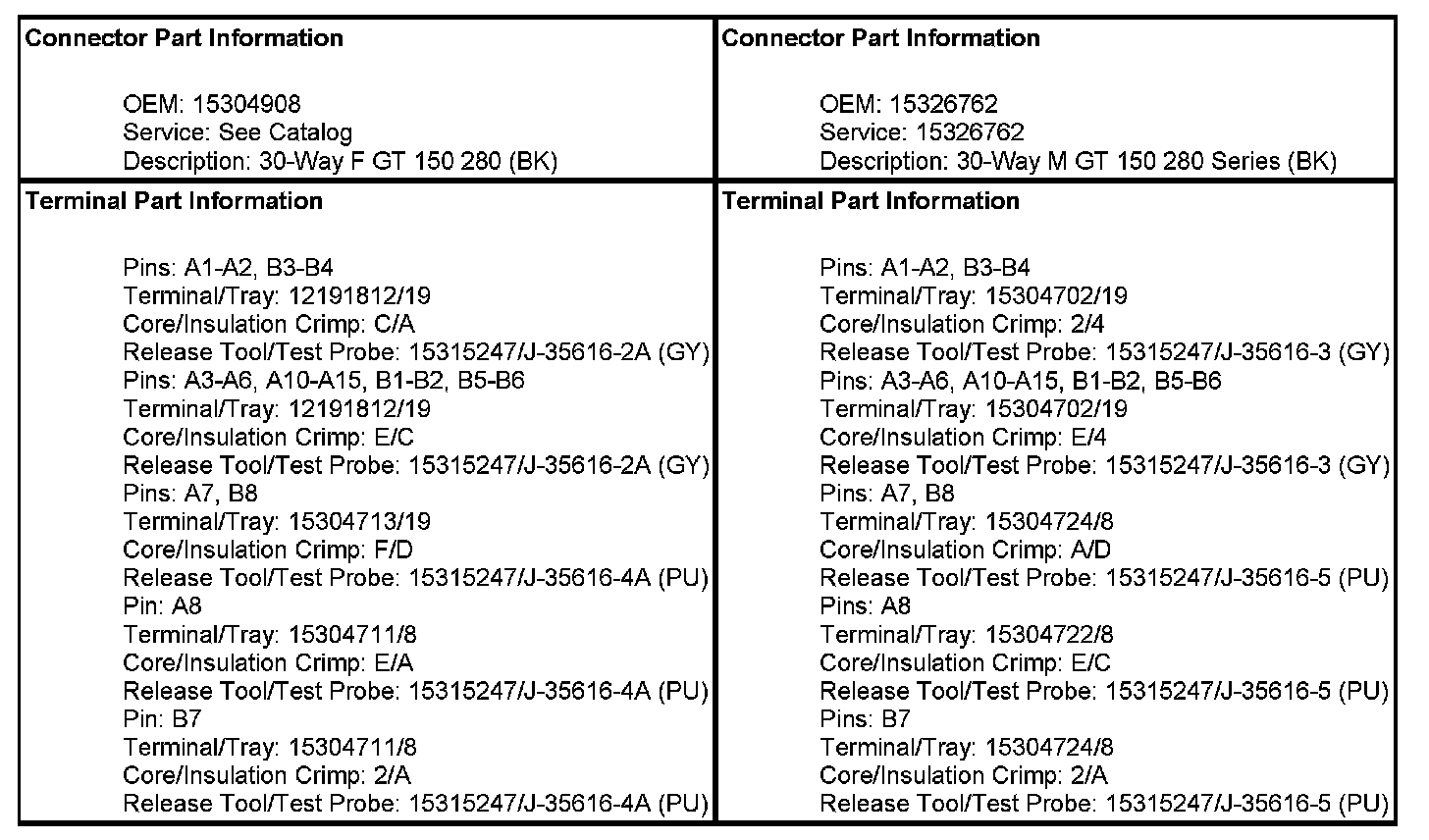

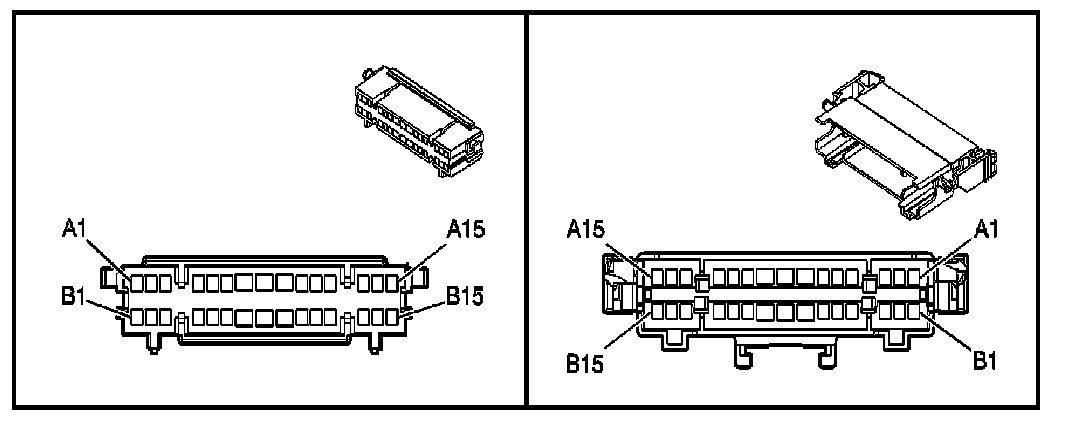

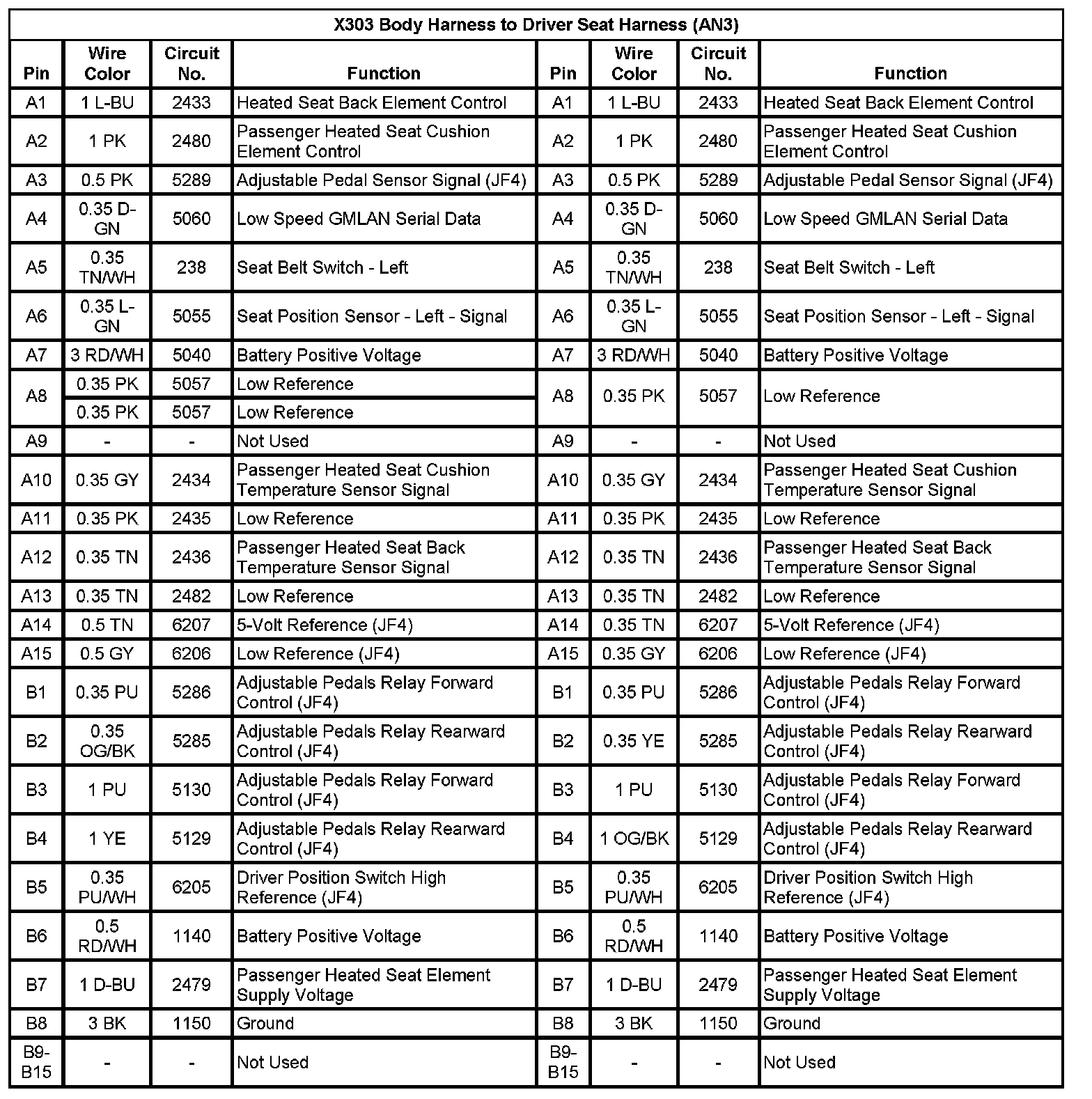

X303 Body Harness to Driver Seat Harness (AN3)

Technical service diagram

Technical service diagram

Technical service diagram

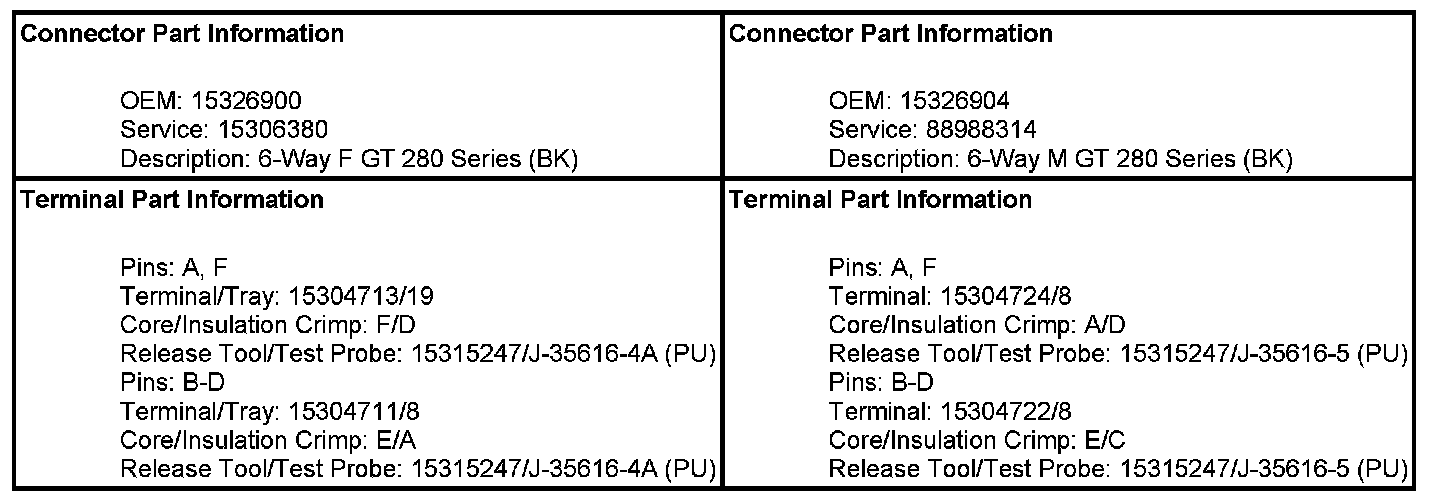

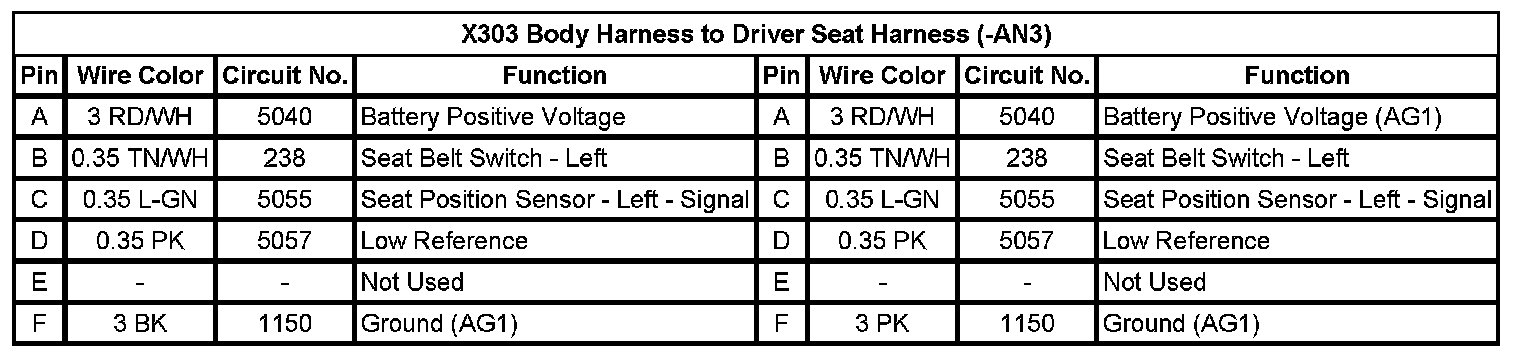

X303 Body Harness to Driver Seat Harness (-AN3)

Technical service diagram

Technical service diagram

Technical service diagram
