Inline Harness Connector End Views

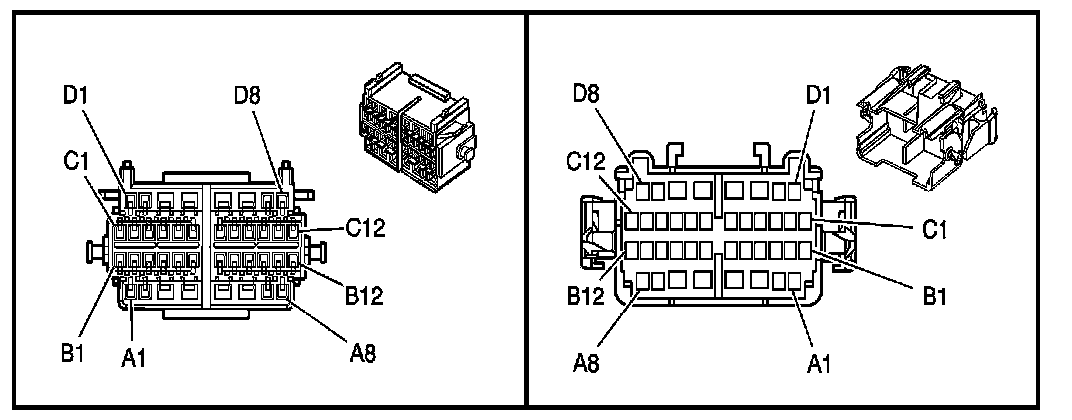

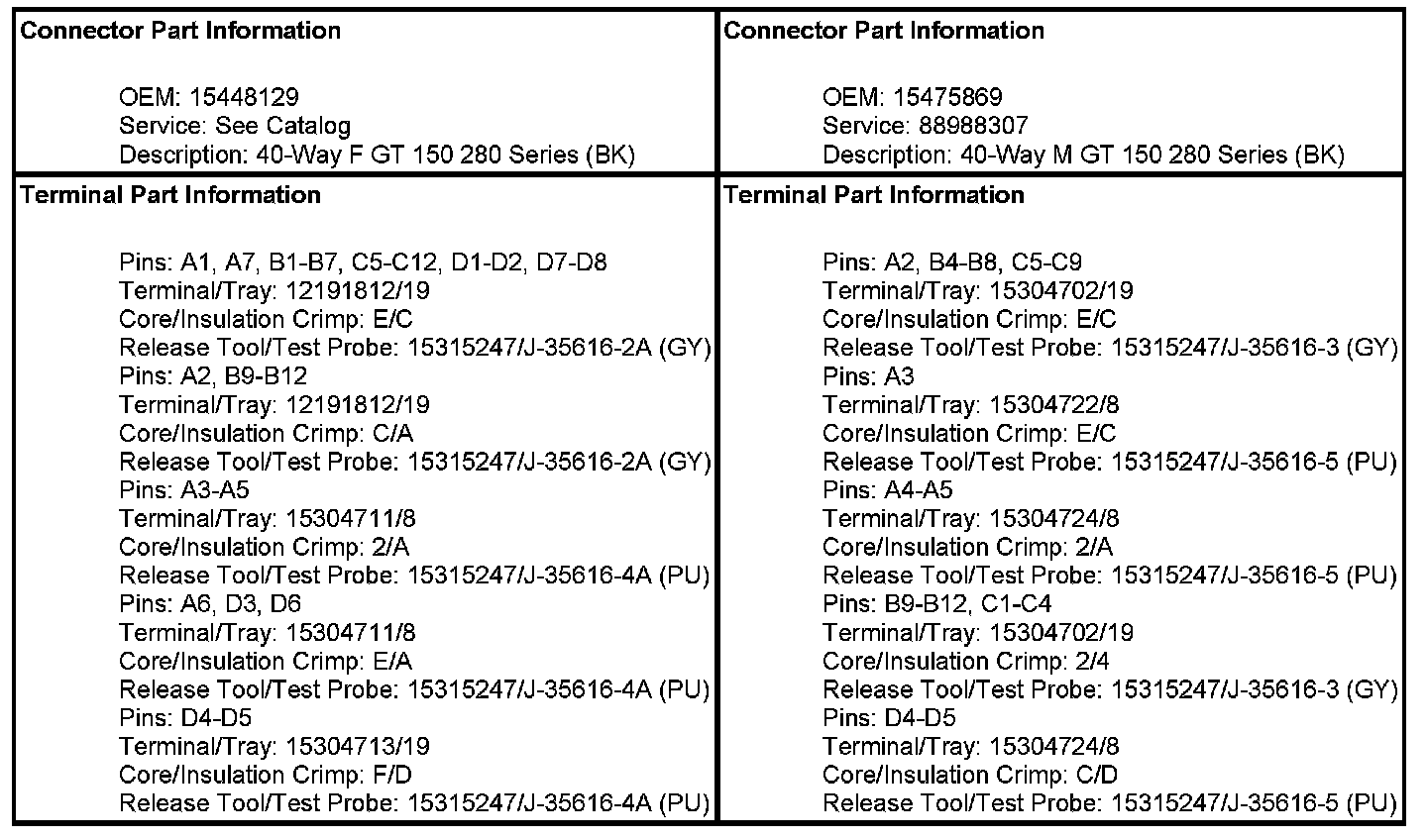

X211 Instrument Panel Harness (Y91) or I/P Extension Harness (-Y91) to Console Harness (Y91/UQA/D07)

Technical service diagram




Technical service diagram

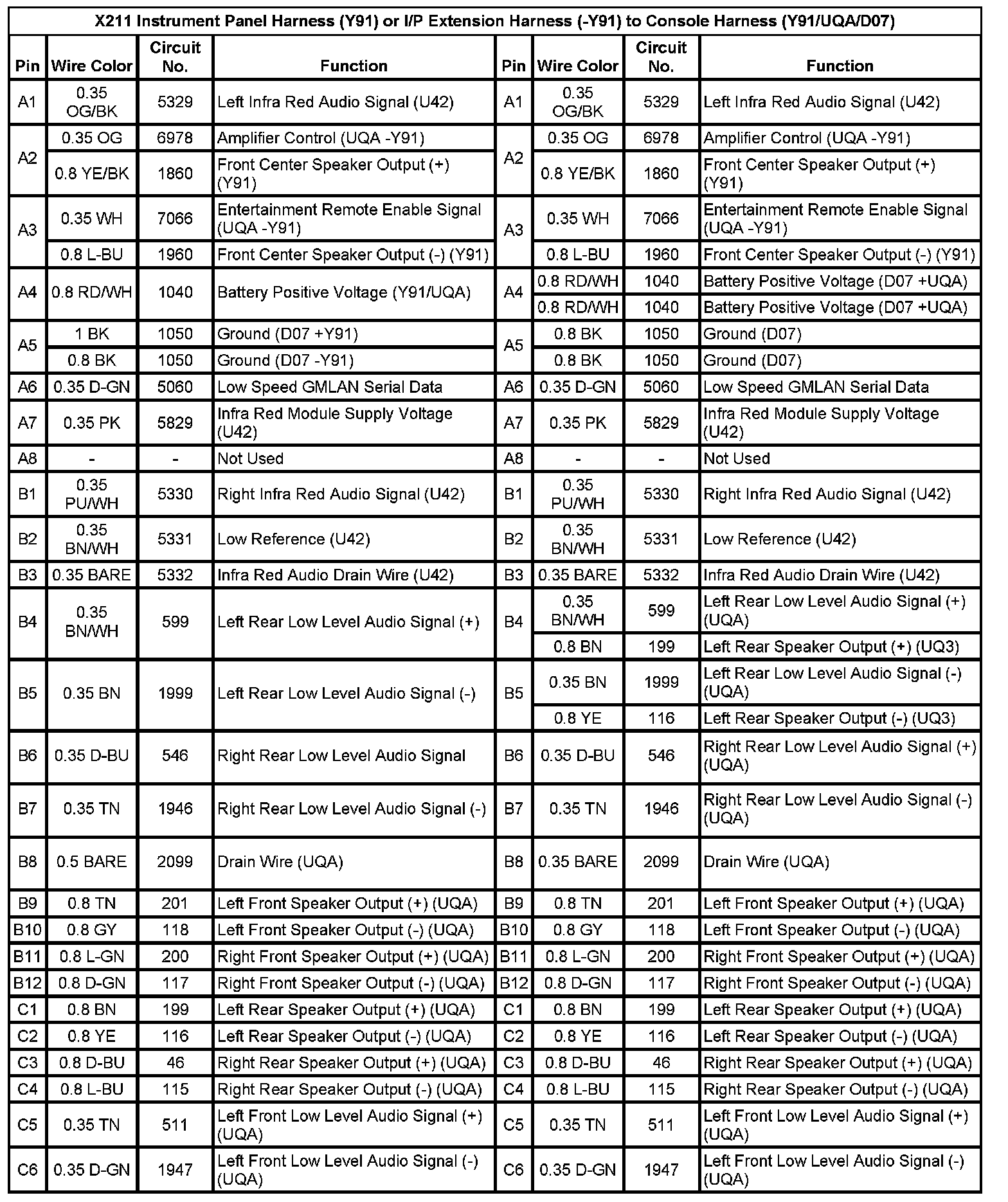

X211 Instrument Panel Harness (Y91) Or I/P Extension Harness (-Y91) To Console Harness (Y91/UQA/D07) (Pin A1 To C6):

Technical service diagram

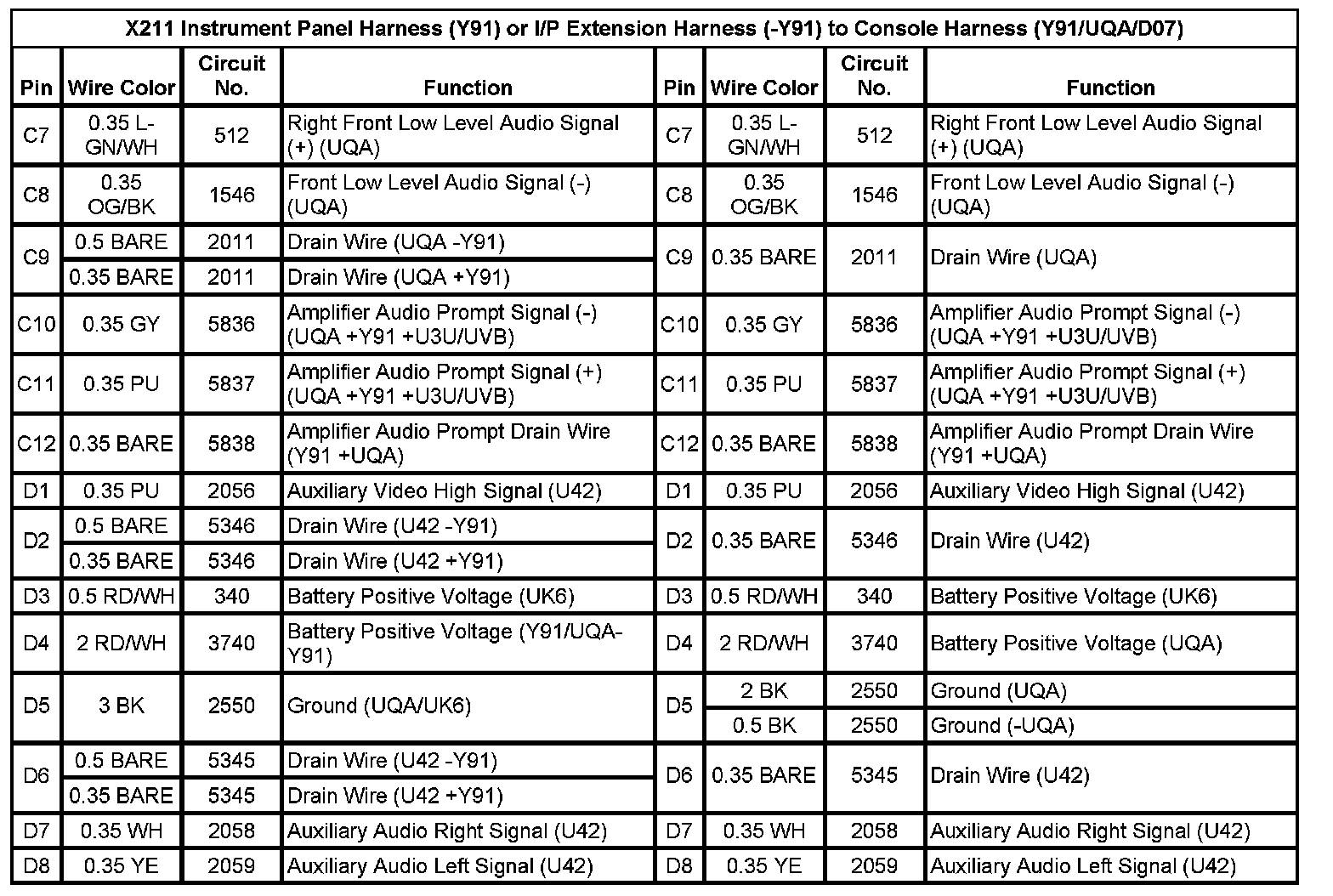

X211 Instrument Panel Harness (Y91) Or I/P Extension Harness (-Y91) To Console Harness (Y91/UQA/D07) (Pin C7 To D8):

Technical service diagram
