X126

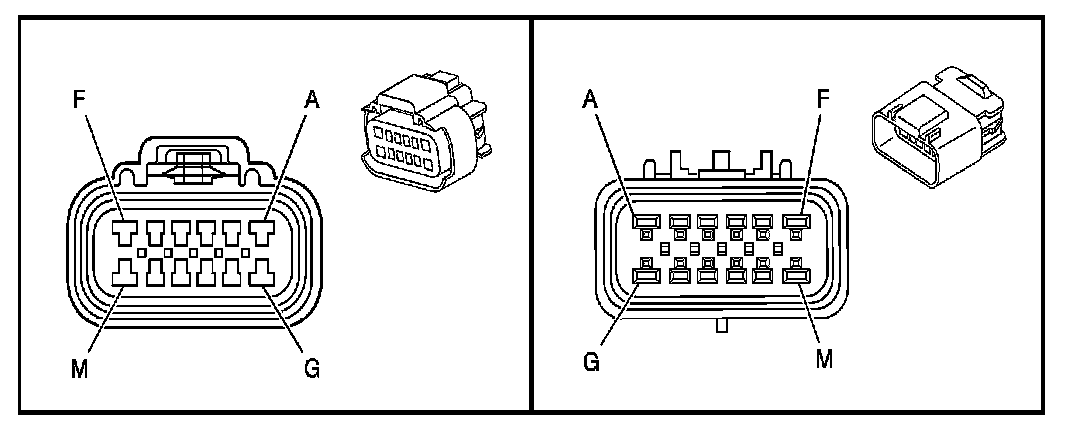

Inline Harness Connector End Views

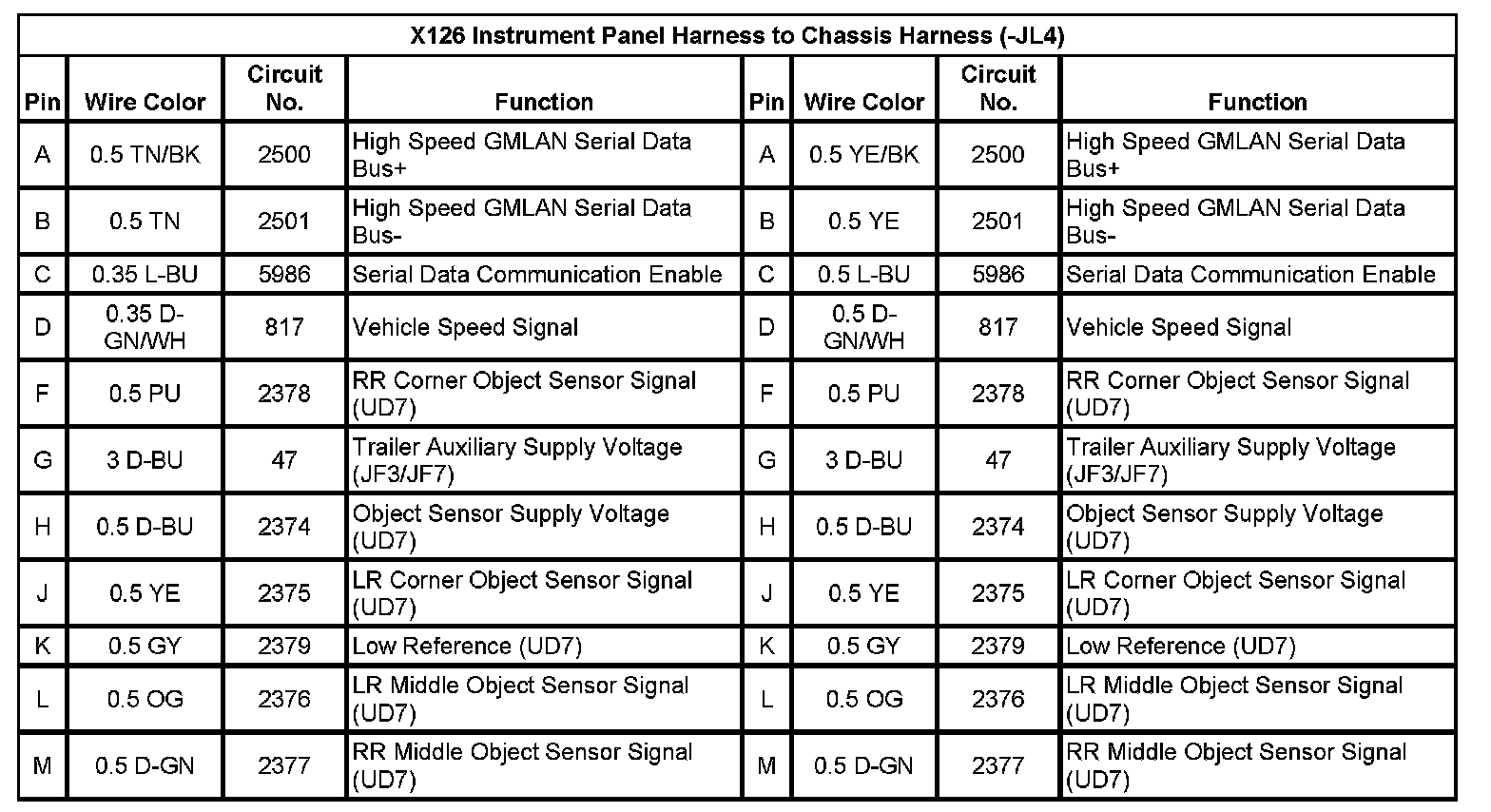

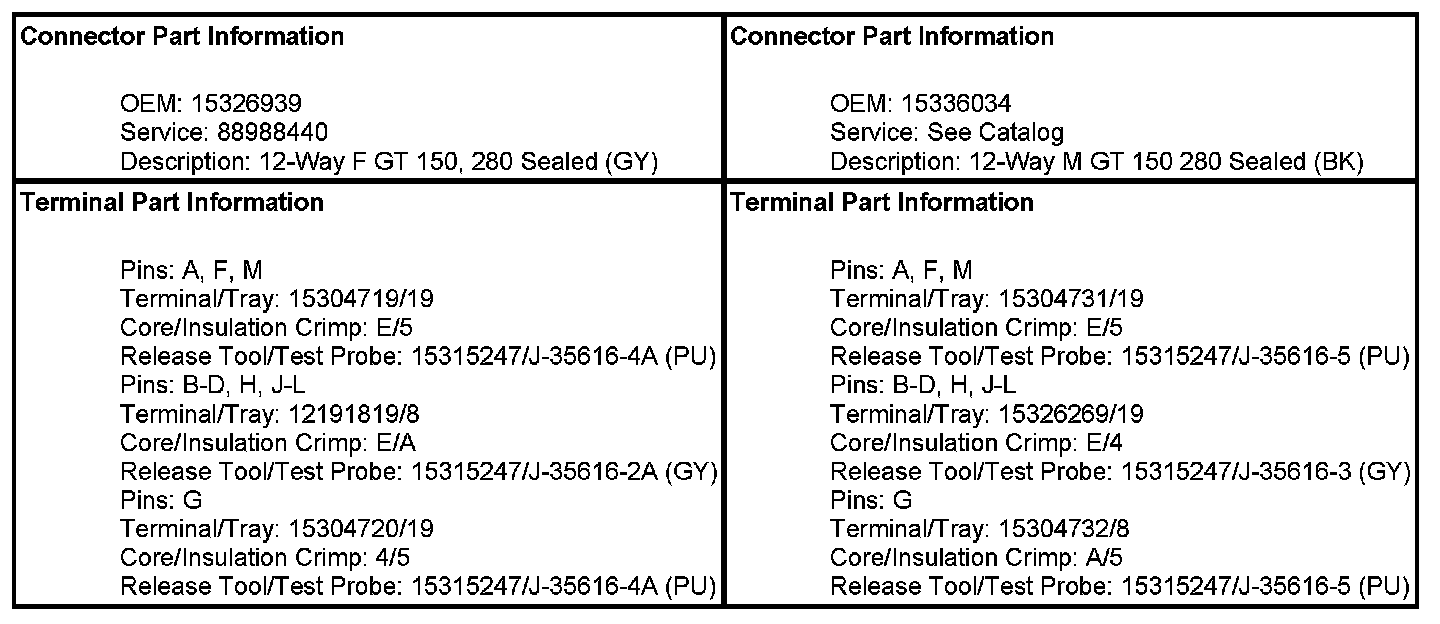

X126 Instrument Panel Harness to Chassis Harness (-JL4)

Technical service diagram

Technical service diagram

Technical service diagram
