X116

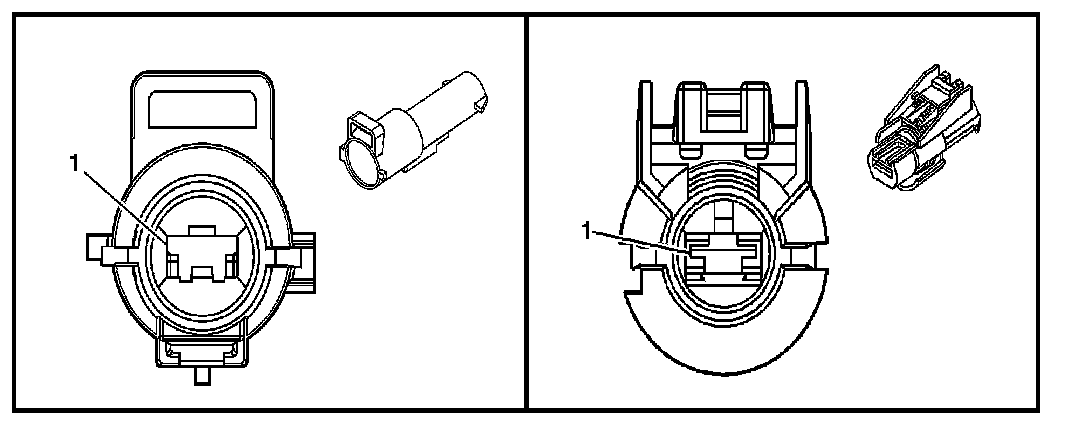

Inline Harness Connector End Views

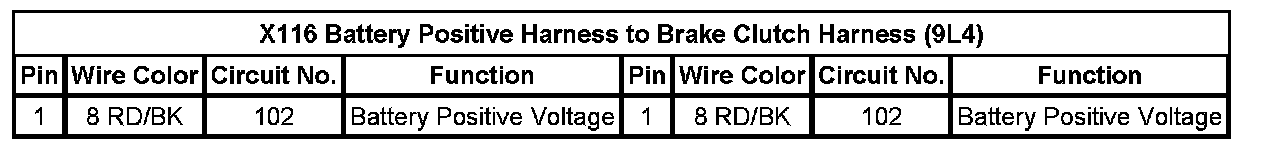

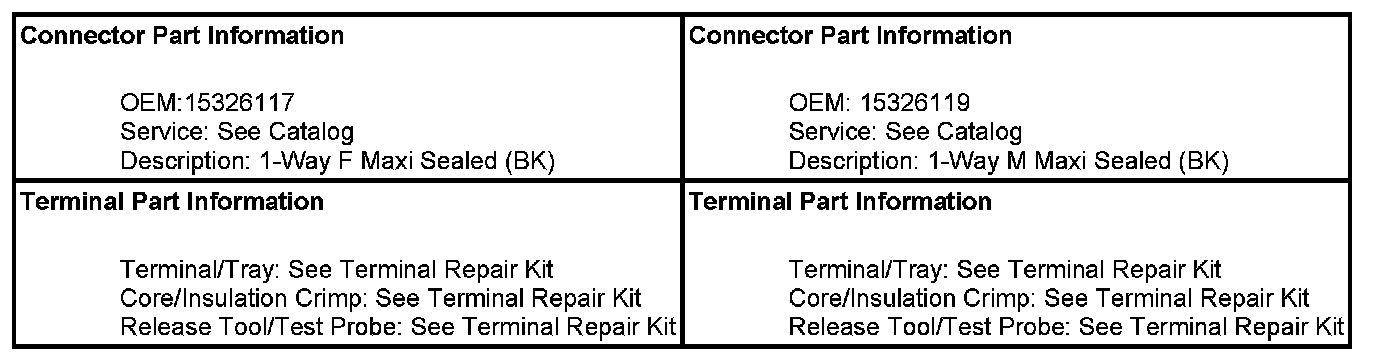

X116 Battery Positive Harness to Brake Clutch Harness (9L4)

Technical service diagram

Technical service diagram

Technical service diagram
