Accelerator Pedal Position Sensor

Component Connector End Views

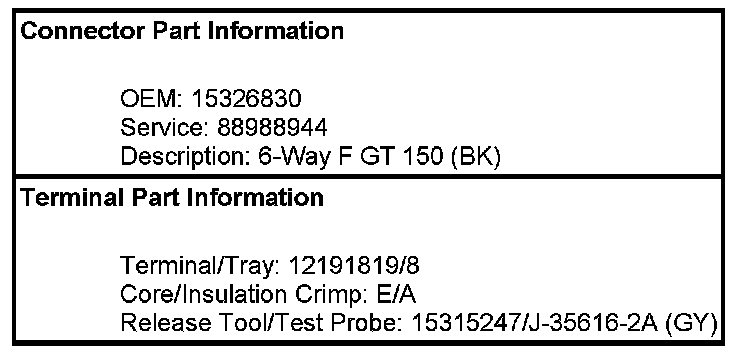

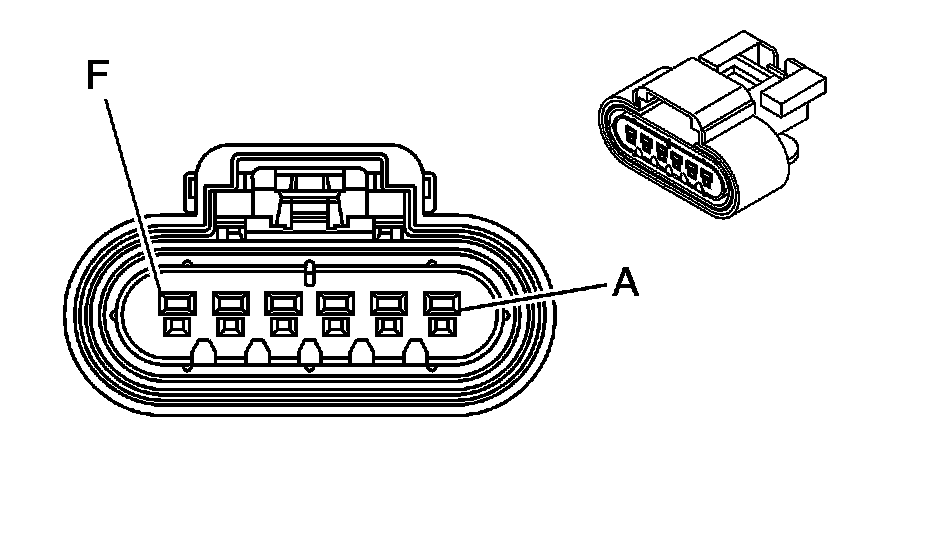

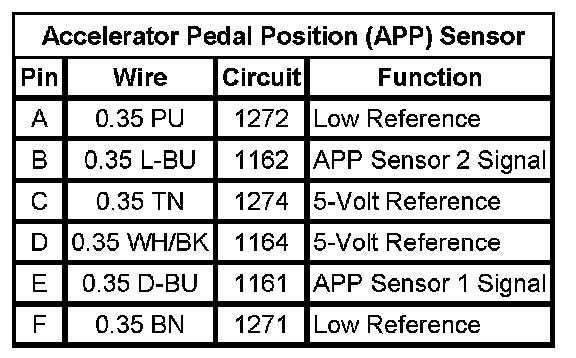

Accelerator Pedal Position (APP) Sensor

Technical service diagram

Technical service diagram

Technical service diagram
