Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

X700 - X799

Inline Harness Connector End Views

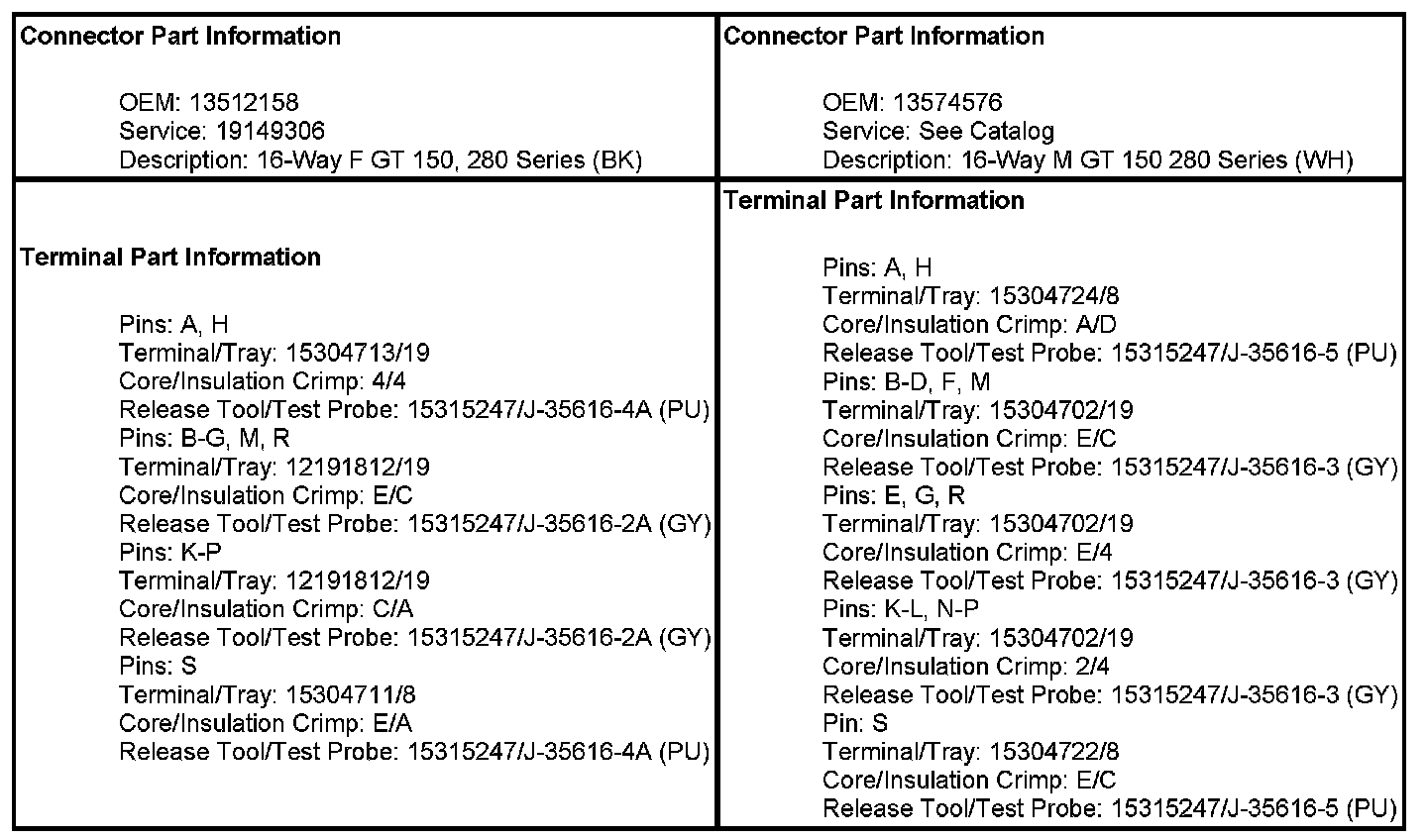

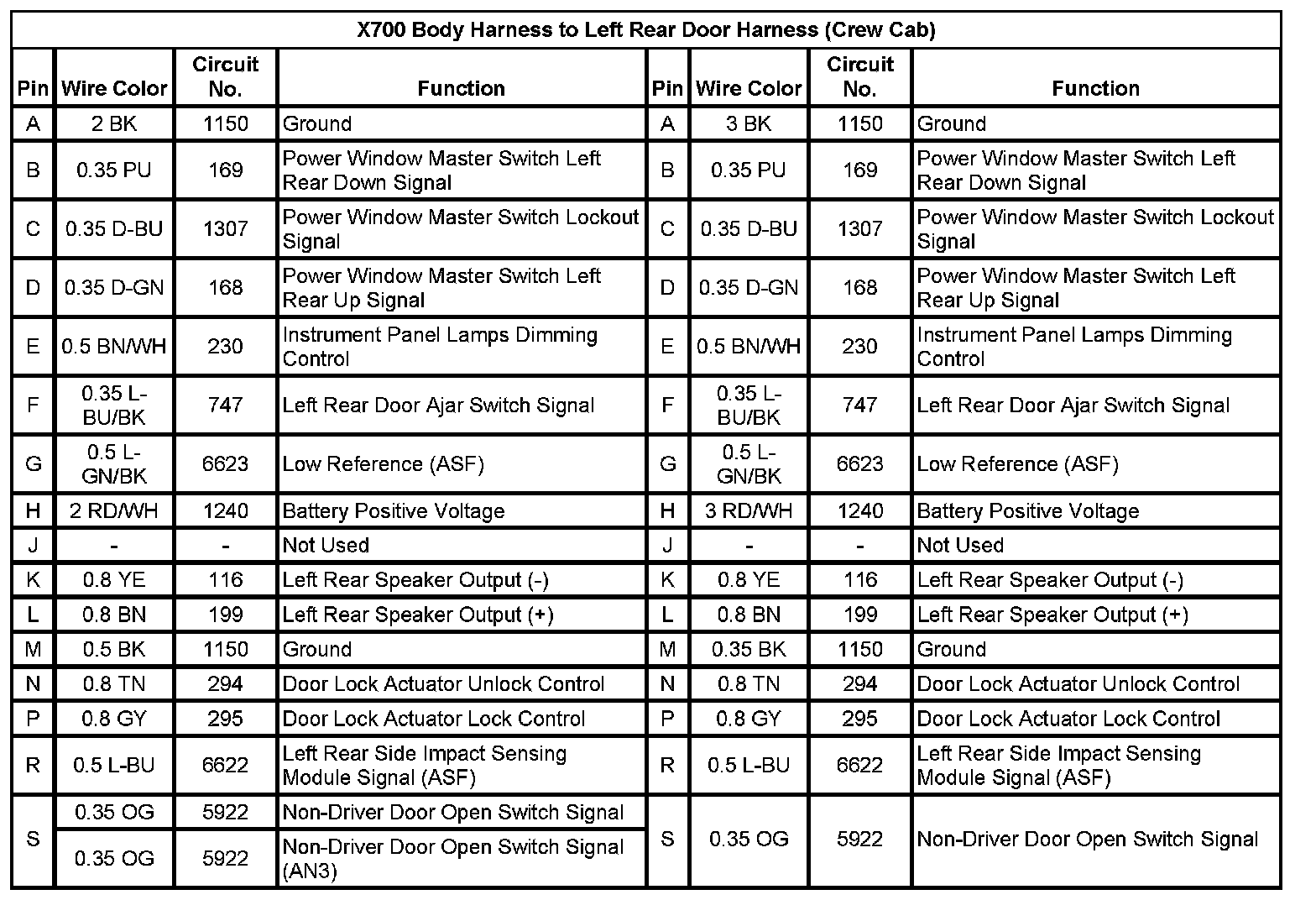

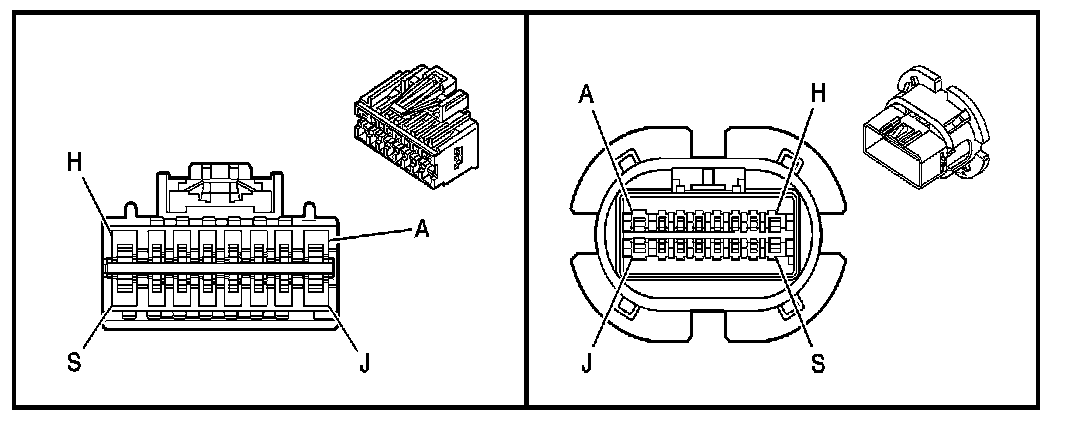

X700 Body Harness to Left Rear Door Harness (Crew Cab)

Technical service diagram

Technical service diagram

Technical service diagram

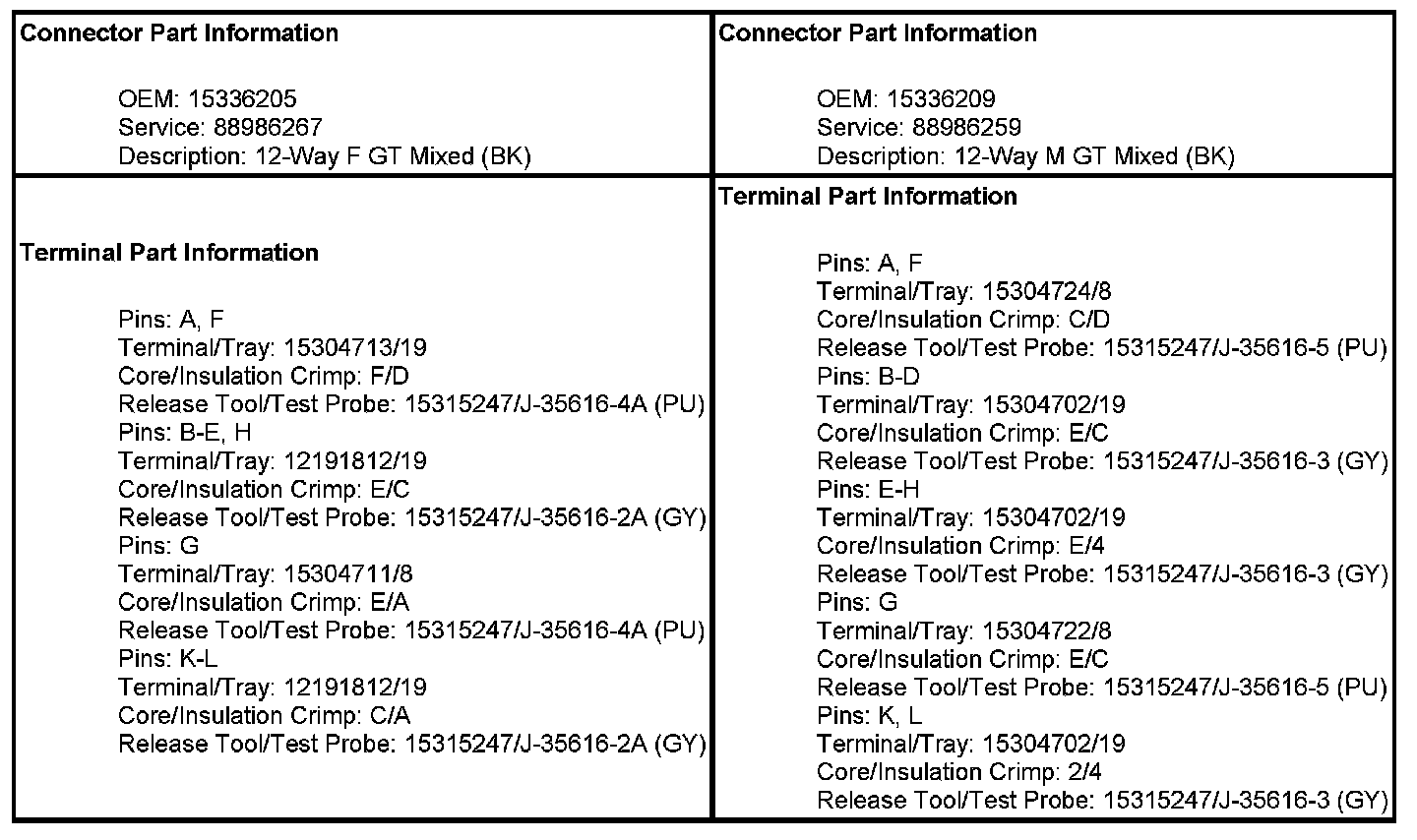

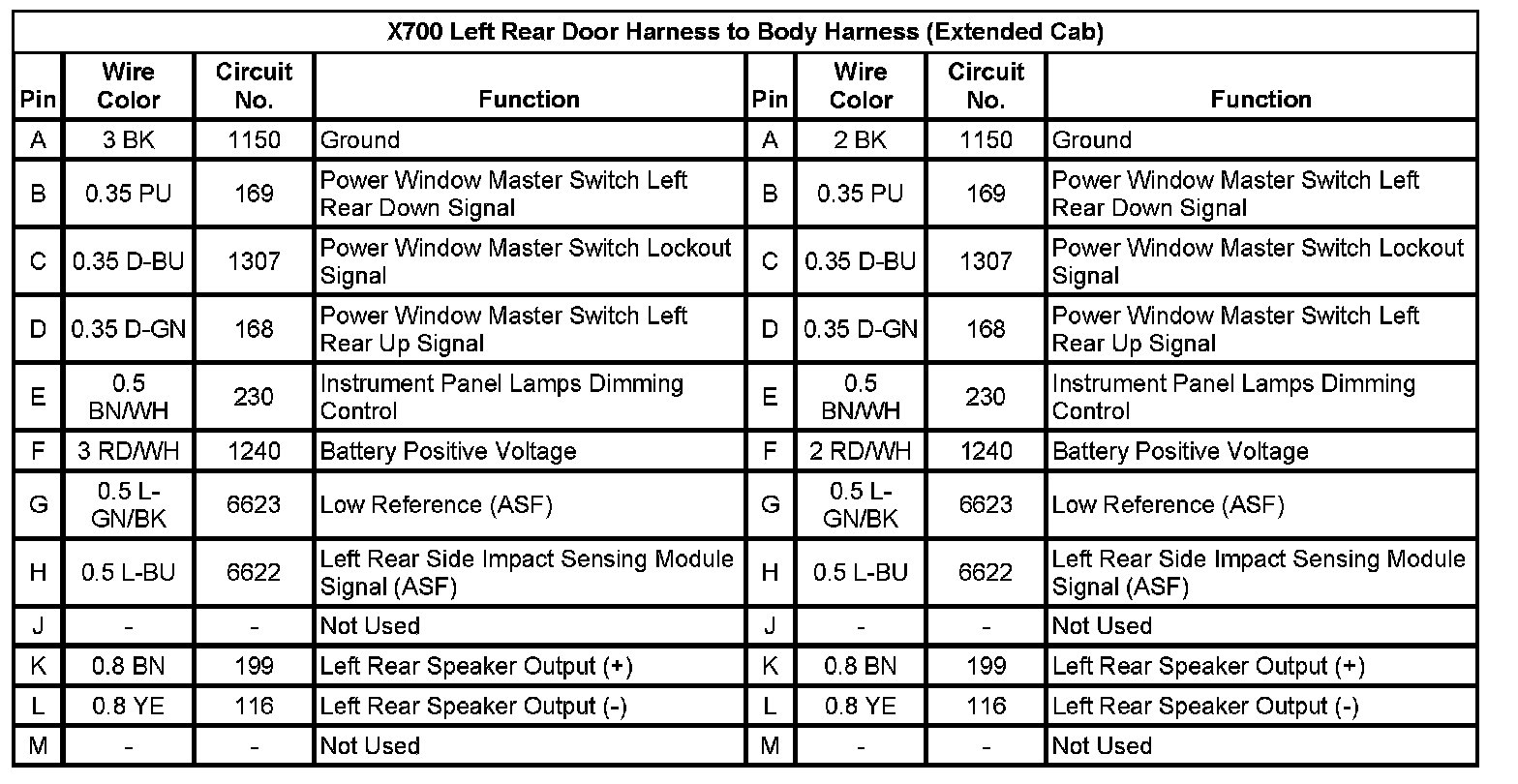

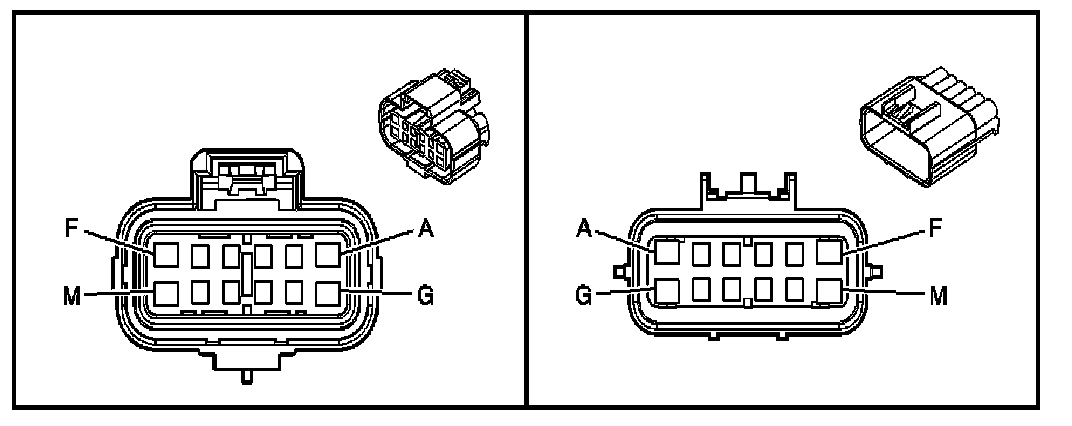

X700 Left Rear Door Harness to Body Harness (Extended Cab)

Technical service diagram

Technical service diagram

Technical service diagram
