X600

Inline Harness Connector End Views

X600 Right Front Door Harness to Body Harness (YE9 -AN3/DL3)

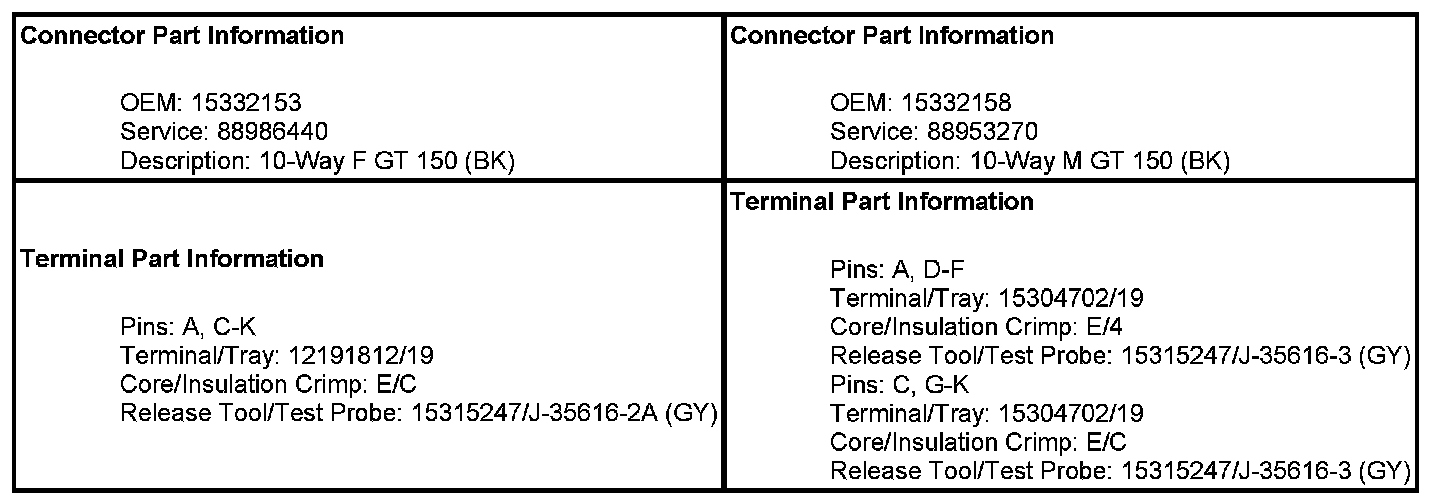

Technical service diagram

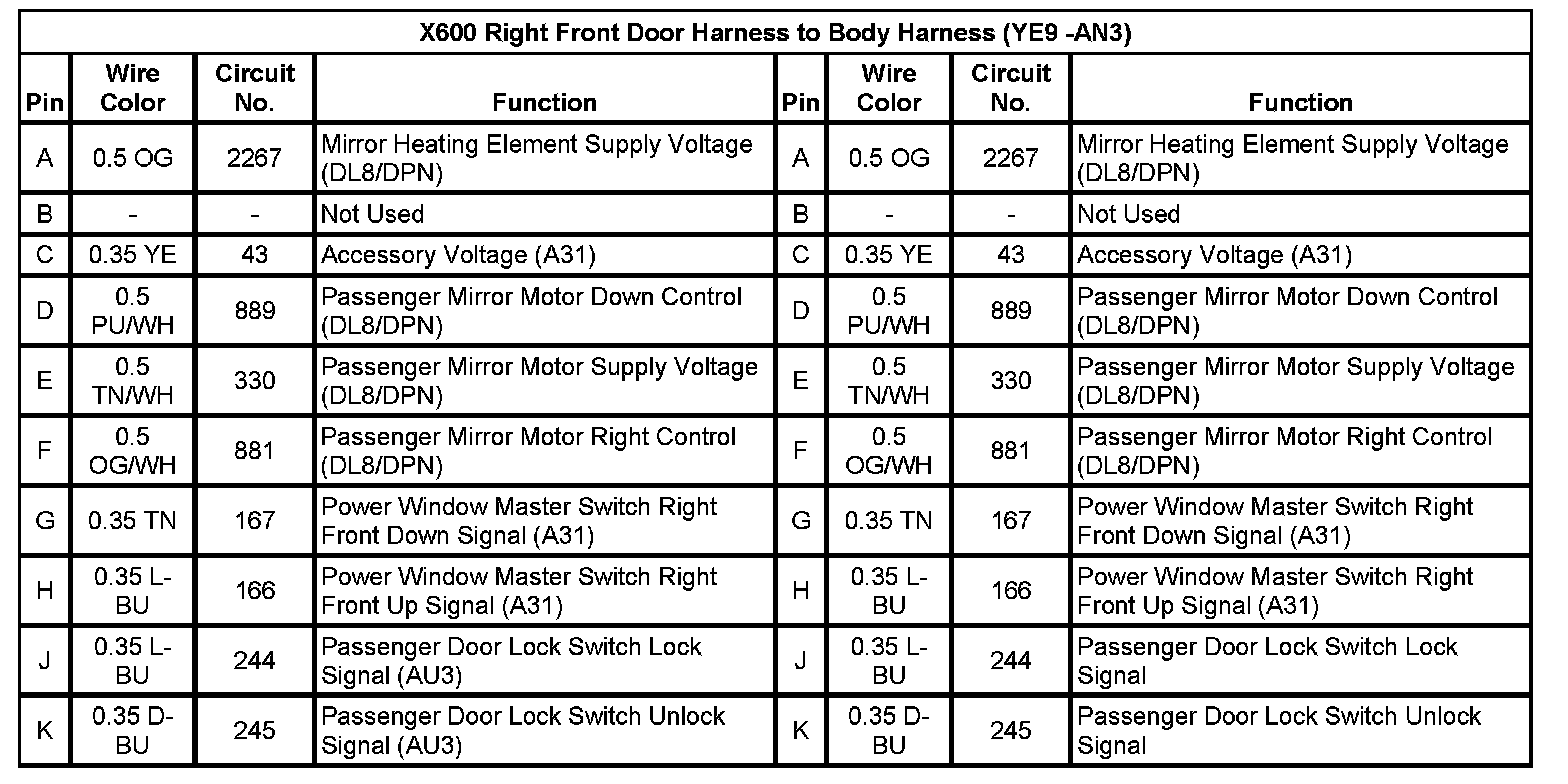

Technical service diagram

Technical service diagram
