X500

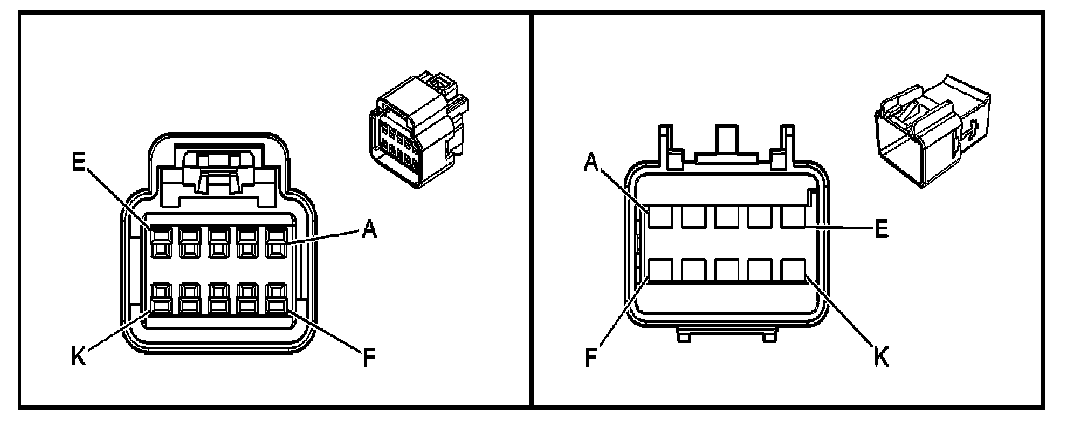

Inline Harness Connector End Views

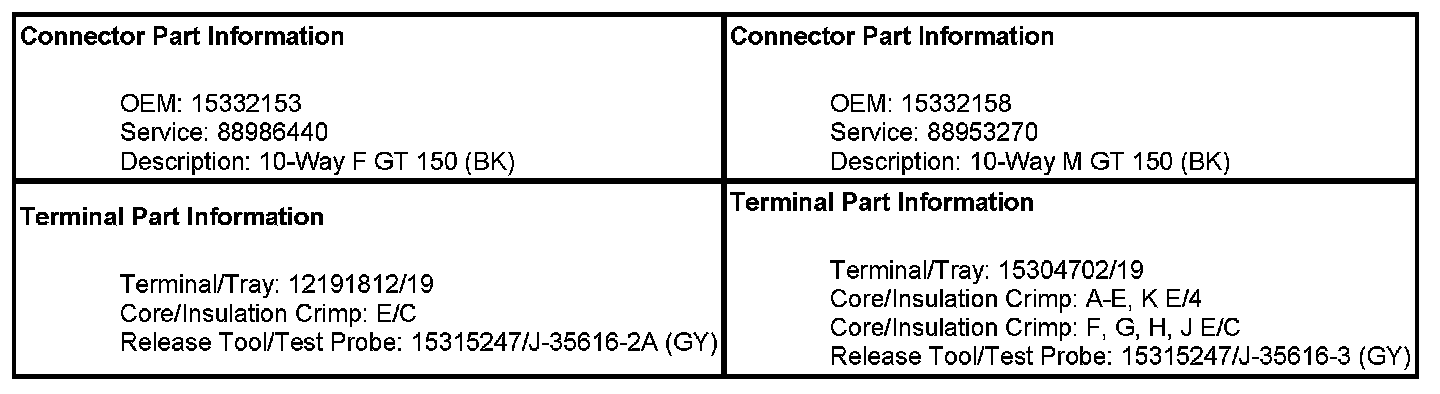

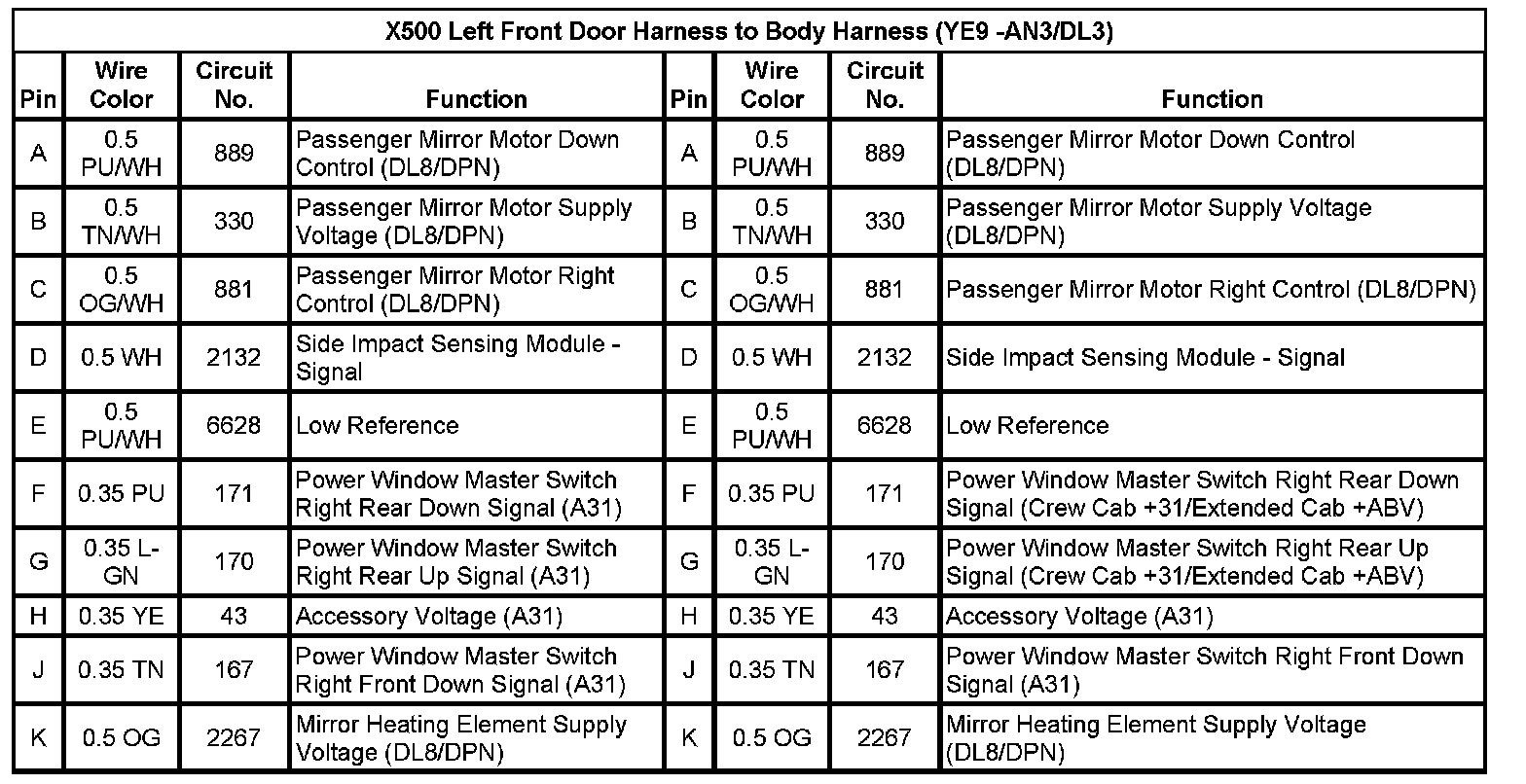

X500 Left Front Door Harness to Body Harness (YE9 -AN3/DL3)

Technical service diagram

Technical service diagram

Technical service diagram
