X324

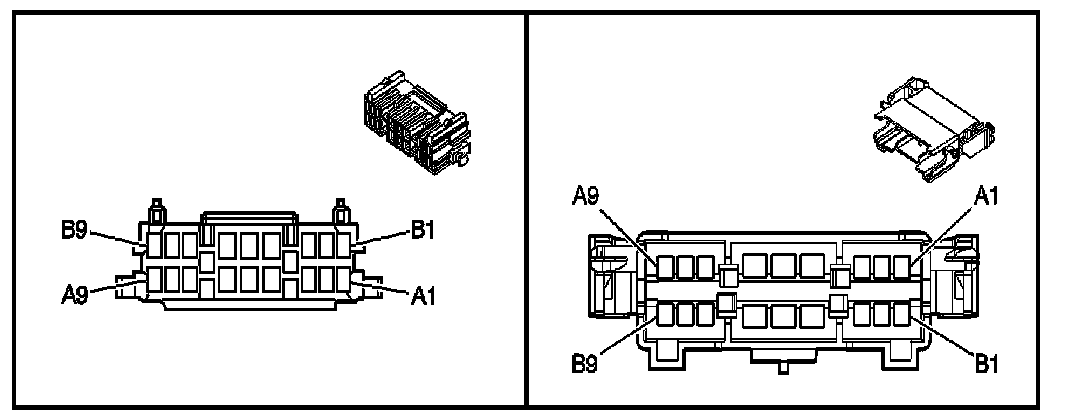

Inline Harness Connector End Views

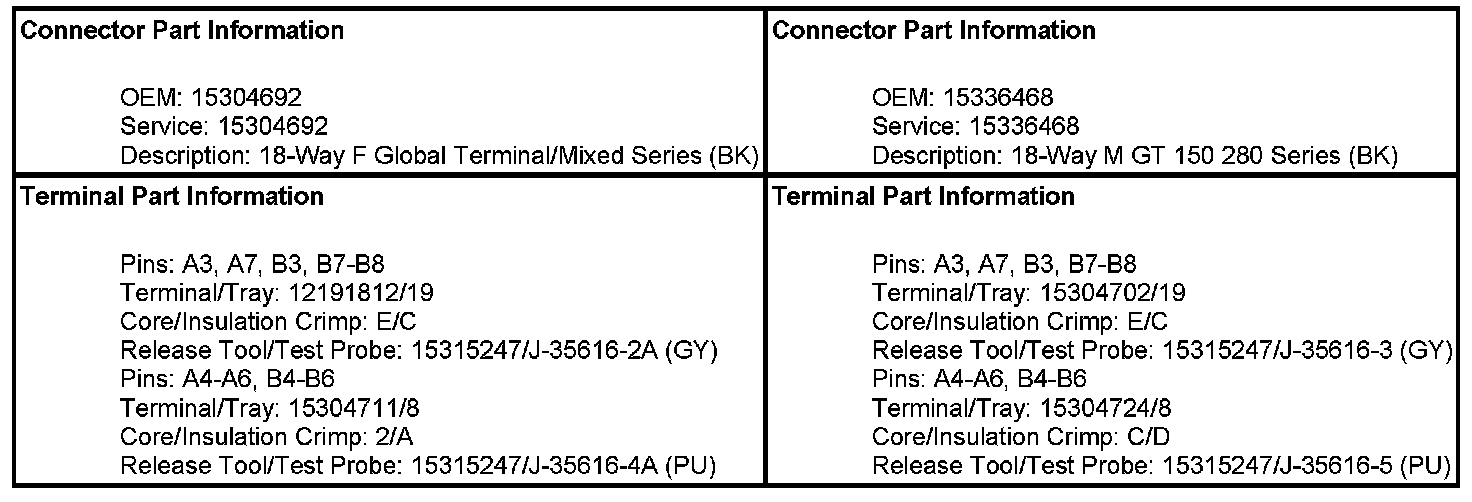

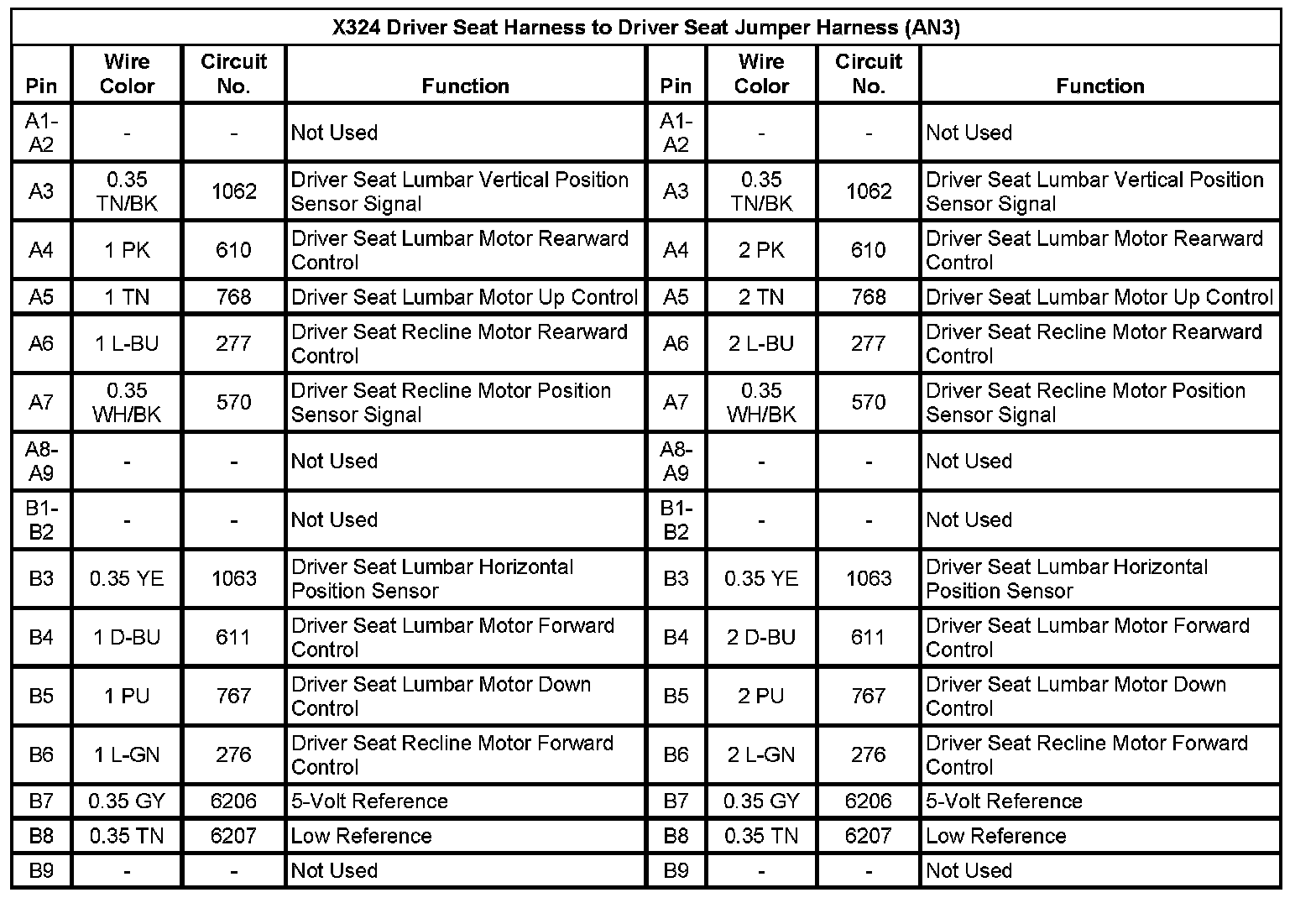

X324 Driver Seat Harness to Driver Seat Jumper Harness (AN3)

Technical service diagram

Technical service diagram

Technical service diagram
