X313

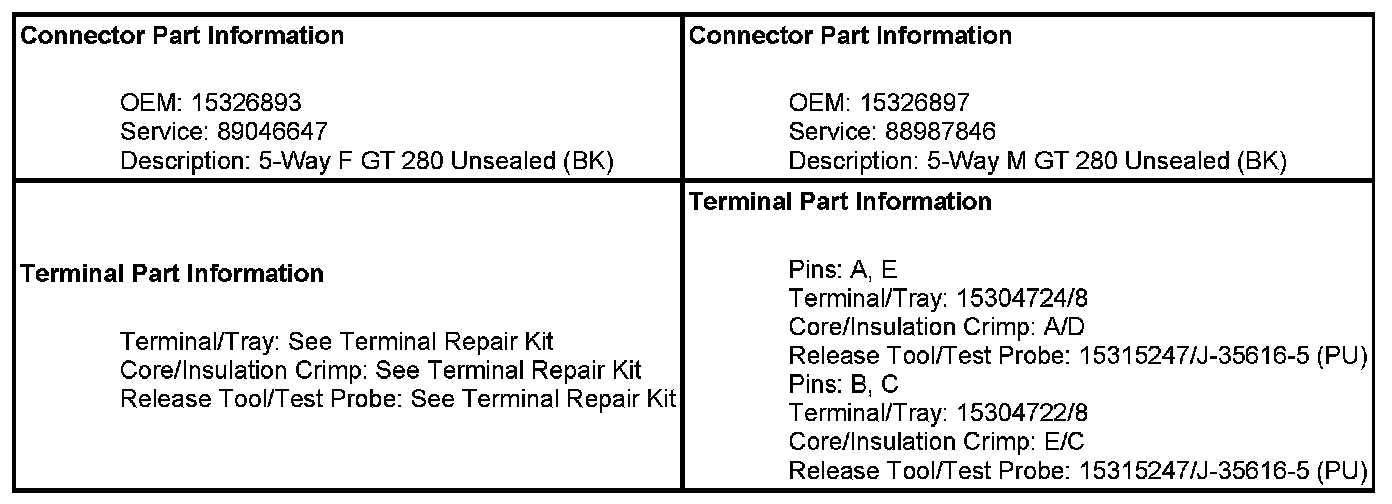

Inline Harness Connector End Views

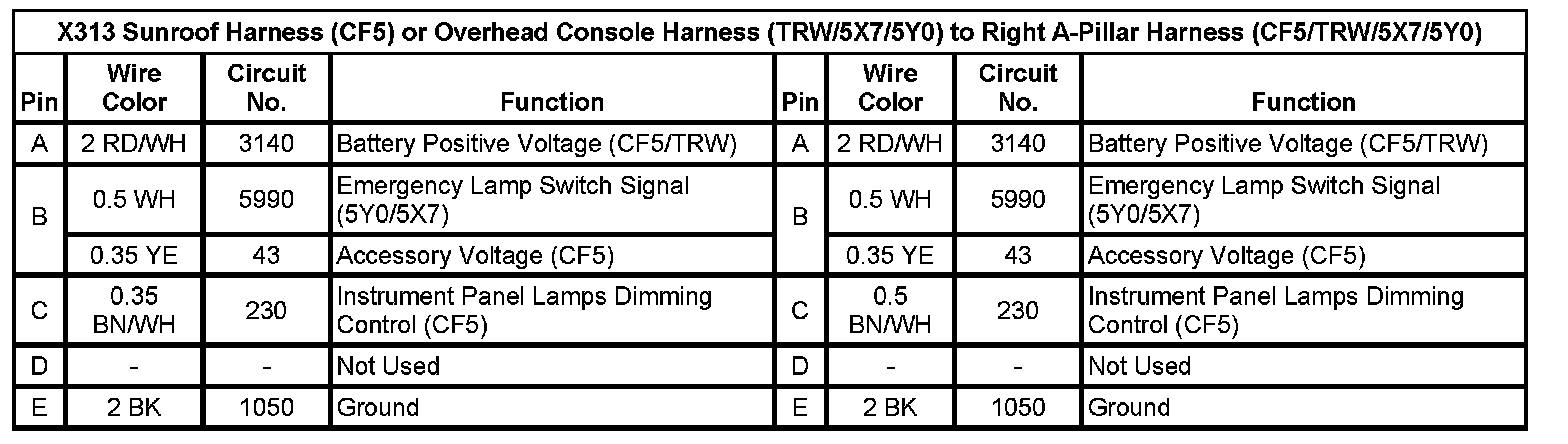

X313 Sunroof Harness (CF5) or Overhead Console Harness (TRW/5X7/5Y0) to Right A-Pillar Harness (CF5/TRW/5X7/5Y0)
