X115

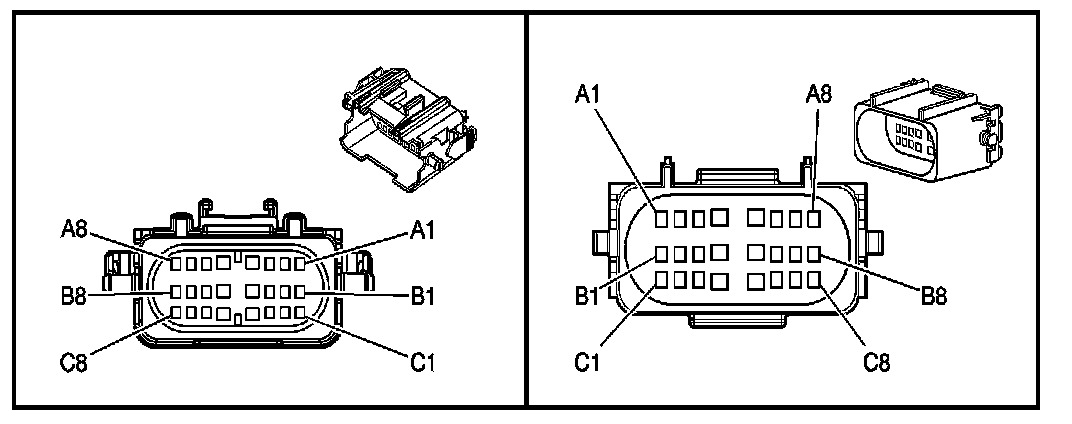

Inline Harness Connector End Views

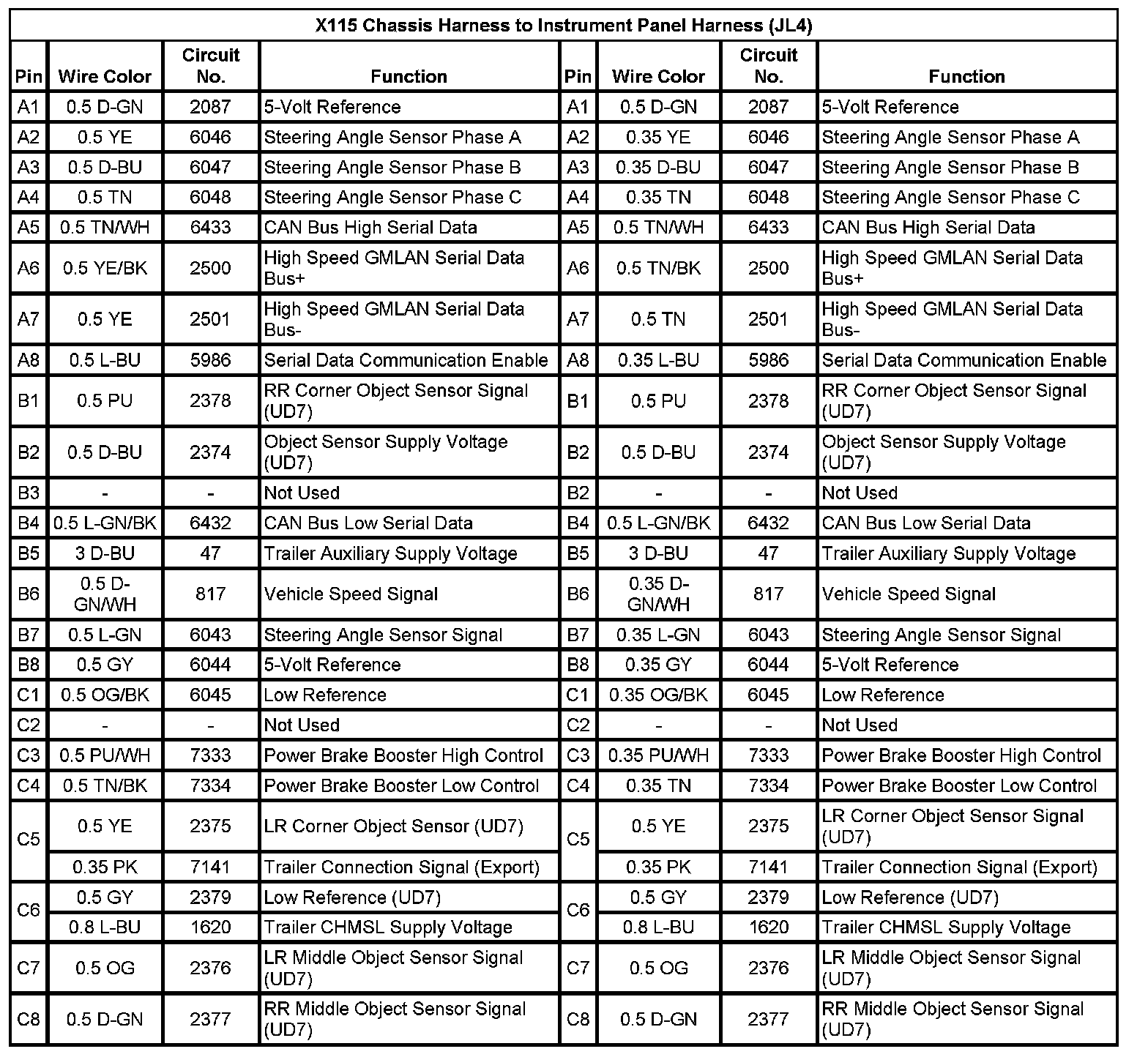

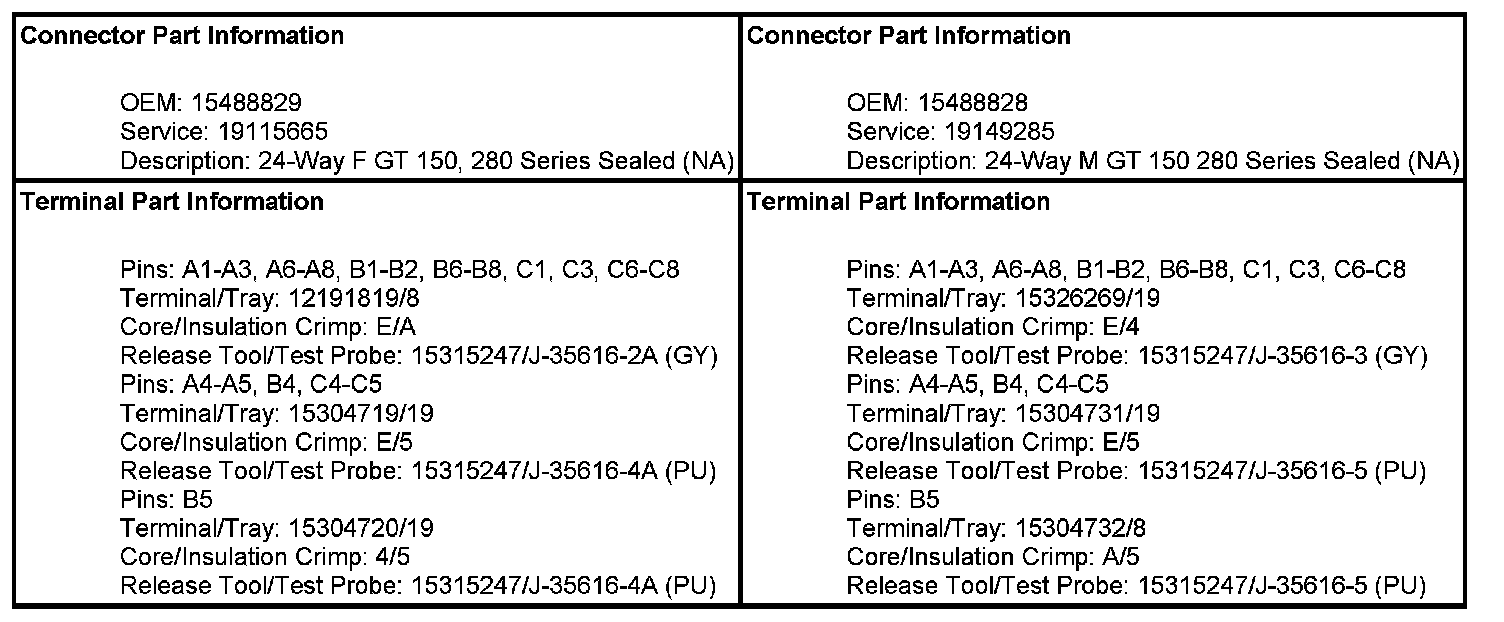

X115 Chassis Harness to Instrument Panel Harness (JL4)

Technical service diagram

Technical service diagram

Technical service diagram
