Master Connector List

Master Electrical Component List

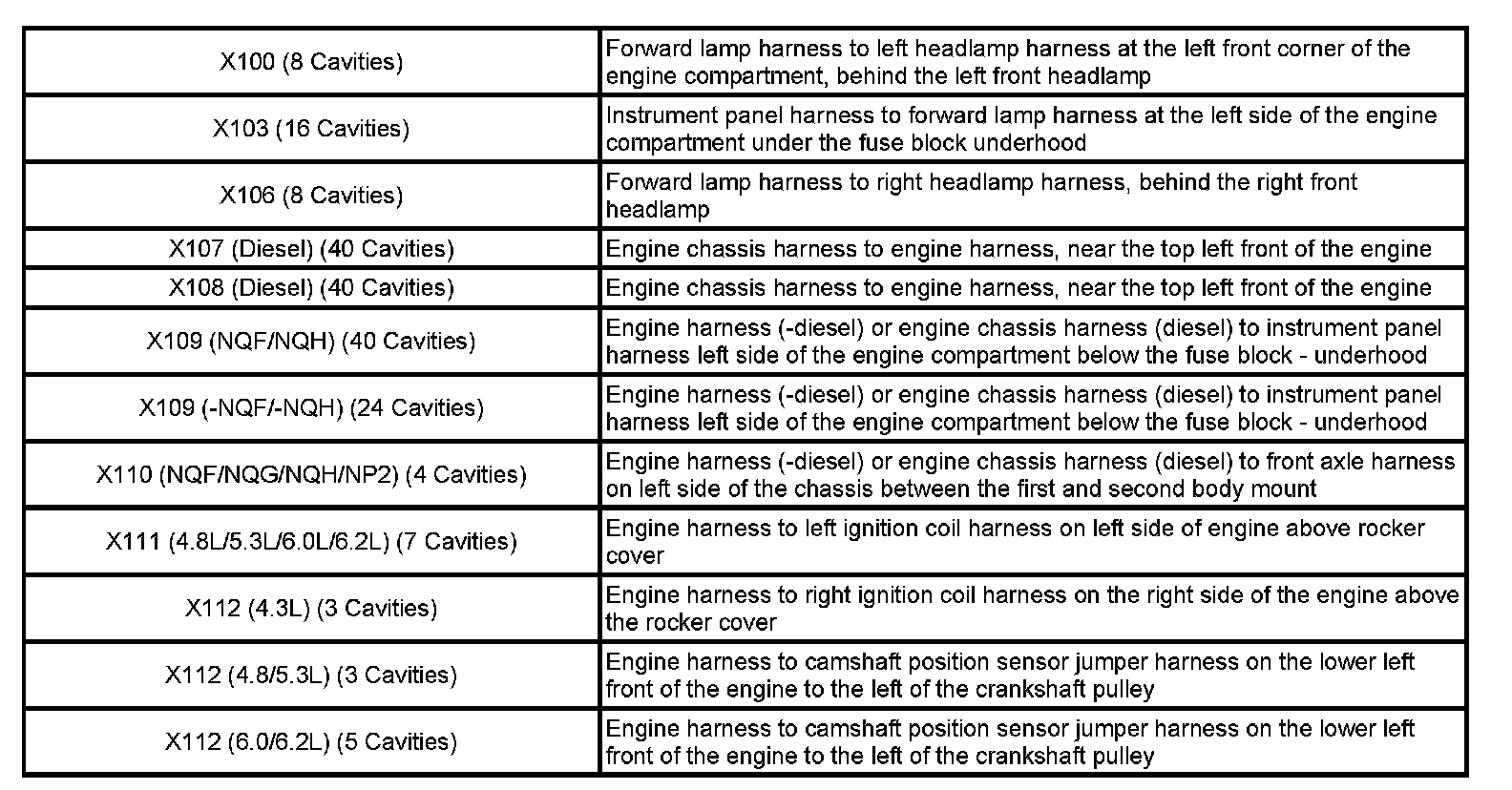

X100 - X112:

Technical service diagram

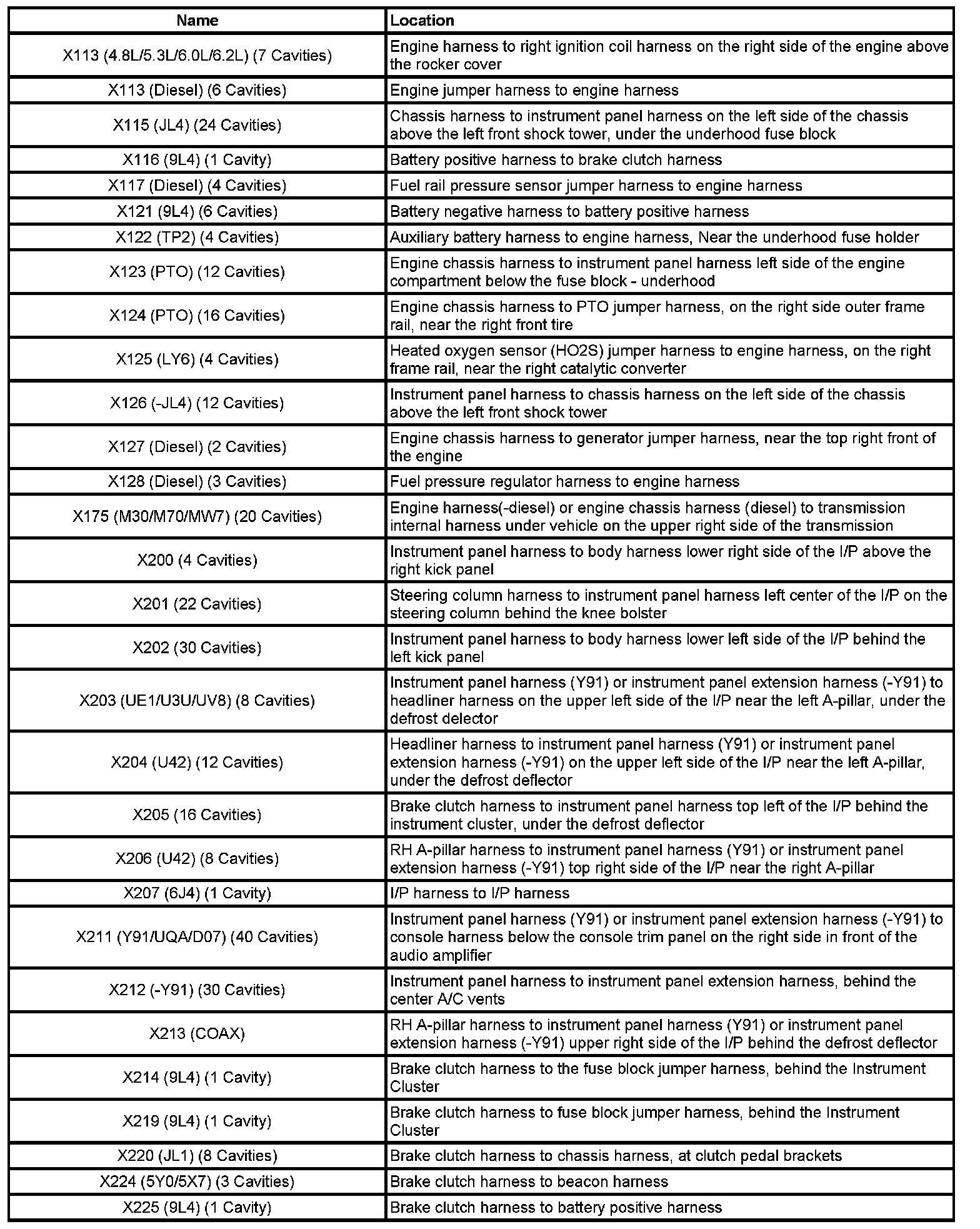

X113 - X225:

Technical service diagram

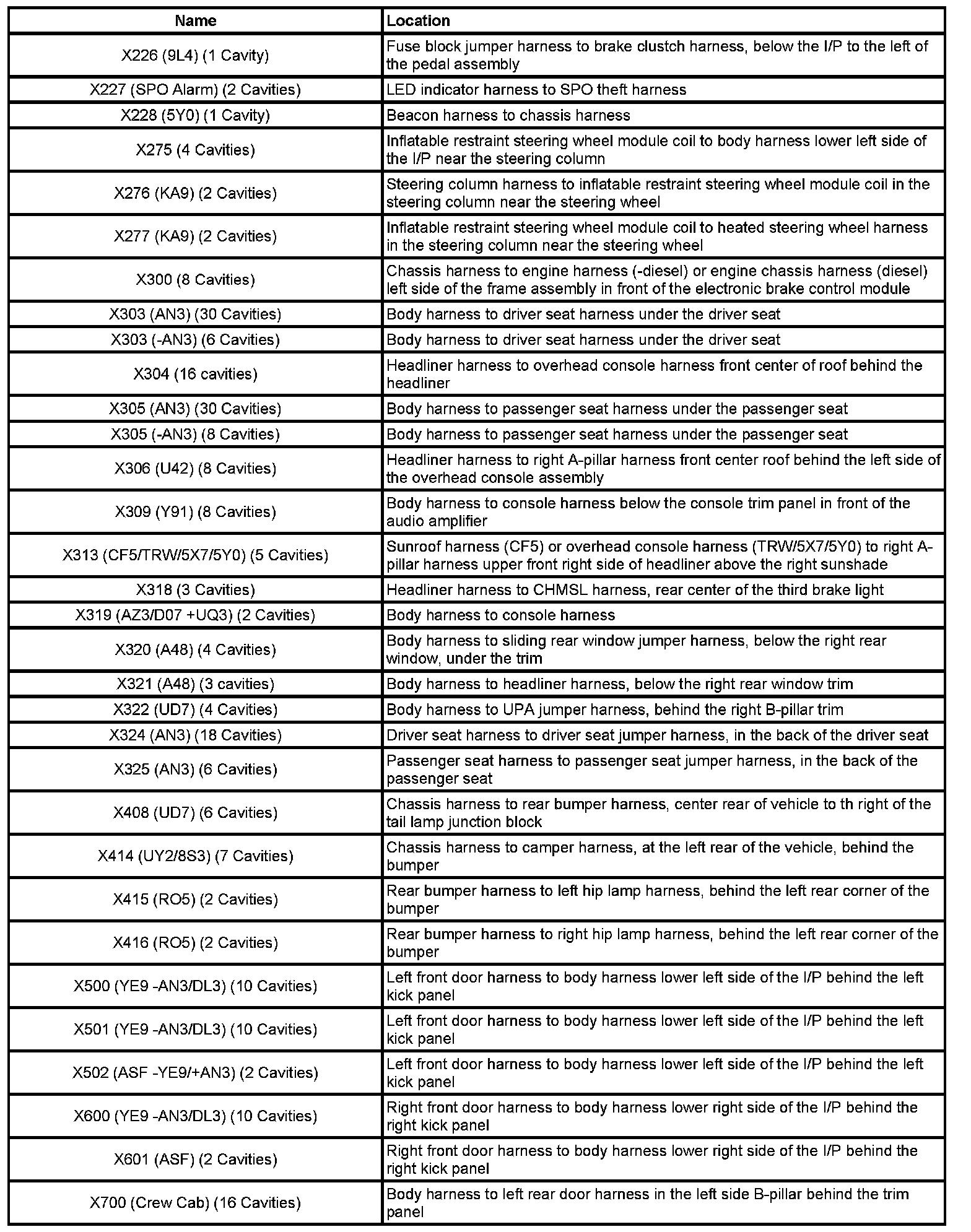

X226 - X700:

Technical service diagram

X700 - X800:

Technical service diagram
