Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

Vibration Analysis - Driveline

Vibration Analysis - Driveline

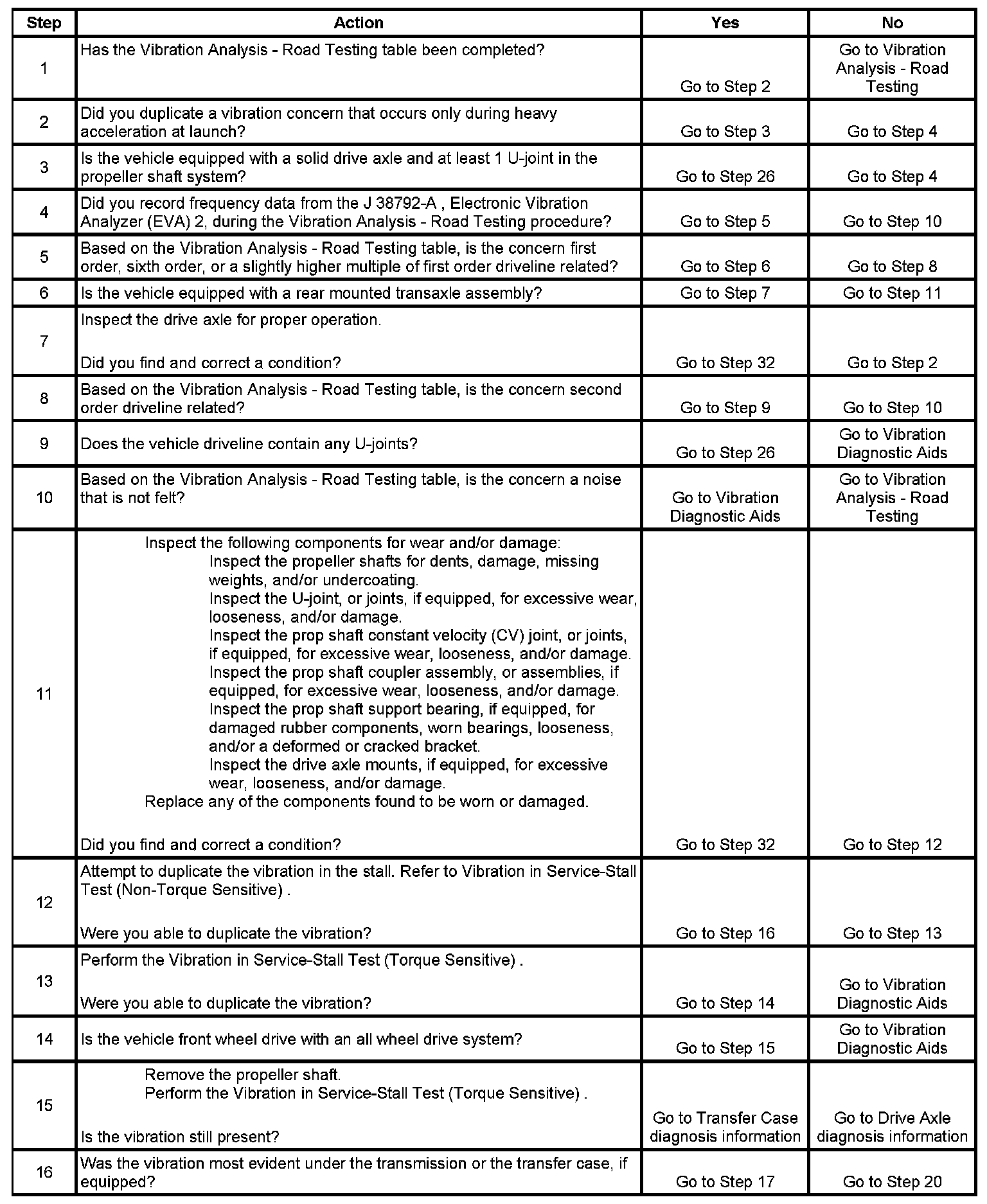

Step 1-16:

Technical service diagram

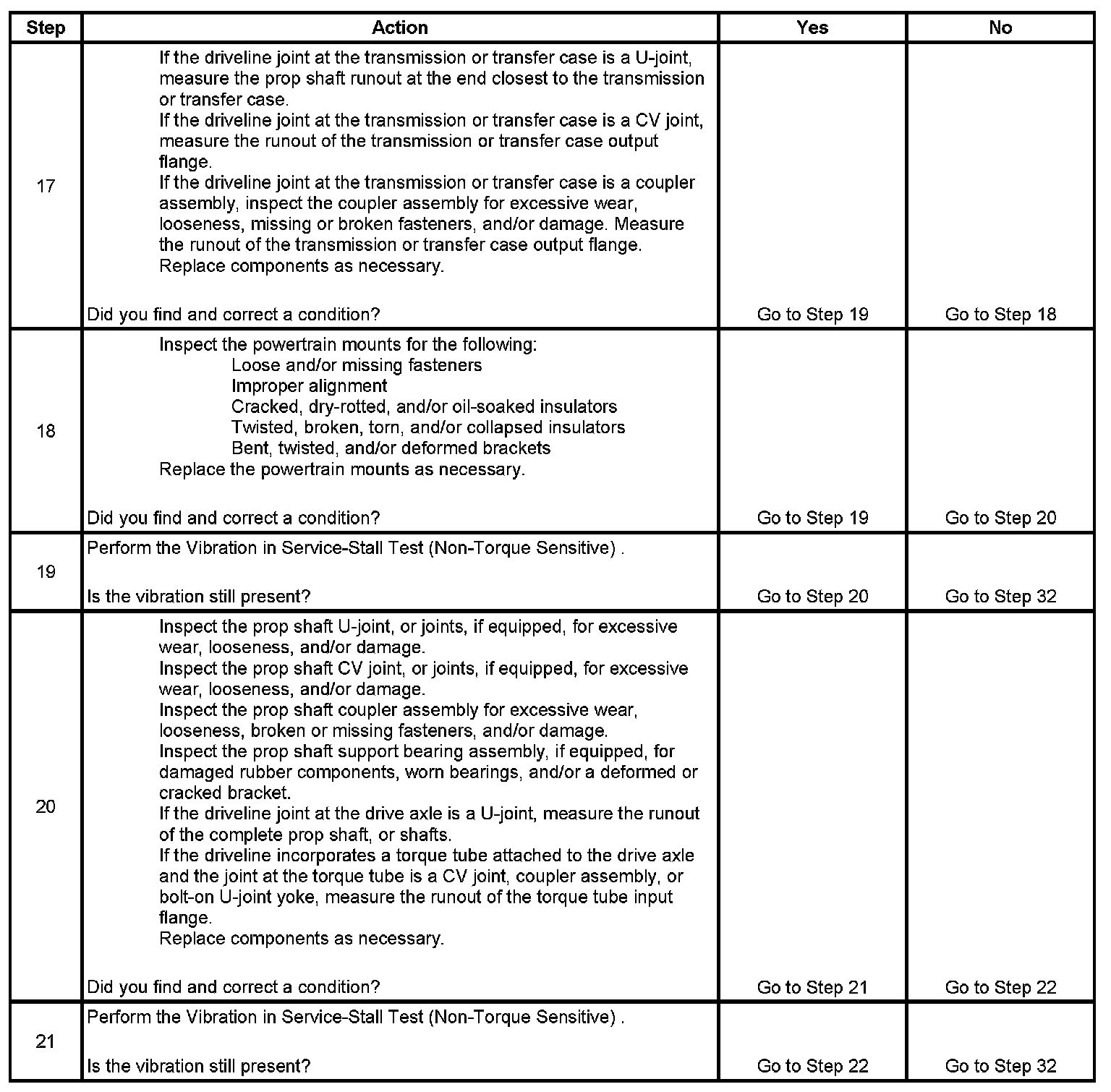

Step 17-21:

Technical service diagram

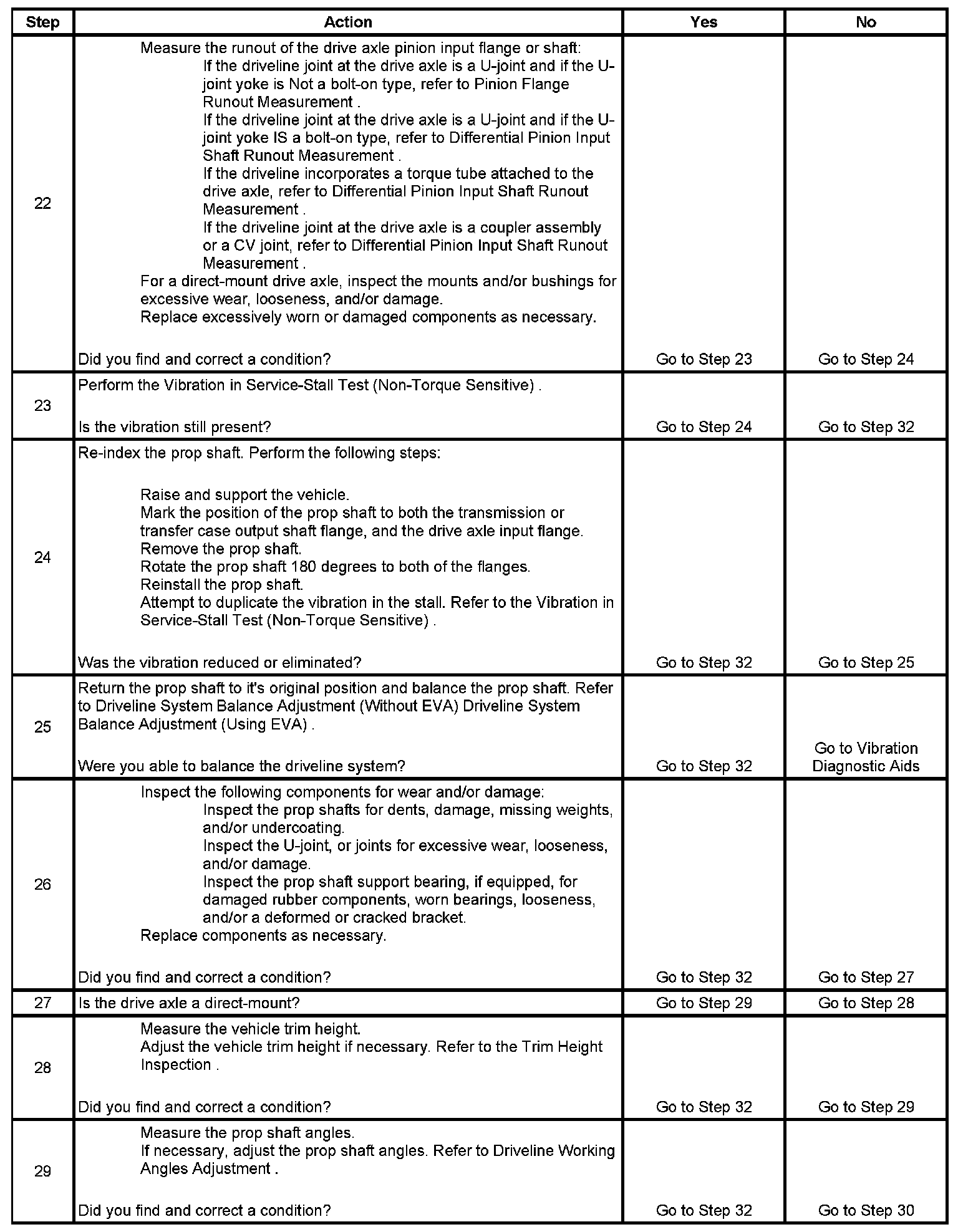

Step 22-29:

Technical service diagram

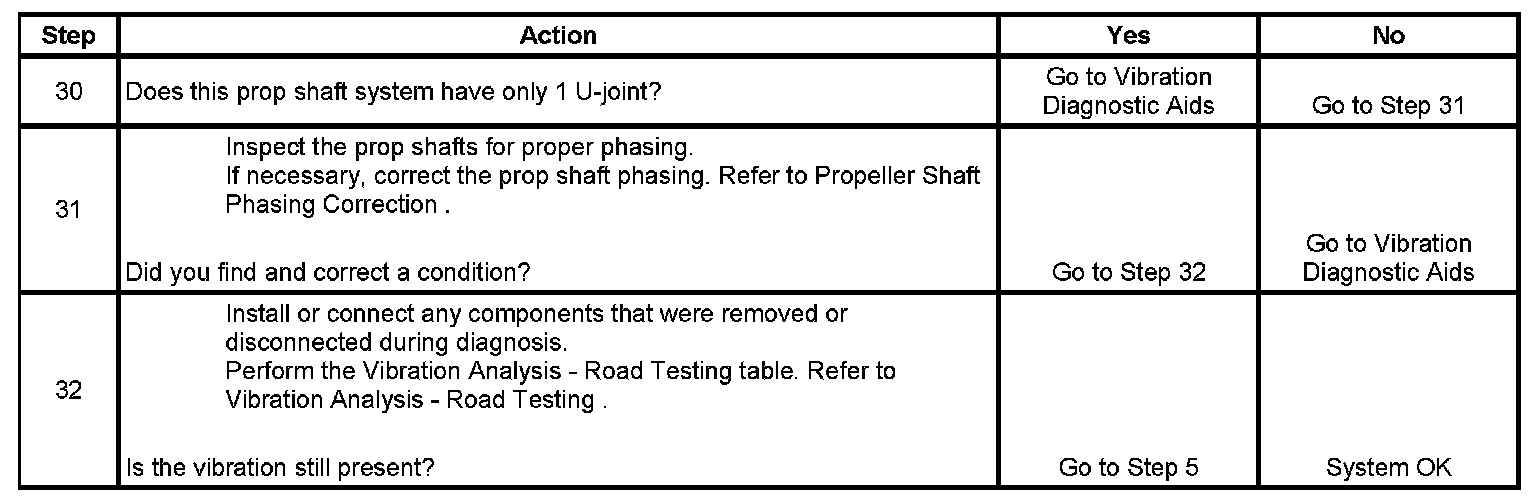

Step 30-32:

Technical service diagram
