Electrical Diagrams

Moveable Window Schematics

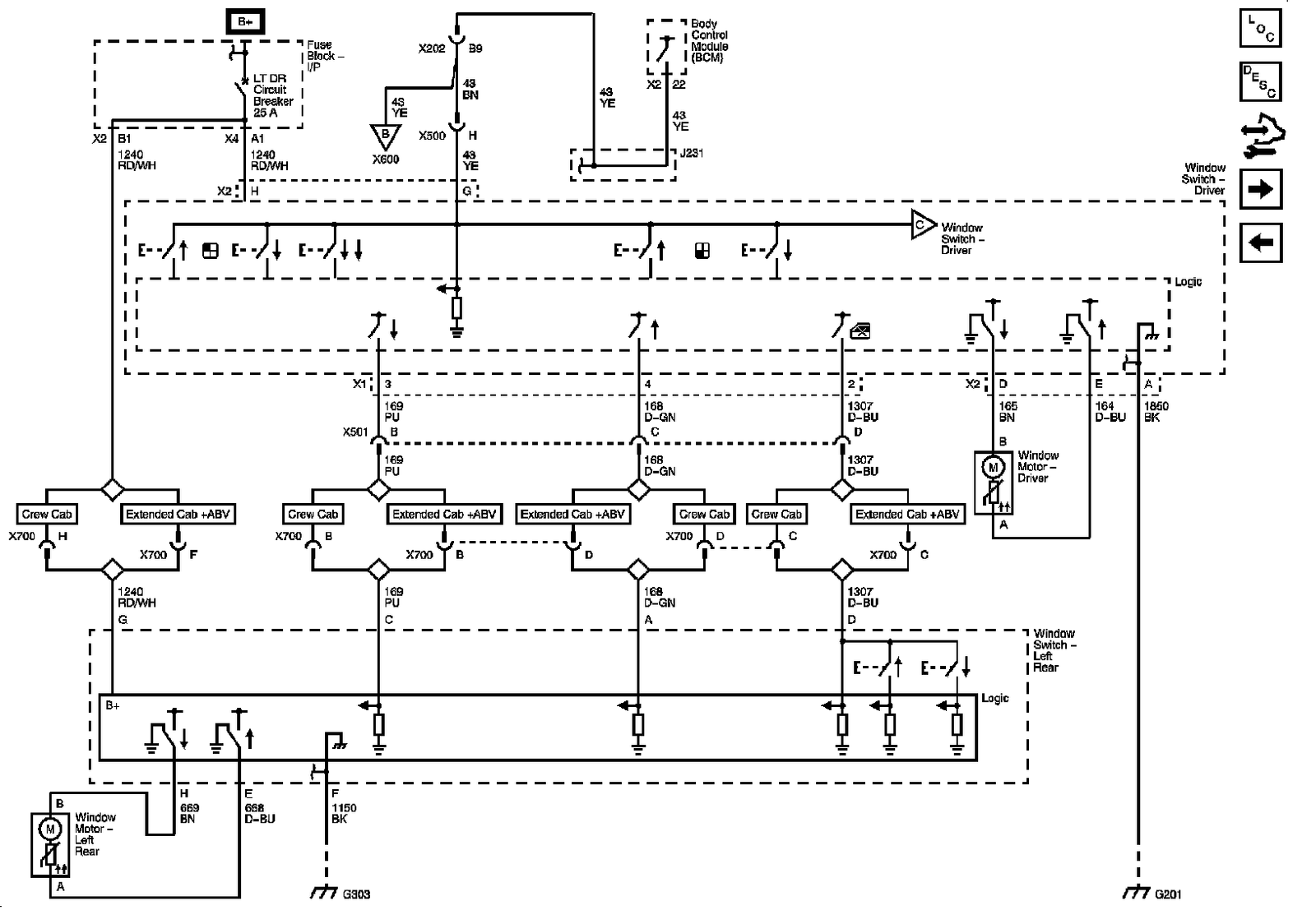

Left Doors (AN3/DL3)

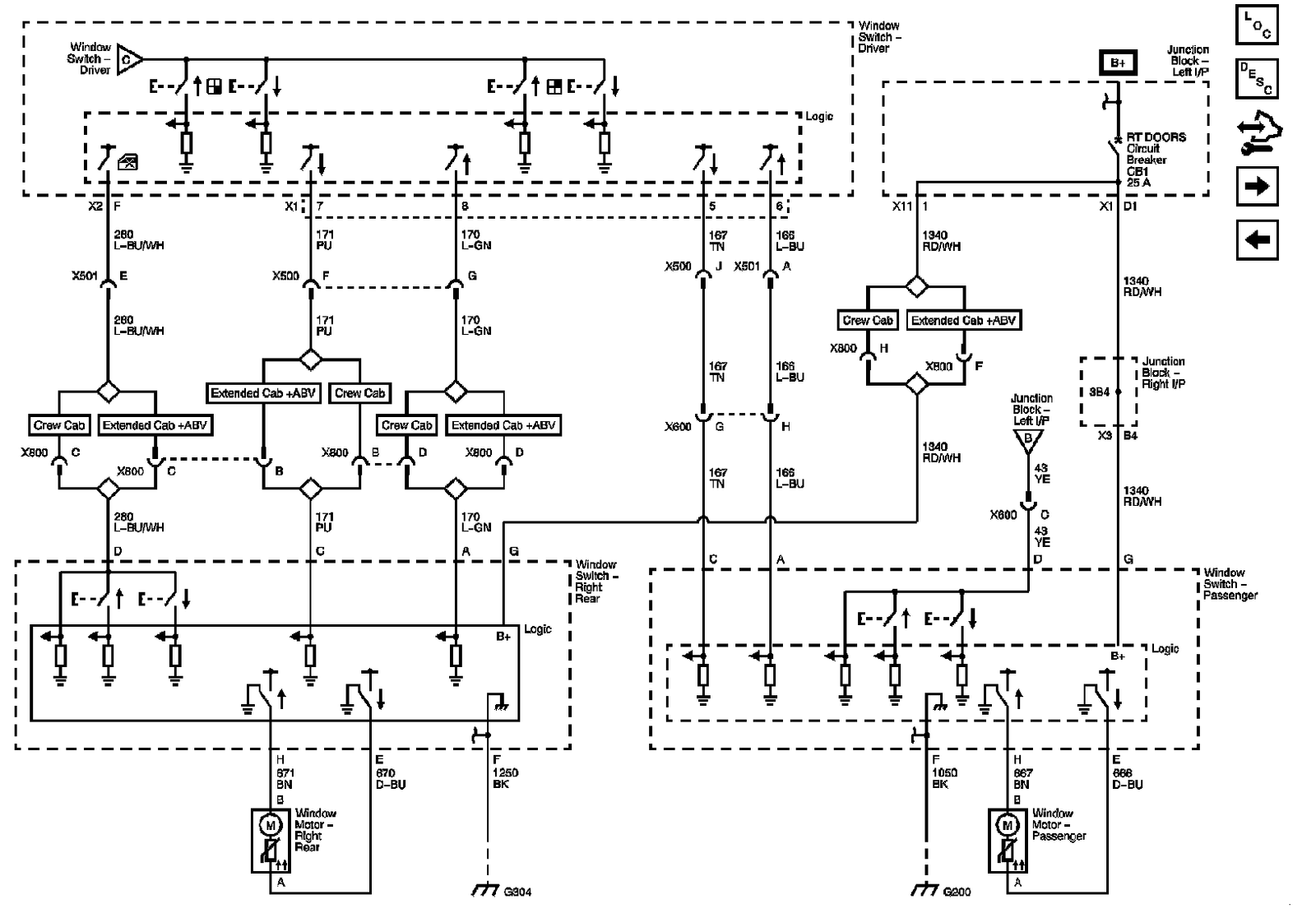

Right Doors (AN3/DL3)

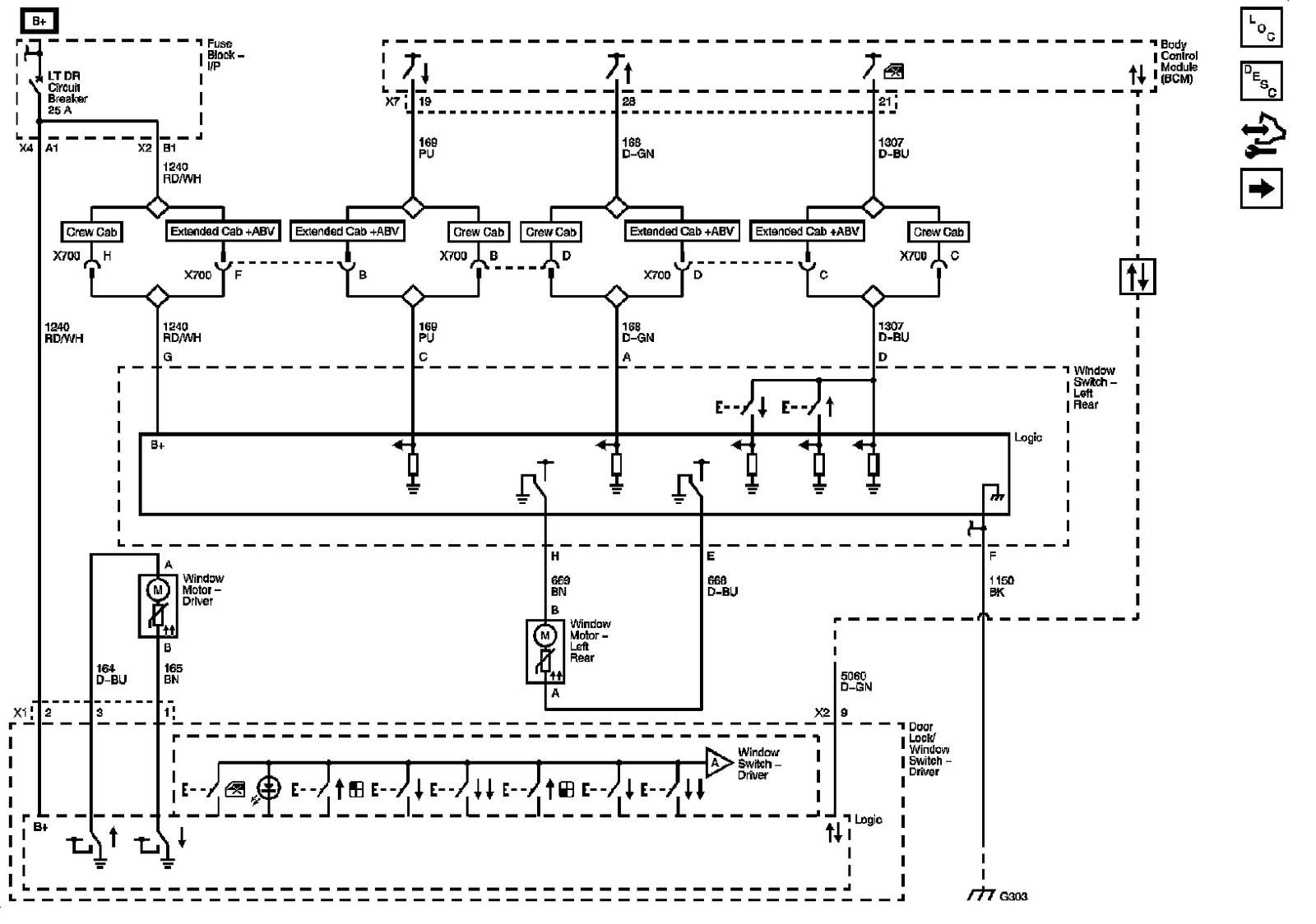

Left Doors (except AN3/DL3)

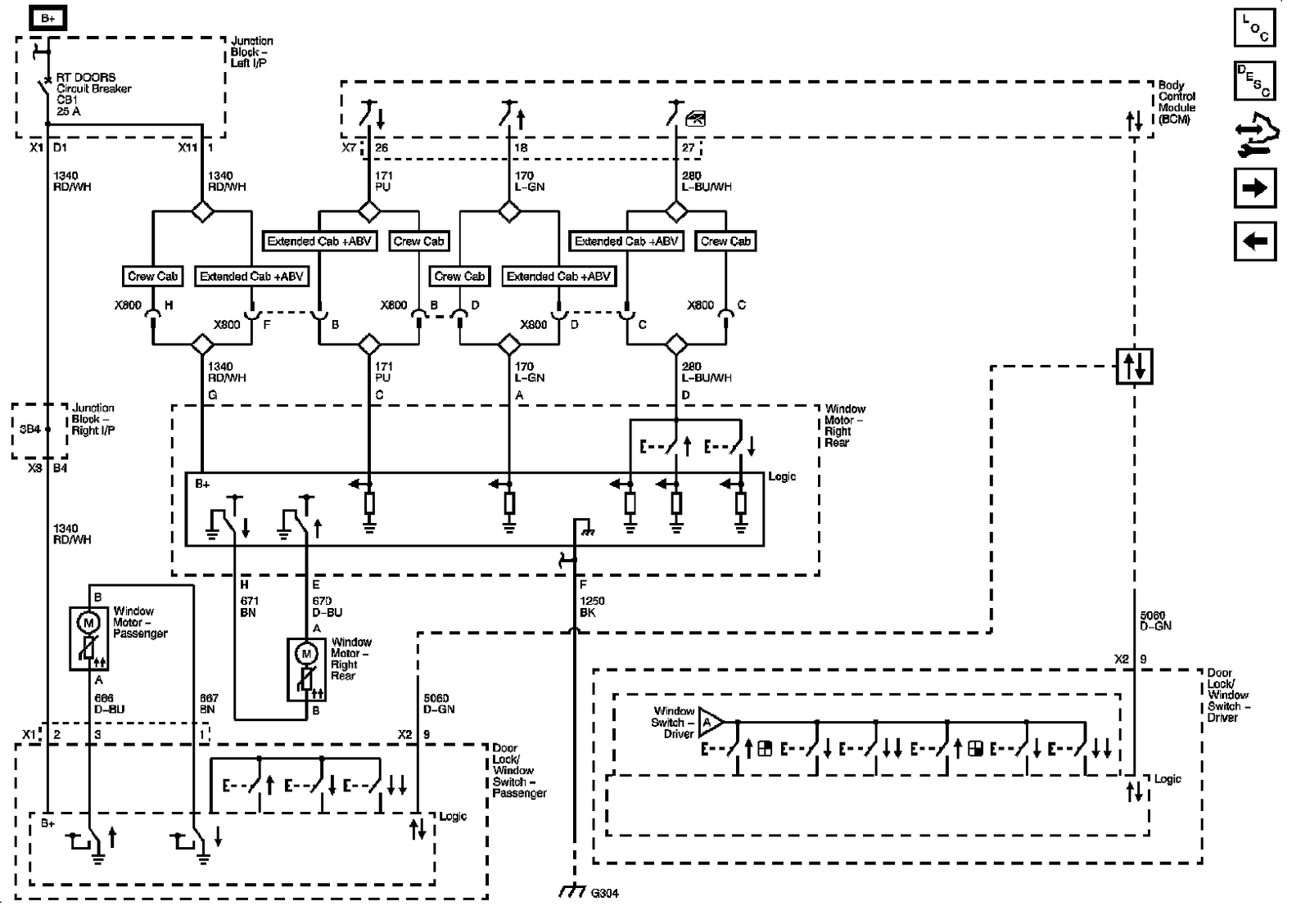

Right Doors (except AN3/DL3)

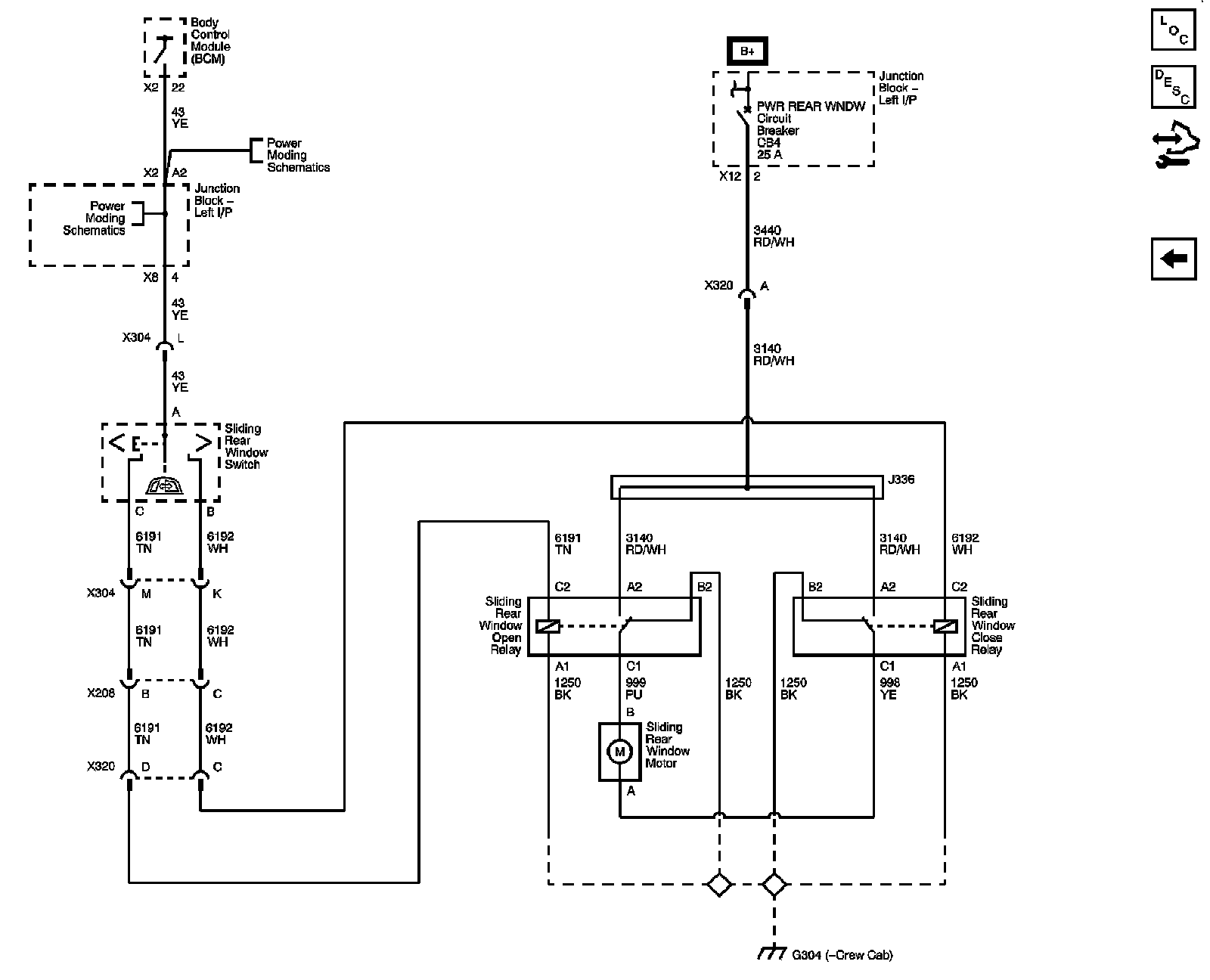

Sliding Rear Window (A48)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Location. Locations
