Exterior Lights Diagram 6

Exterior Lights Schematics

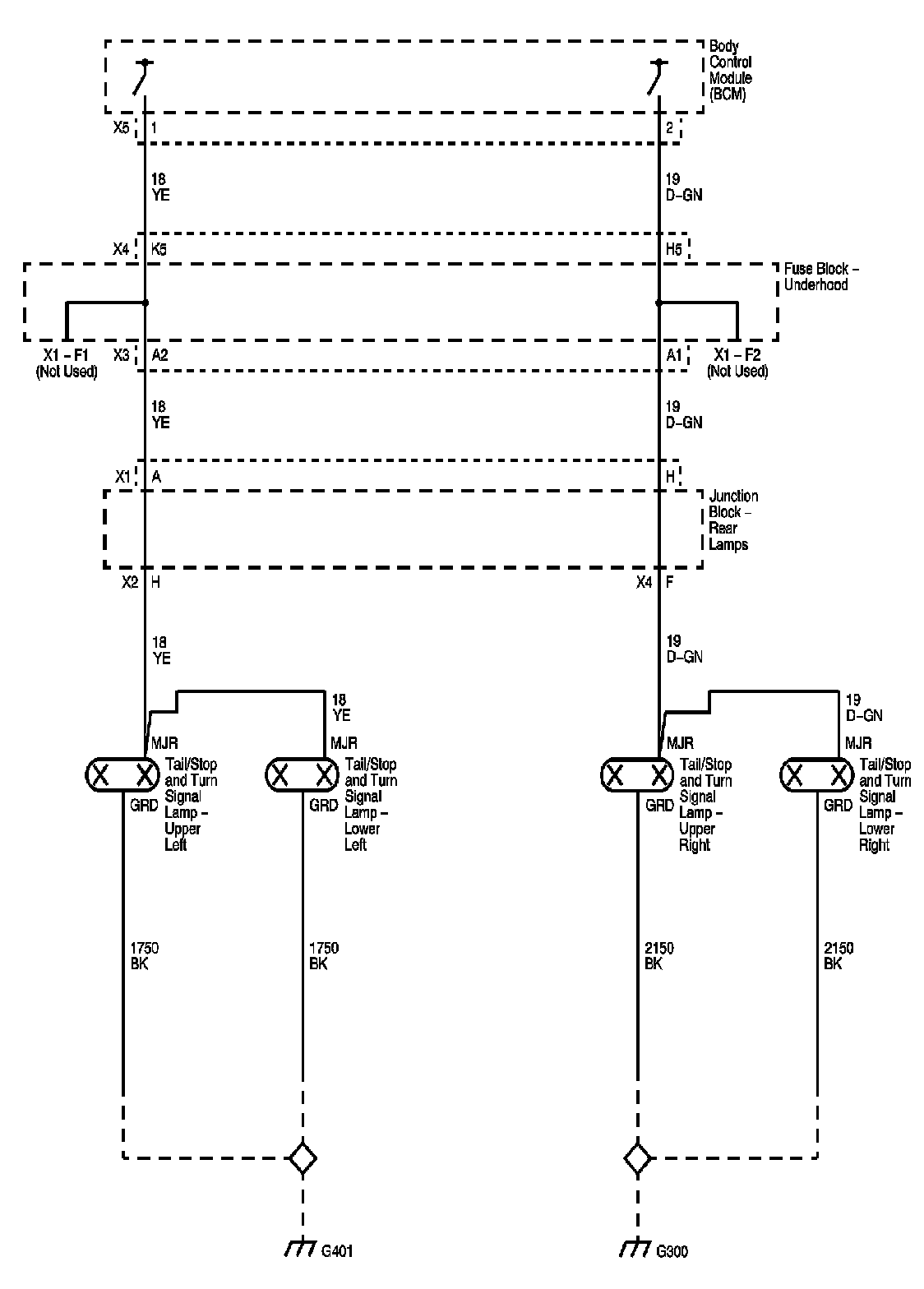

Rear Stop/Turn Signal Lamps

Exterior Lights Diagram 6:

Next Diagram: Exterior Lights Diagram 7

Previous Diagram: Exterior Lights Diagram 5

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
