Exterior Lights Diagram 1

Exterior Lights Schematics

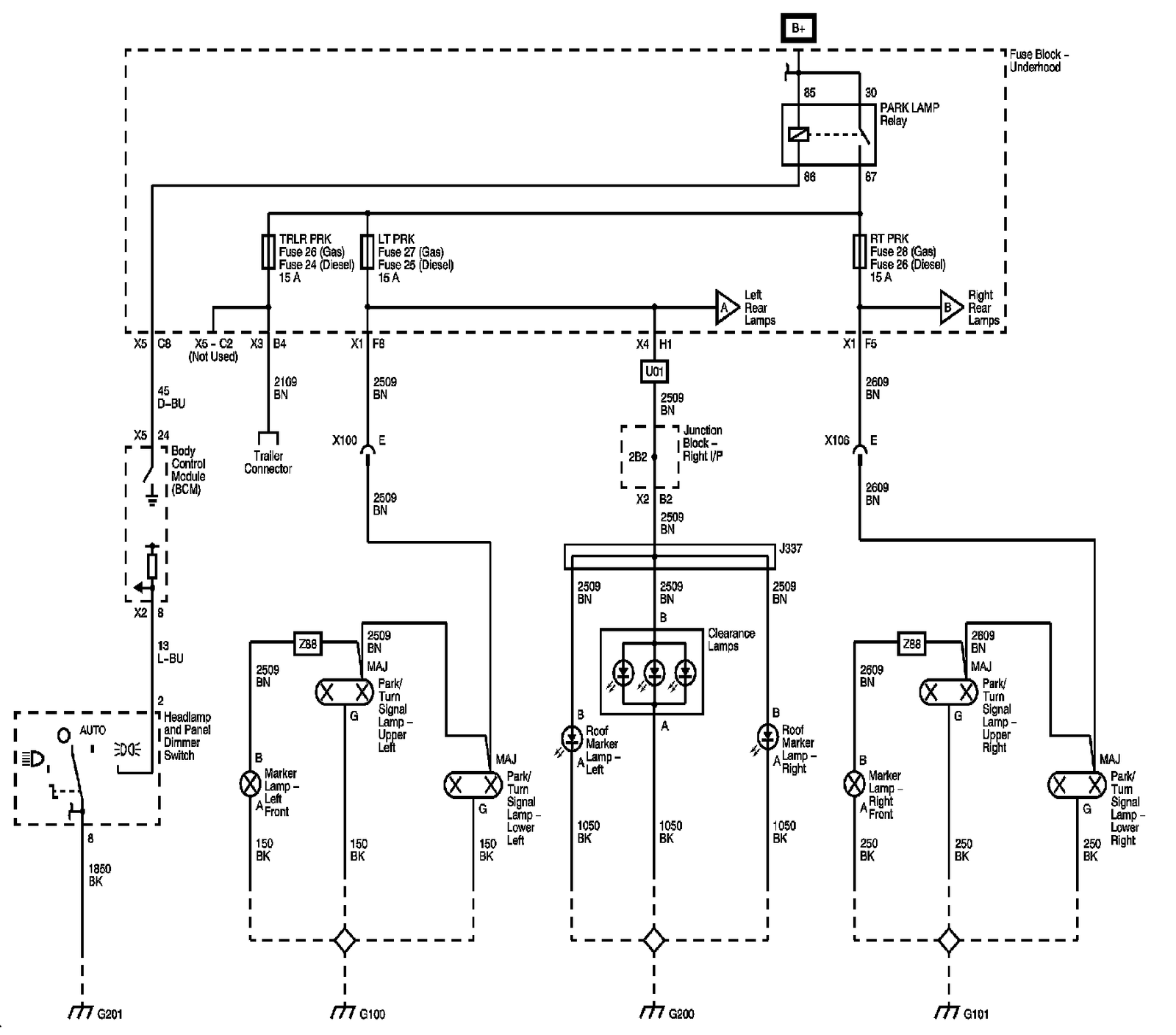

Park Lamp Controls and Front Park Lamps

Exterior Lights Diagram 1:

Next Diagram: Exterior Lights Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
