Connector Views
Component Connector End Views - Continued

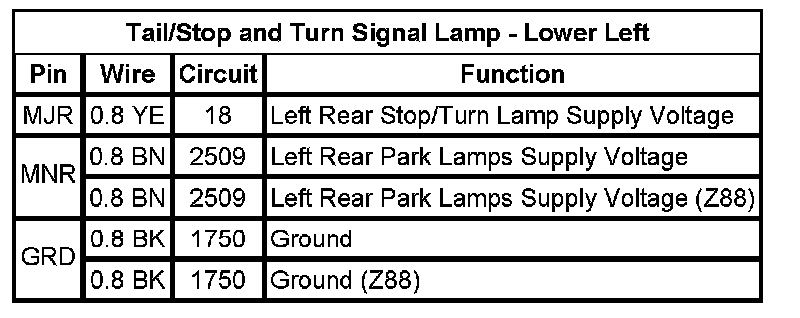

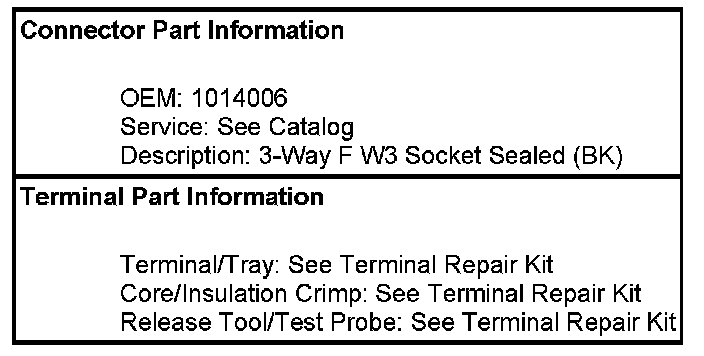

Tail/Stop and Turn Signal Lamp - Lower Left

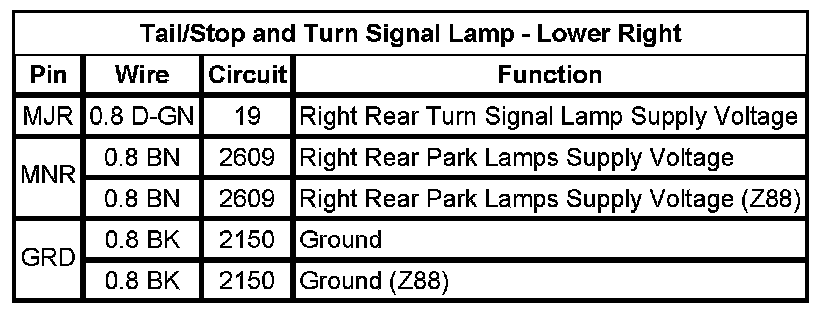

Tail/Stop and Turn Signal Lamp - Lower Right

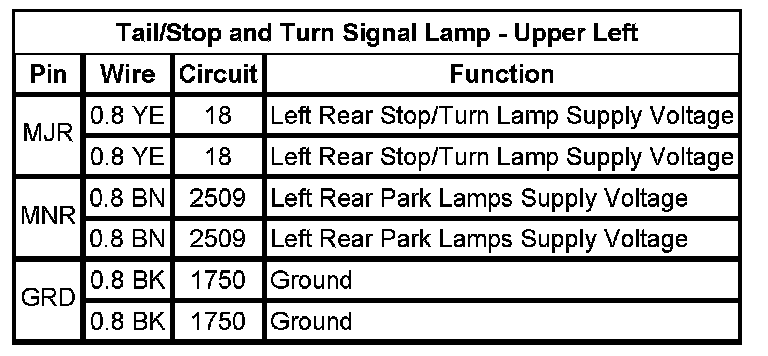

Tail/Stop and Turn Signal Lamp - Upper Left

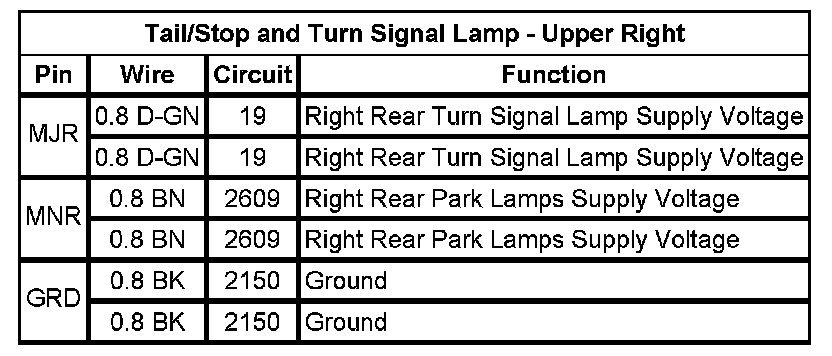

Tail/Stop and Turn Signal Lamp - Upper Right
Component Connector End Views - Continued
Tail/Stop and Turn Signal Lamp - Lower Left
Tail/Stop and Turn Signal Lamp - Lower Right
Tail/Stop and Turn Signal Lamp - Upper Left
Tail/Stop and Turn Signal Lamp - Upper Right
