Passenger Seat Schematics

Passenger Seat Schematics

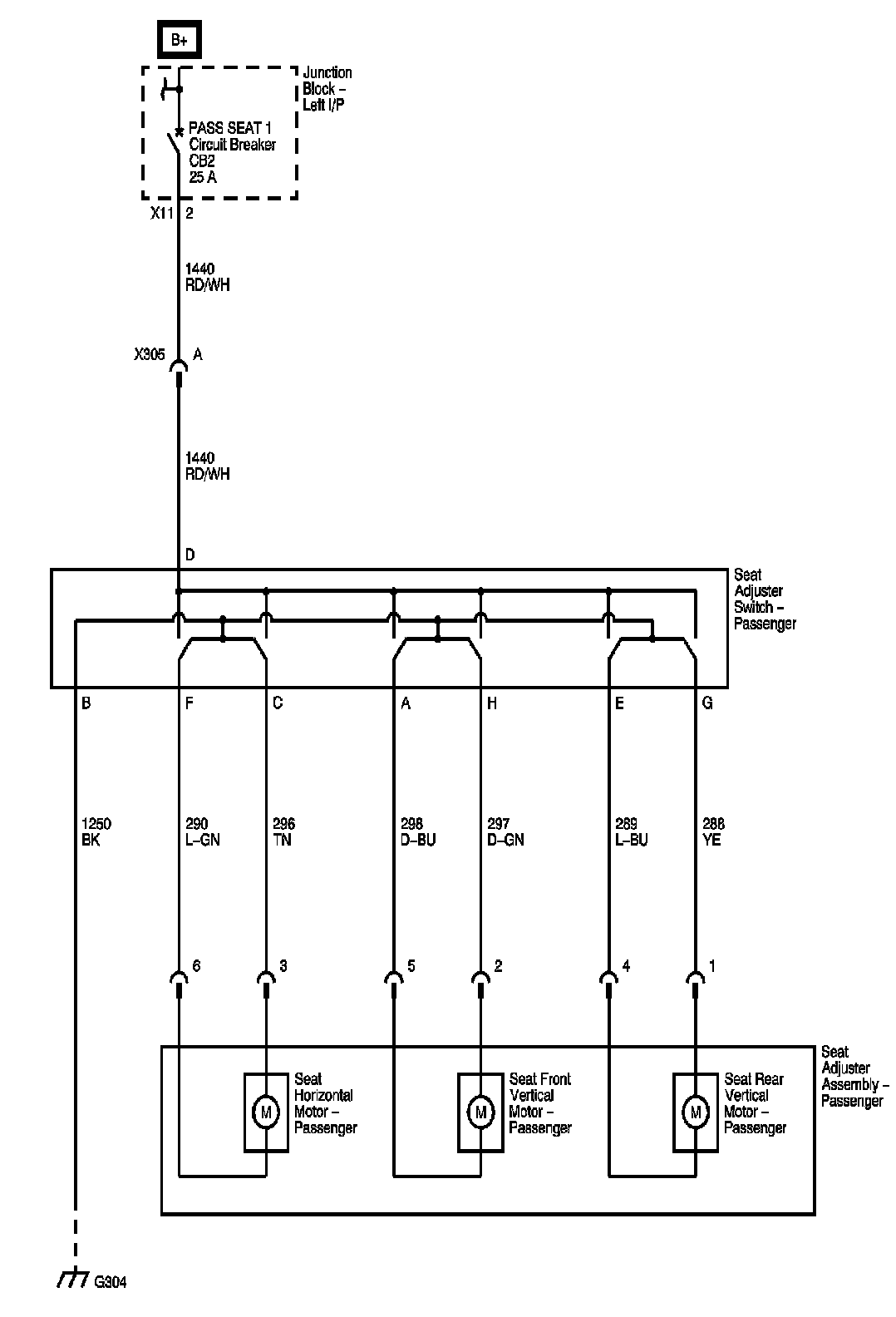

6-Way Power (-AN3)

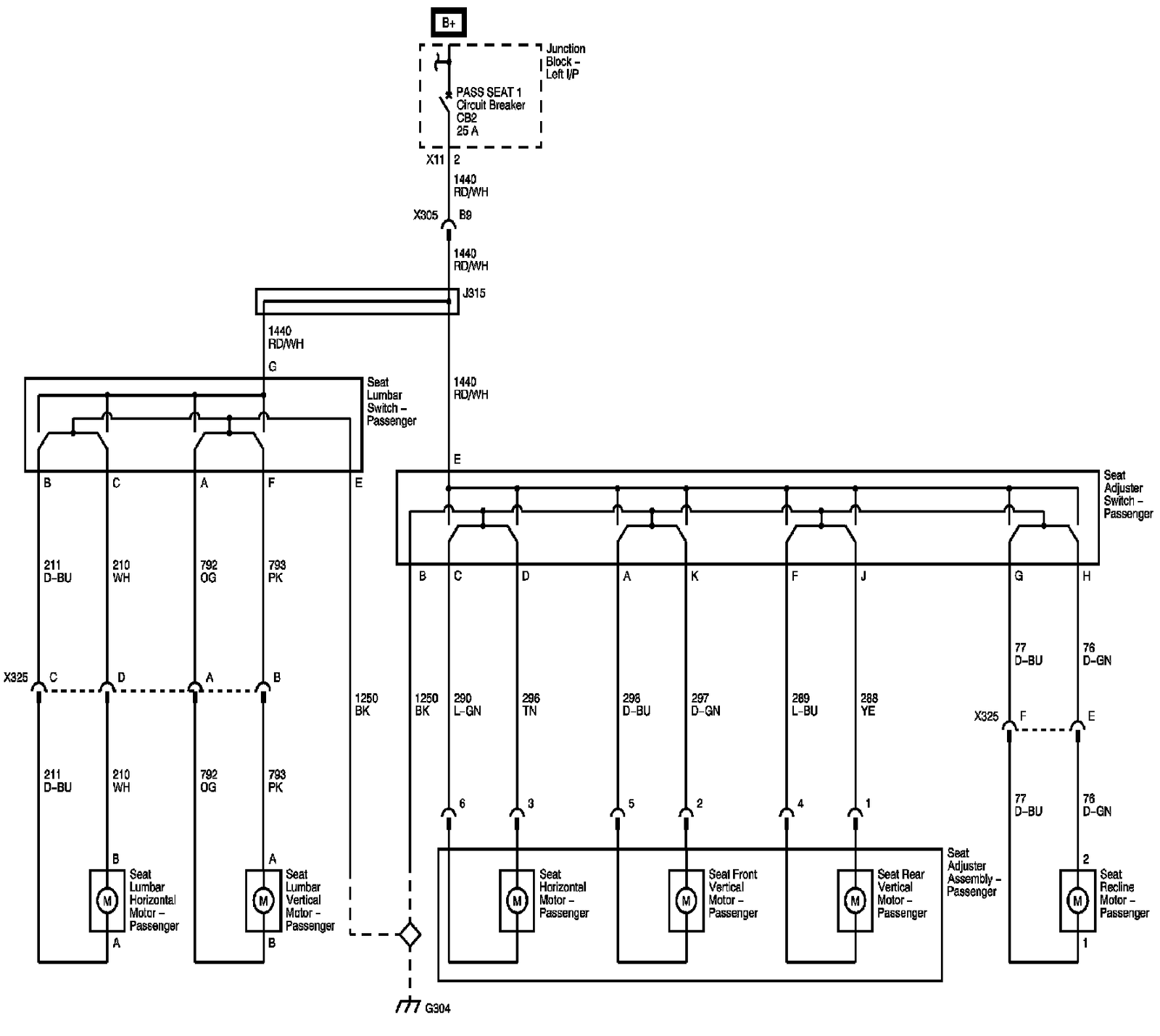

8-Way Power (AN3)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
