Home › Manual › Repair and Diagnosis › Body and Frame › Seats › Service and Repair › Removal and Replacement › Rear Seat Latch Replacement (Extended Cab with A68)

Back to category Back to top Search Manual

Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

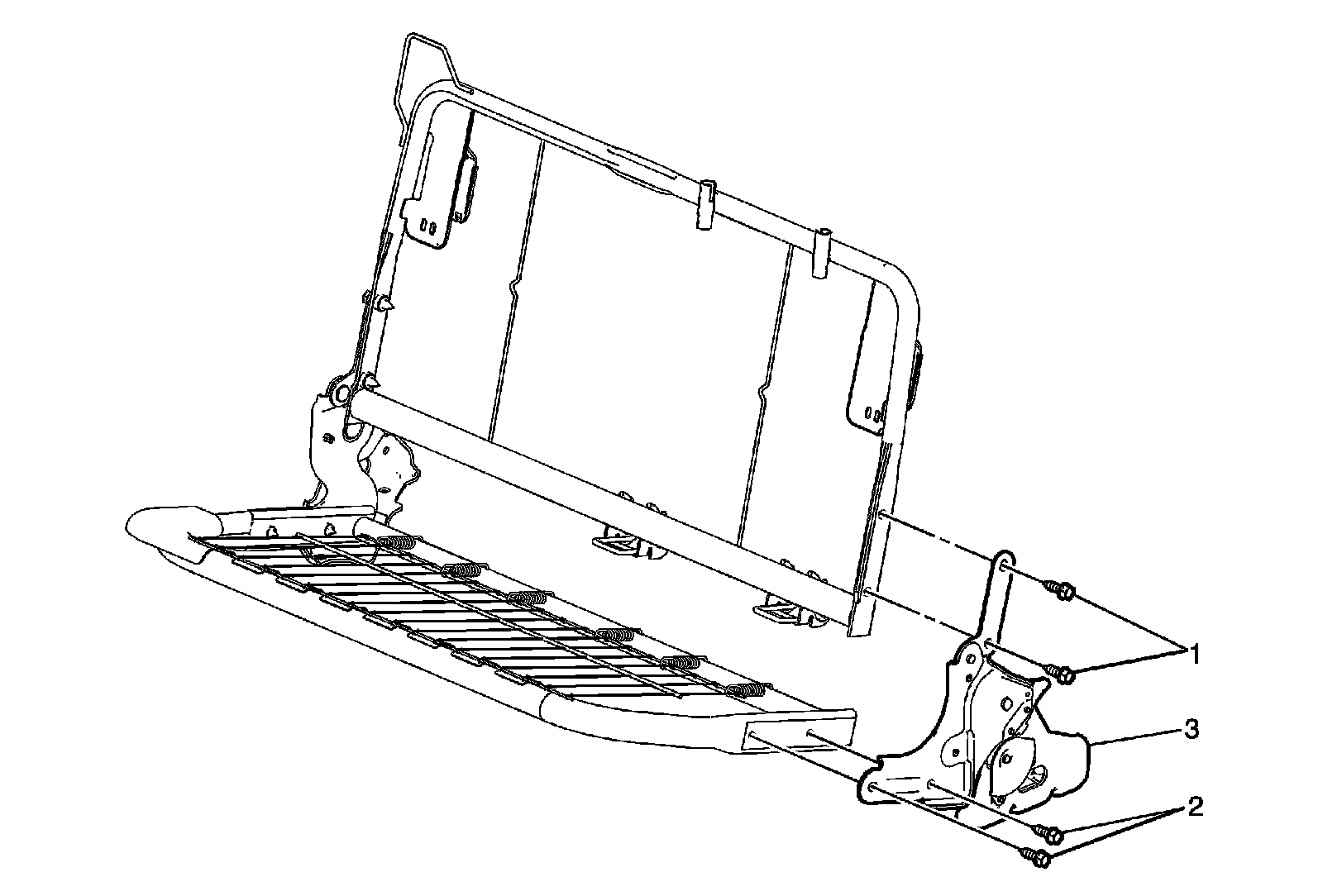

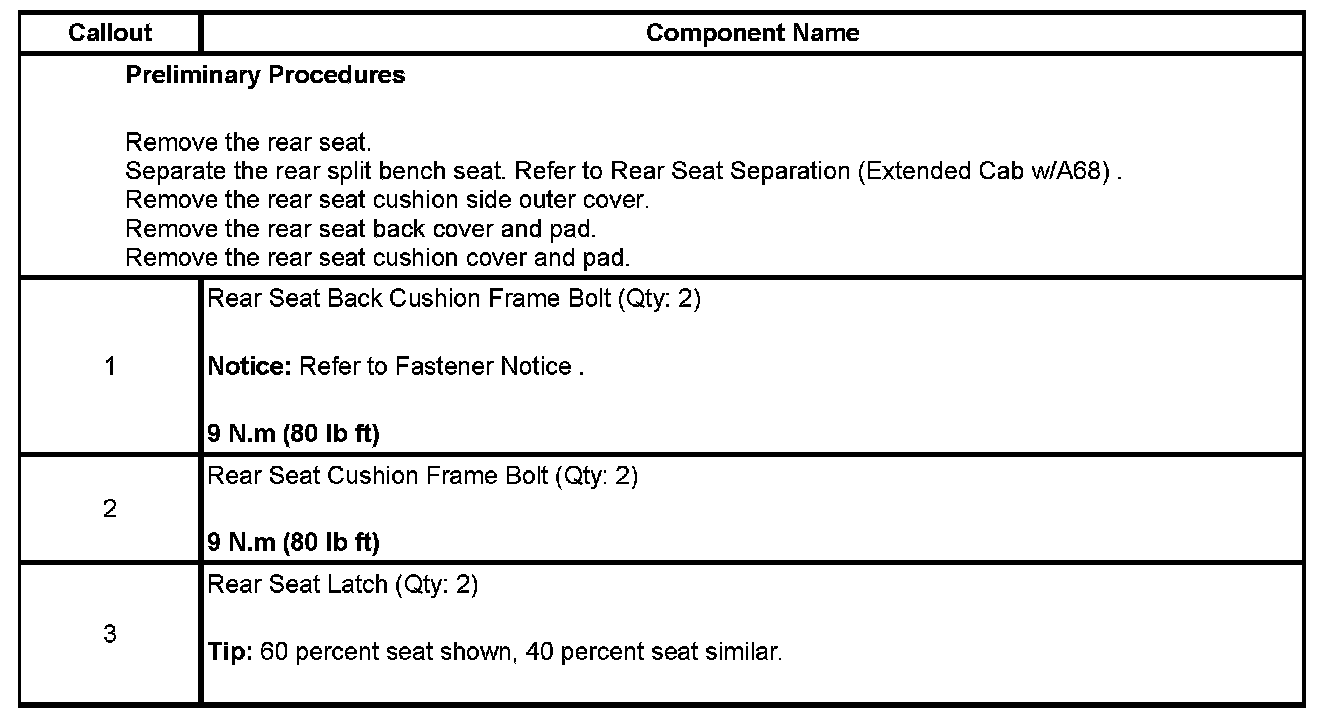

Rear Seat Latch Replacement (Extended Cab with A68)

Rear Seat Latch Replacement (Extended Cab with A68)

Technical service diagram

Technical service diagram

Devin's Silverado Repair Manual
2008 Chevrolet Silverado 1500 LS · VIN 1GCEC19C58Z150516

Technical source: Operation CHARM supplied archive.
Verify all vehicle-specific fitment before repair.
