Door Lock/Indicator Schematics

Door Lock/Indicator Schematics

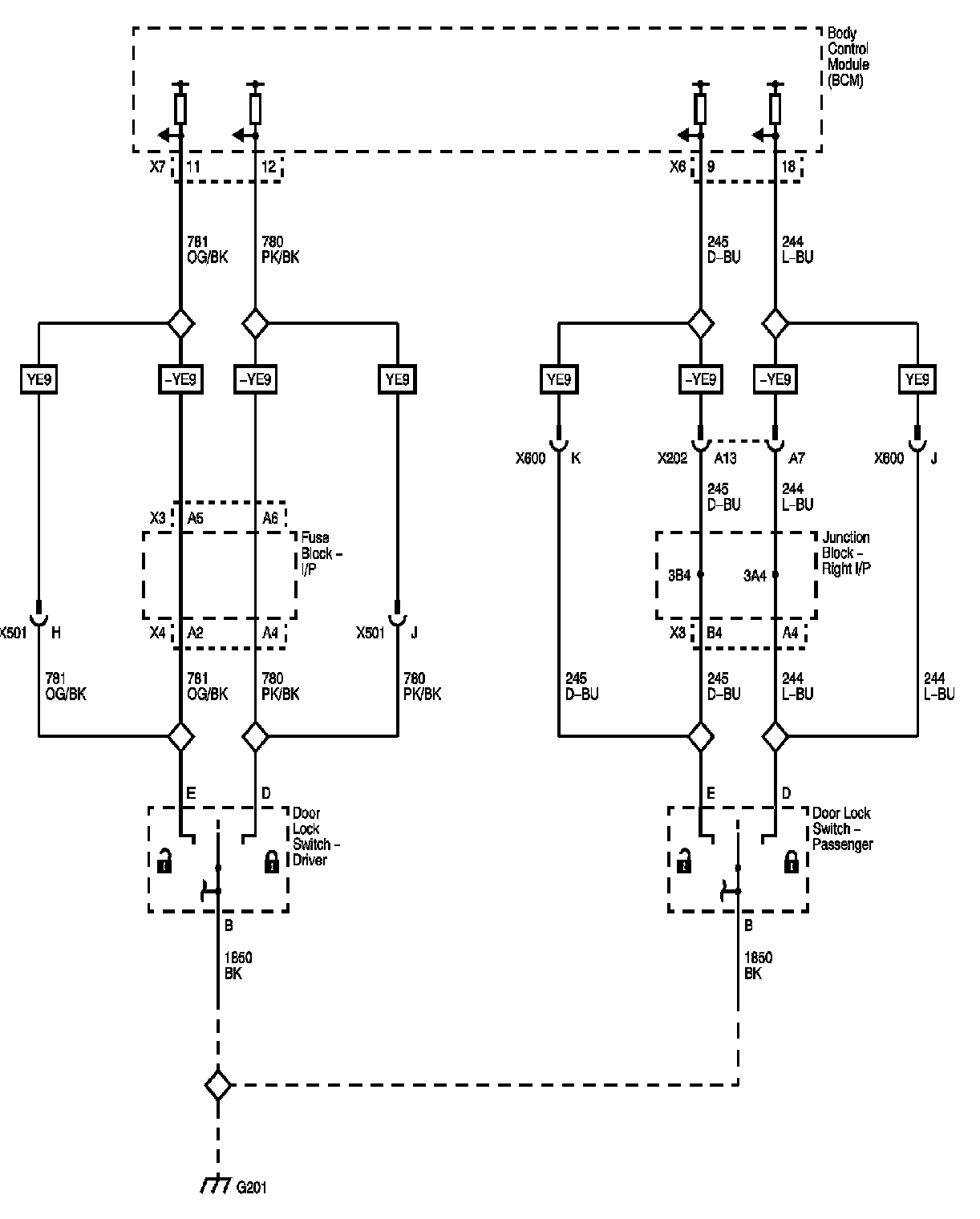

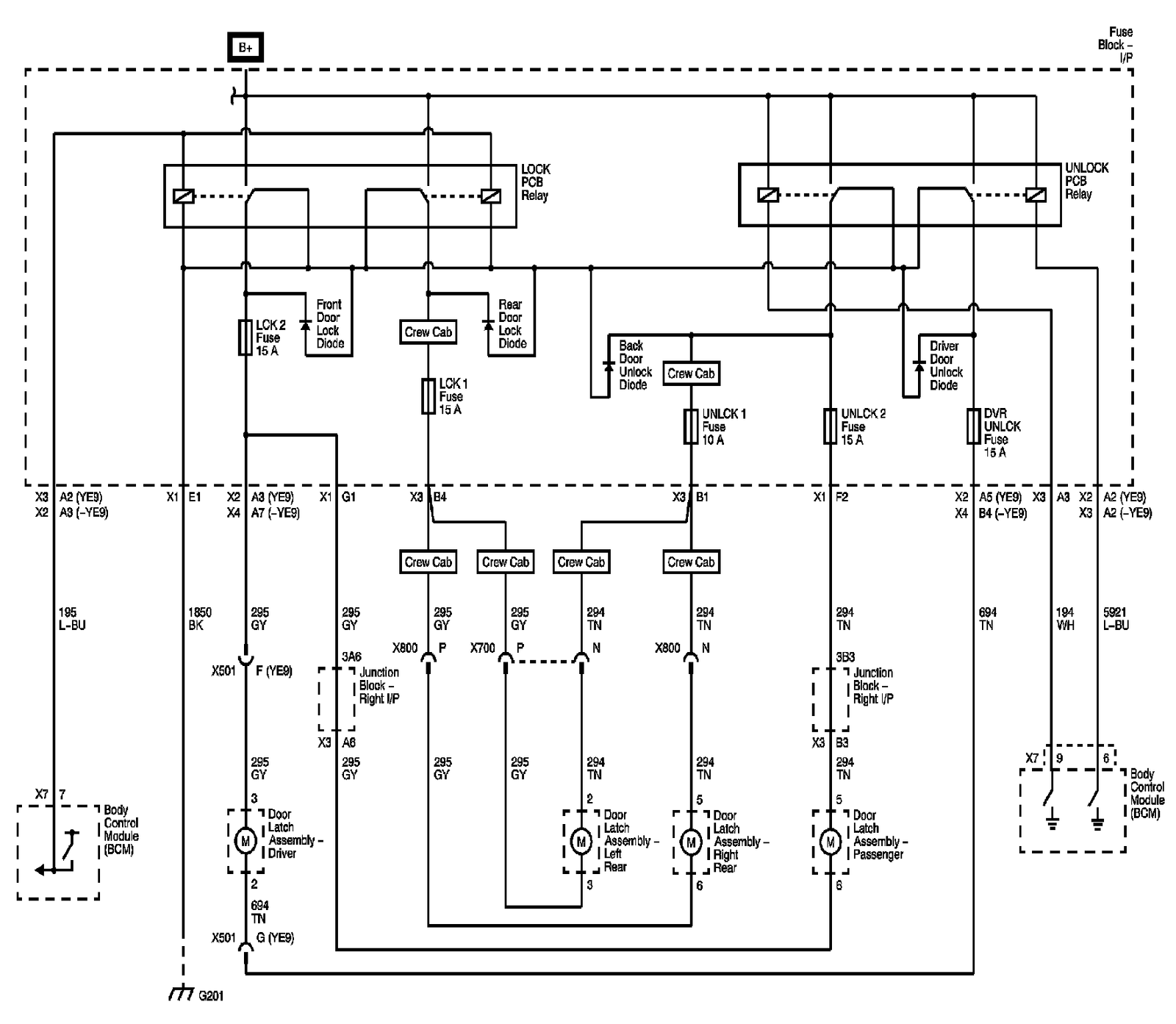

Door Lock Controls and Front Door Locks (AN3/DL3)

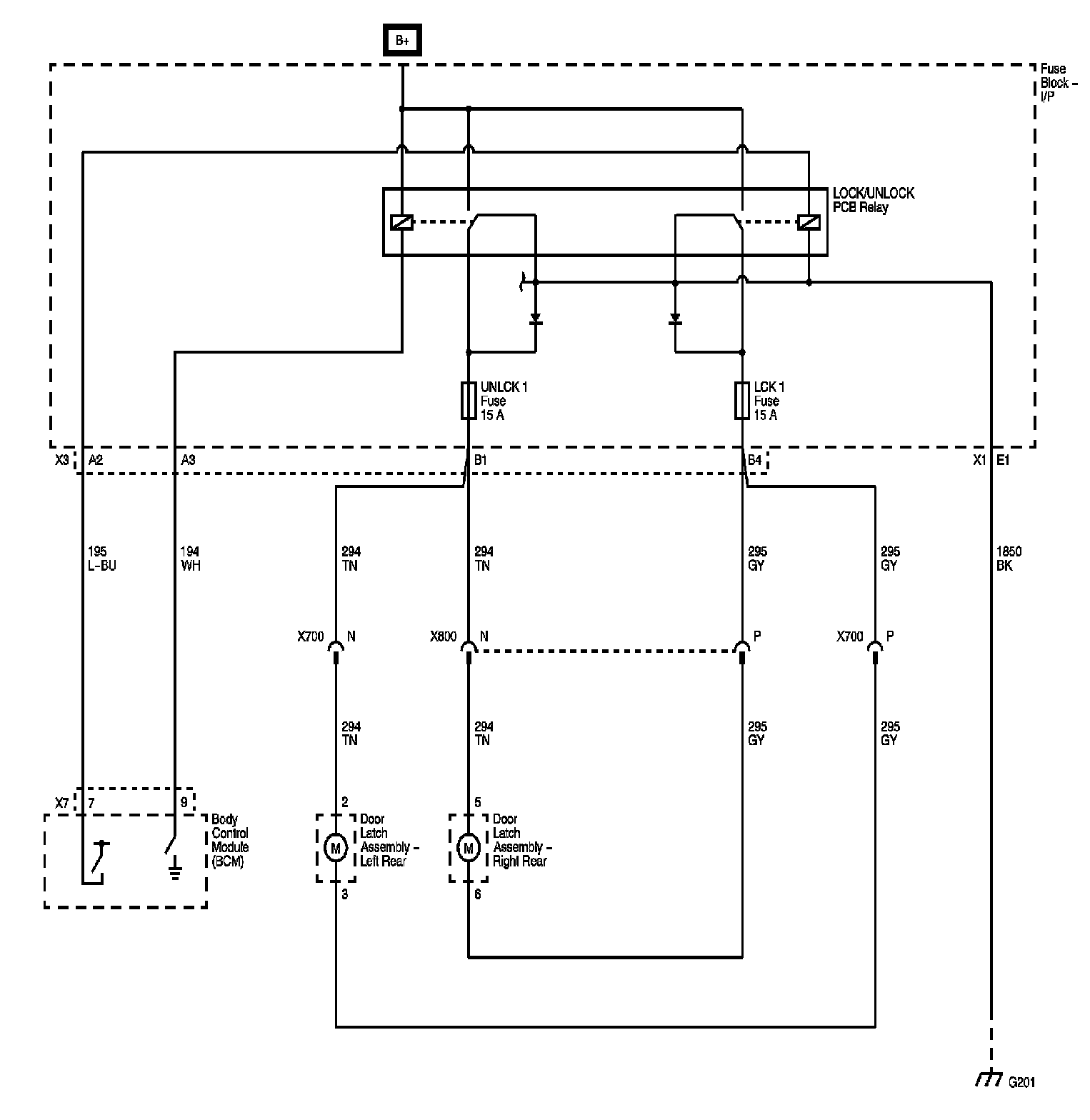

Rear Door Locks (Crew Cab +AN3)

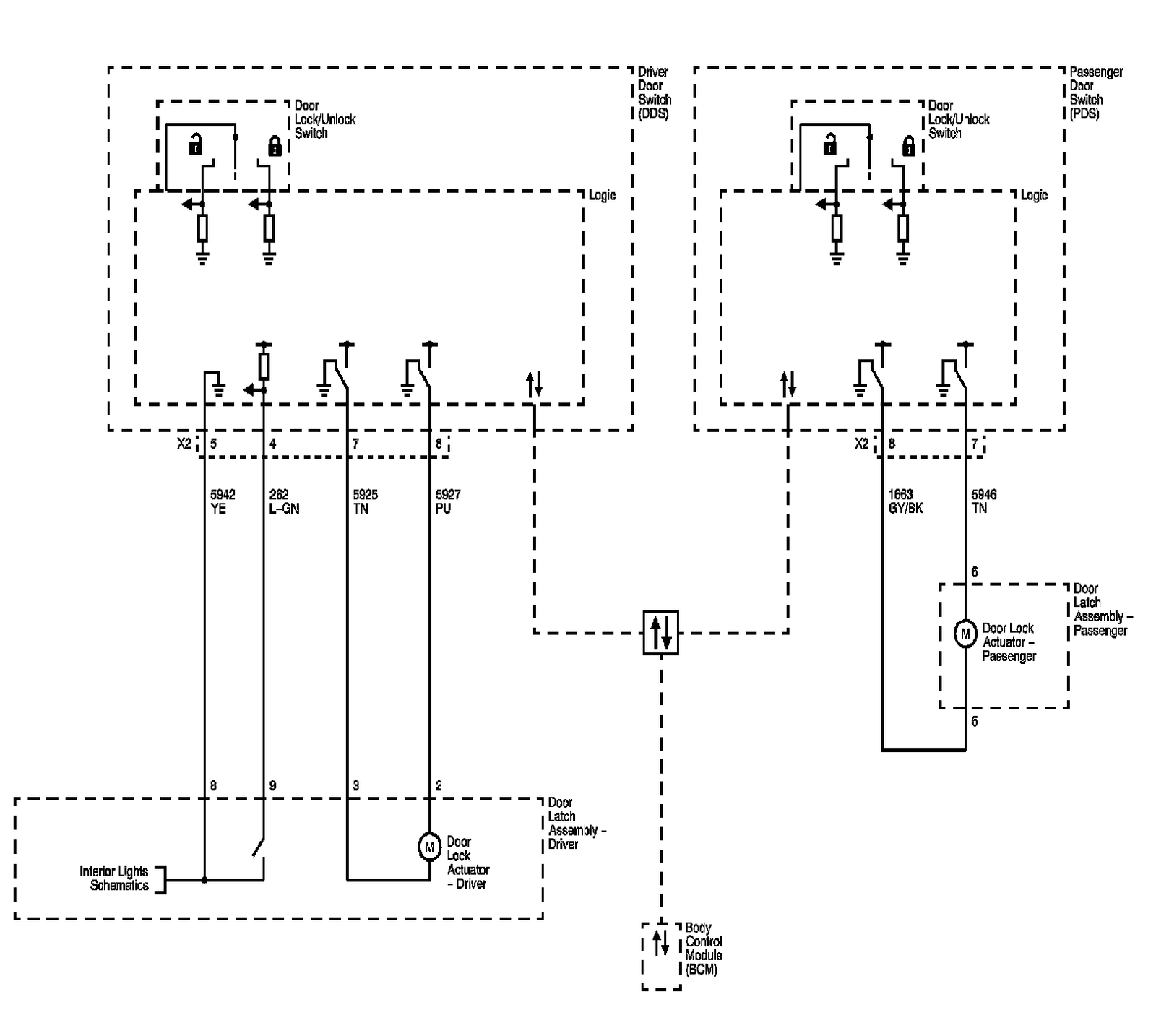

Door Lock Controls (AU3 -AN3/DL3)






Door Lock Motors (AU3 -AN3/DL3)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
