Electrical Diagrams

SIR Schematics

Module Power, Ground, Serial Data and Front Sensors

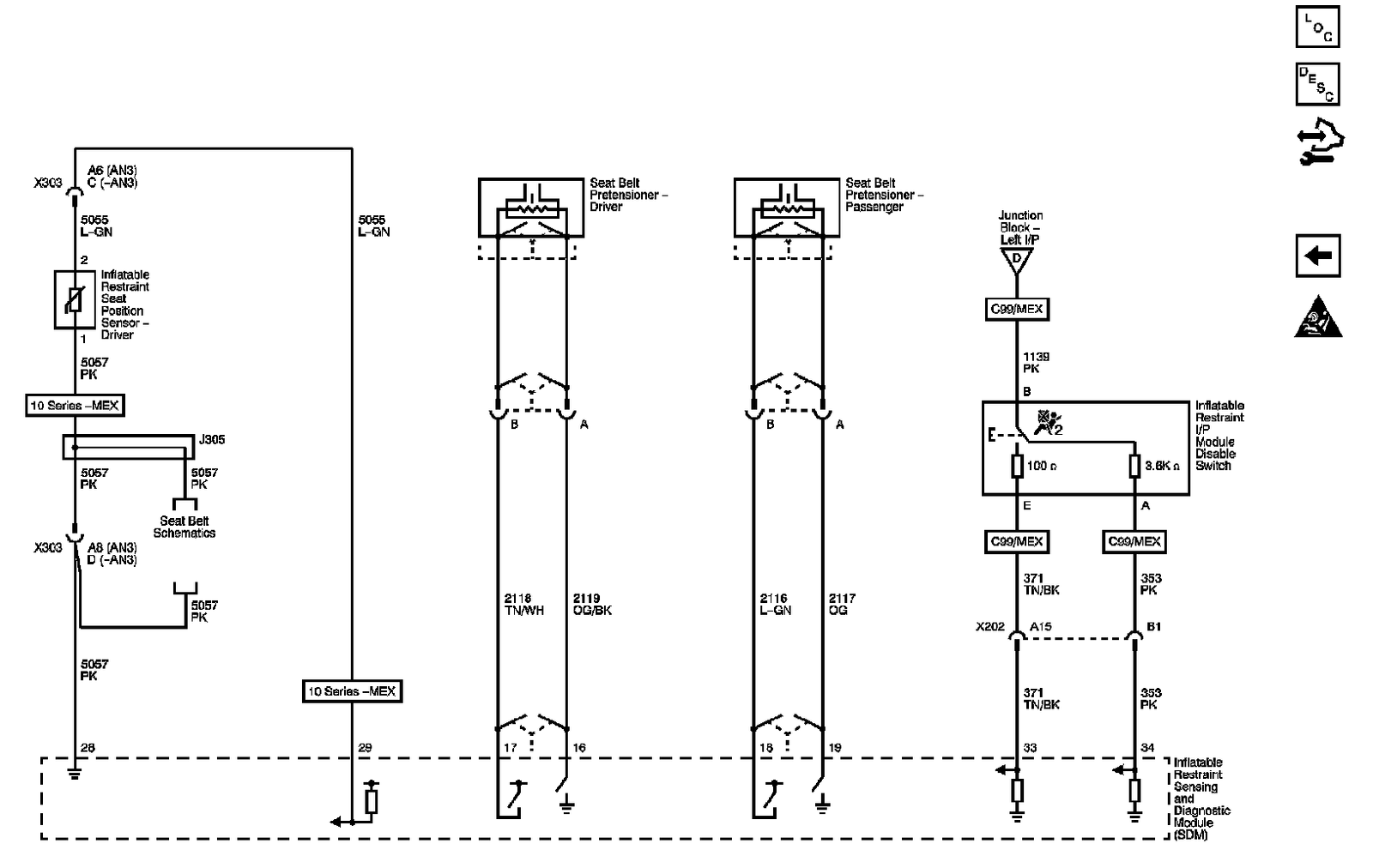

Steering Wheel and I/P Module






Side Impact Modules and Sensors (ASF)






Passenger Presence System 1 of 2






Passenger Presence System 2 of 2






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Location. Locations
