Power Moding Diagrams

Power Moding Schematics

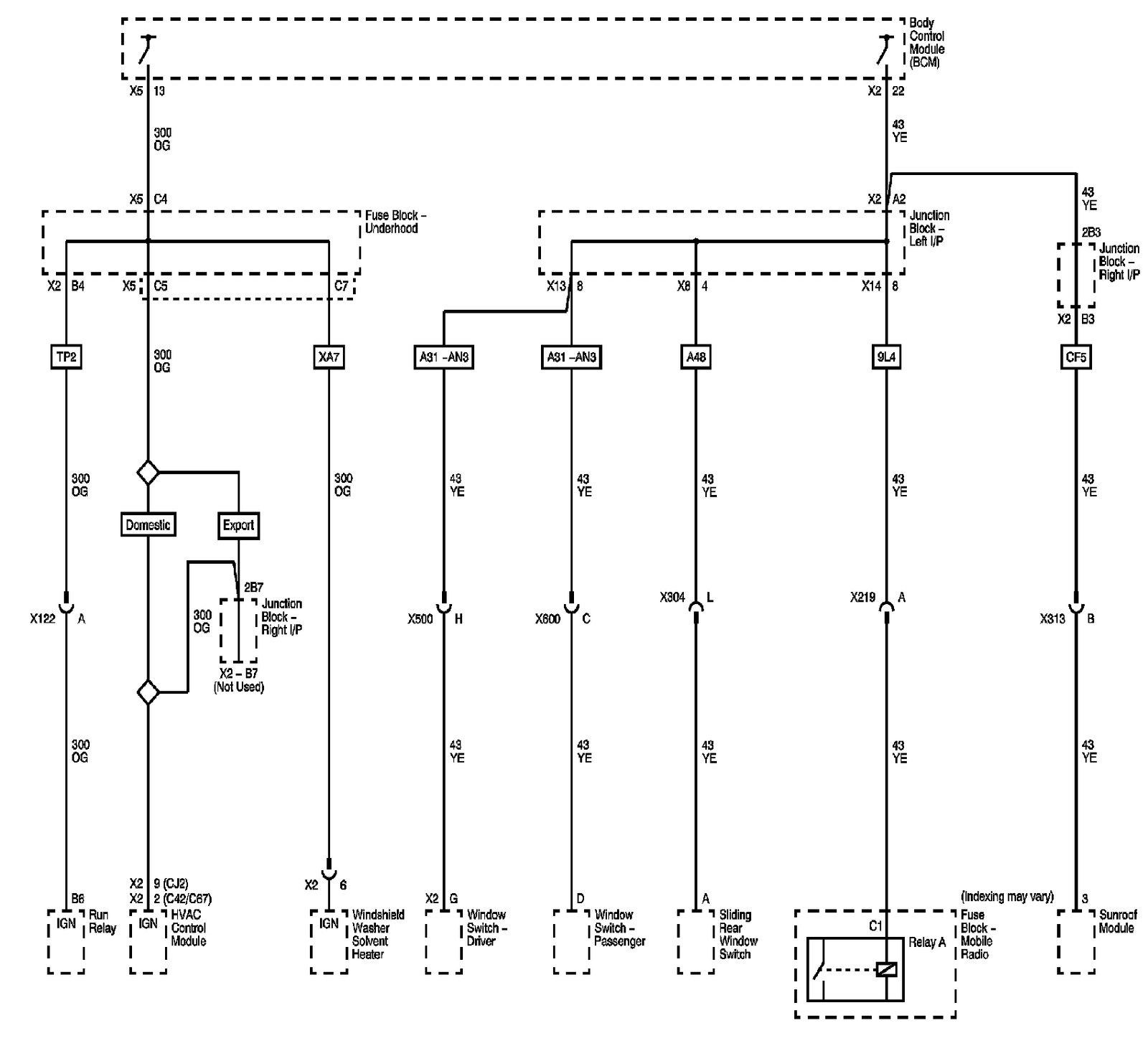

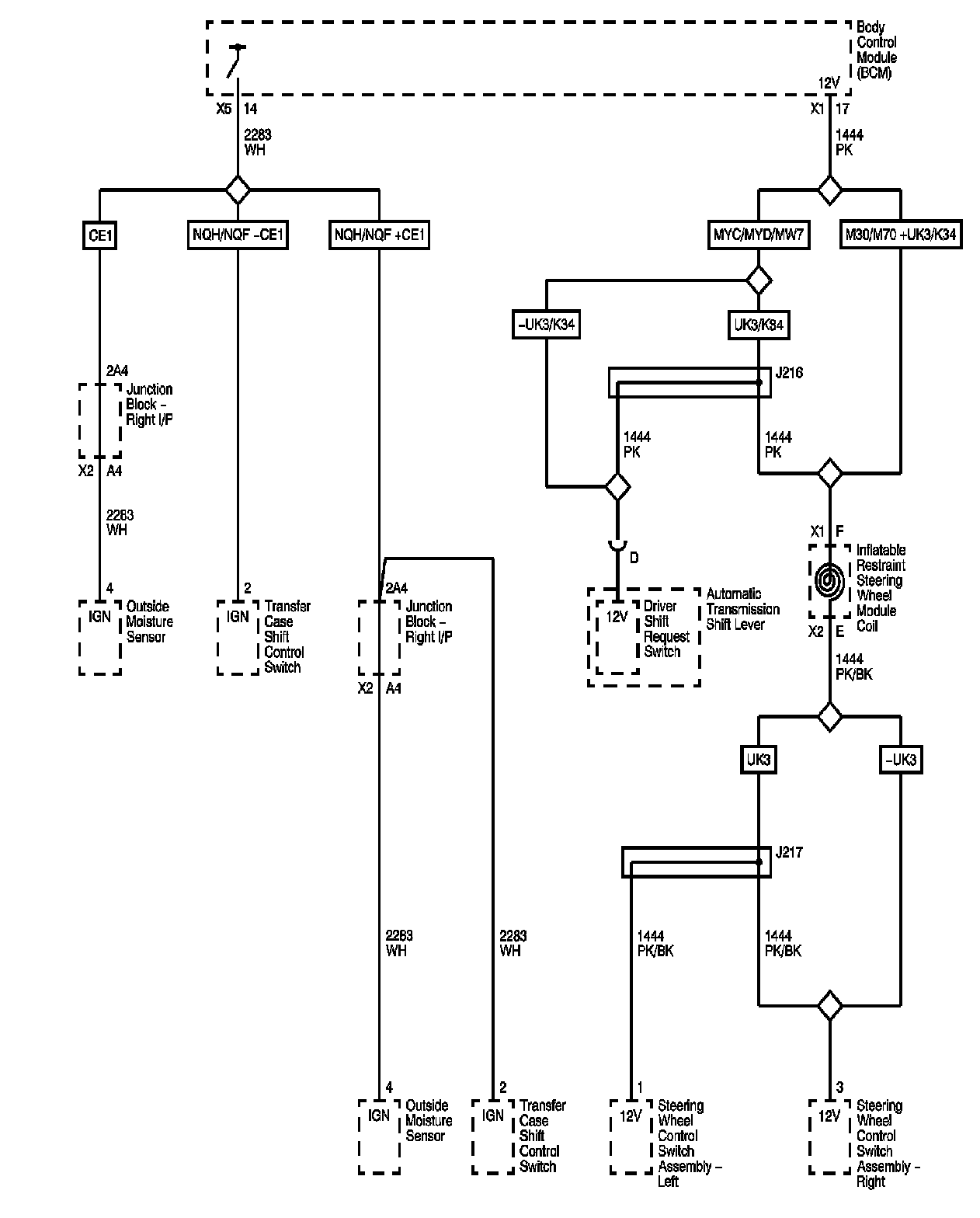

Ignition I Voltage and 12-Volt Reference

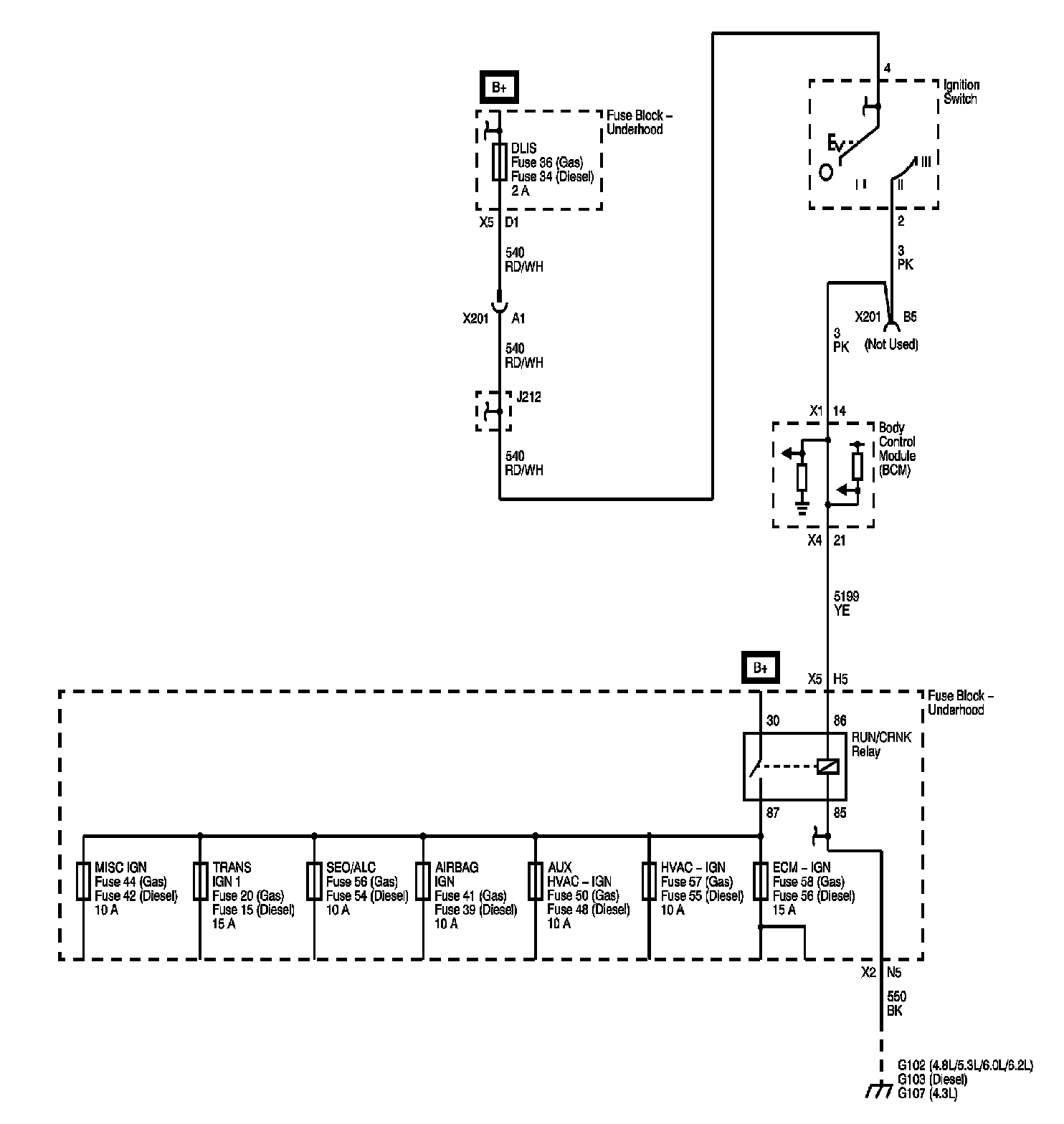

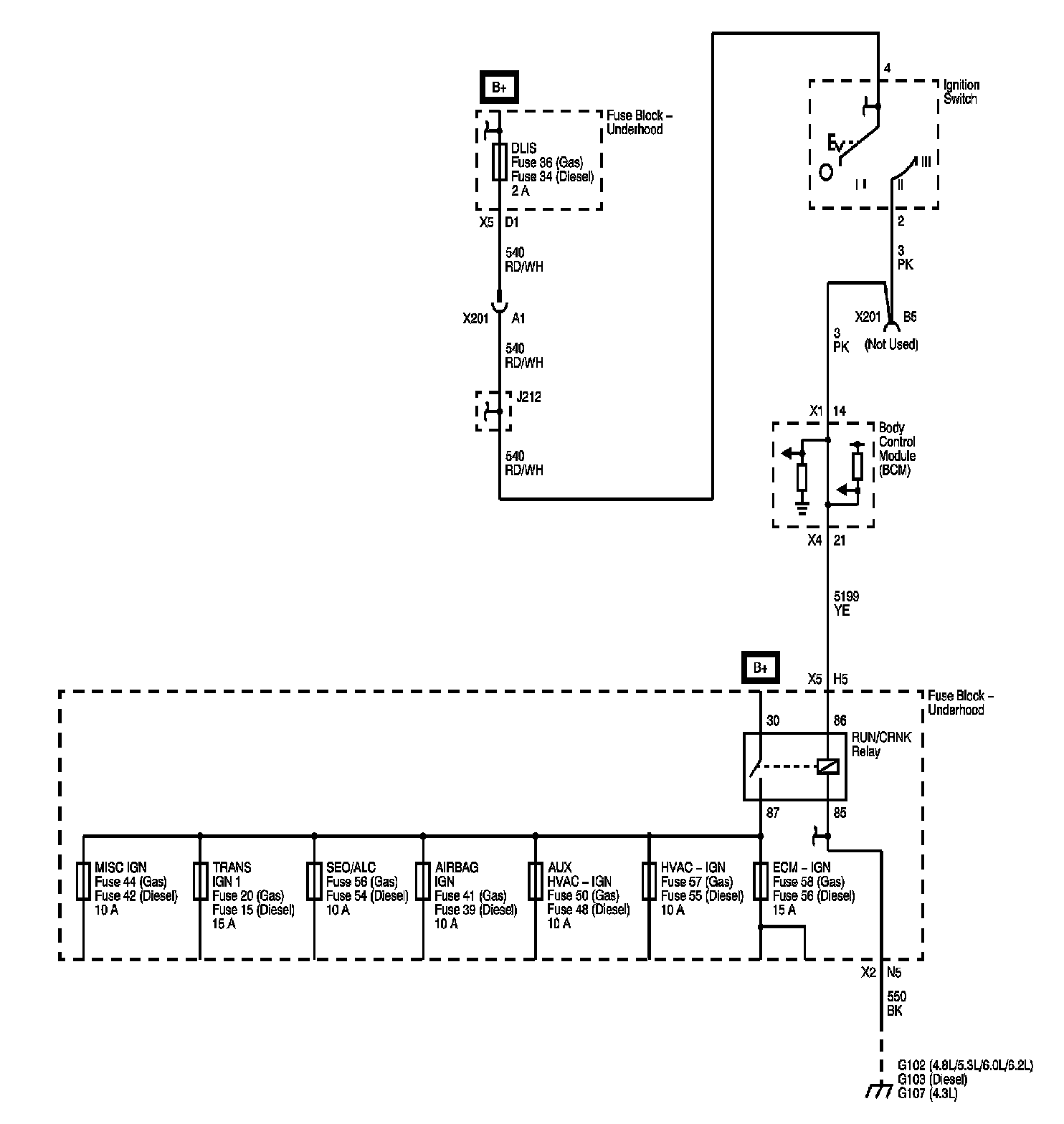

Ignition II/III Voltage






Ignition III Voltage and Accessory Voltage

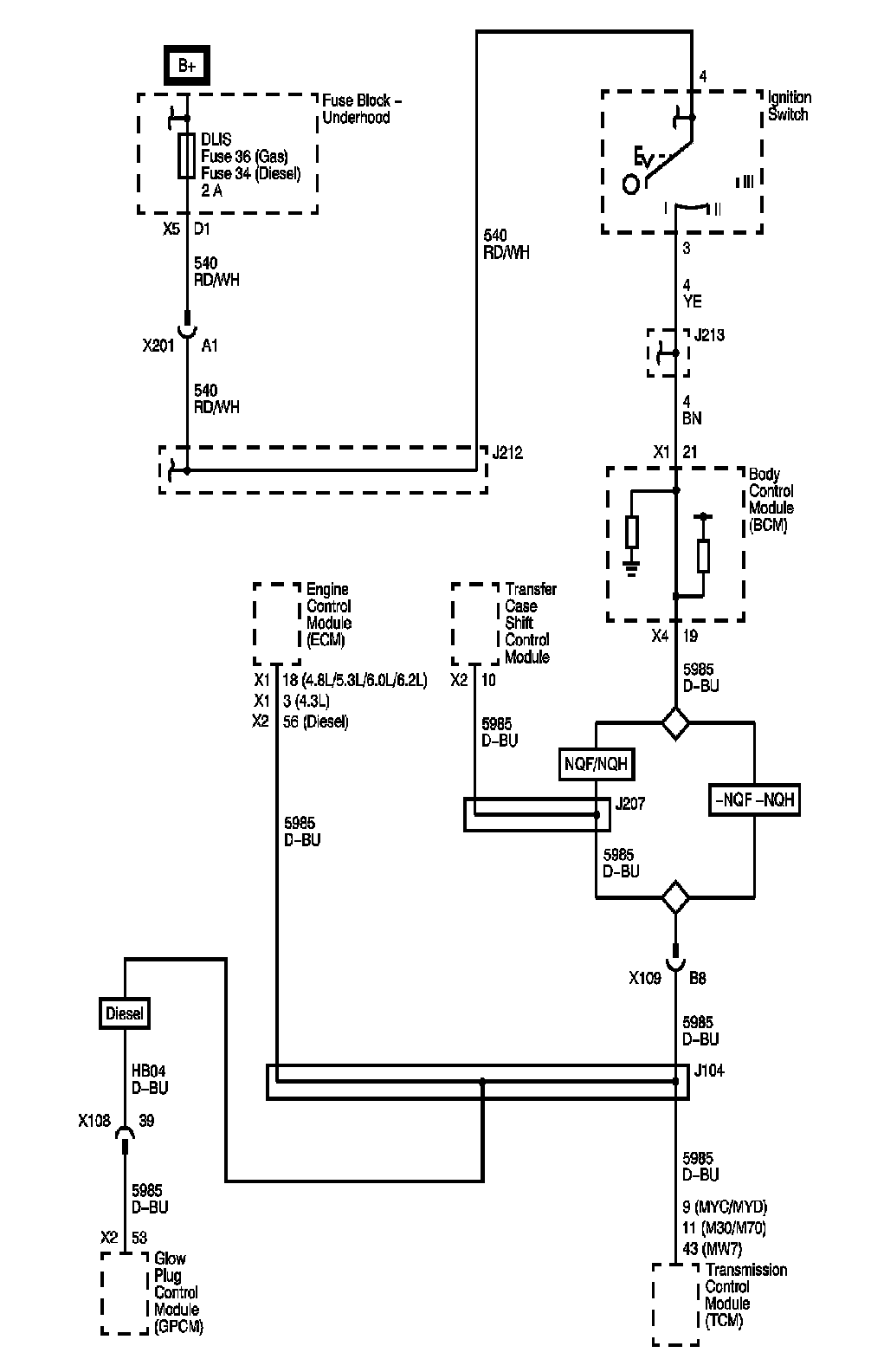

Serial Data Communication Enable






Accessory Wakeup Serial Data






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
