Starting and Charging Schematics



Starting and Charging Schematics

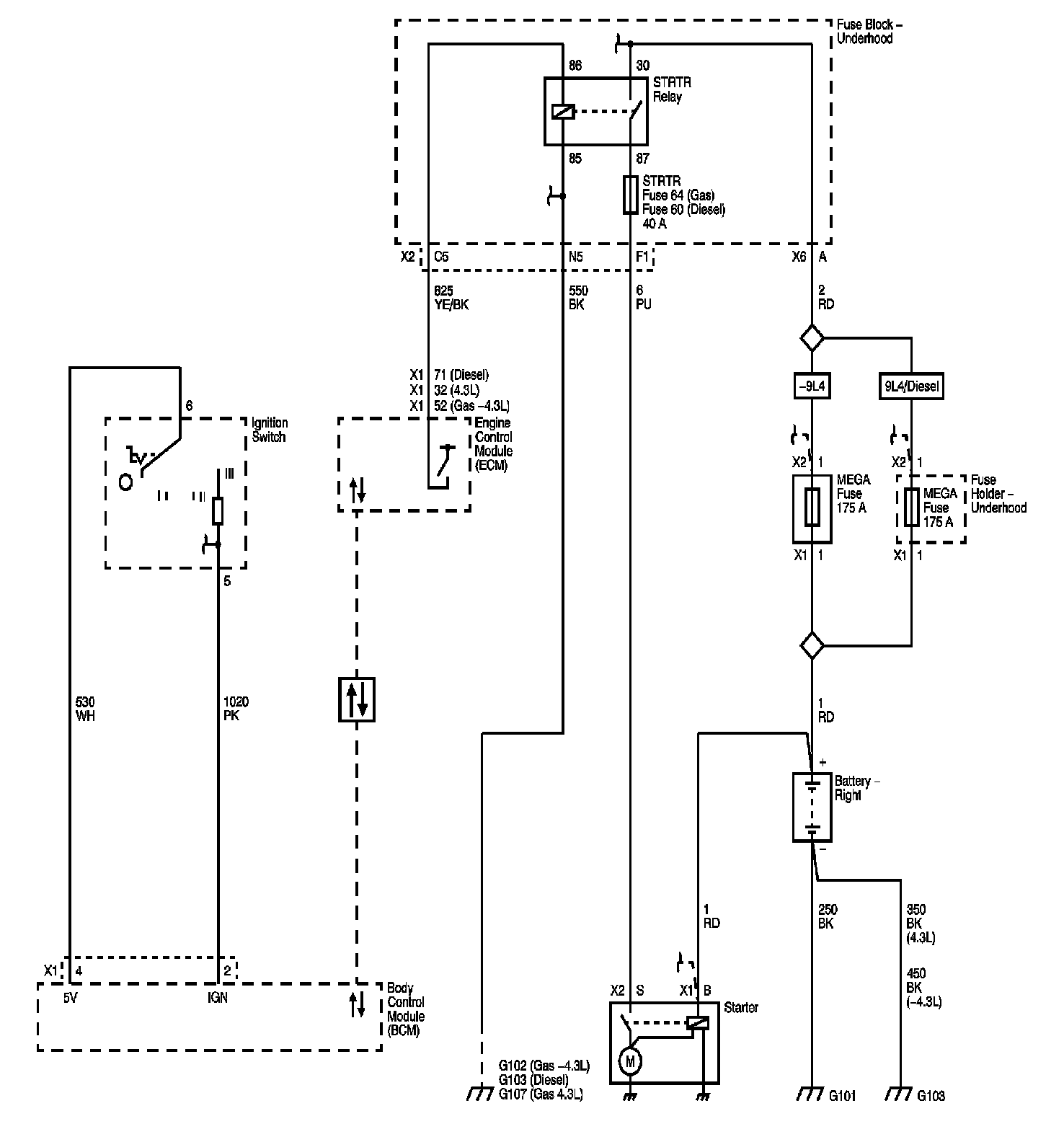

Starting

Technical service diagram

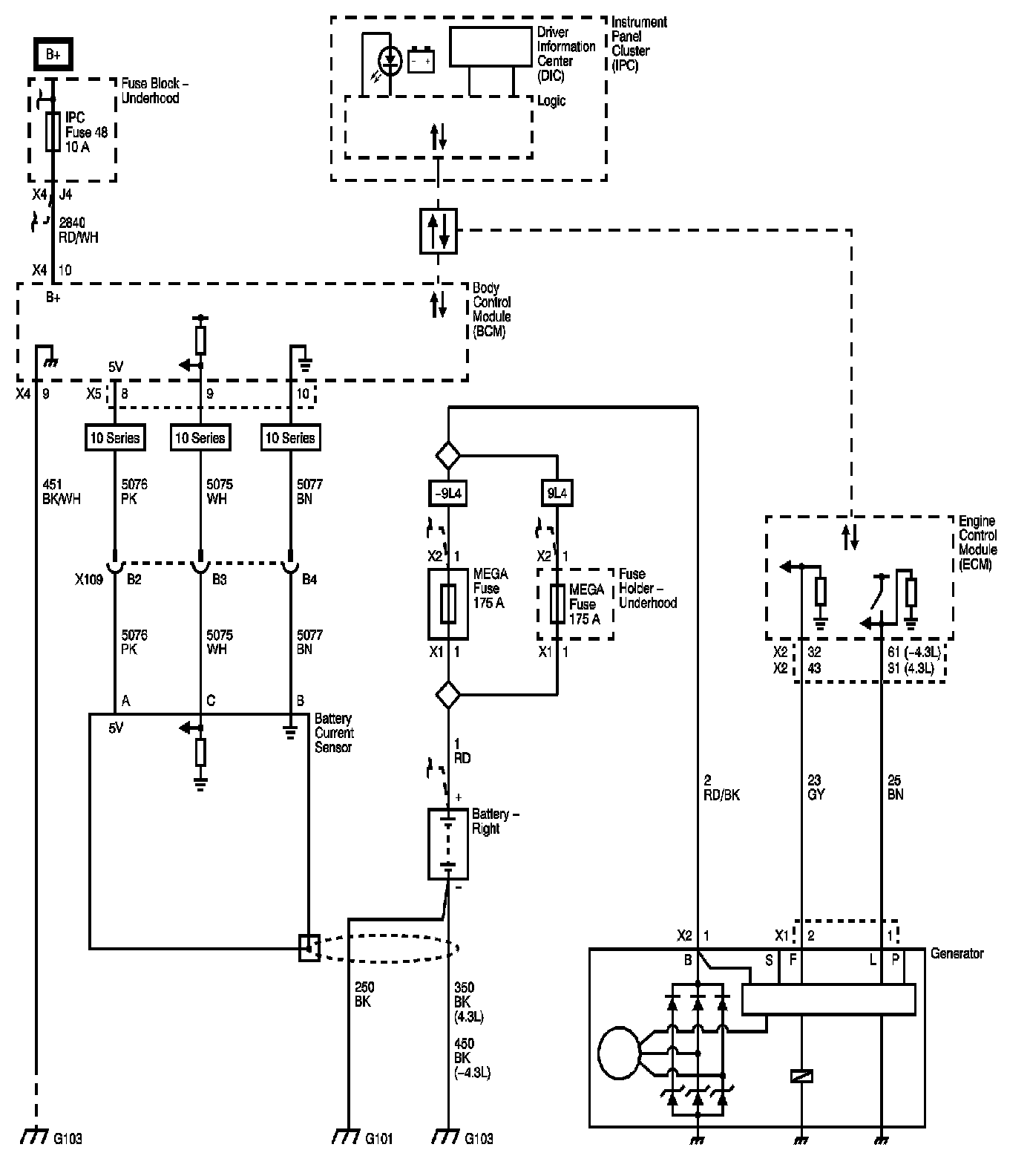

Charging (Gas)

Technical service diagram





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
