Allison - Automatic Transmission

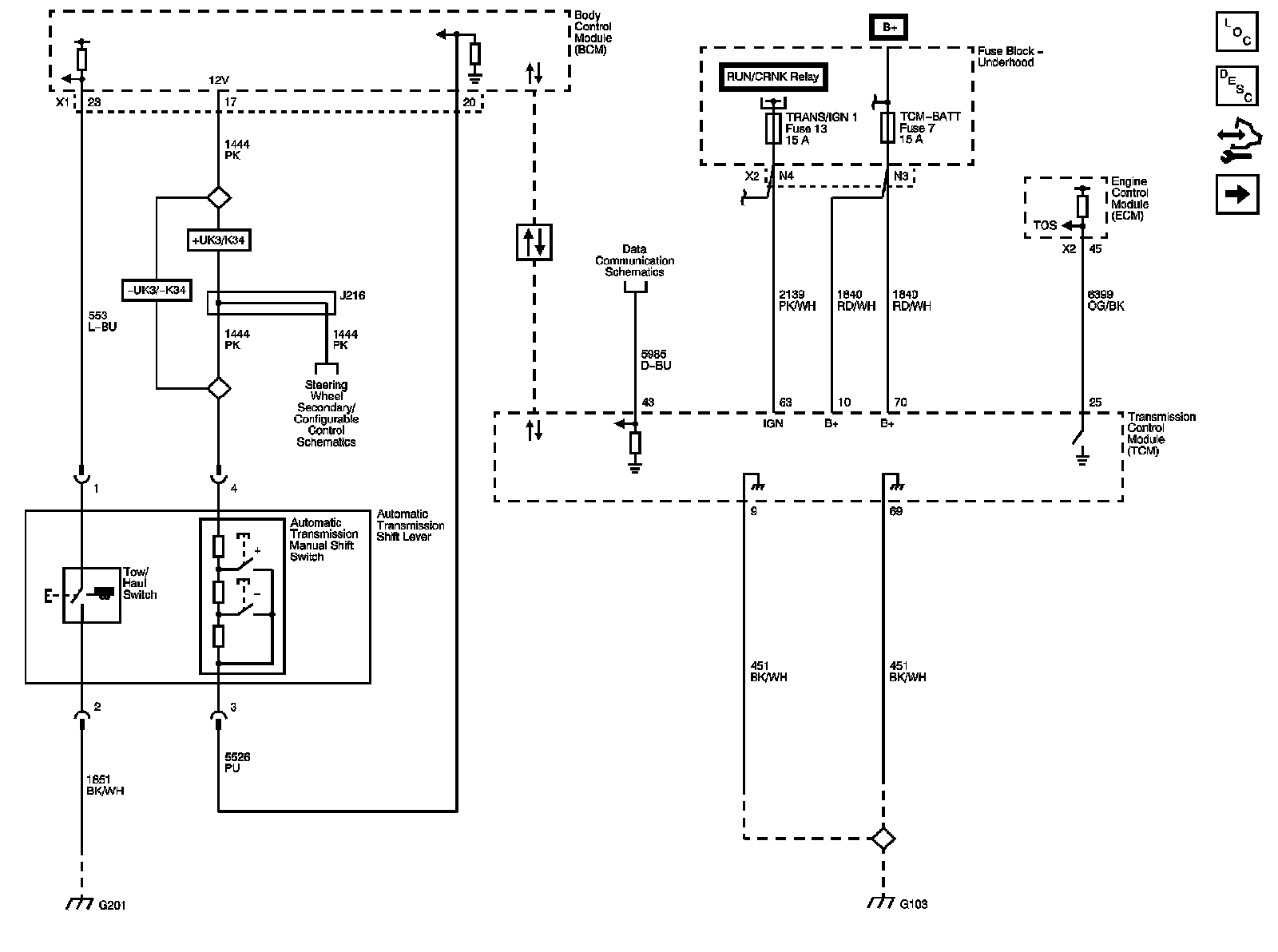

Power, Ground, Driver Shift Request Switch, Tow/Haul Switch and Serial Data

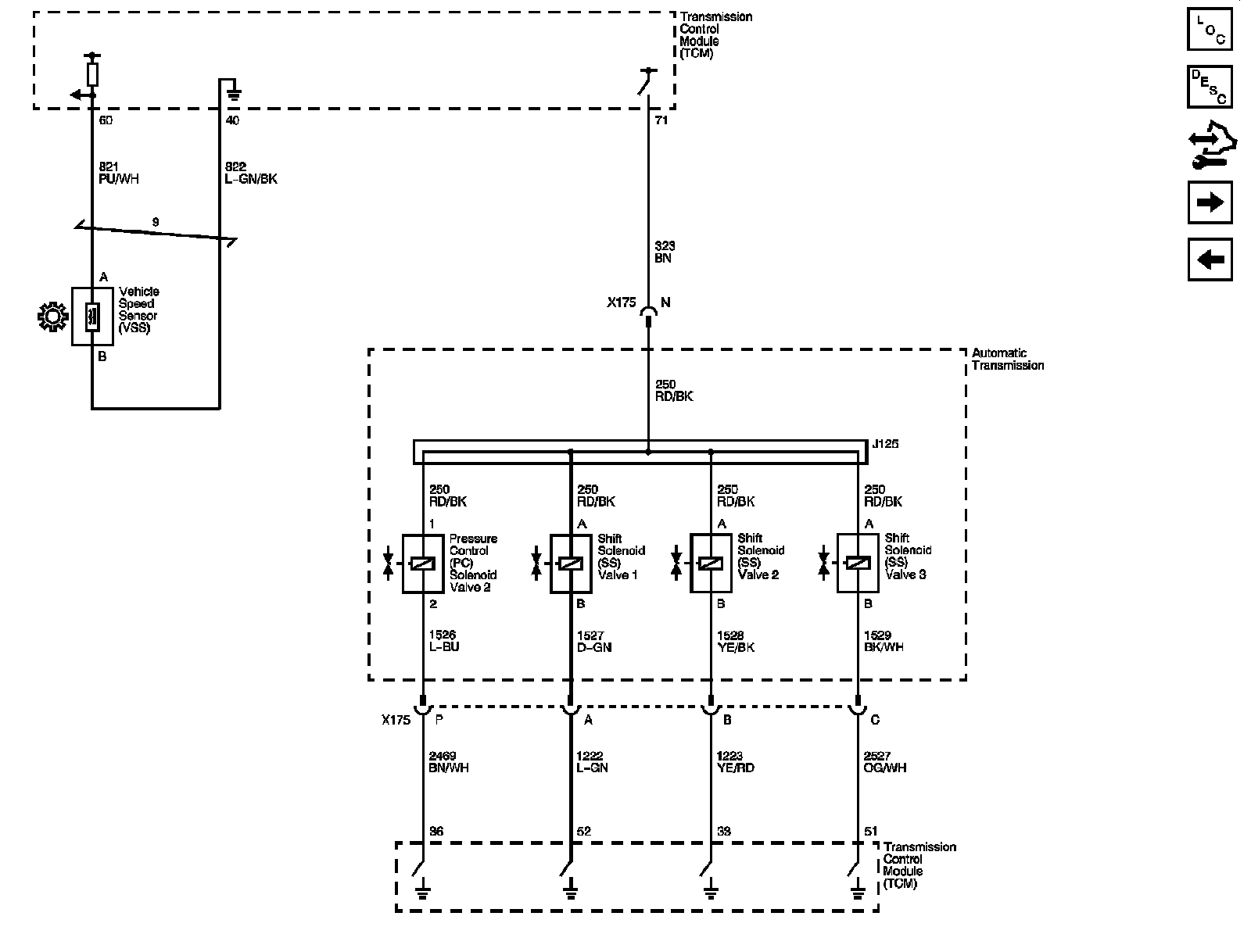

Shift Solenoids, PCS2, Torque Signals and Speed Sensors

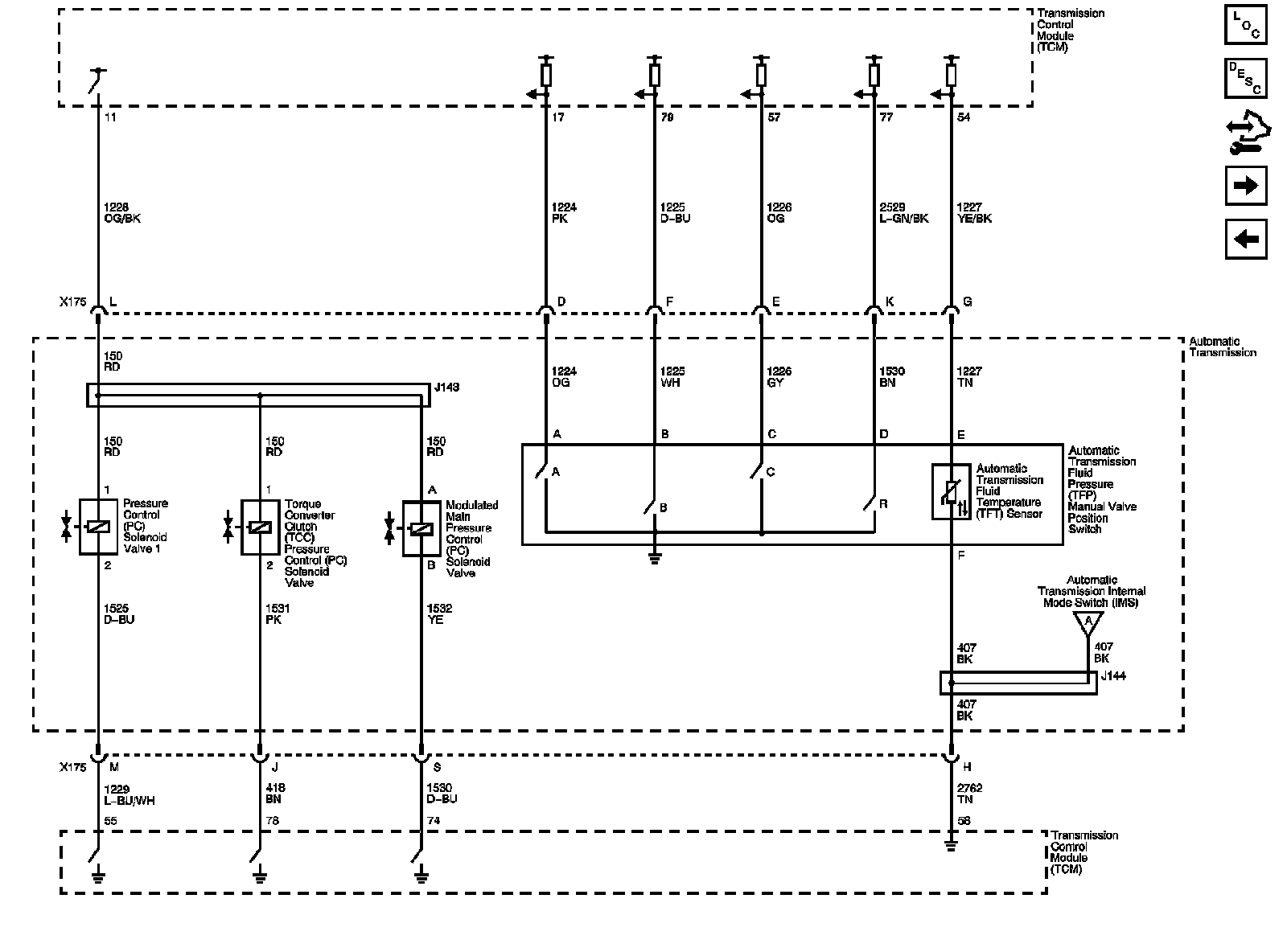

Fluid Pressure Switches, PCS1, TCC PCS, Mod Main Solenoid and FTP Sensor

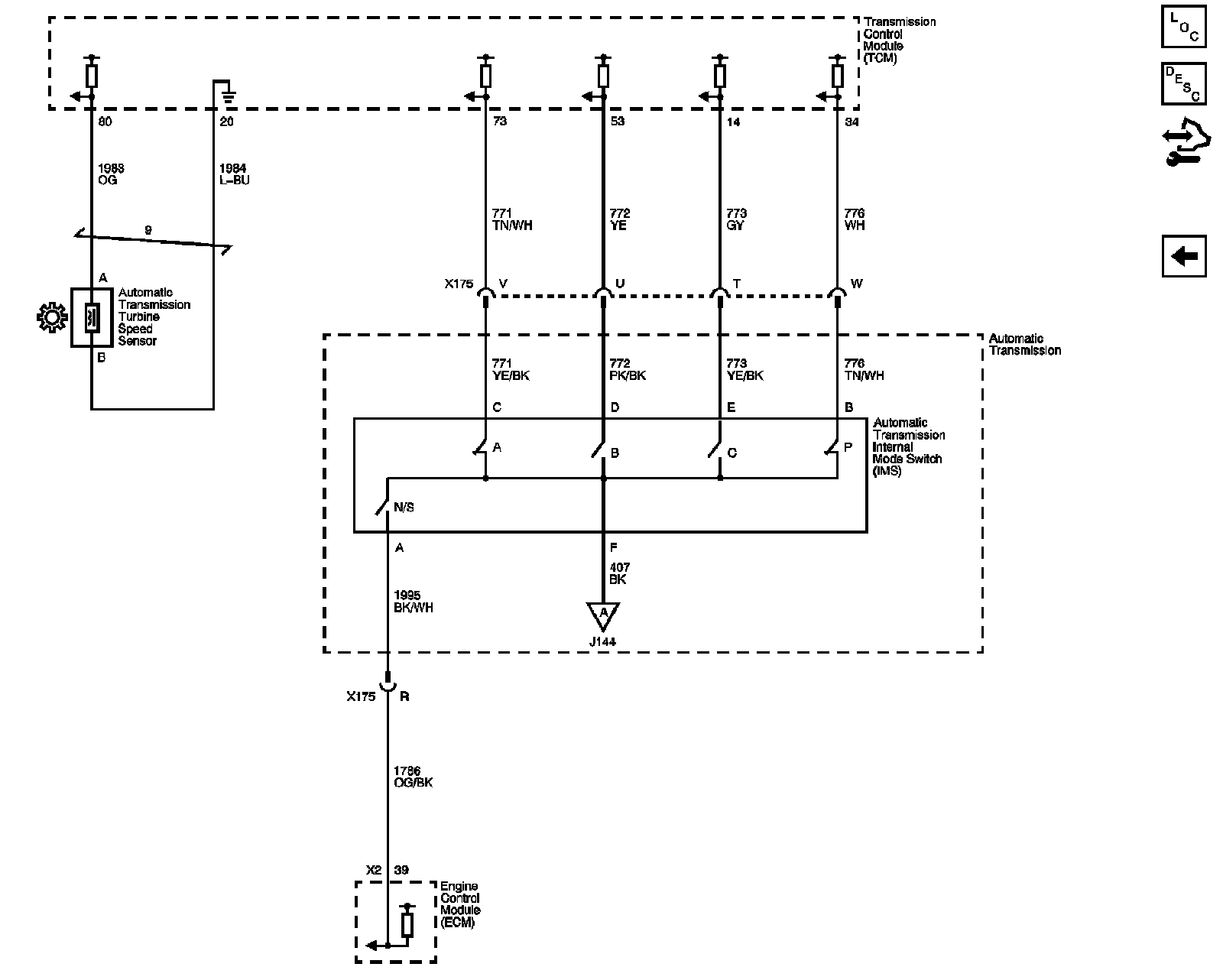

Internal Mode Switch (IMS) and Speed Sensors






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Location. Locations
