Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

Front Output Shaft Front and Rear Bearing Replacement

Front Output Shaft Front and Rear Bearing Replacement

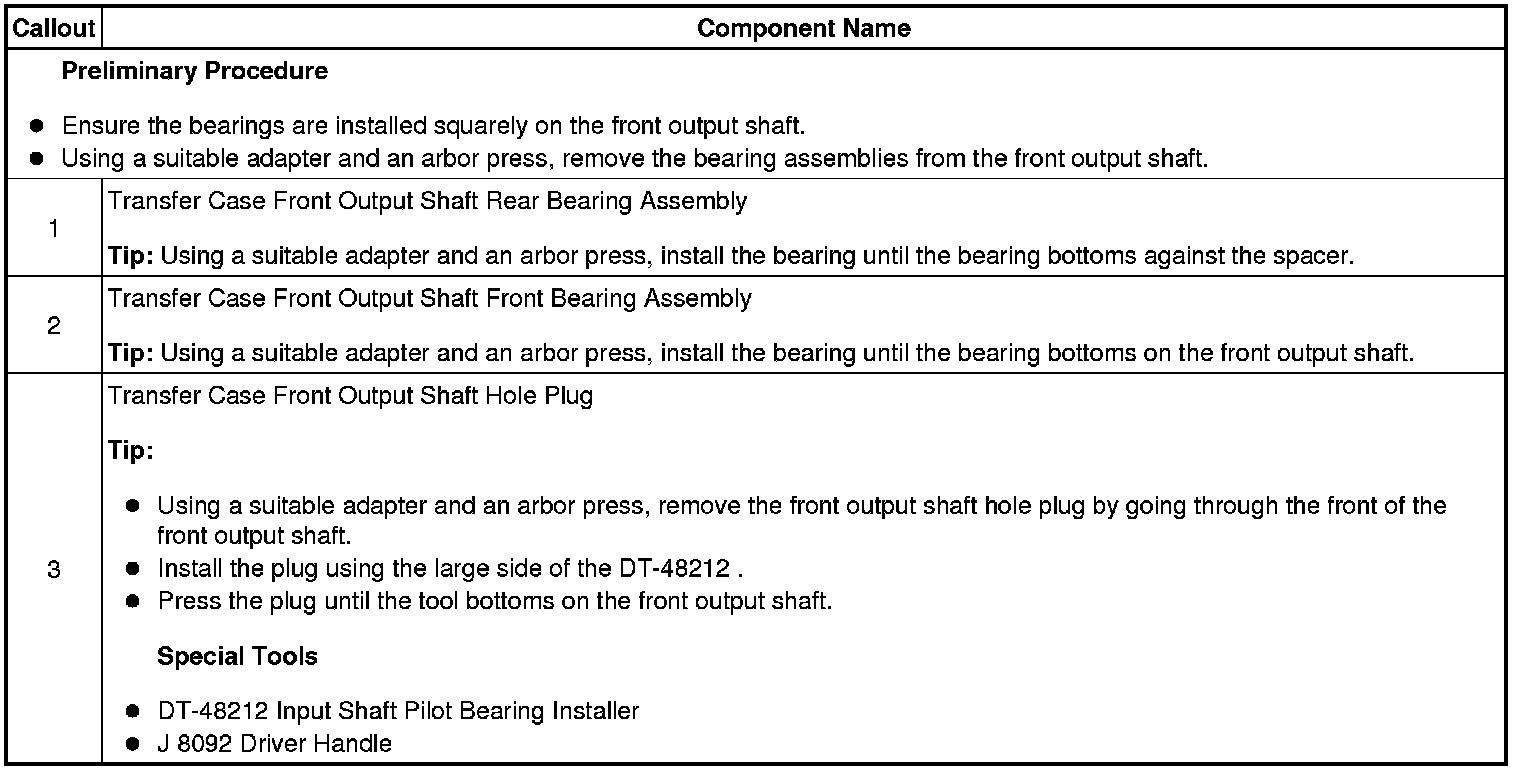

Technical service diagram

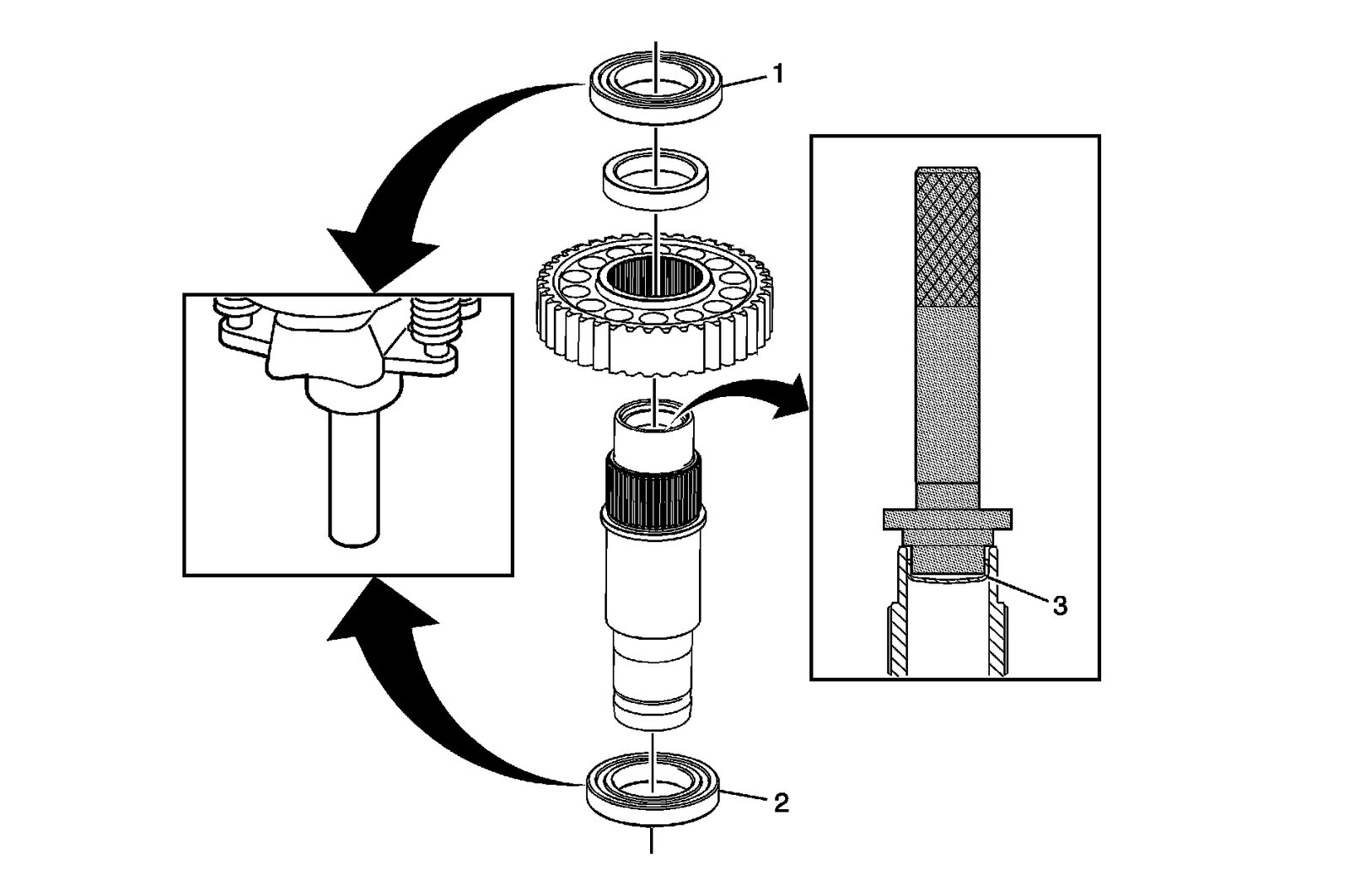

Technical service diagram
