Configuration notice: This reference library was sourced from a manual labeled for a 4WD 5.3L Silverado. The owner's VIN identifies a 4.8L 2WD truck. Verify the engine, drivetrain, emissions label, RPO codes, tank size, bed and wheelbase, procedures, torque specifications, and part compatibility before performing repairs.

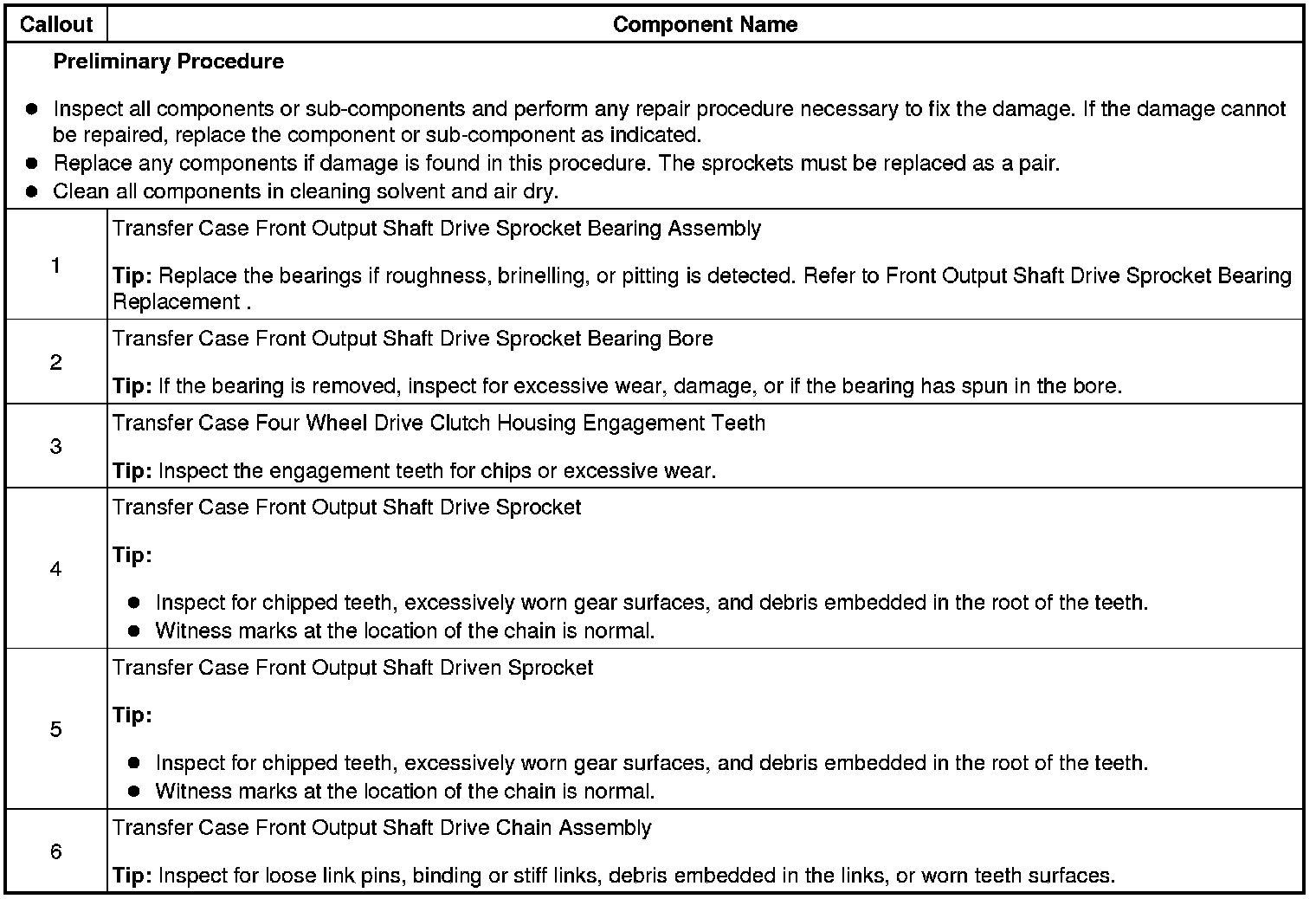

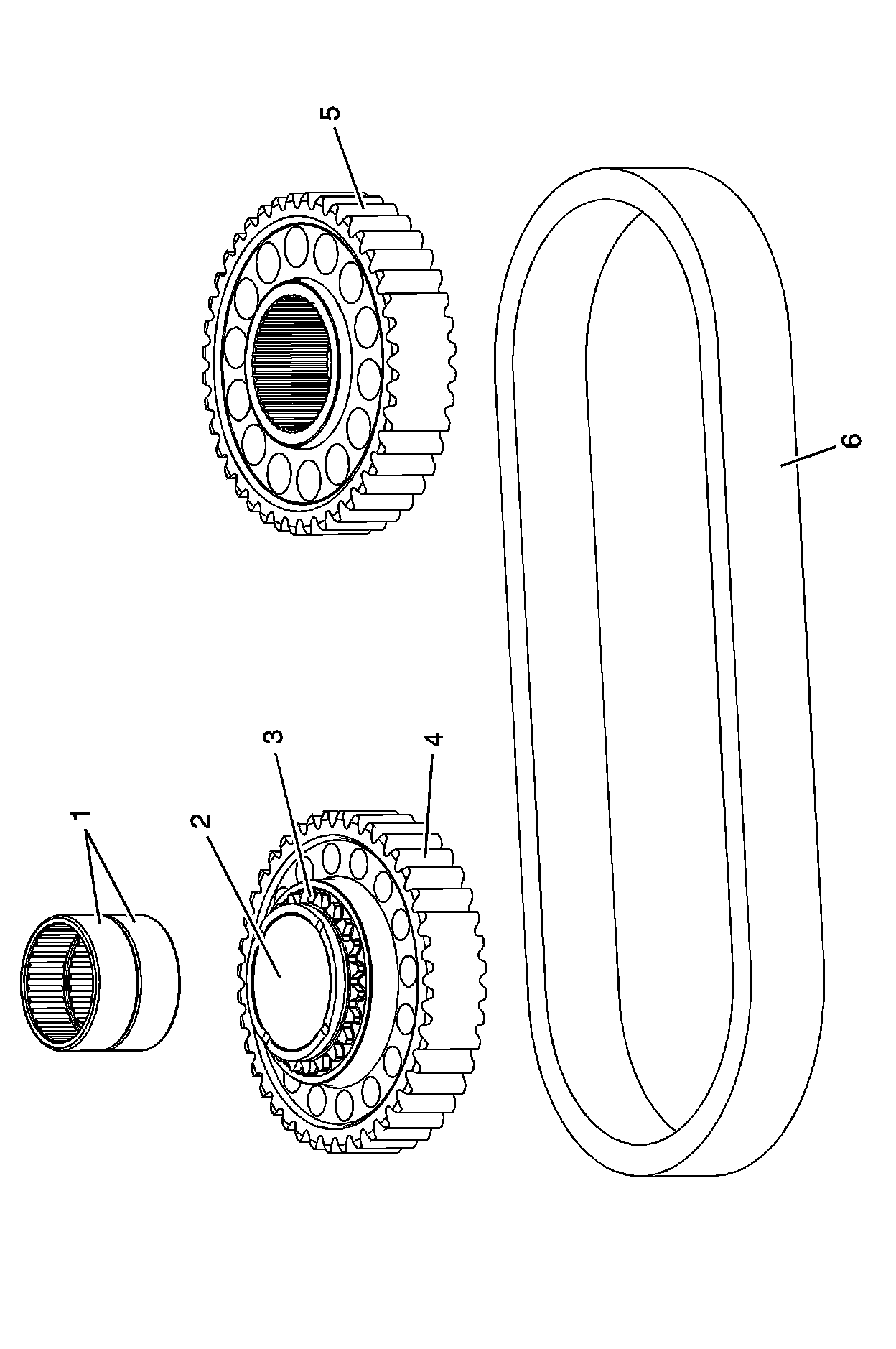

Drive Chain, Drive Sprocket, and Driven Sprocket Cleaning and Inspection

Drive Chain, Drive Sprocket, and Driven Sprocket Cleaning and Inspection

Technical service diagram

Technical service diagram
