Transfer Case Disassemble
Transfer Case Disassemble

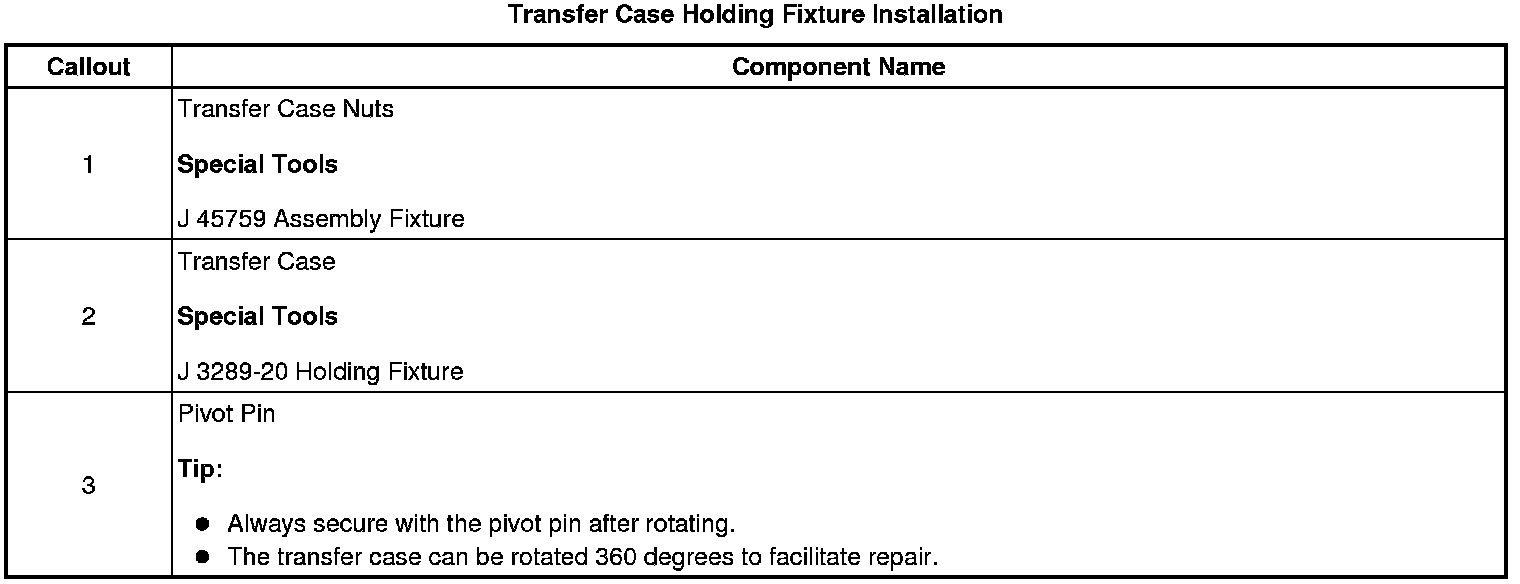

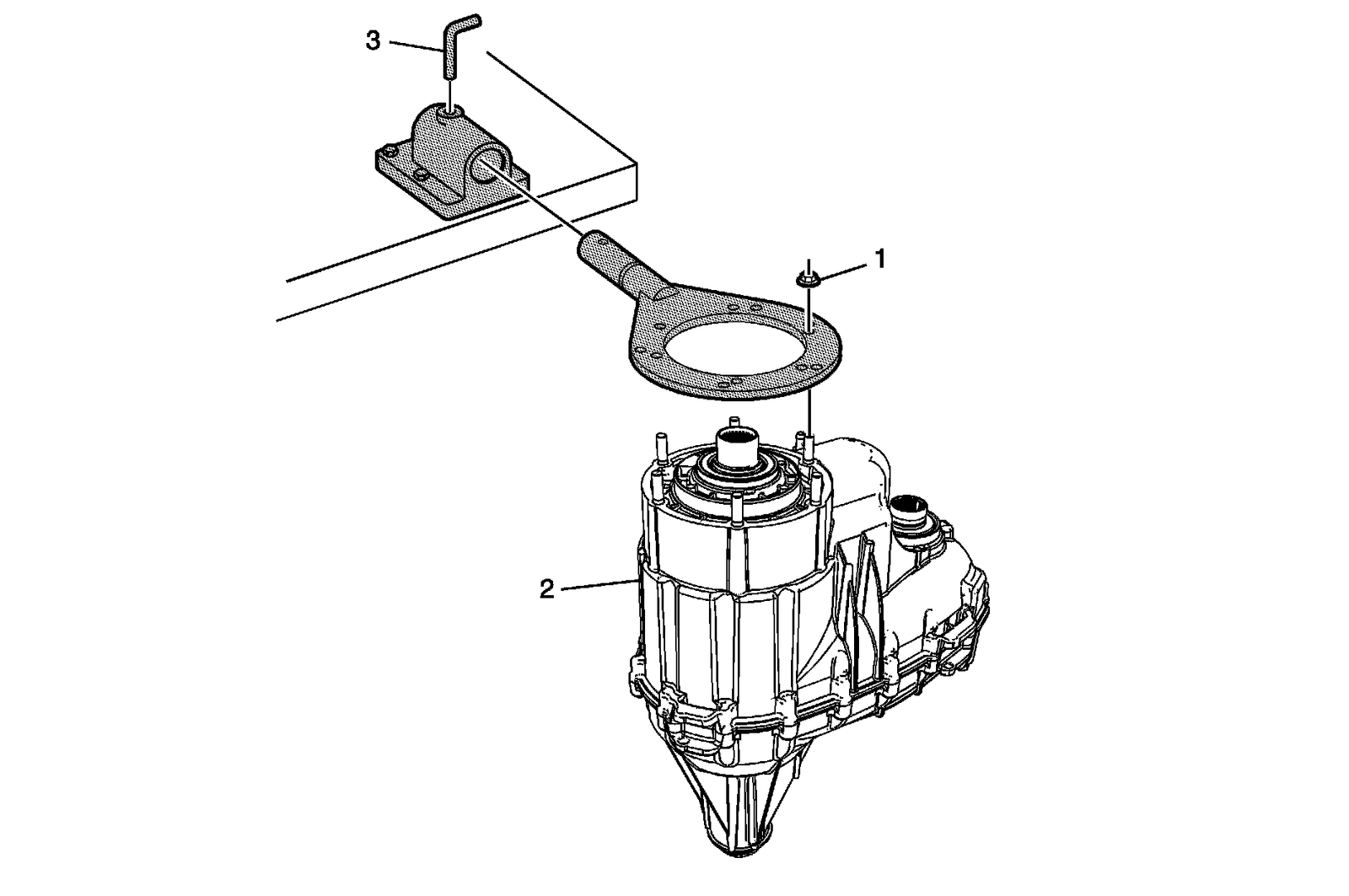

Transfer Case Holding Fixture Installation

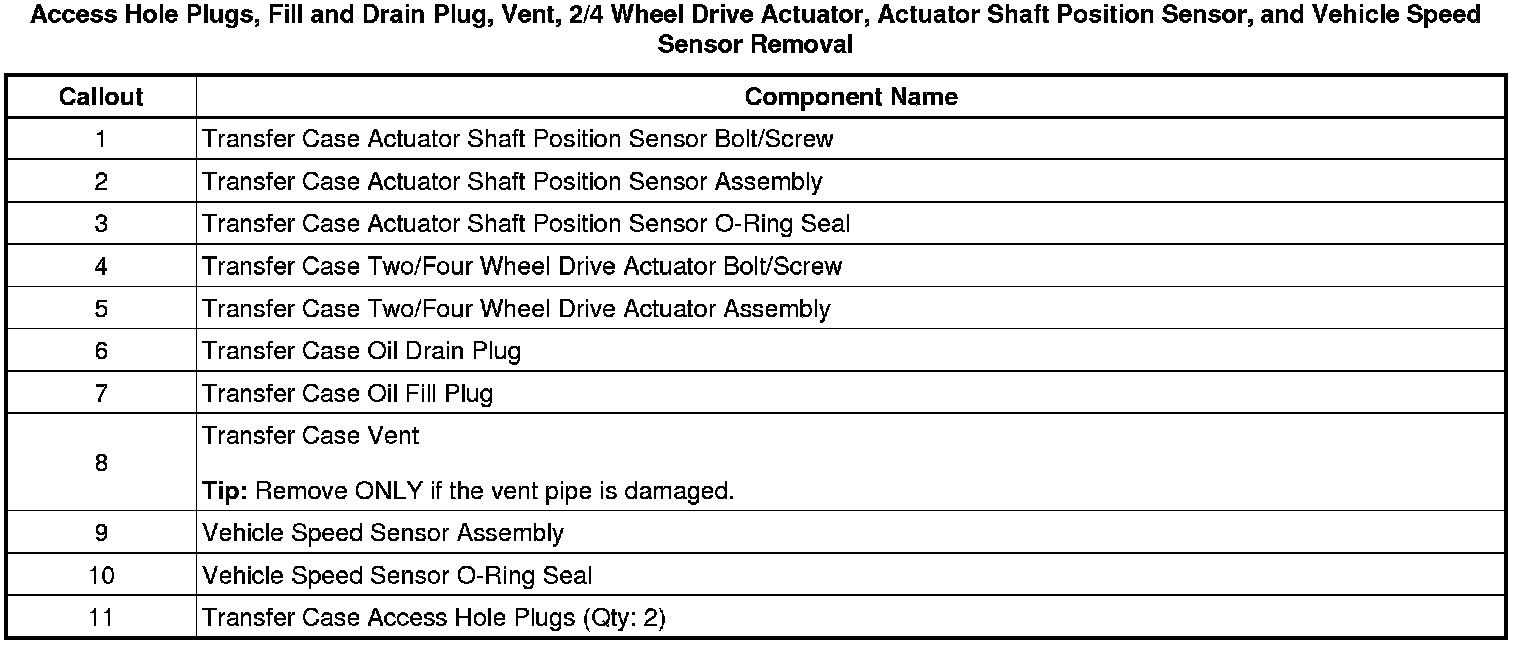

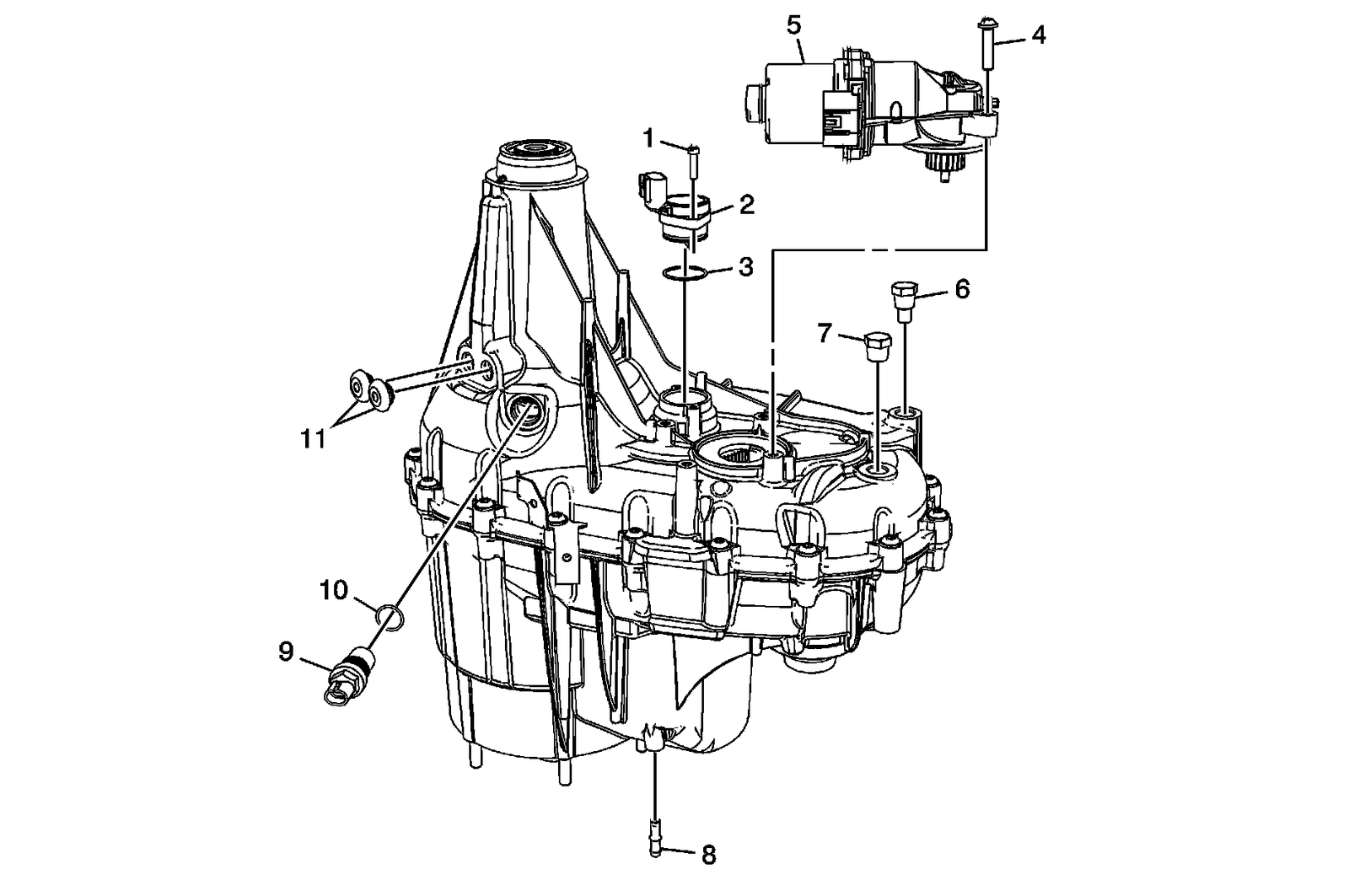

Access Hole Plugs, Fill and Drain Plug, Vent, 2/4 Wheel Drive Actuator, Actuator Shaft Position Sensor, and Vehicle Speed Sensor Removal

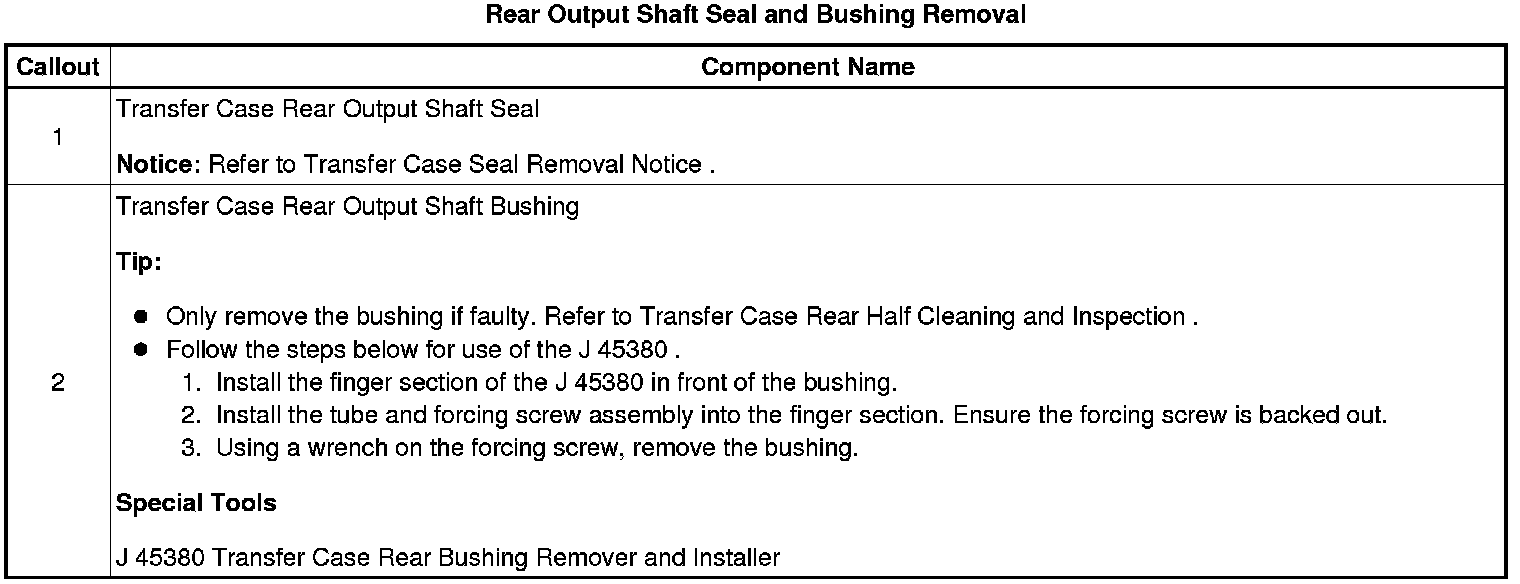

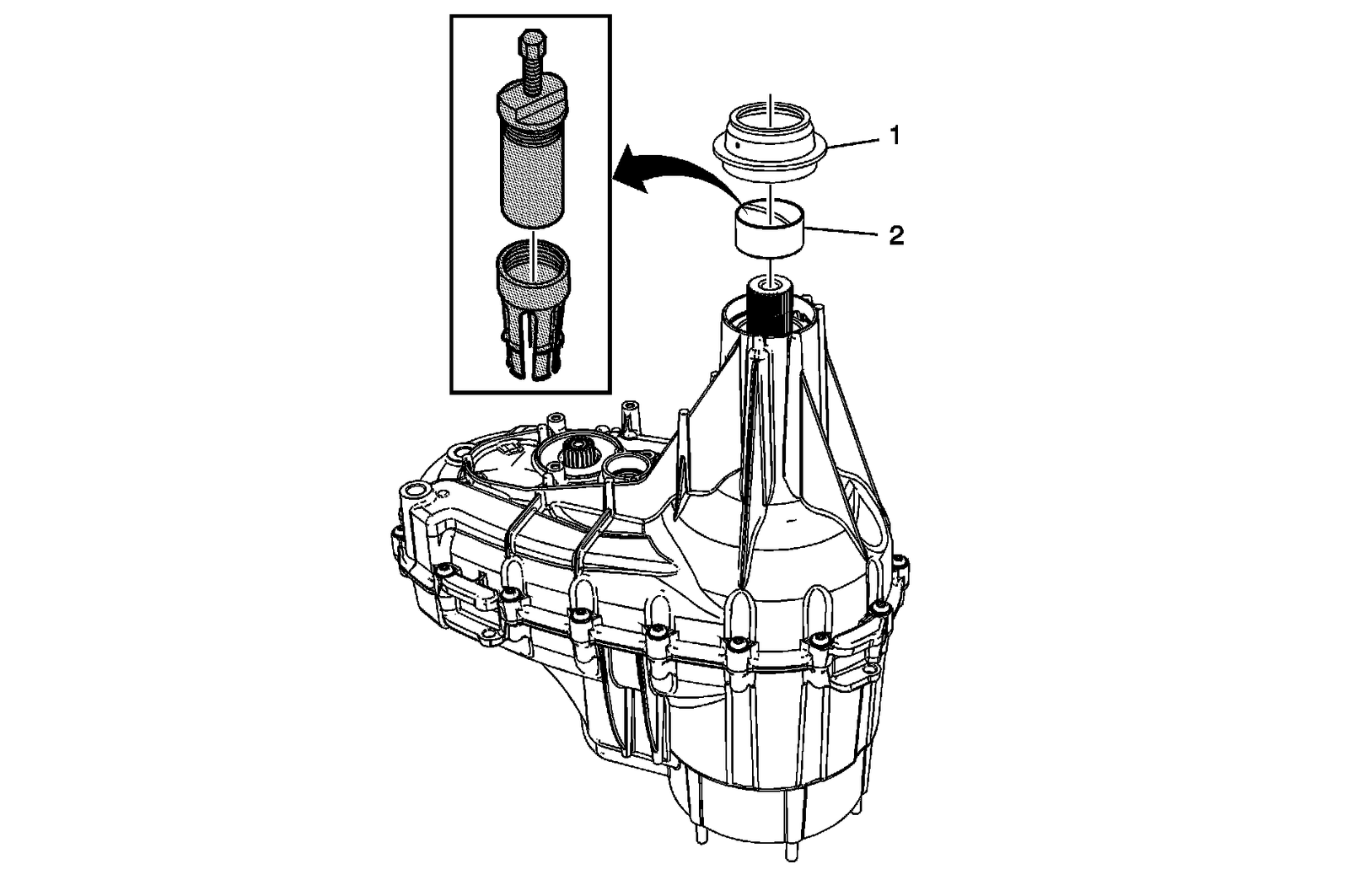

Rear Output Shaft Seal and Bushing Removal

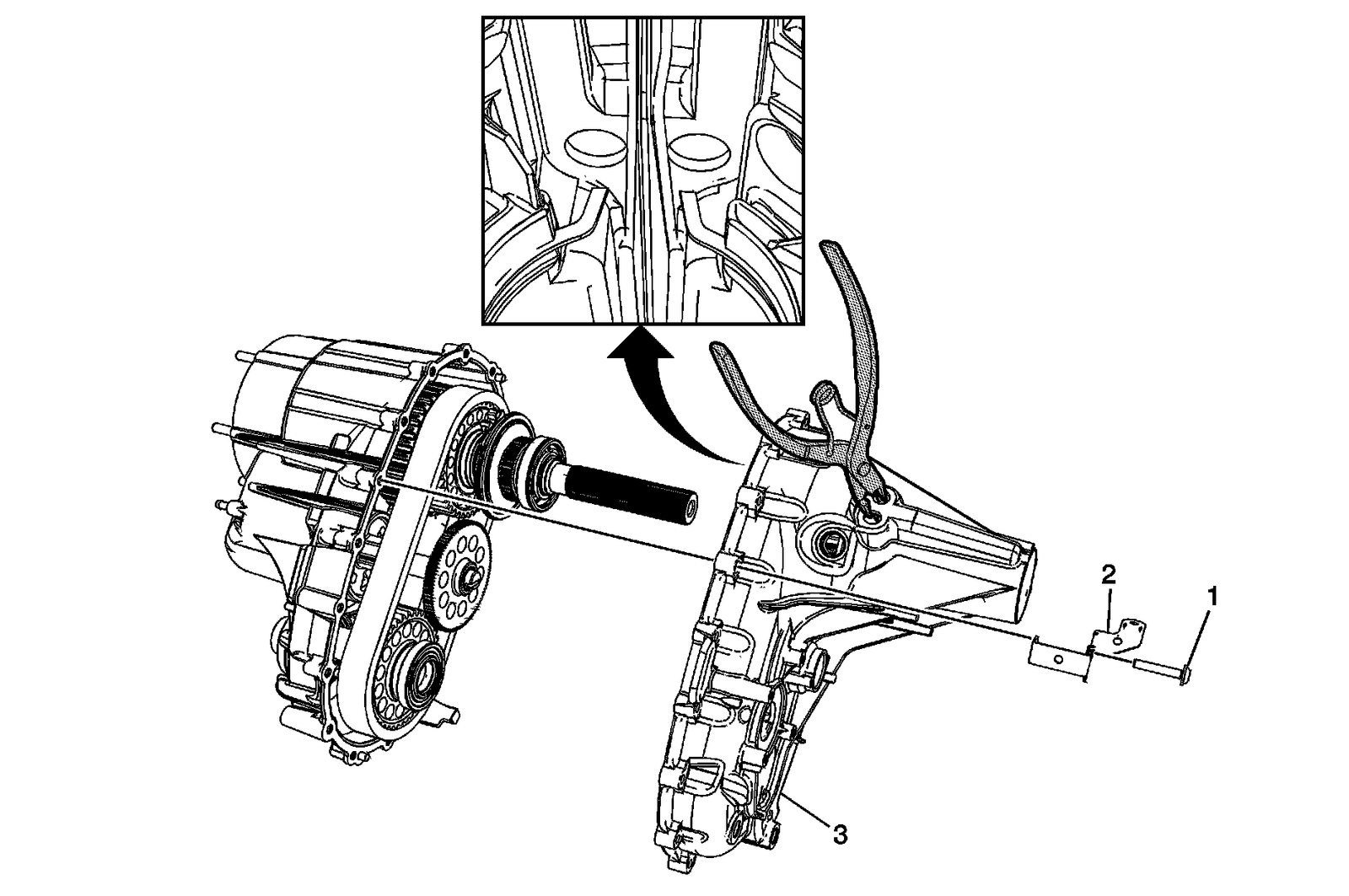

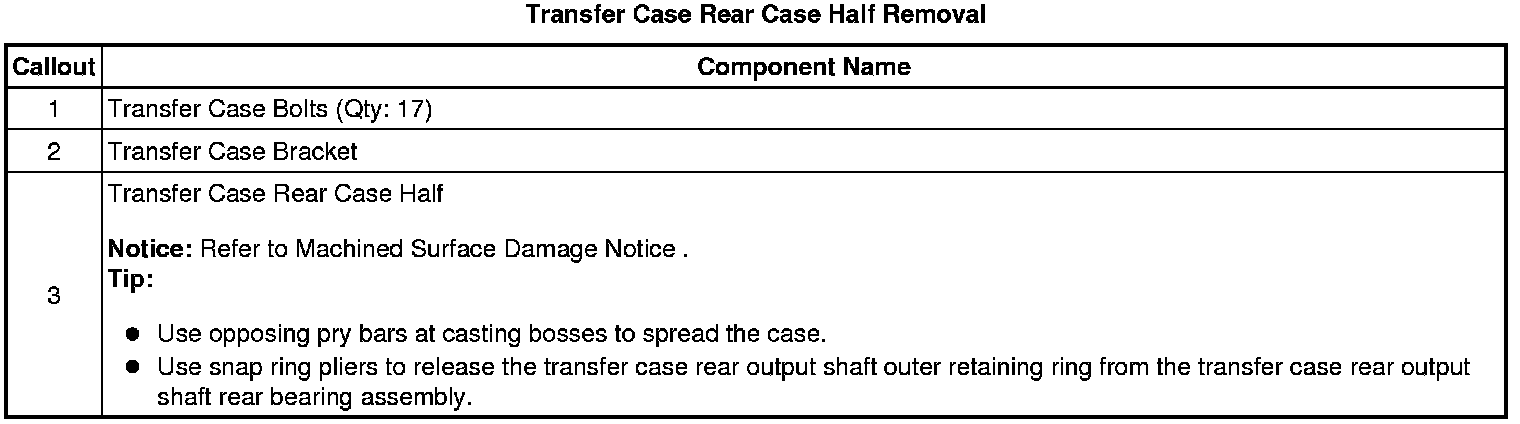

Transfer Case Rear Case Half Removal
Oil Pump Suction Pipe and Actuator Shaft Gear Removal
Shift Fork Assembly, Drive Chain, and Rear Output Shaft Assembly Removal

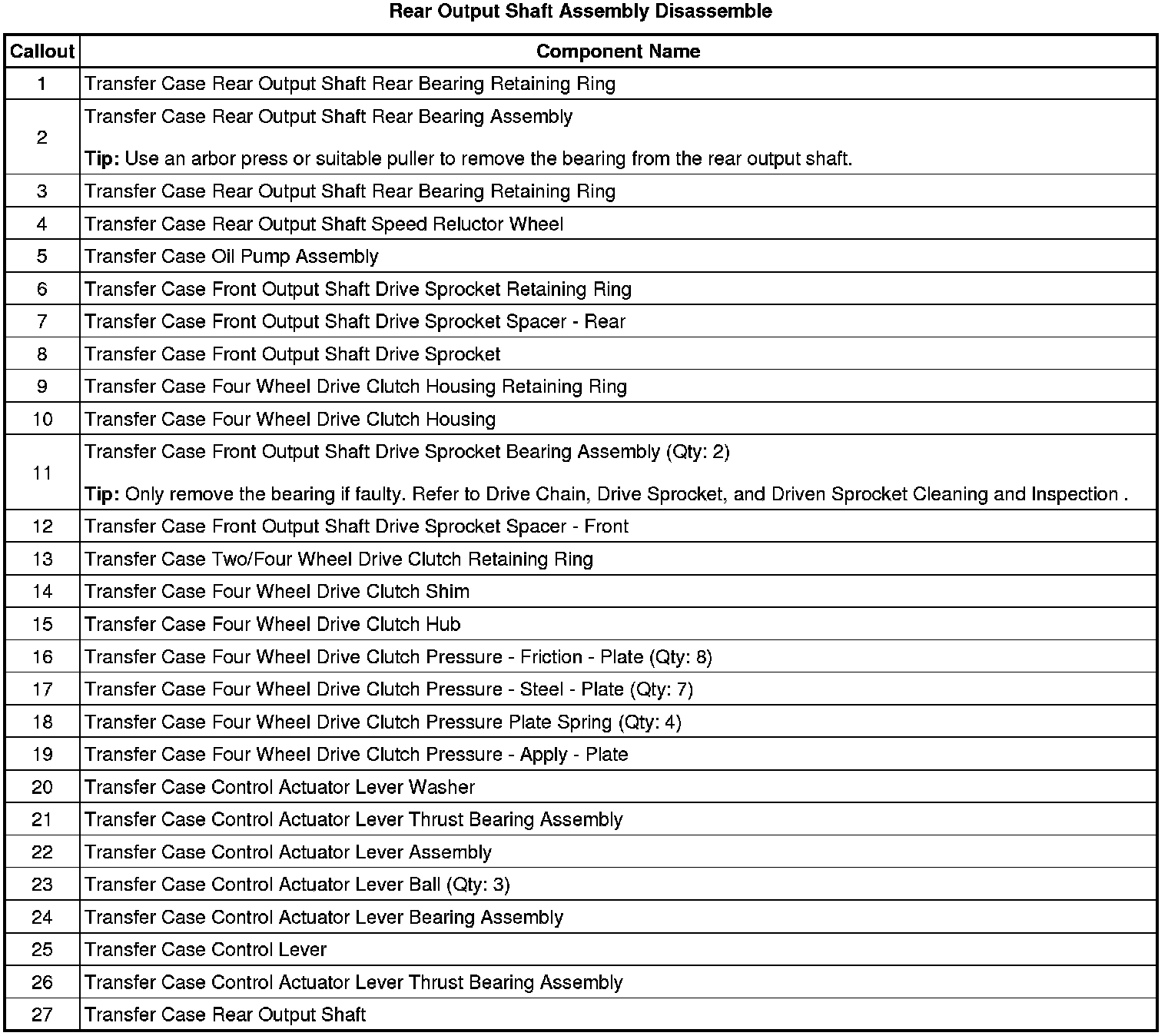

Rear Output Shaft Assembly Disassemble

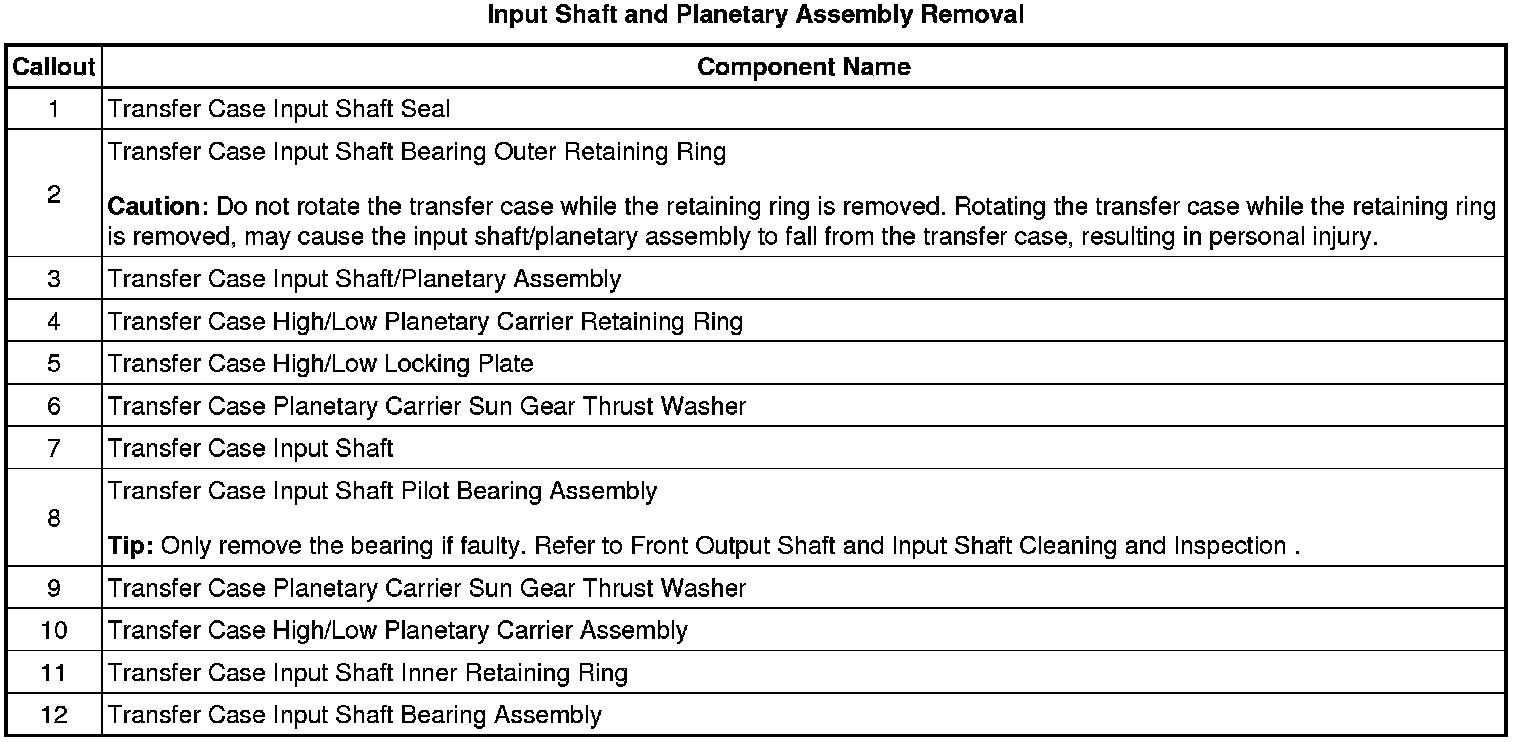

Input Shaft and Planetary Assembly Removal
Front Output Shaft Assembly Removal
