Transfer Case Disassemble
Transfer Case Disassemble

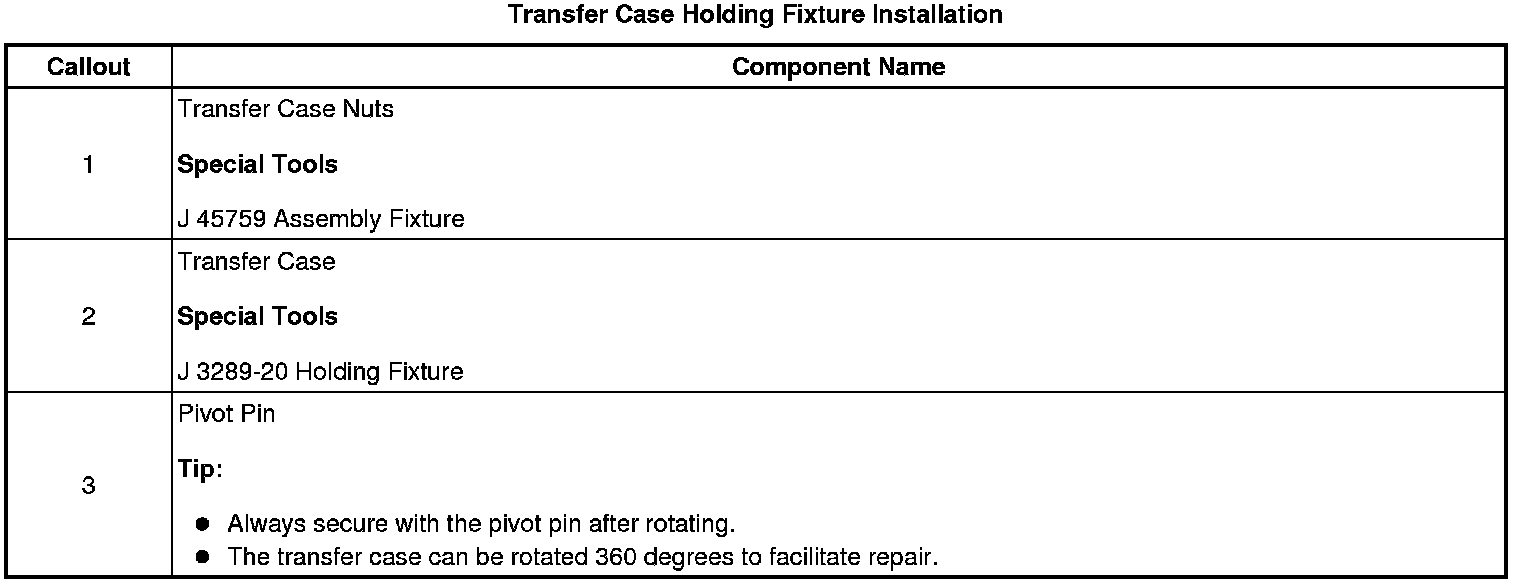

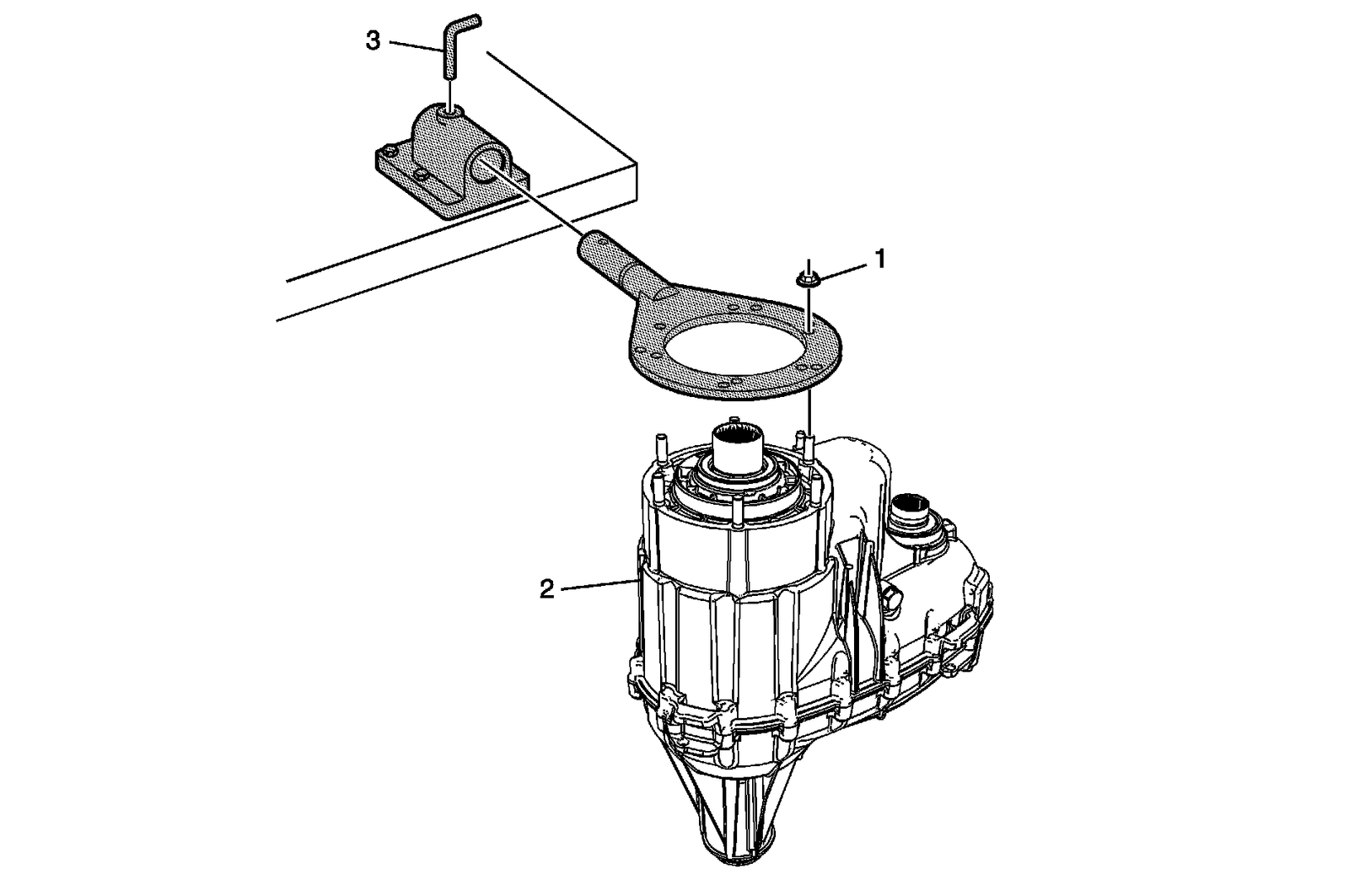

Transfer Case Holding Fixture Installation

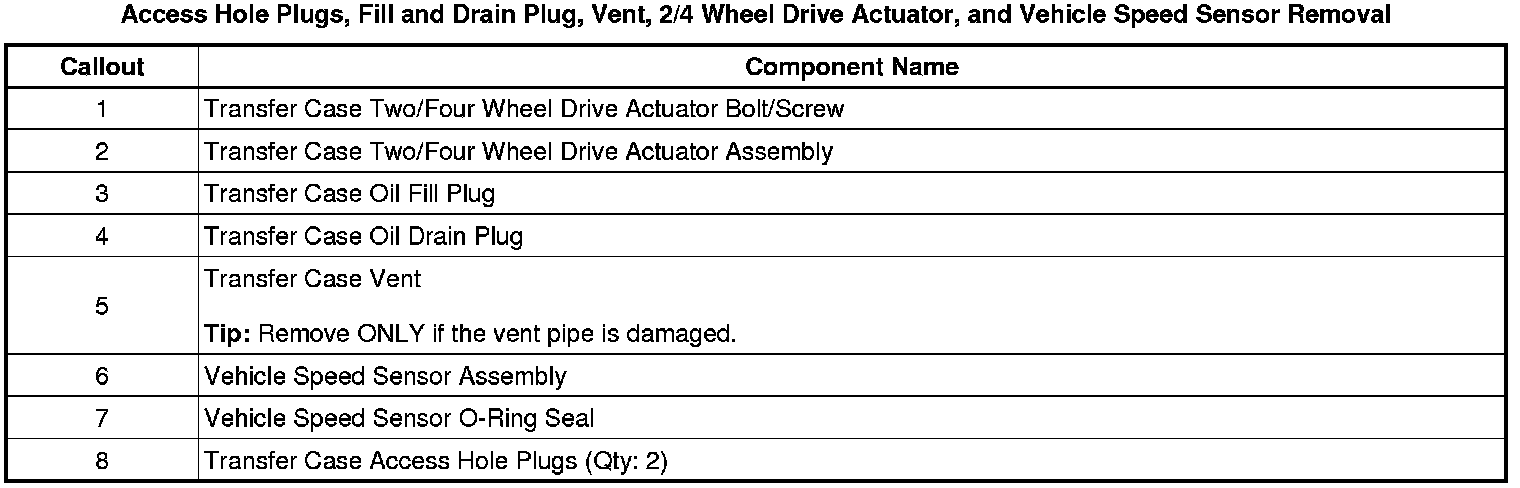

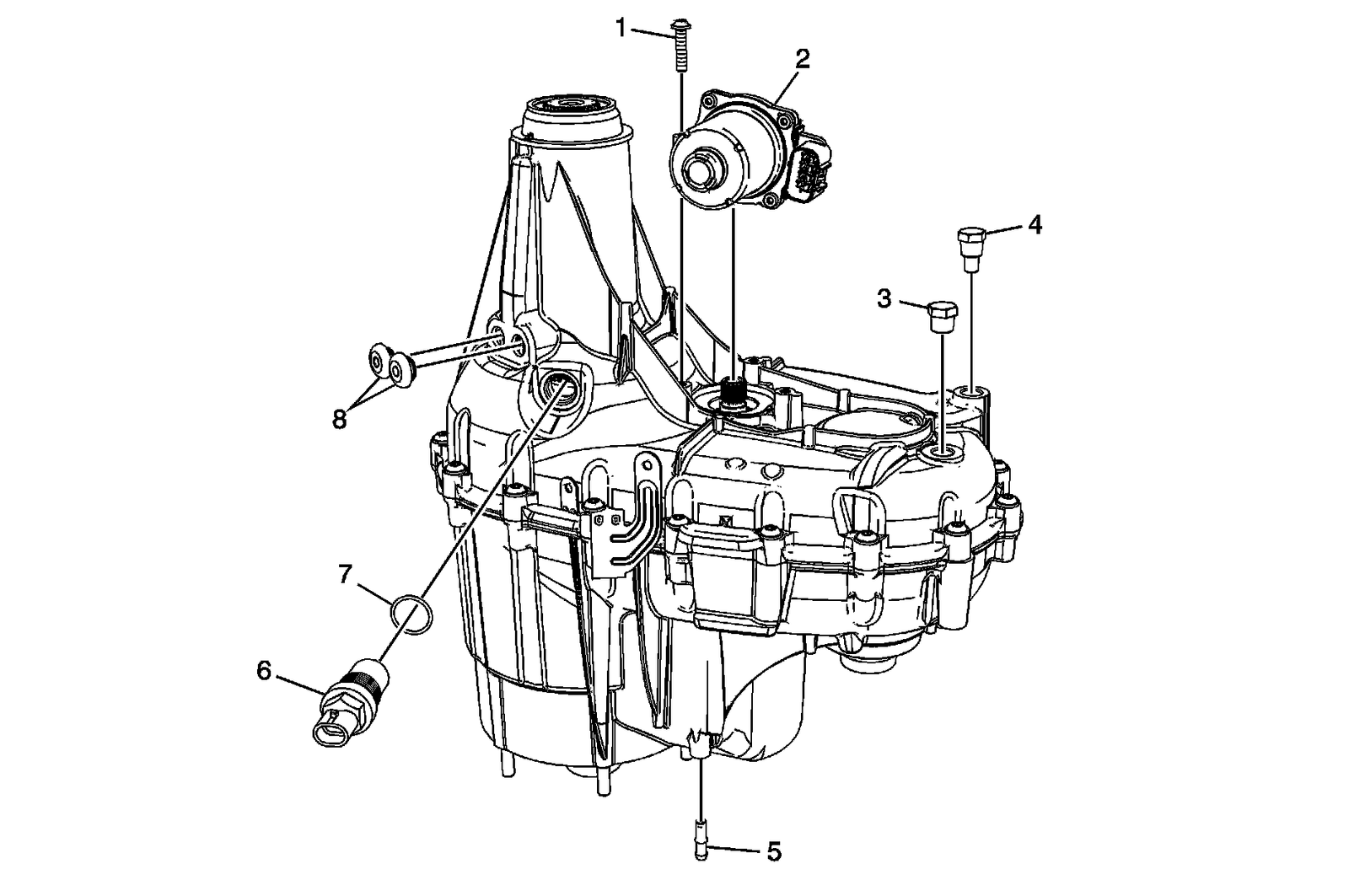

Access Hole Plugs, Fill and Drain Plug, Vent, 2/4 Wheel Drive Actuator, and Vehicle Speed Sensor Removal

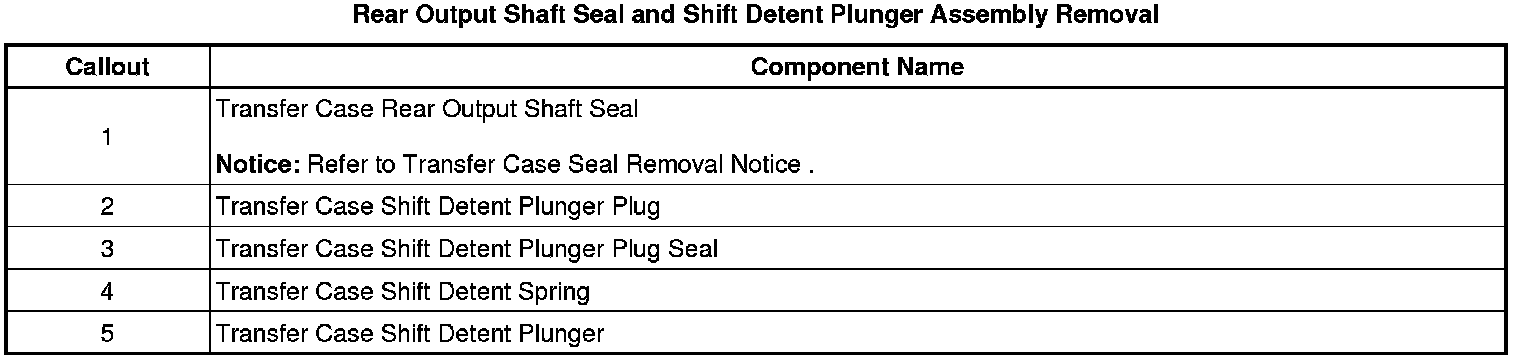

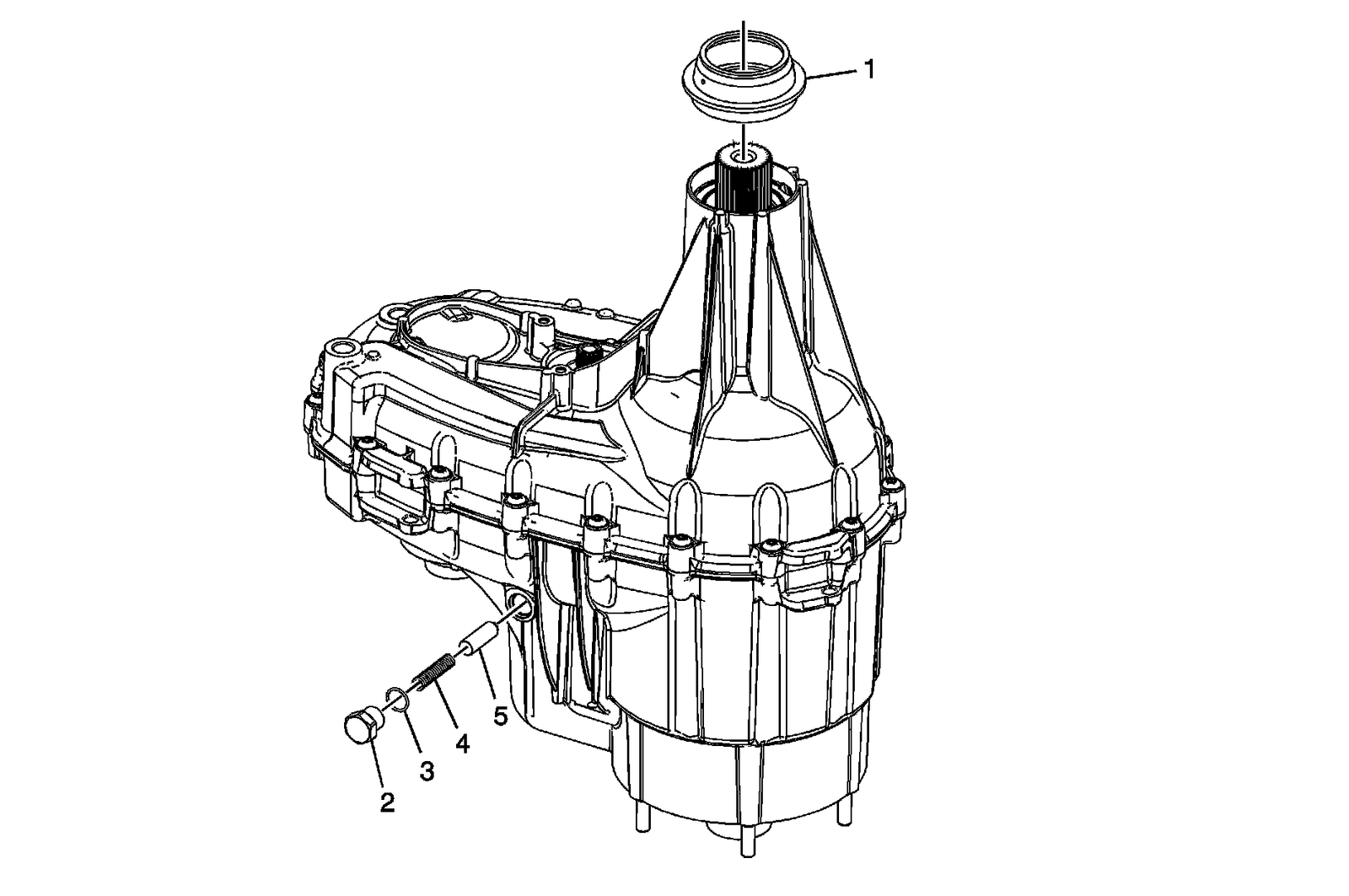

Rear Output Shaft Seal and Shift Detent Plunger Assembly Removal

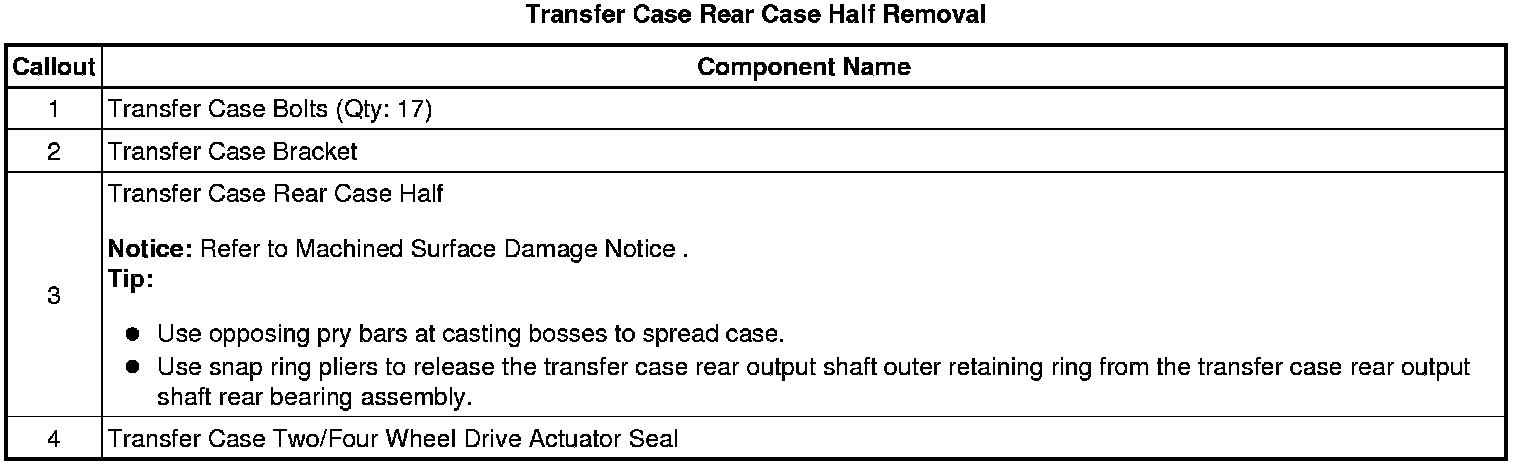

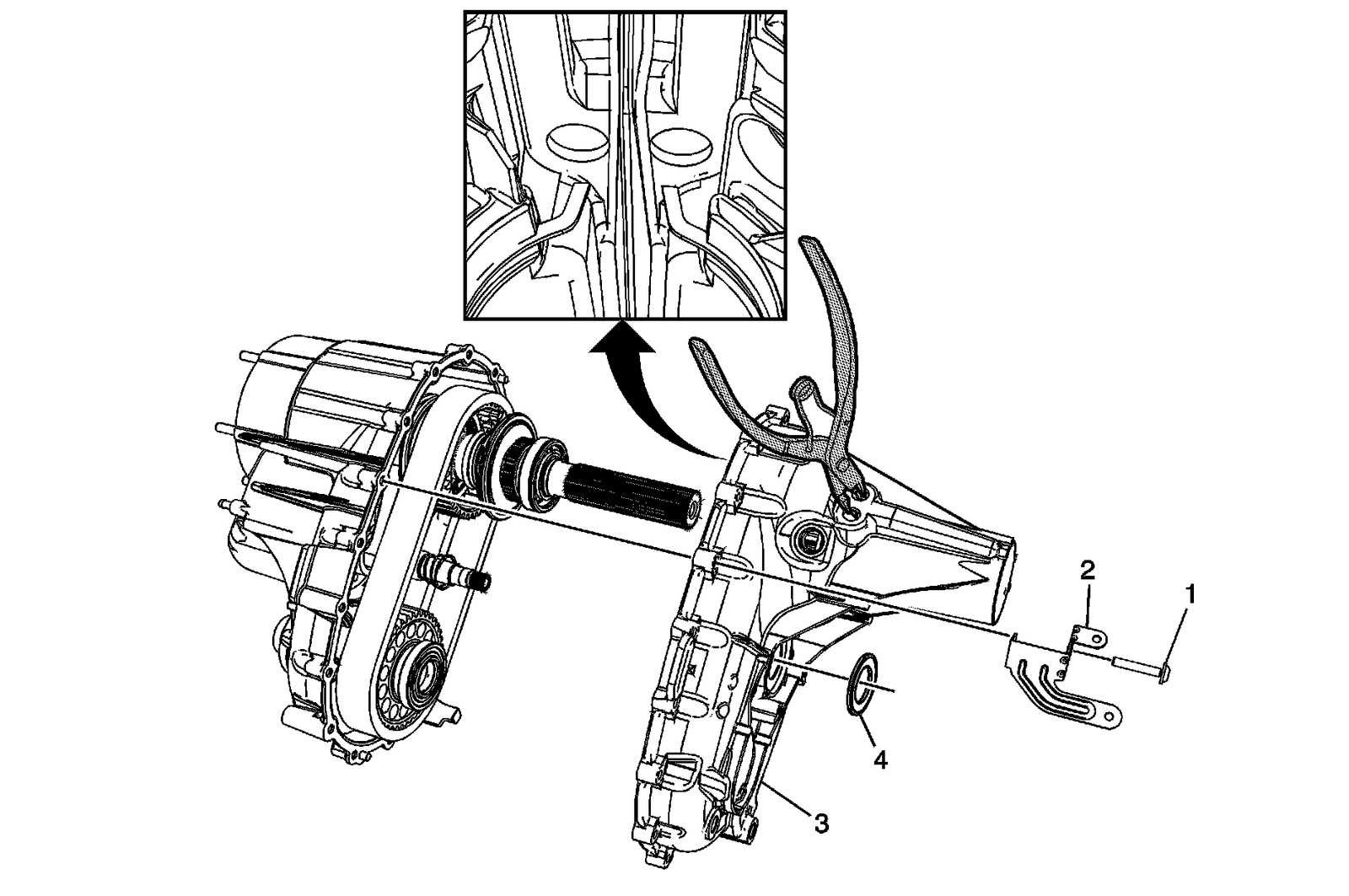

Transfer Case Rear Case Half Removal

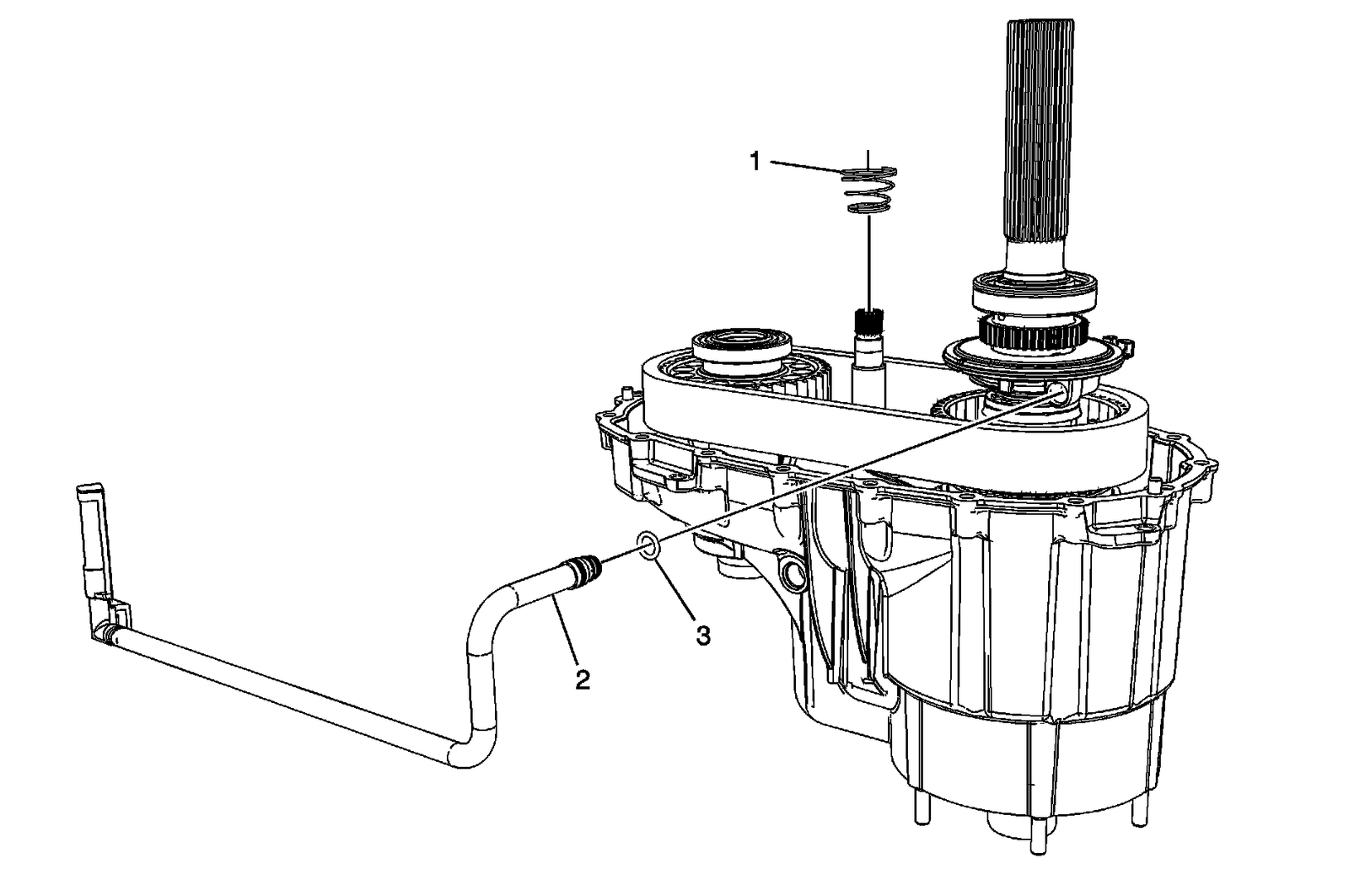

Oil Pump Suction Pipe Removal

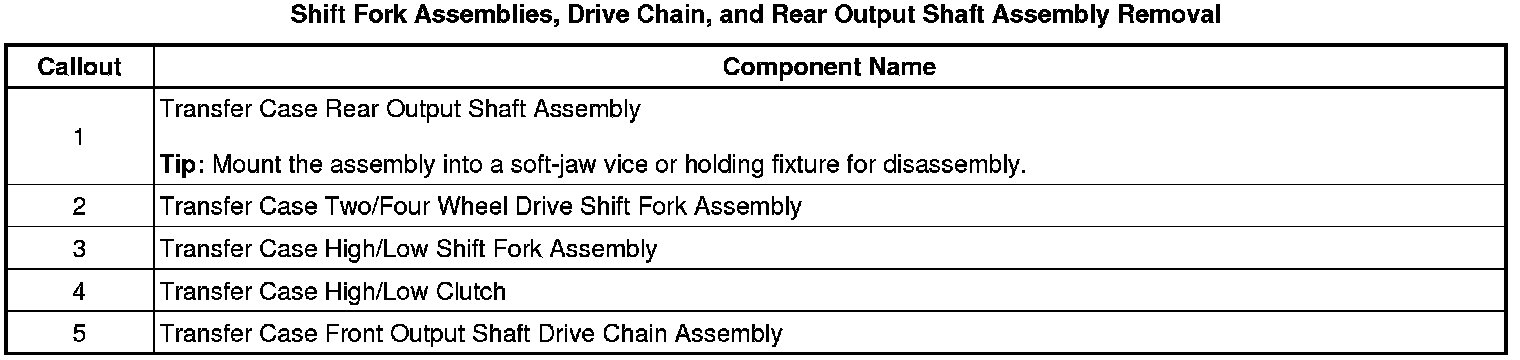

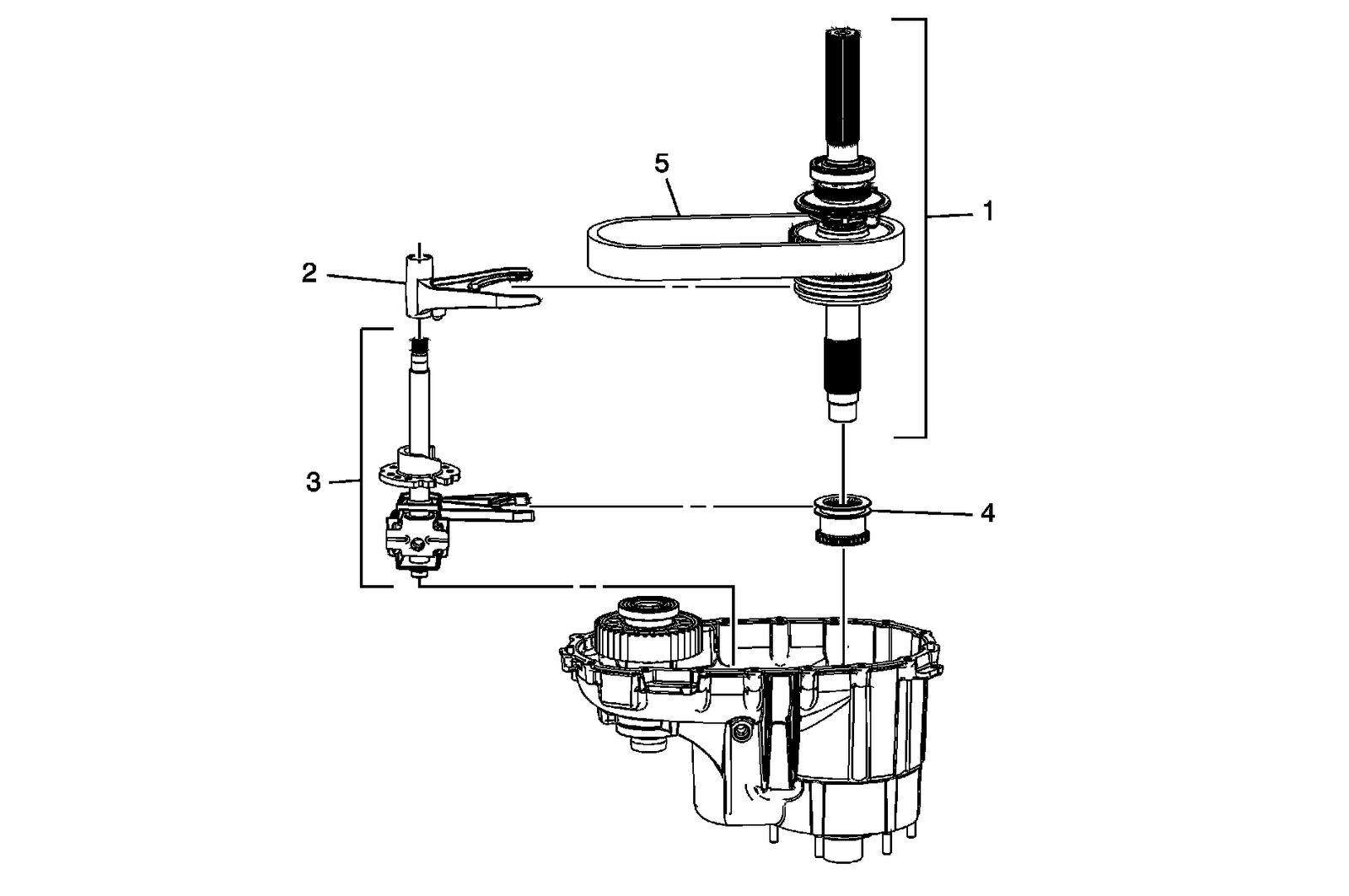

Shift Fork Assemblies, Drive Chain, and Rear Output Shaft Assembly Removal

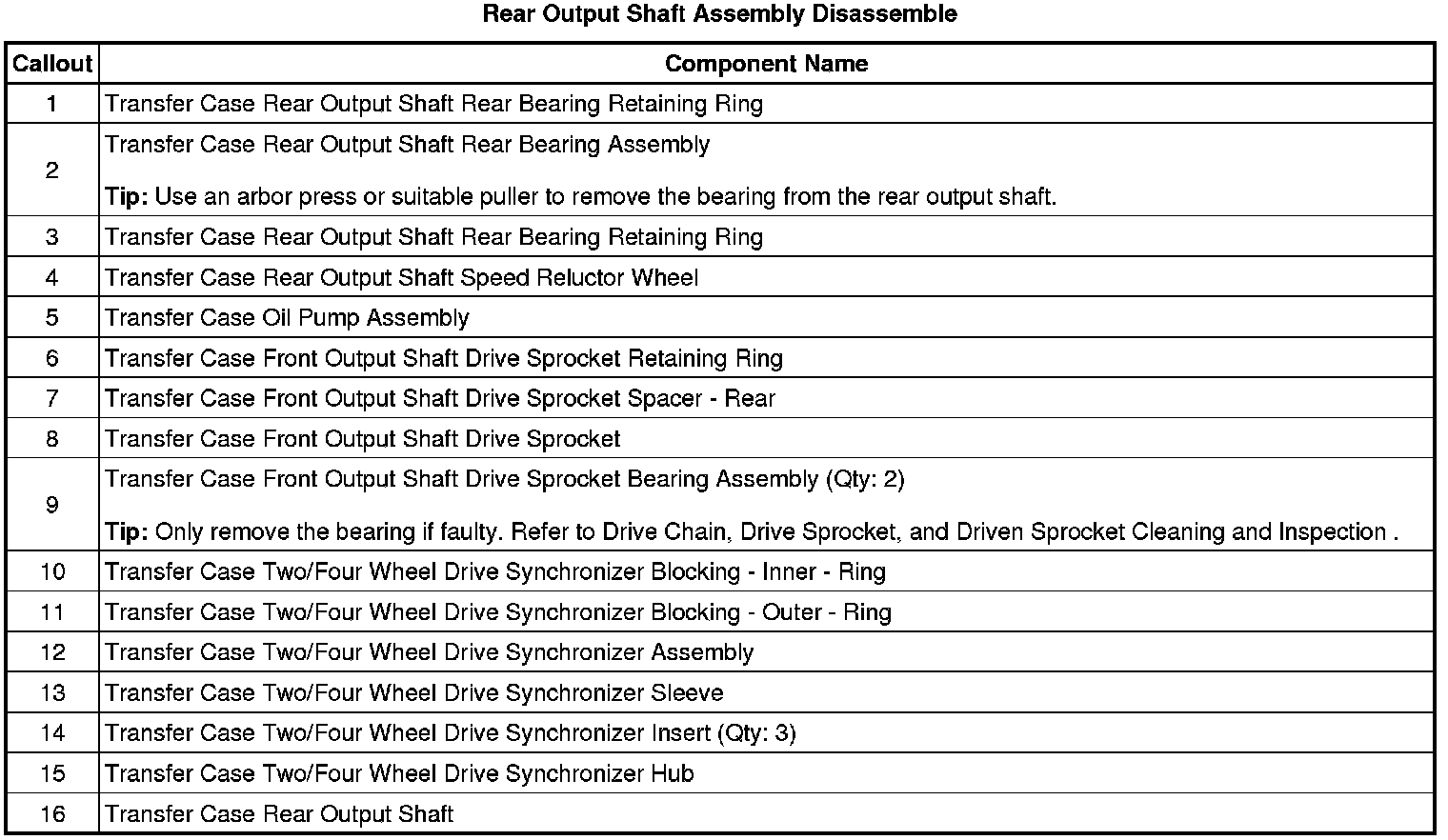

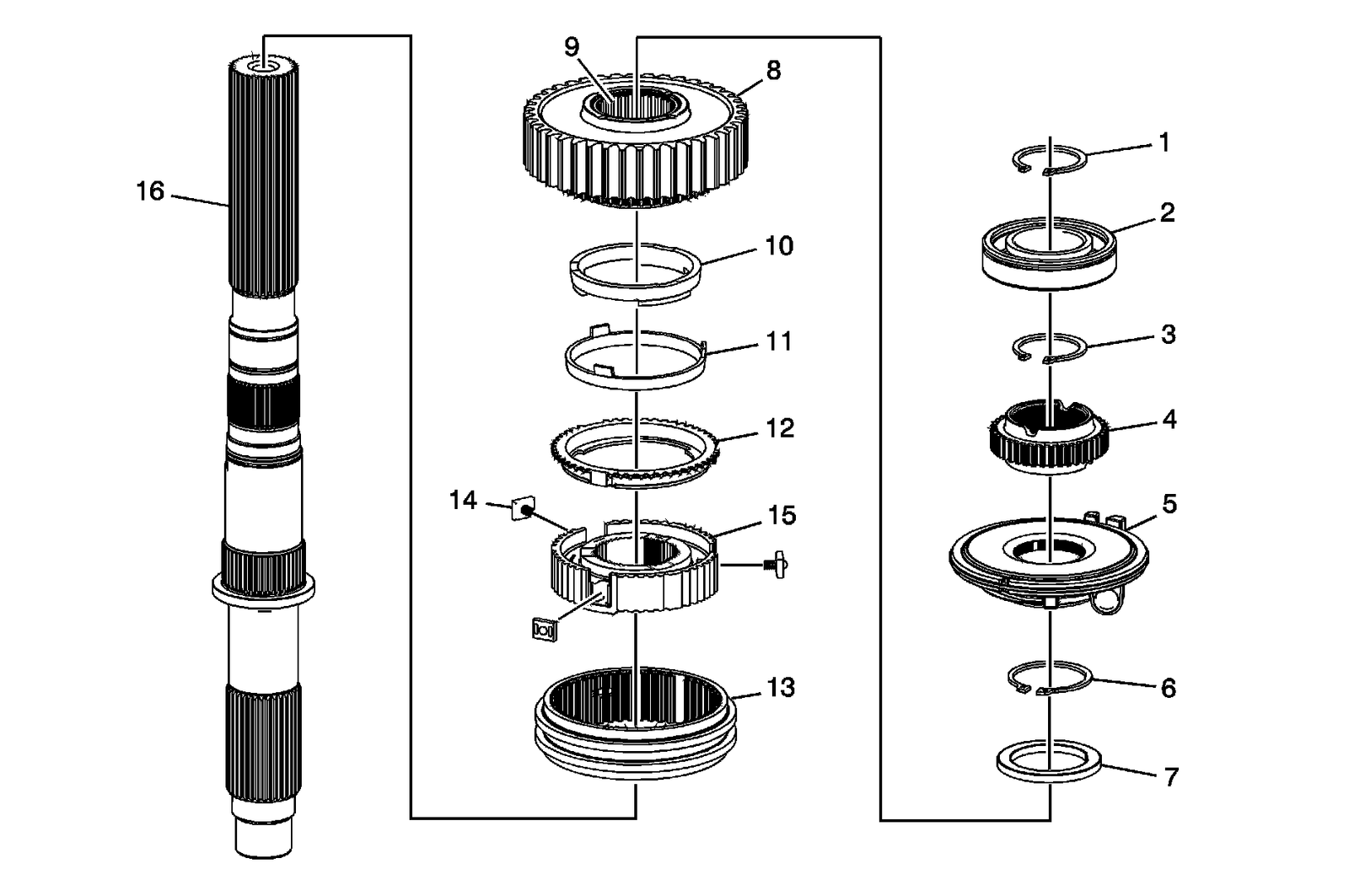

Rear Output Shaft Assembly Disassemble

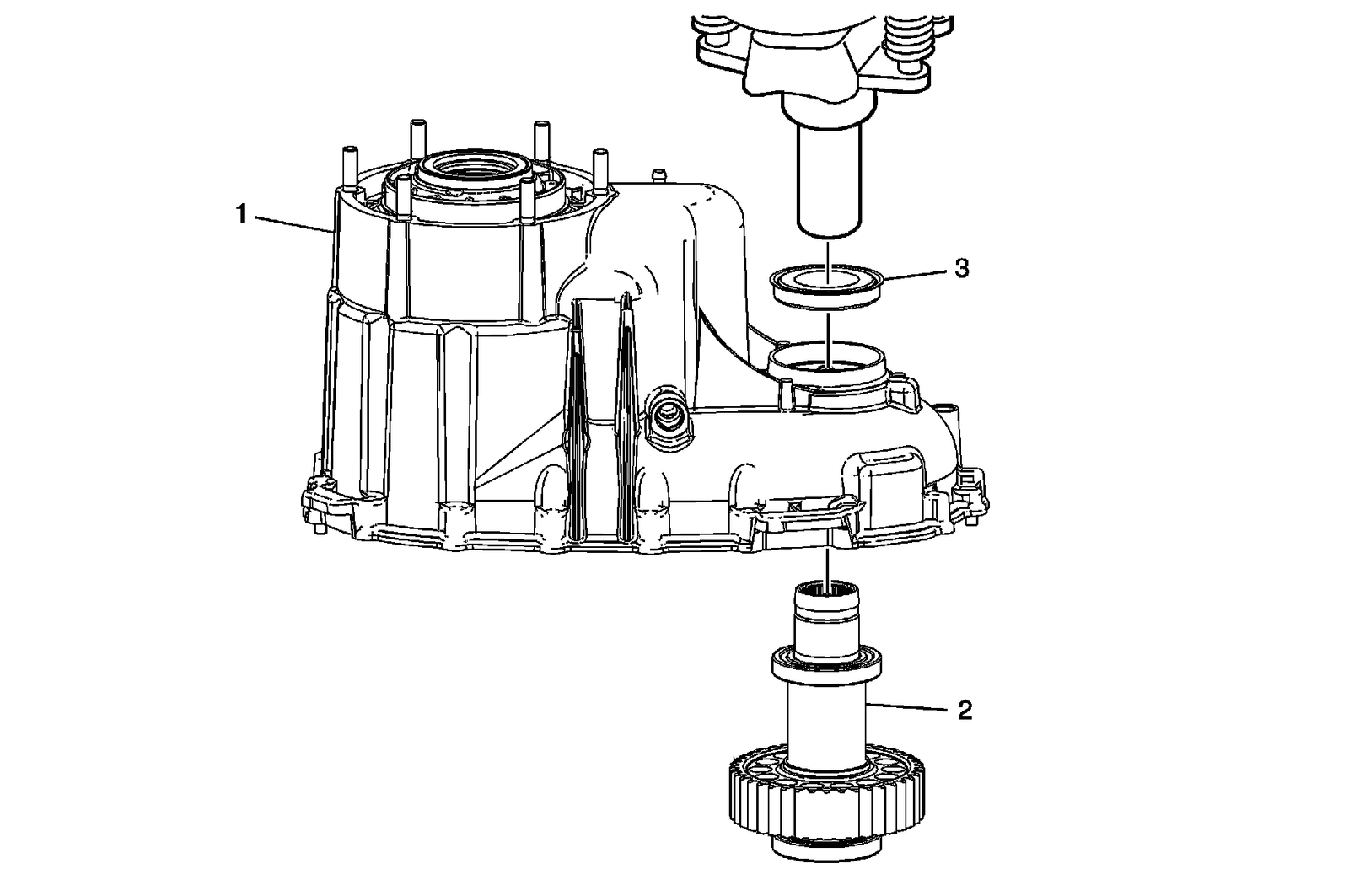

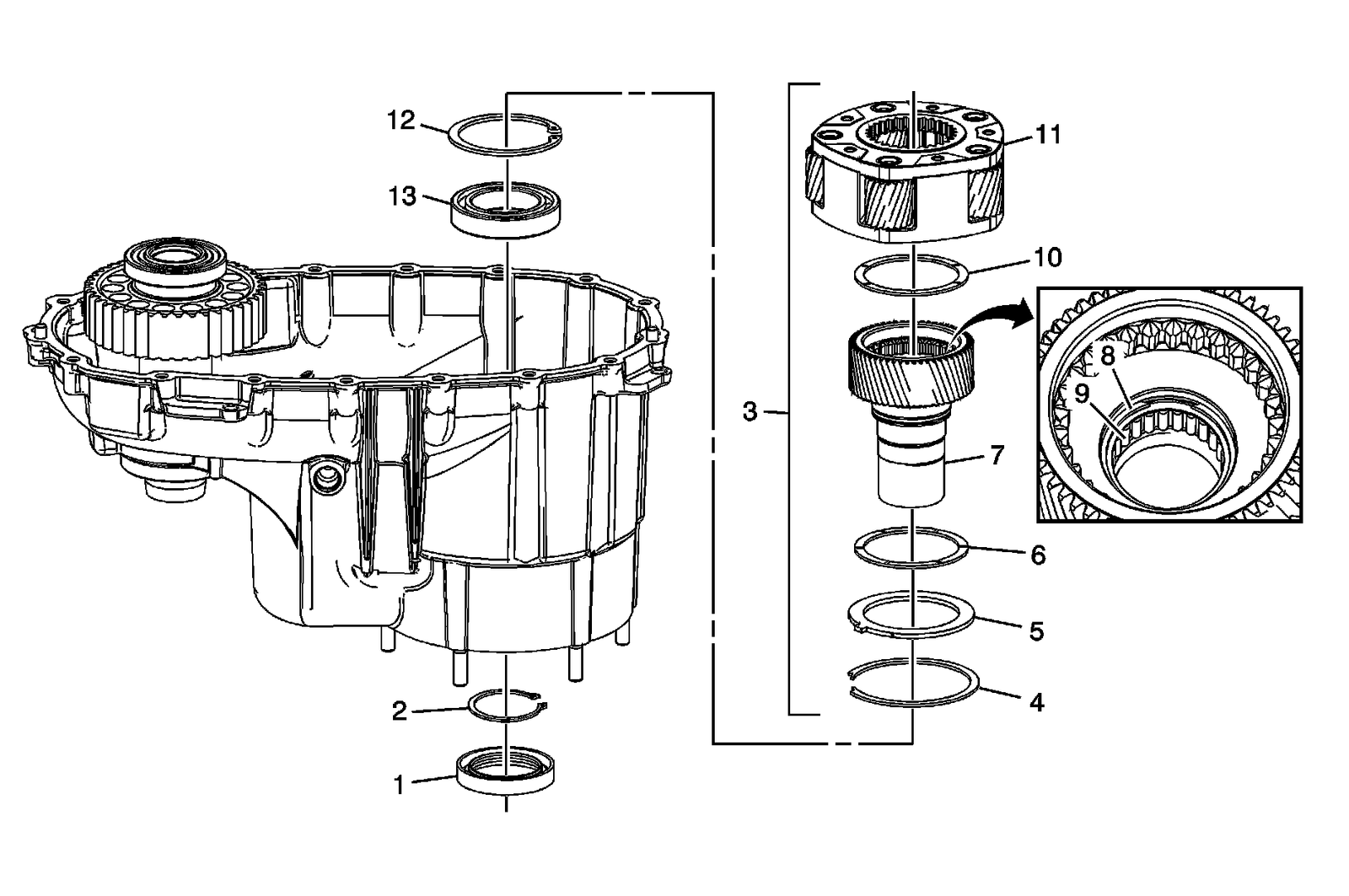

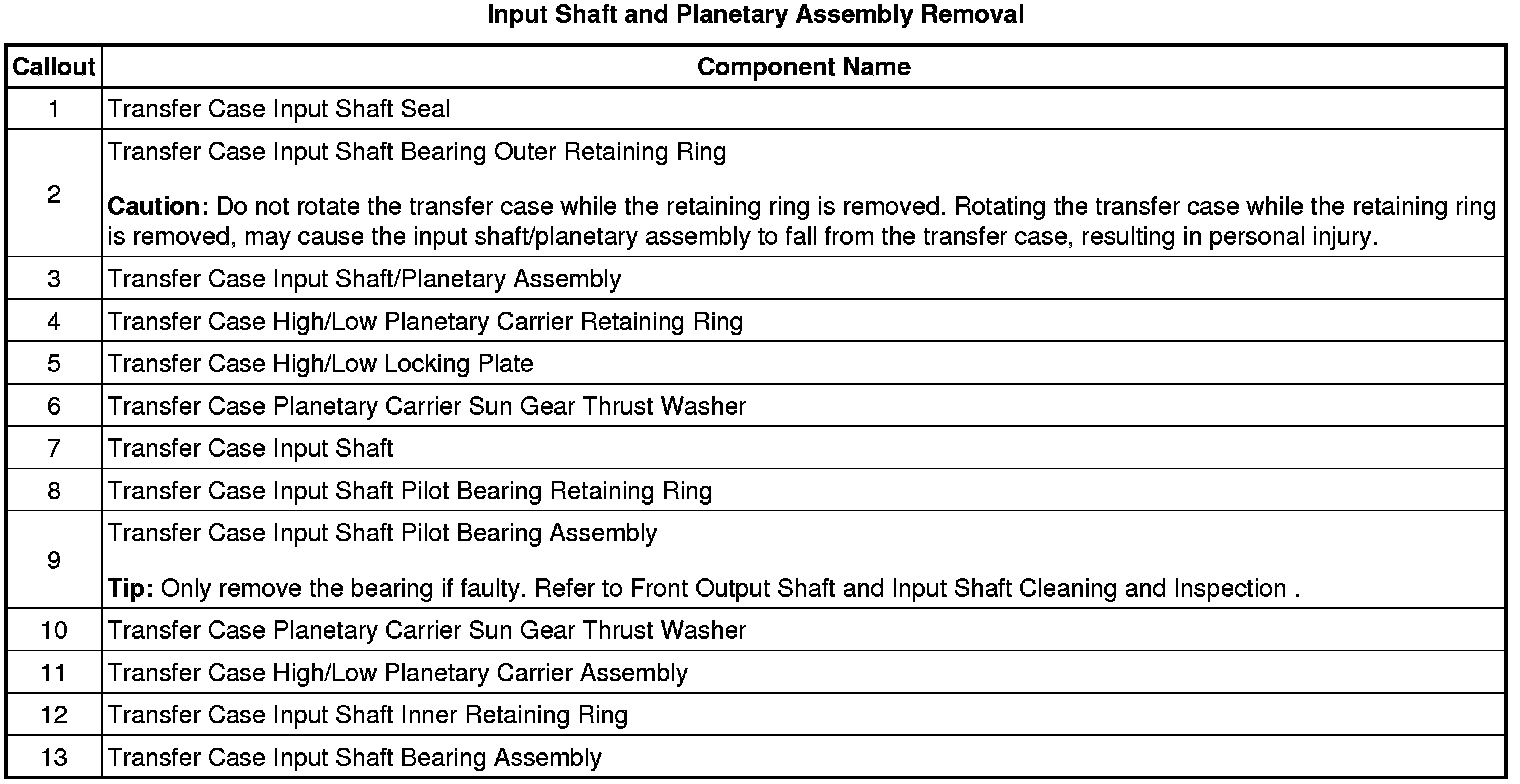

Input Shaft and Planetary Assembly Removal
Front Output Shaft Assembly Removal
