Transfer Case Assemble
Transfer Case Assemble

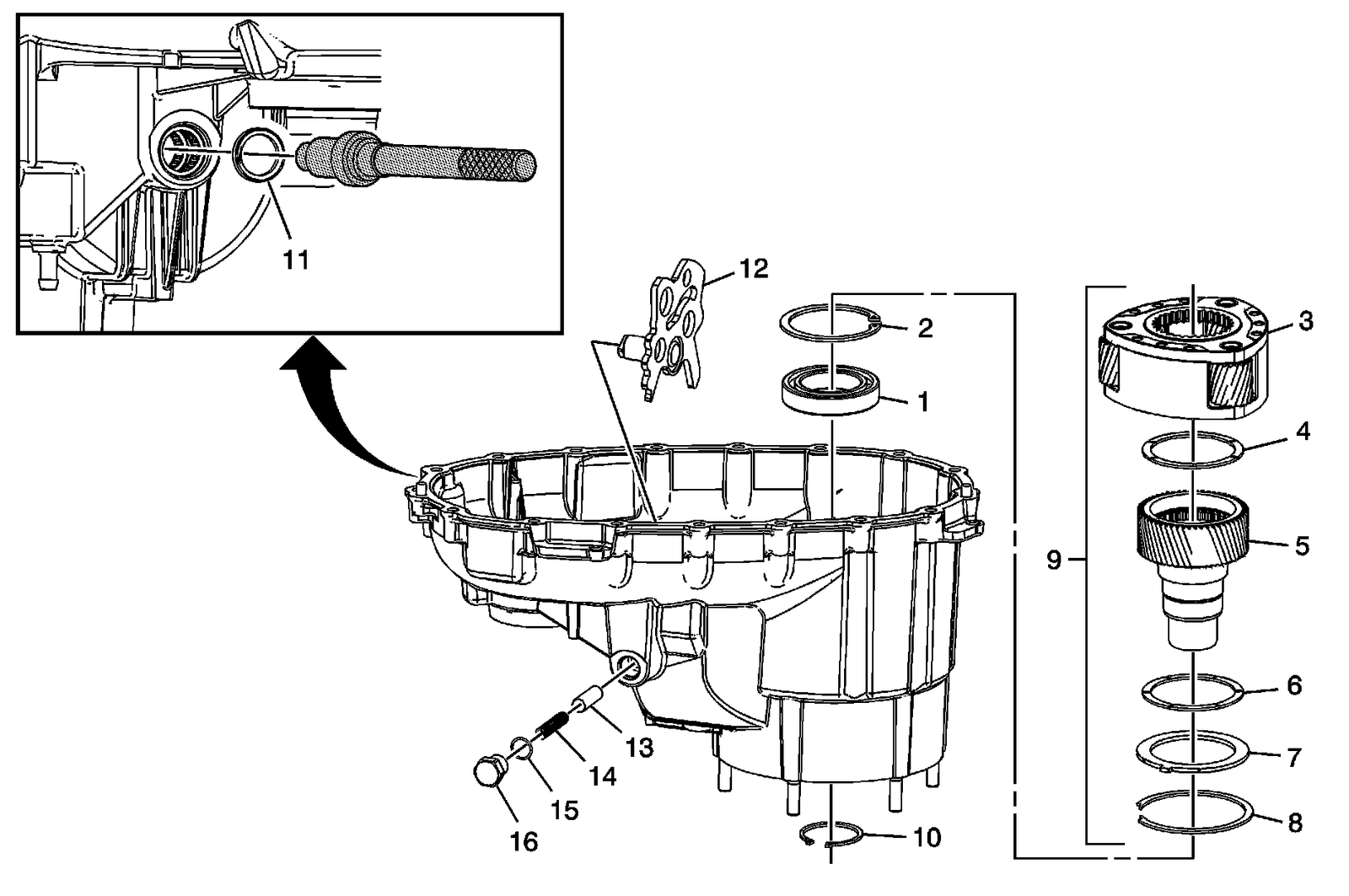

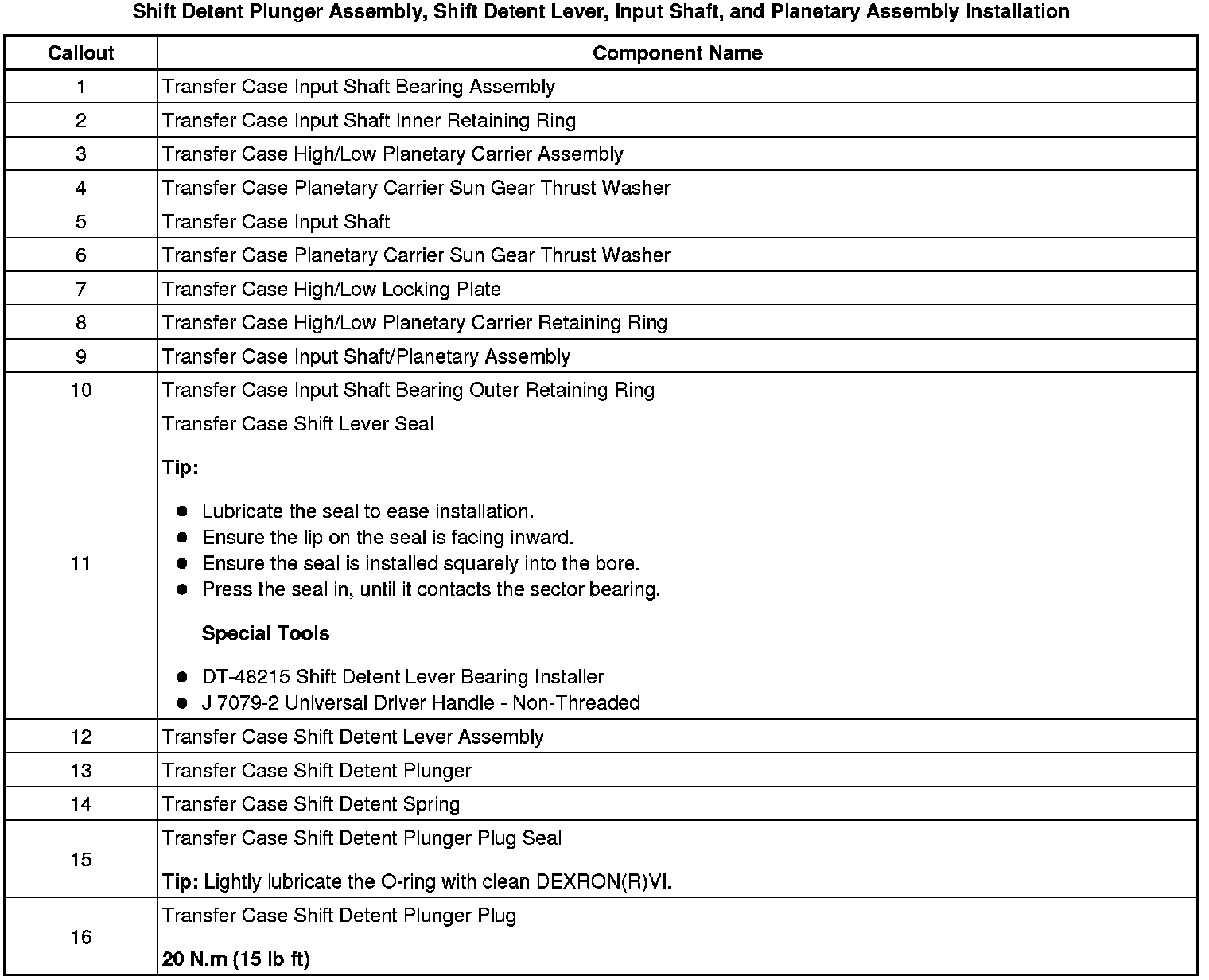

Shift Detent Plunger Assembly, Shift Detent Lever, Input Shaft, and Planetary Assembly Installation

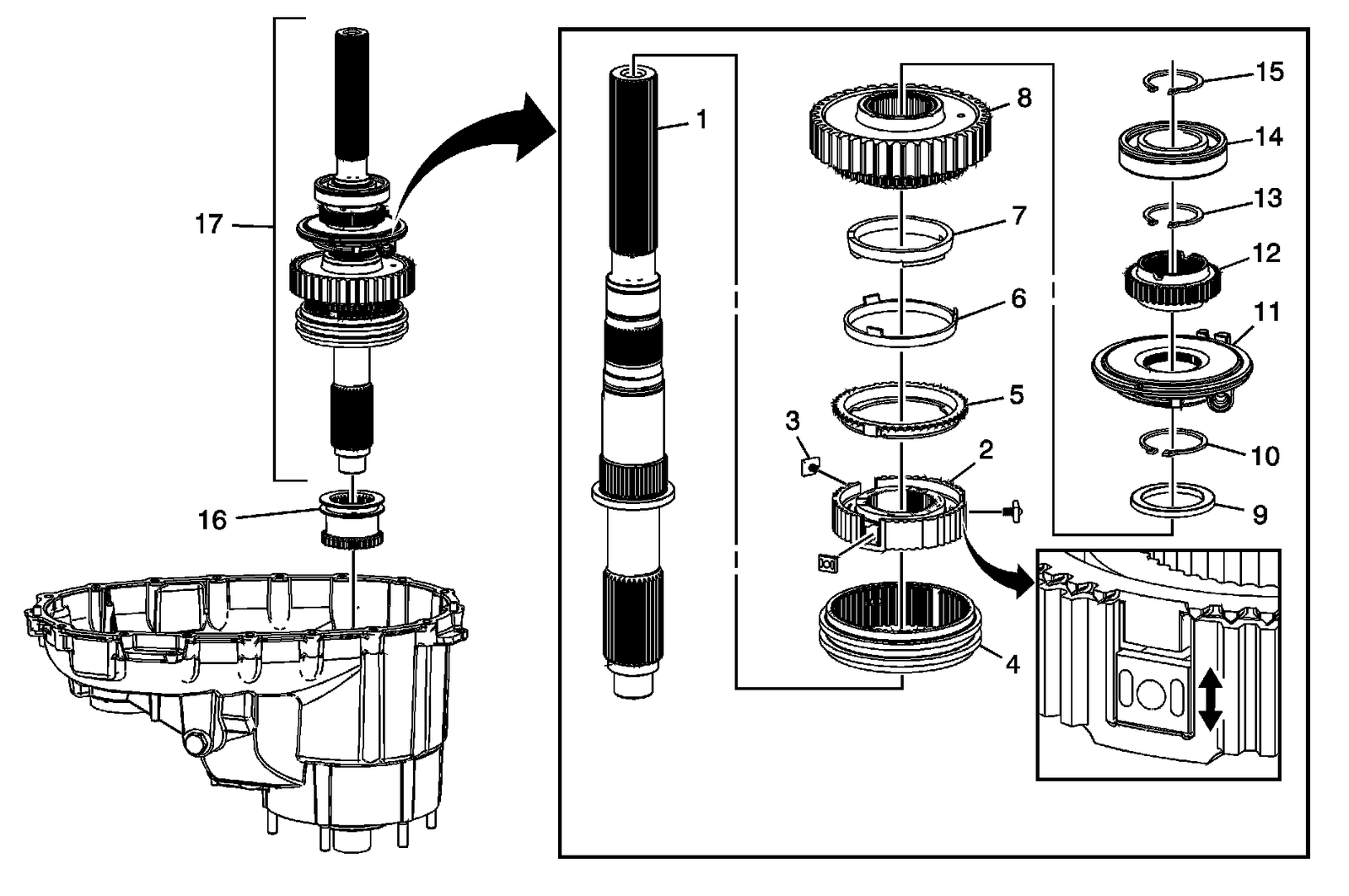

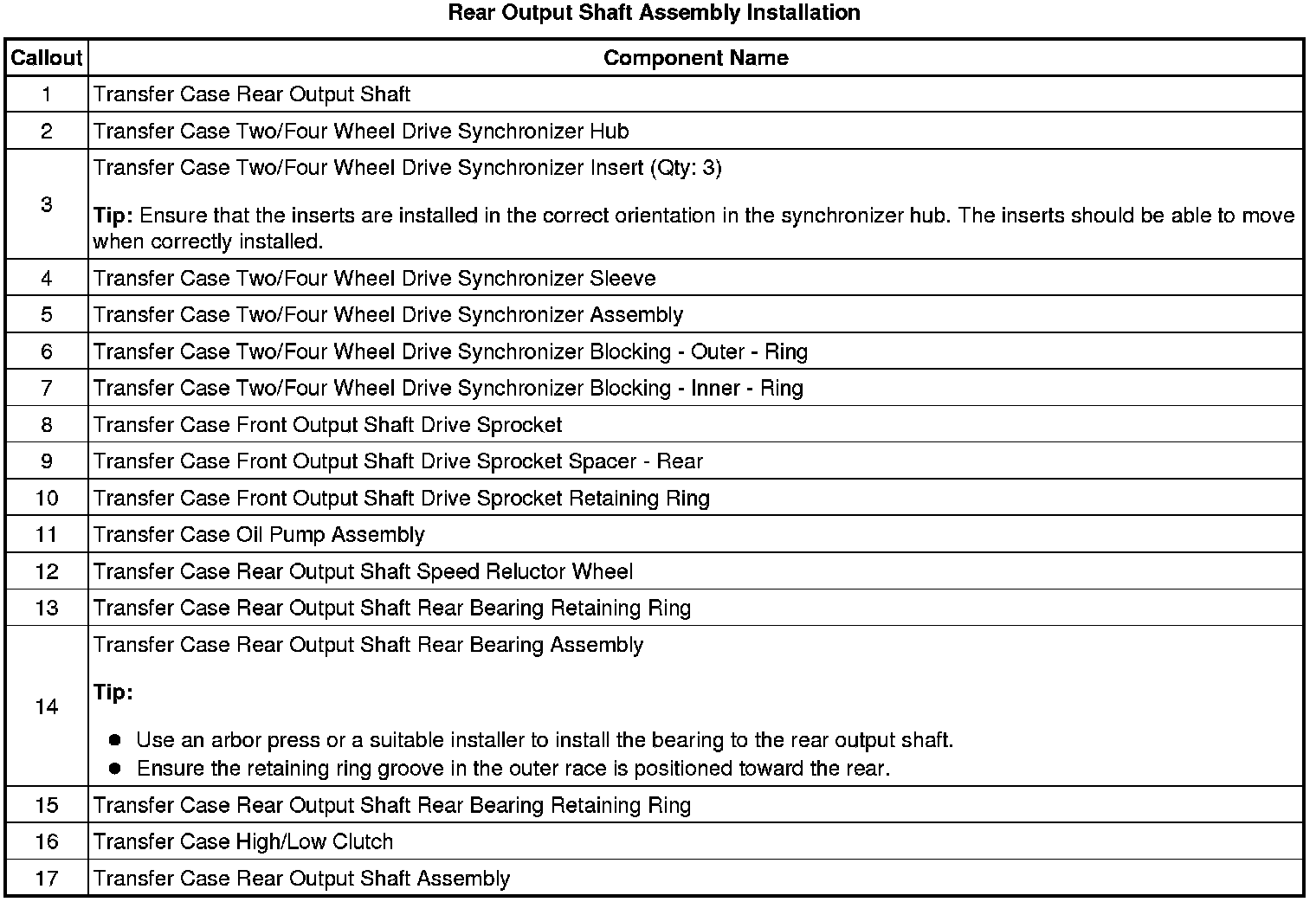

Rear Output Shaft Assembly Installation

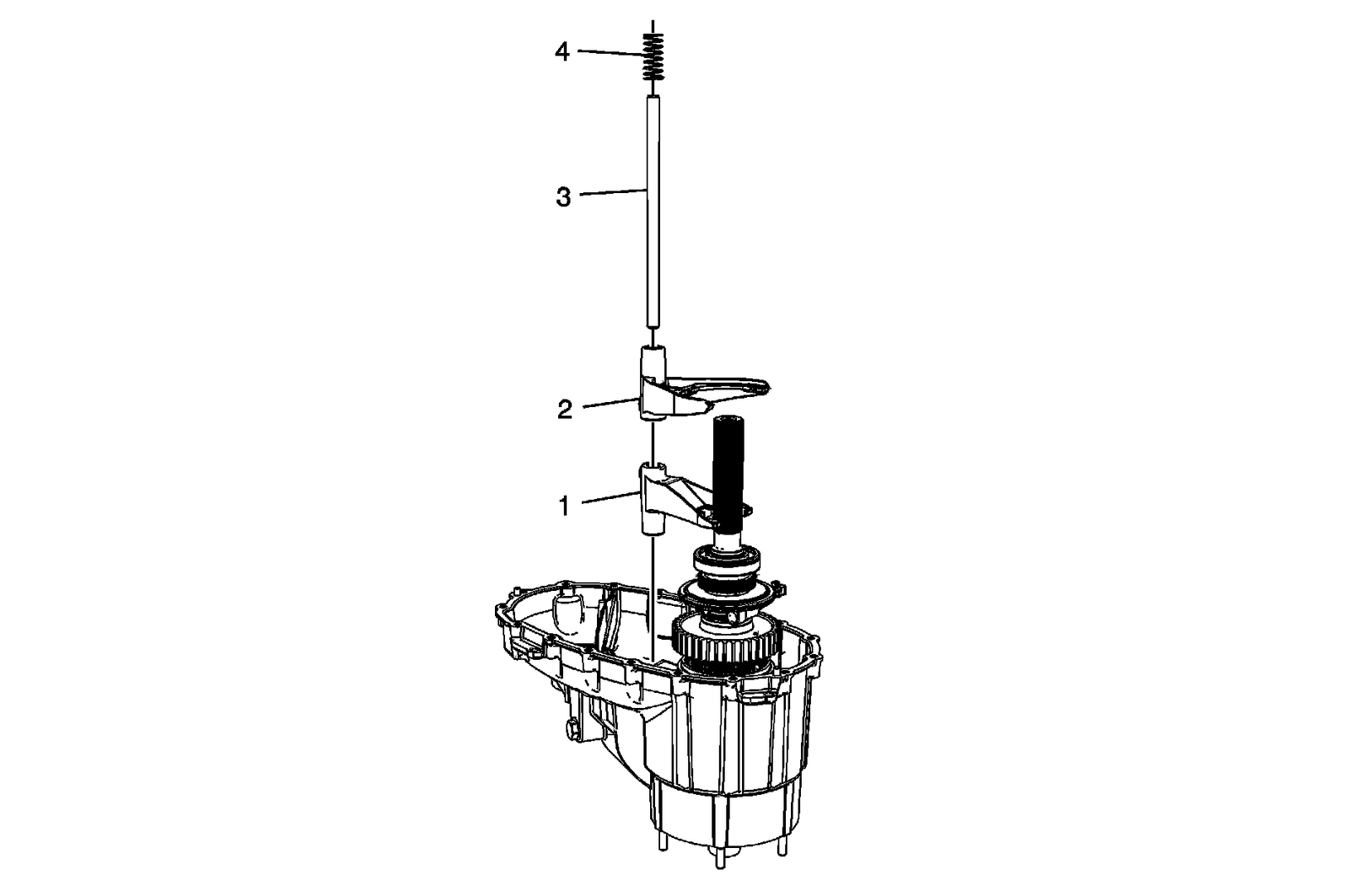

Shift Forks Installation

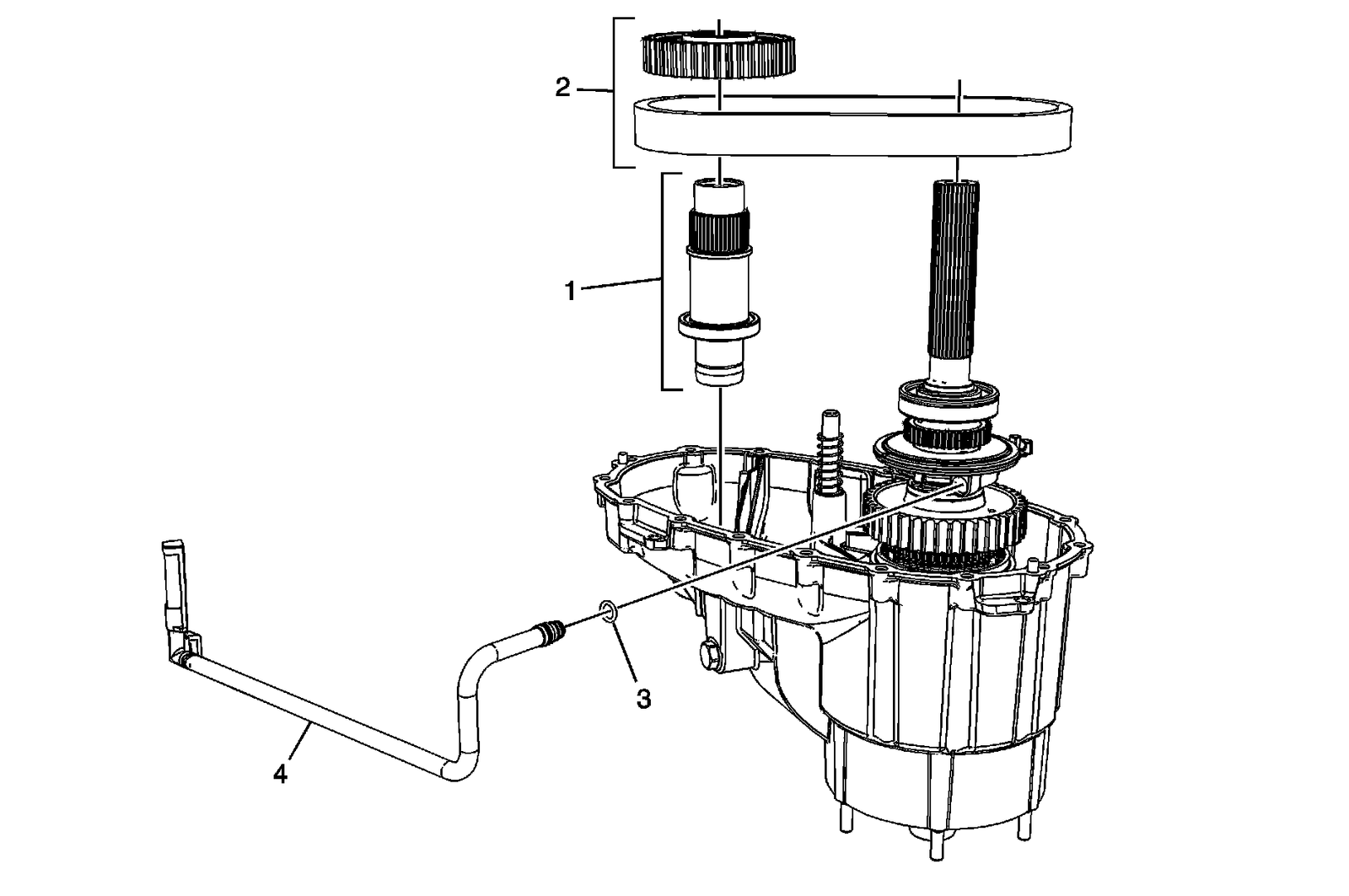

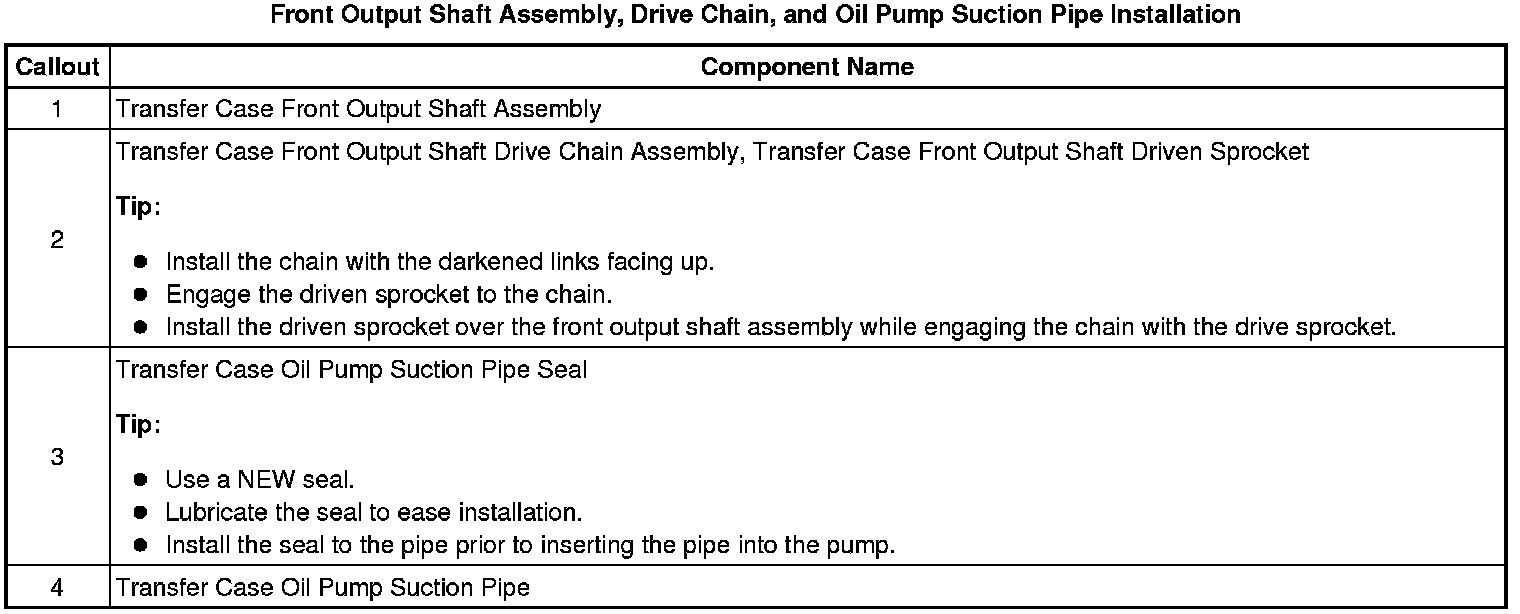

Front Output Shaft Assembly, Drive Chain, and Oil Pump Suction Pipe Installation

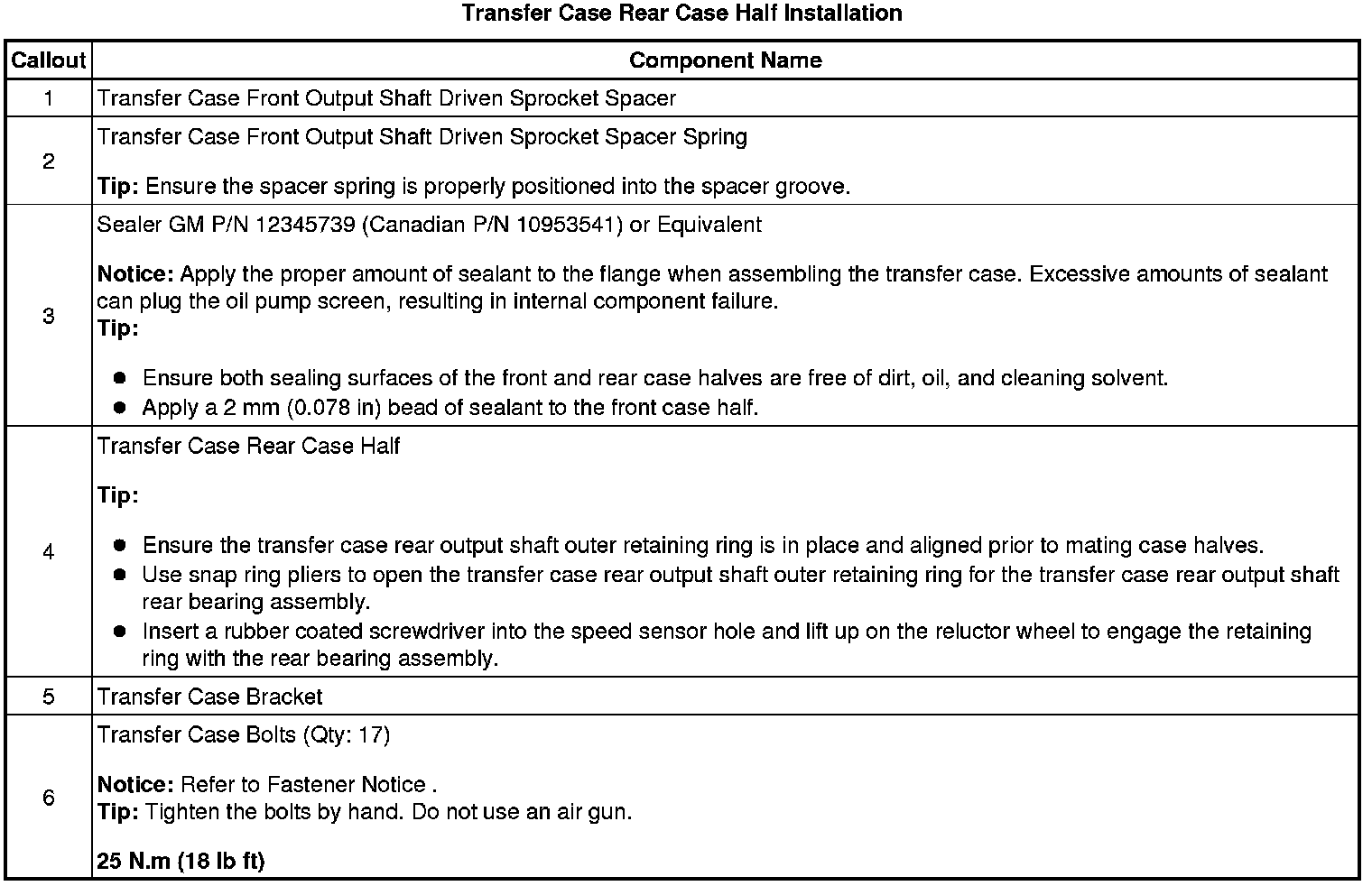

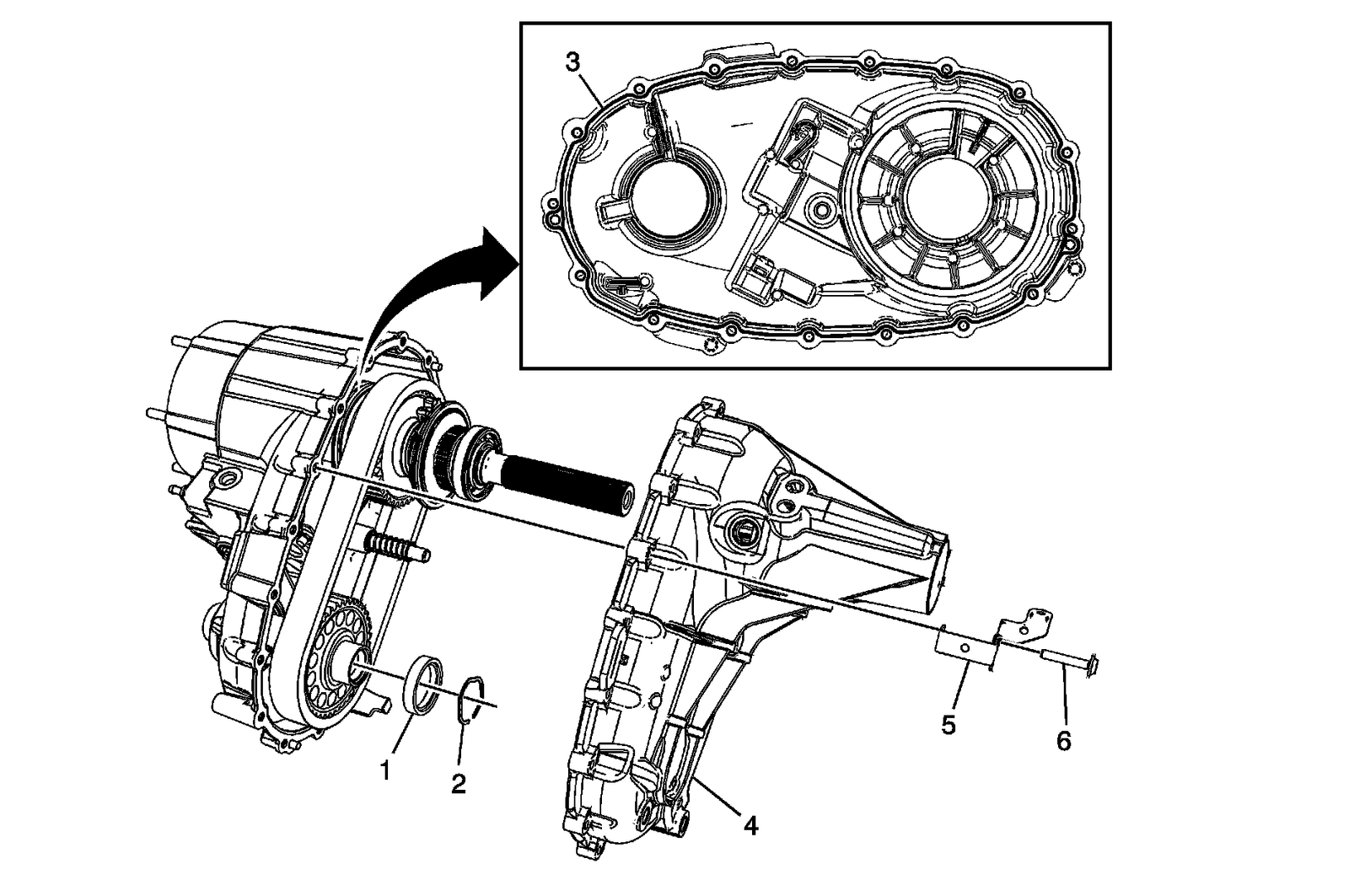

Transfer Case Rear Case Half Installation

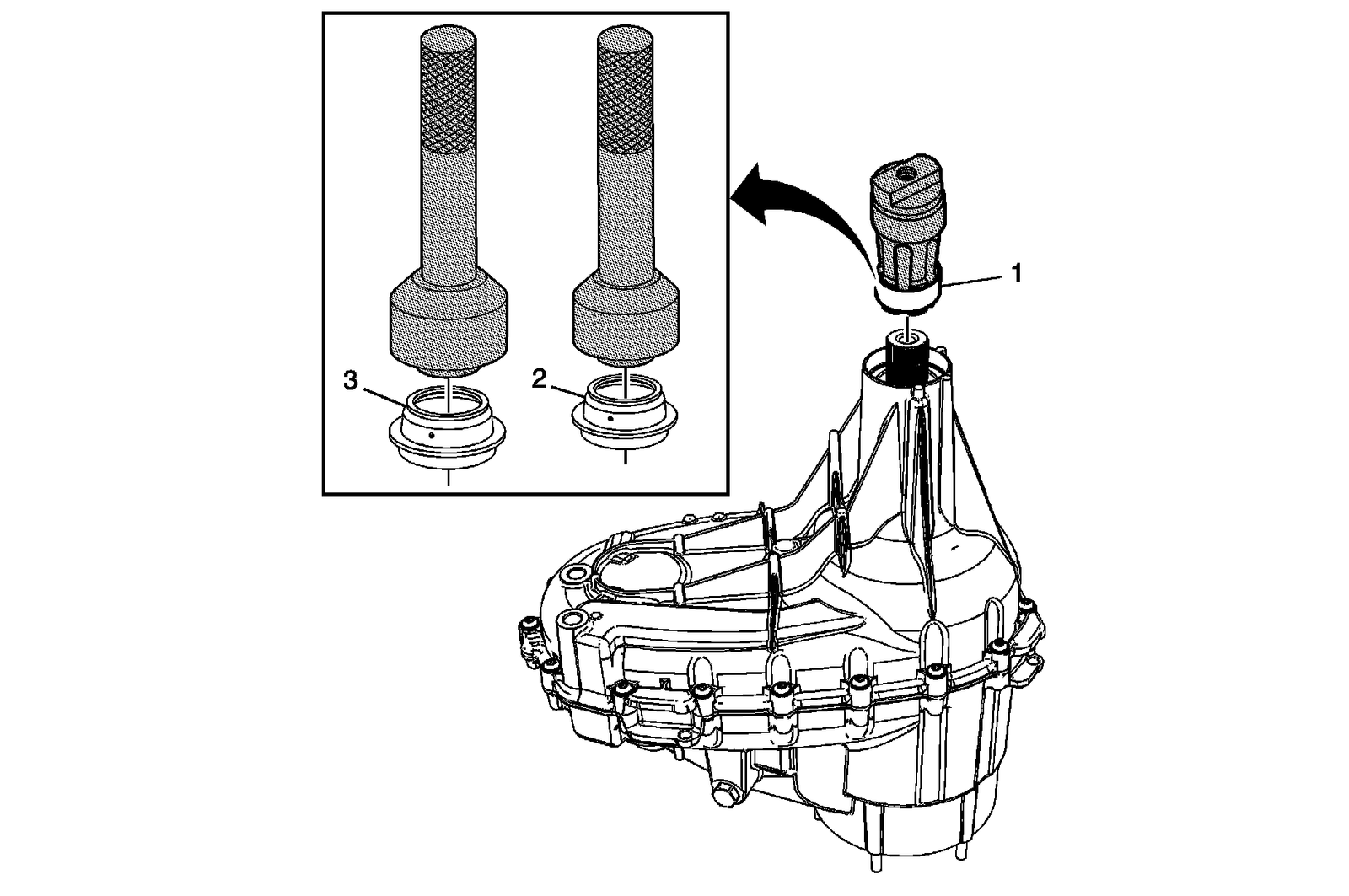

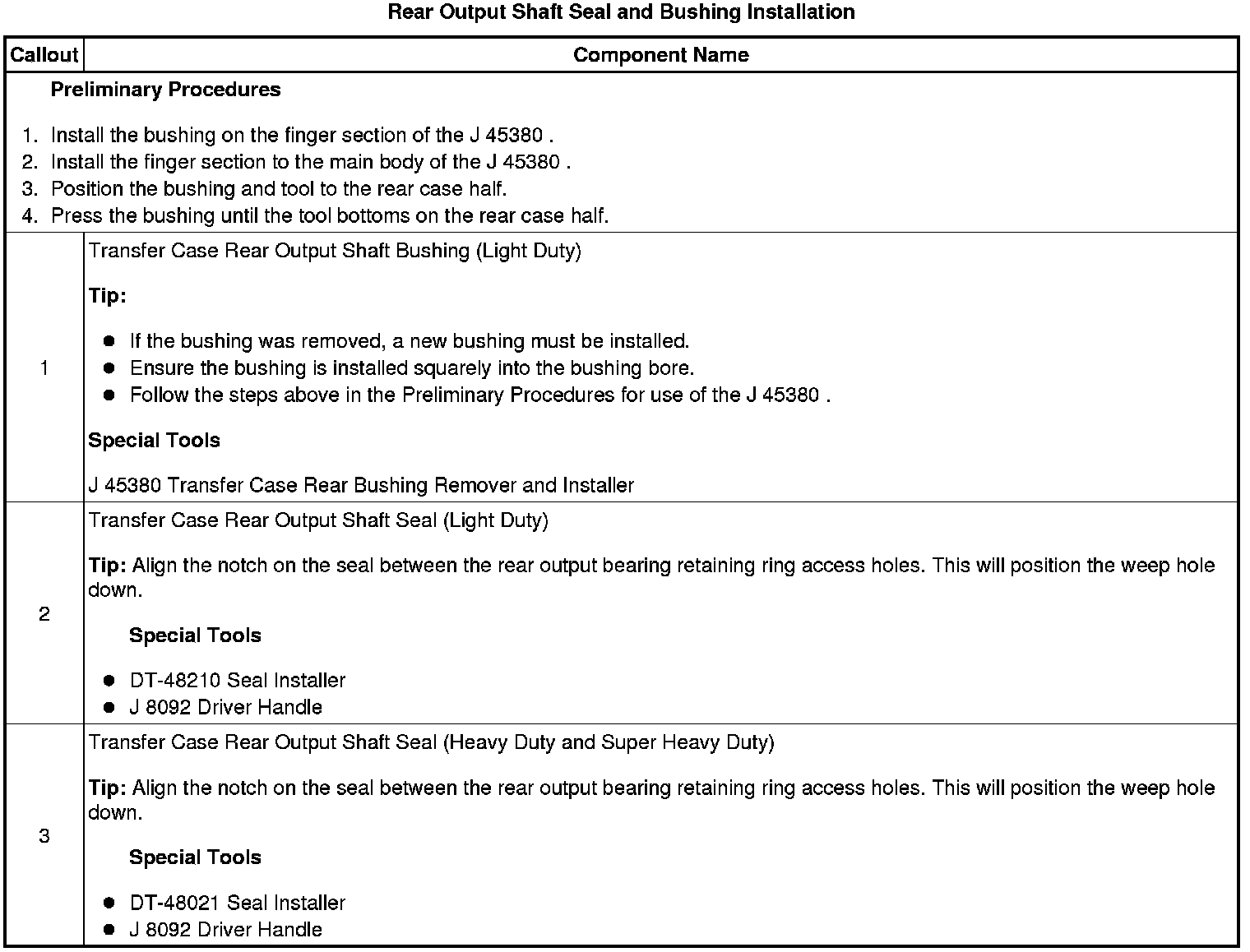

Rear Output Shaft Seal and Bushing Installation

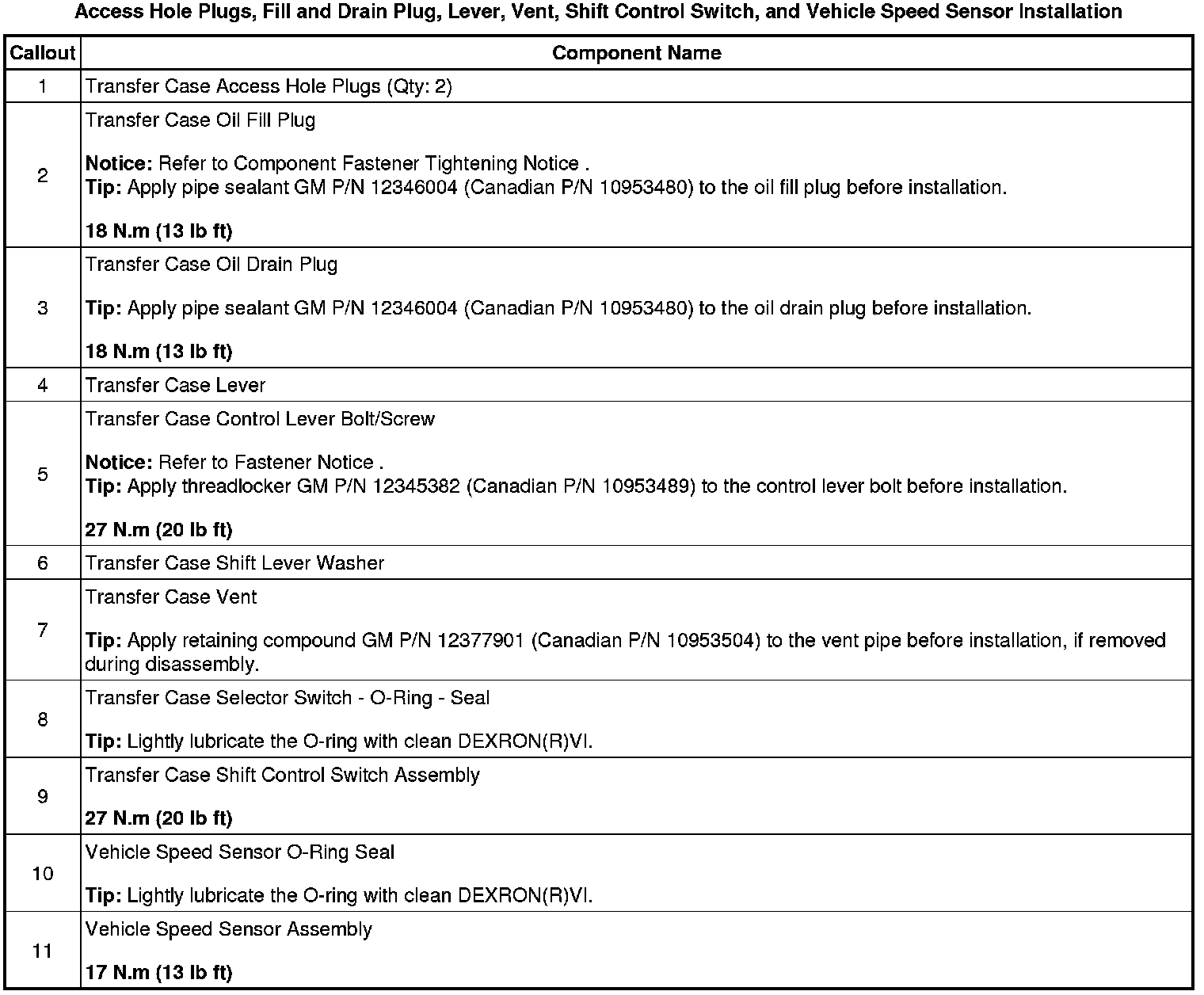

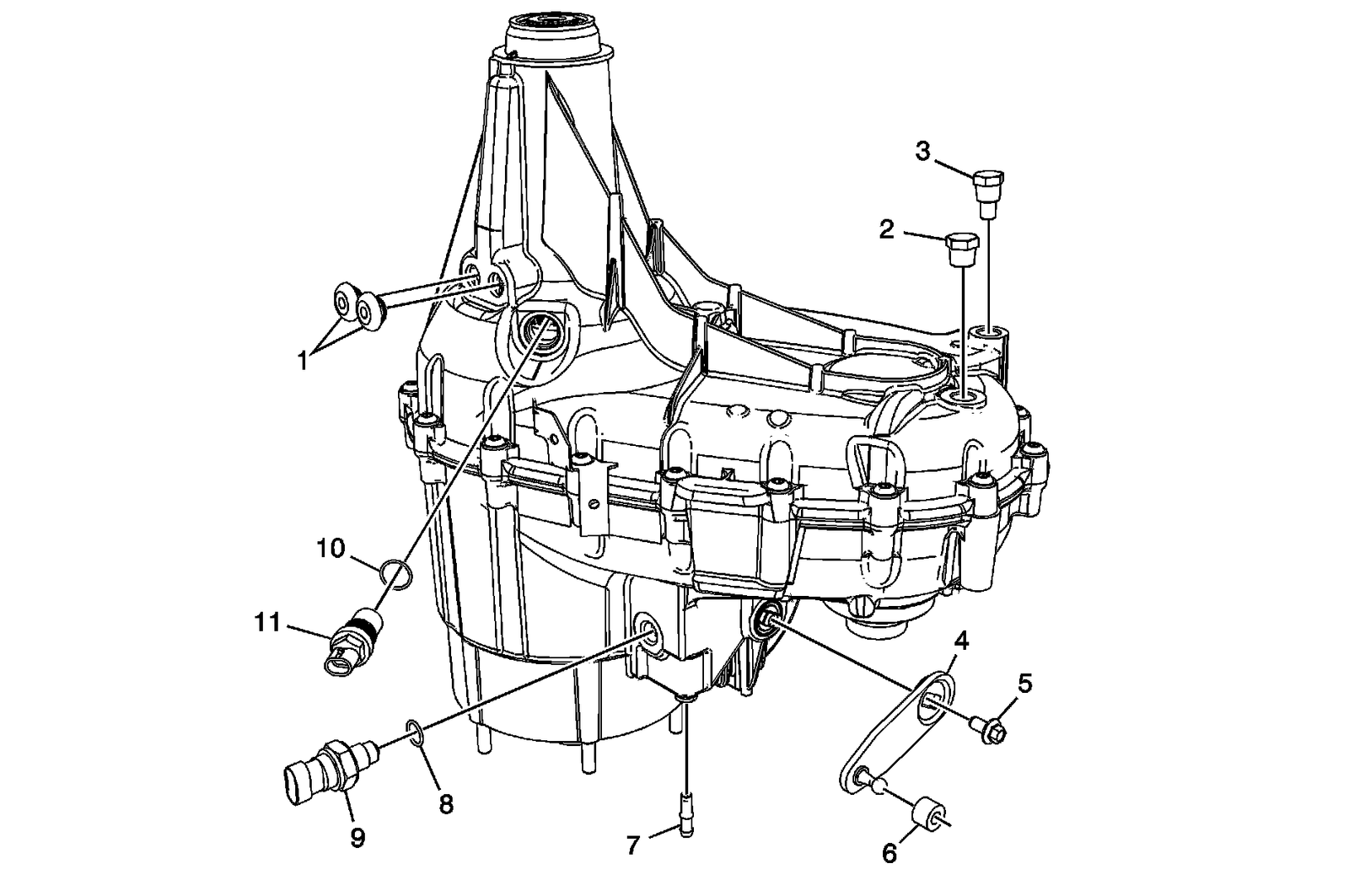

Access Hole Plugs, Fill and Drain Plug, Lever, Vent, Shift Control Switch, and Vehicle Speed Sensor Installation

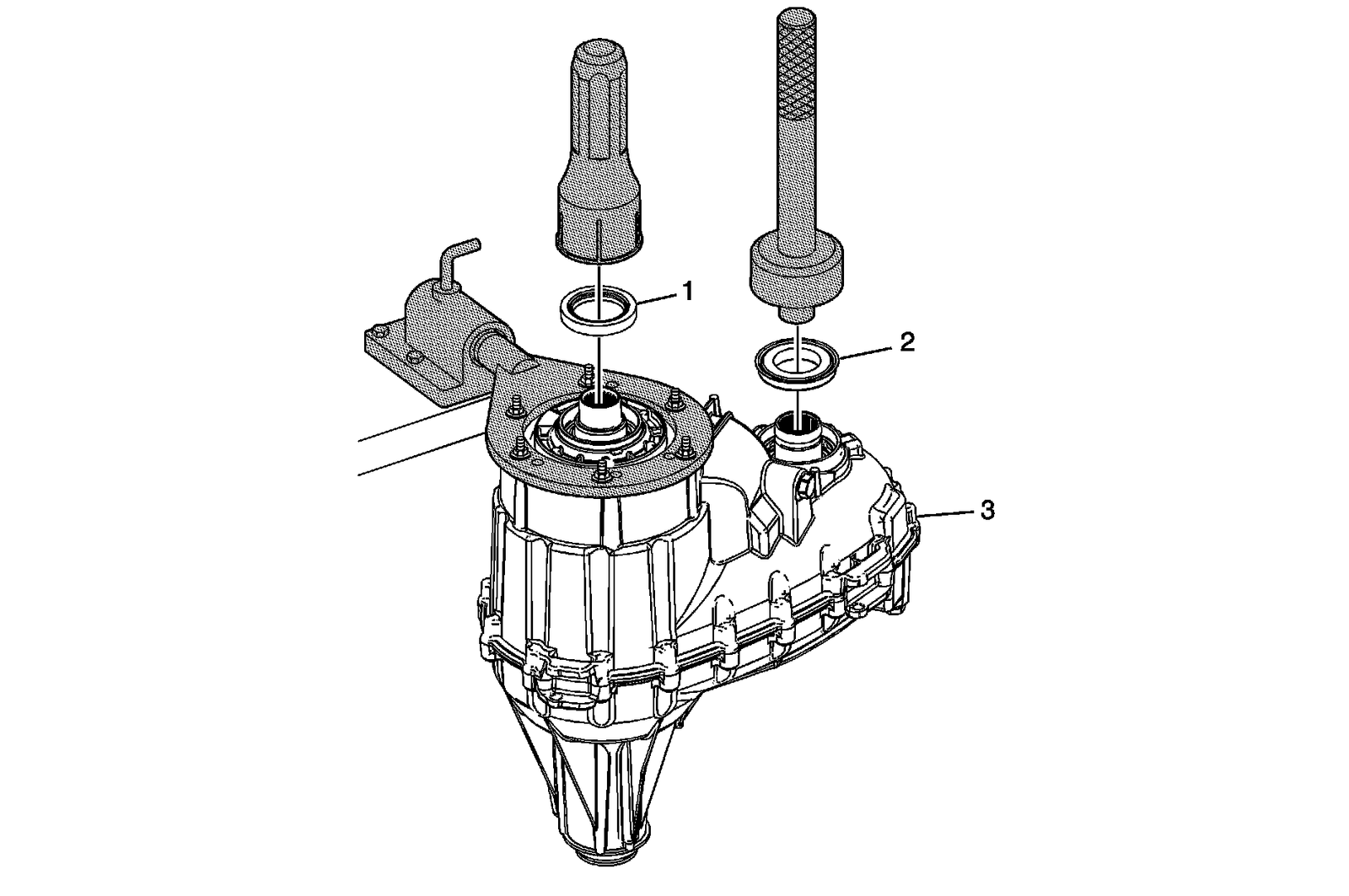

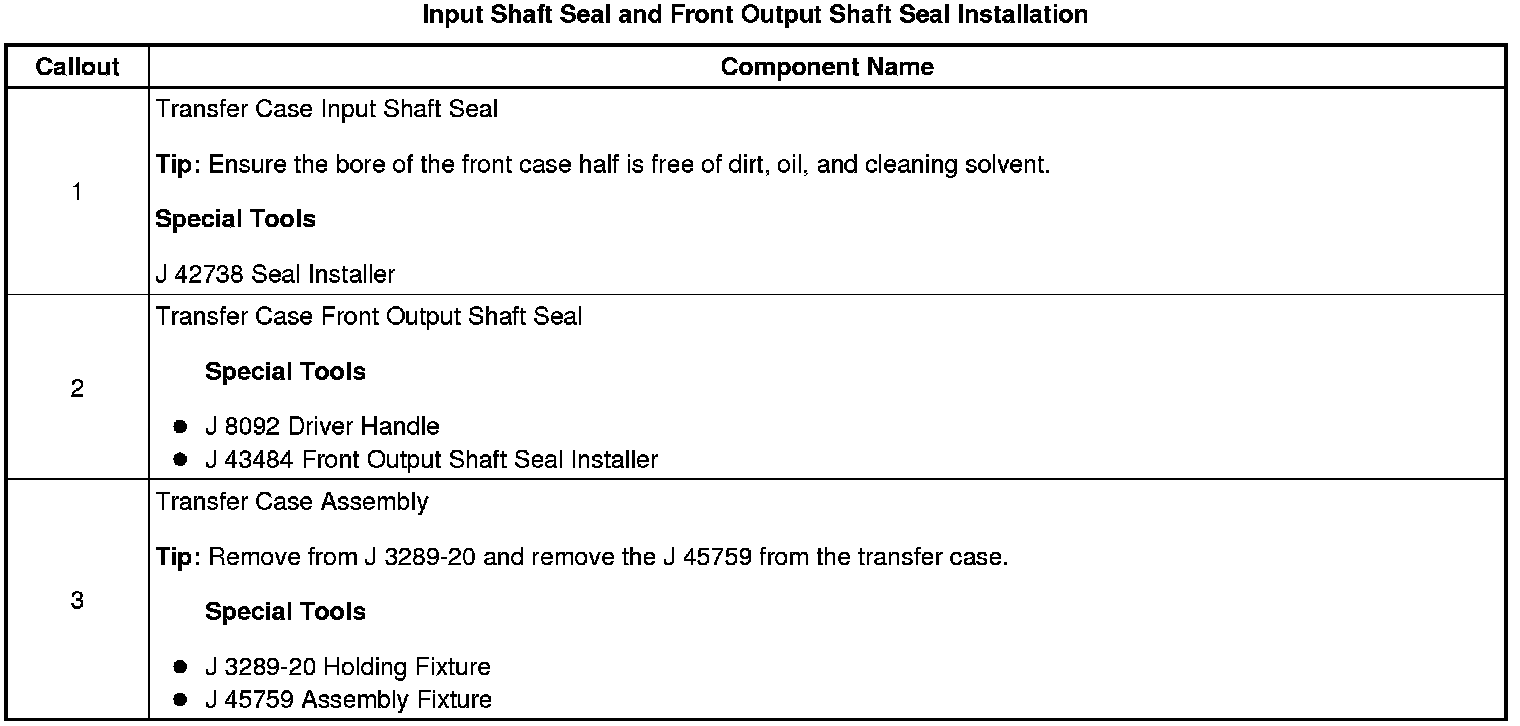

Input Shaft Seal and Front Output Shaft Seal Installation
