Control Valve Lower Body Assembly Cleaning and Inspection

Control Valve Lower Body Assembly Cleaning and Inspection

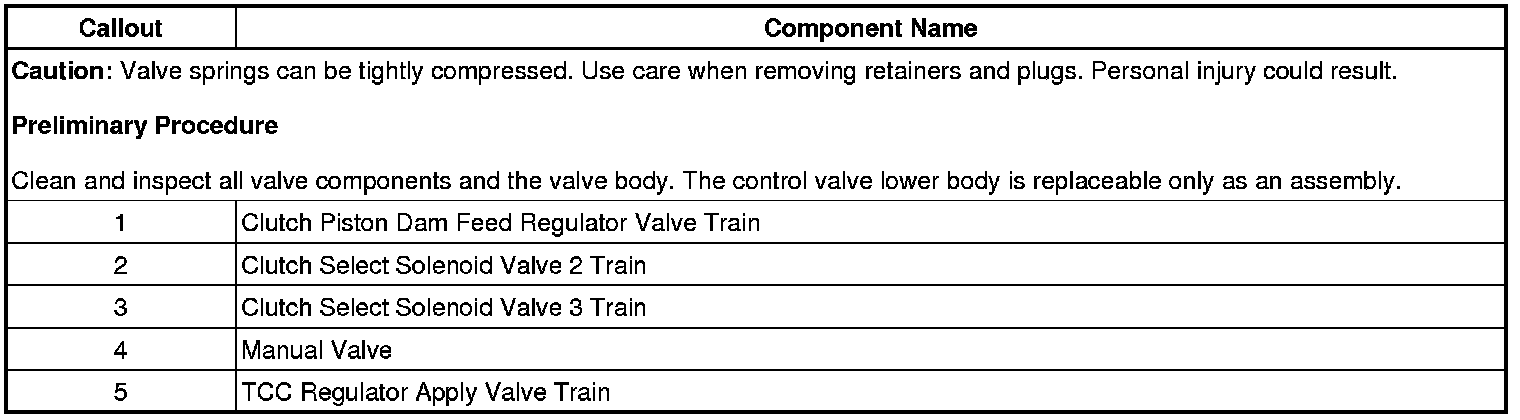

Technical service diagram

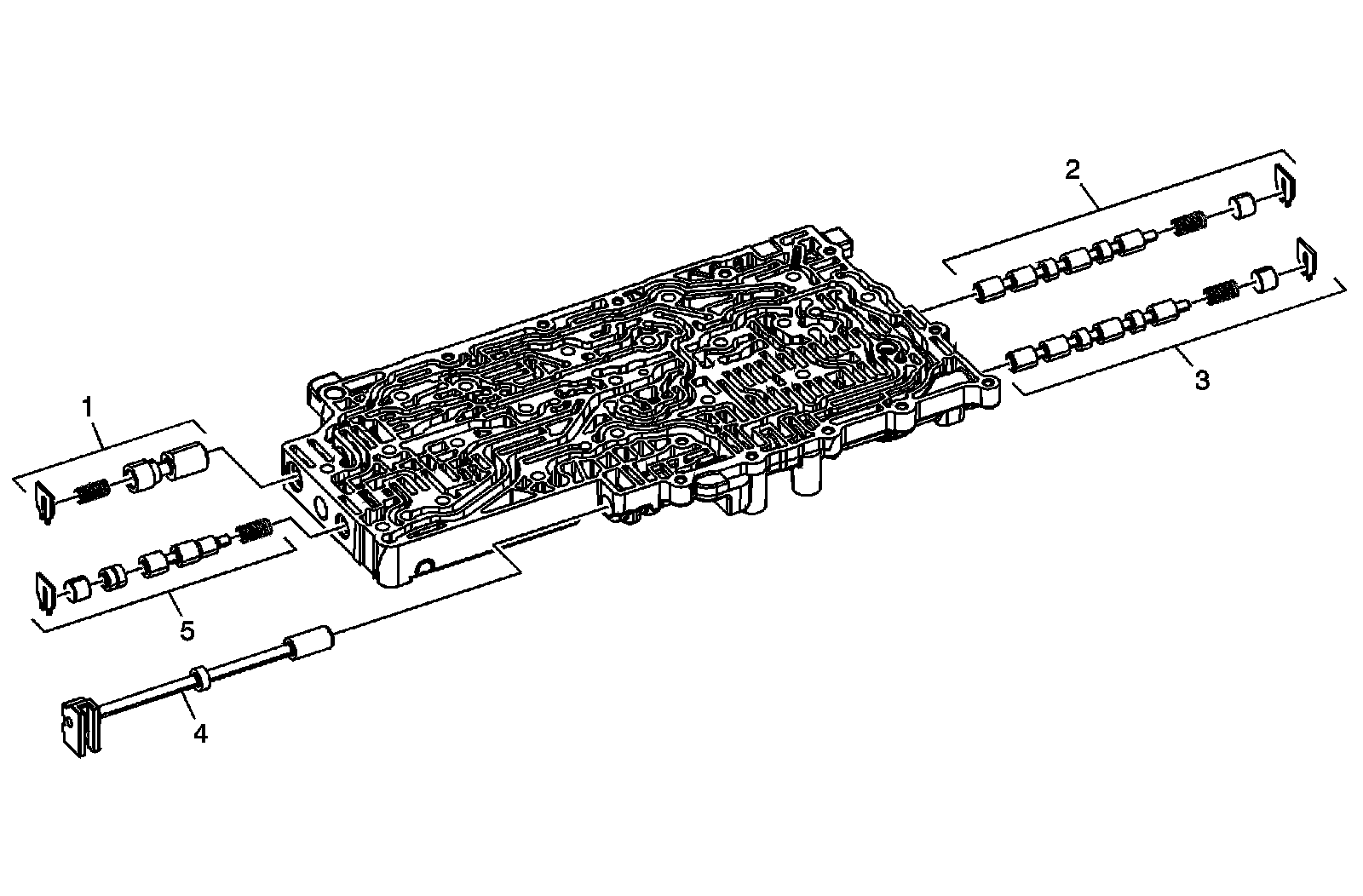

Technical service diagram
