Oil Filter Assembly Installation

Oil Filter Assembly Installation





1. Lubricate the filter seal (71) with transmission fluid.

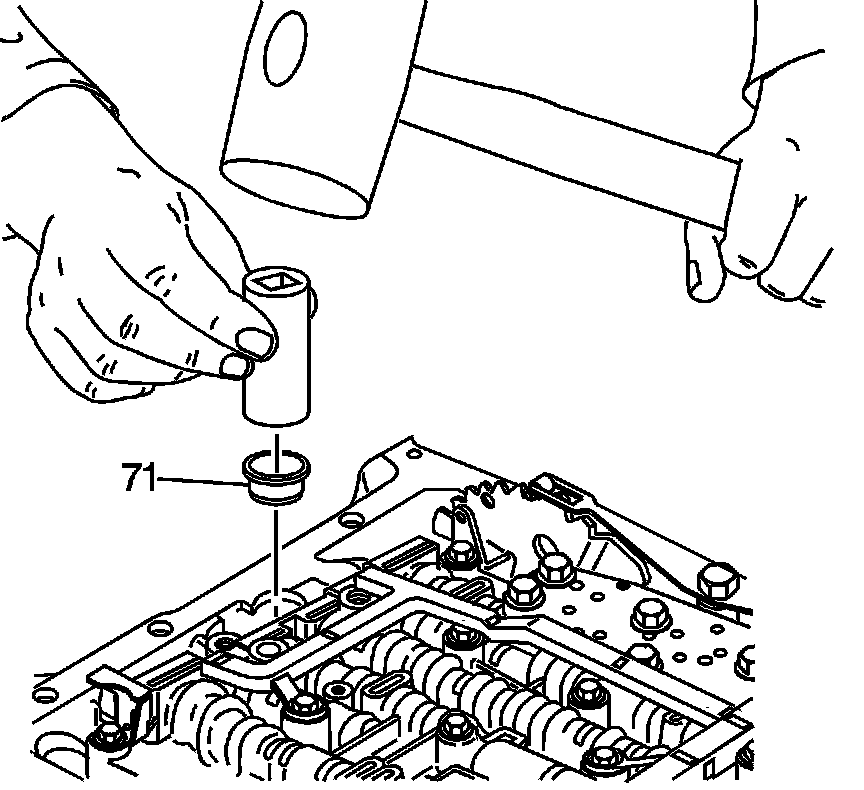

2. Use a socket the same size diameter as the filter seal (71) and install the seal.

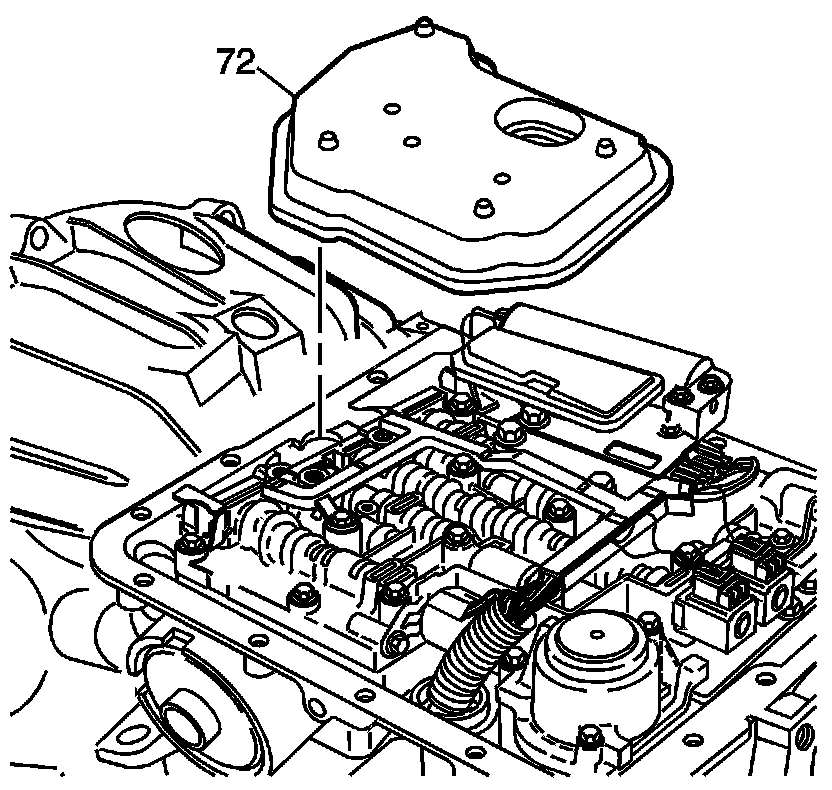

3. Install the transmission oil filter assembly (72).
