Oil Pump Cover Thrust Washer Inspection

Oil Pump Cover Thrust Washer Inspection

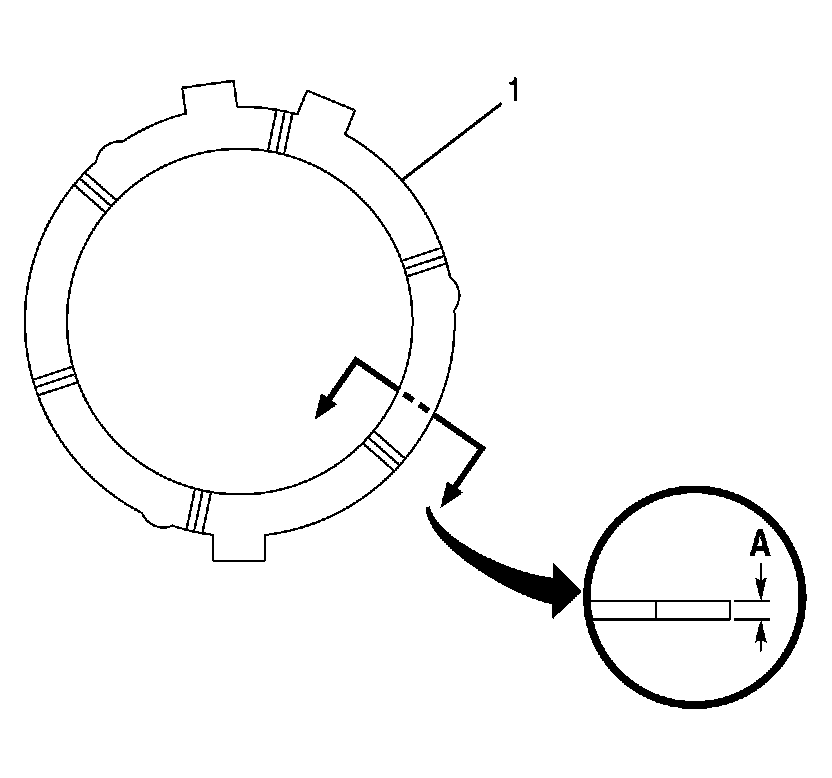

1. Measure the thickness of thrust washer (1) at dimension A.

The minimum thrust washer thickness is 1.49 mm (0.059 in).

2. Replace the thrust washer if the thickness does not meet specifications.
