Transmission Fluid Pressure Test Hole Plug, External Filter, and Fluid Cooler Pipe Retainer Removal

Transmission Fluid Pressure Test Hole Plug, External Filter, and Fluid Cooler Pipe Retainer Removal

Tools Required

J 45023 Control Main Filter Wrench

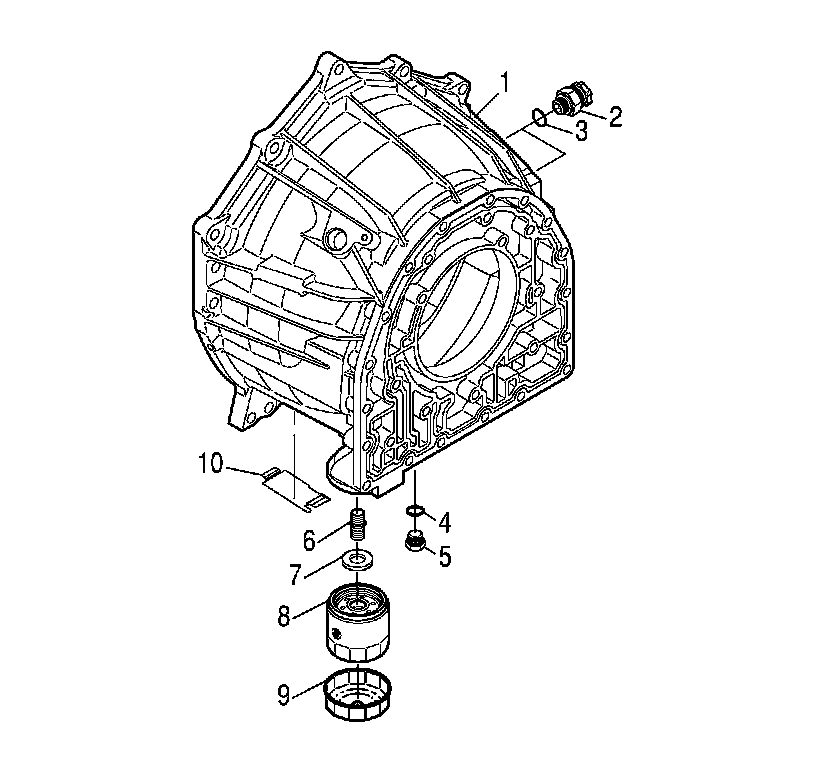

1. Remove the transmission line pressure test hole plug (5).
2. Remove the O-ring (4) from the pressure test hole plug (5).
3. Using J 45023 (9) or a filter strap wrench, remove the transmission external oil filter (8).
4. Remove the magnet (7) from the transmission external oil filter adapter (6) or from the external oil filter (8).
5. Remove the transmission external oil filter adapter (6).
6. If present, remove both transmission oil cooler pipe connector hydraulic assemblies (2).
7. Remove the O-rings (3) from the hydraulic assemblies.
