Tremec 5-Speed (TZ0) - Manual Transmission

Backup Lamp Switch Replacement

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .

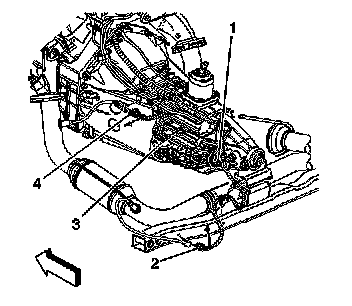

2. Disconnect the backup lamp switch electrical connector (3).




3. Remove the backup lamp switch.



Installation Procedure






Notice: Refer to Component Fastener Tightening Notice .


Important: The backup lamp switch has pre-applied thread sealant on the threads.


1. Install the backup lamp switch.

Tighten the switch to 37 N.m (27 lb ft).





2. Connect the backup lamp switch electrical connector (3).
3. Lower the vehicle.
