Turbine Speed Sensor Removal

Turbine Speed Sensor Removal

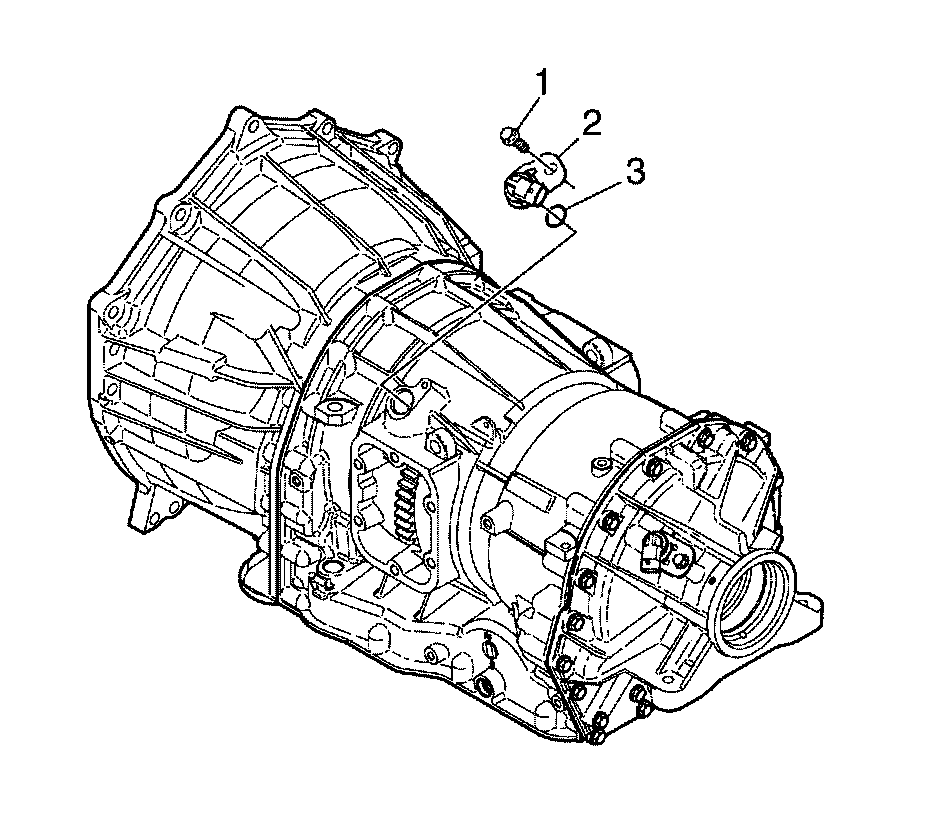

1. Remove the vehicle speed sensor bolt (1) that retains the turbine speed sensor (2) to the transmission case.
2. Remove the turbine speed sensor (2).
3. Remove the vehicle speed sensor O-ring (3) from the turbine speed sensor.
