Audible Warning Device Control Module: Diagrams

Component Connector End Views

Chime Module (UL5)

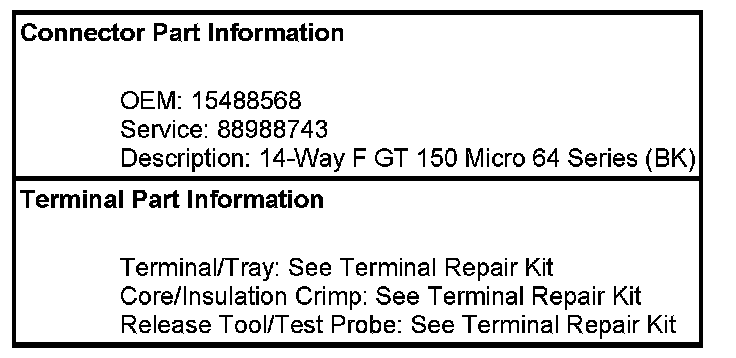

Technical service diagram

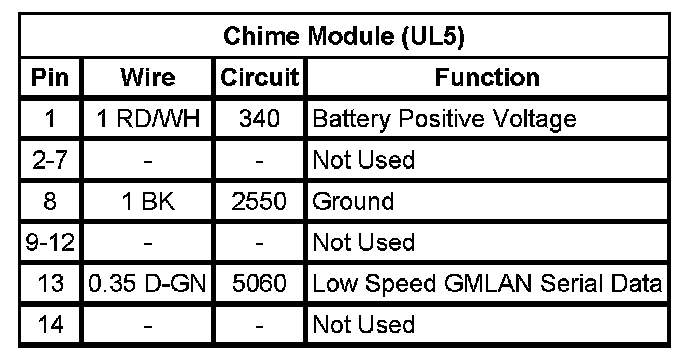

Technical service diagram

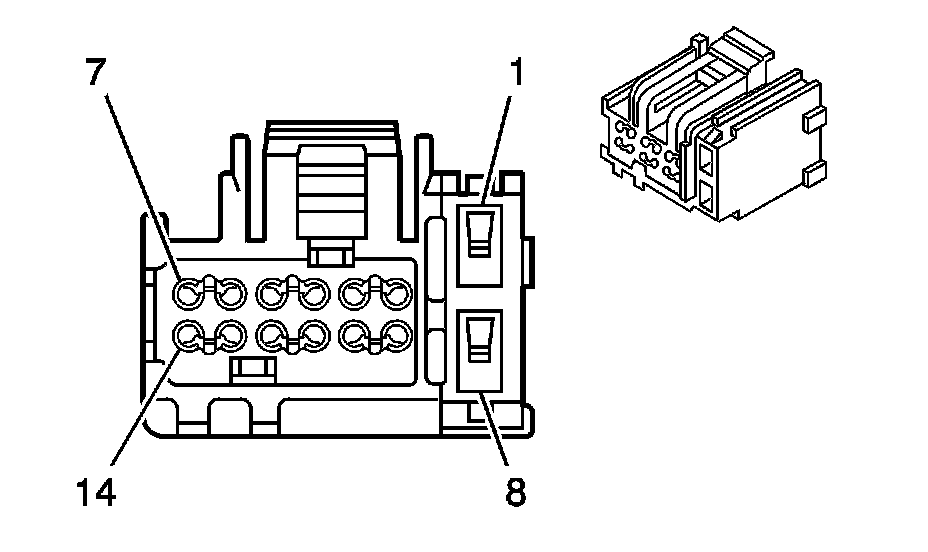

Technical service diagram
