Connector Views



Component Connector End Views

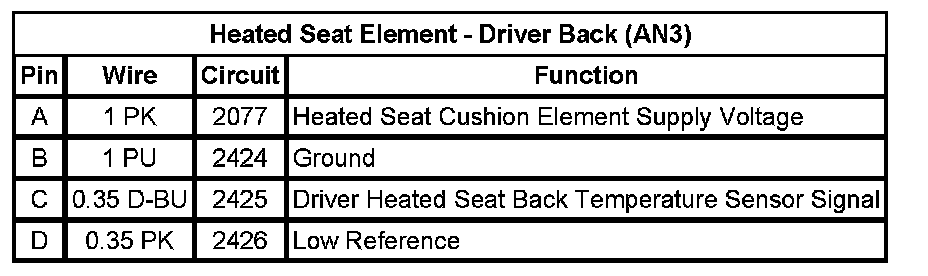

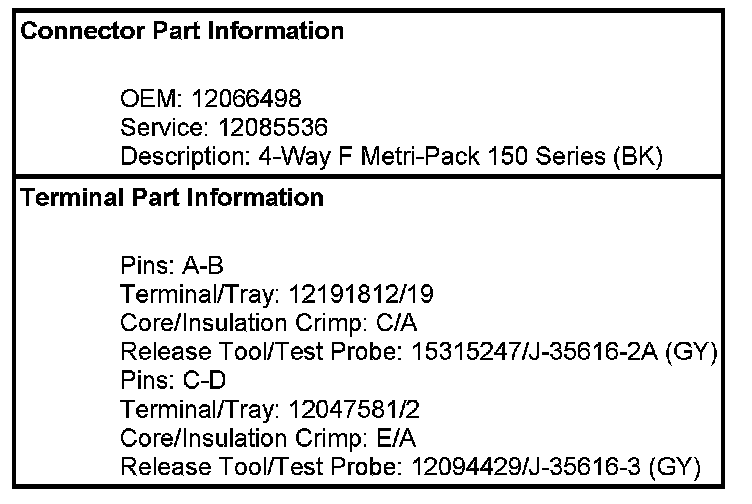

Heated Seat Element - Driver Back (AN3)

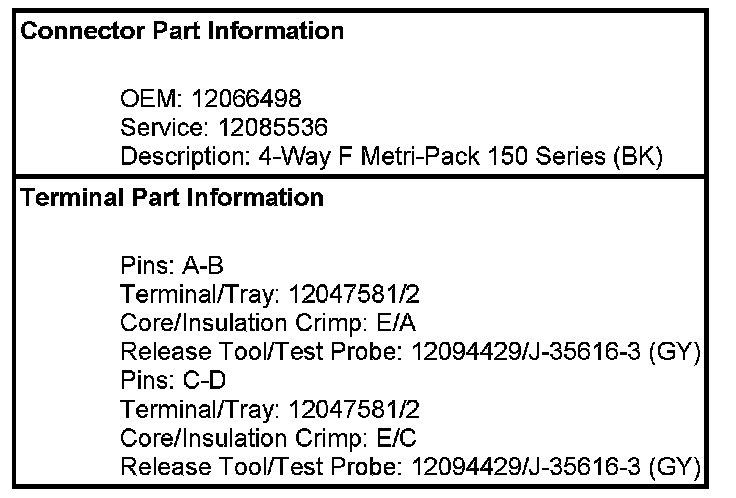

Technical service diagram




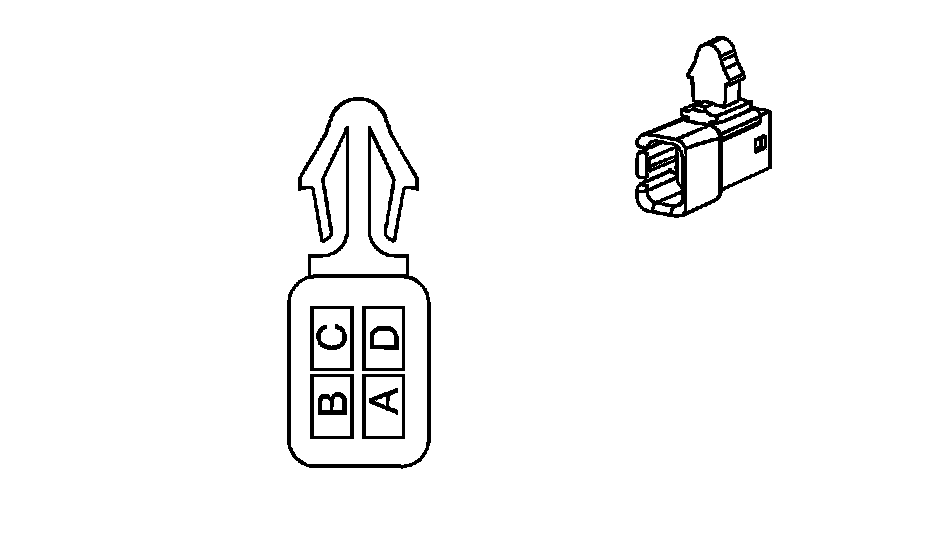

Technical service diagram




Technical service diagram

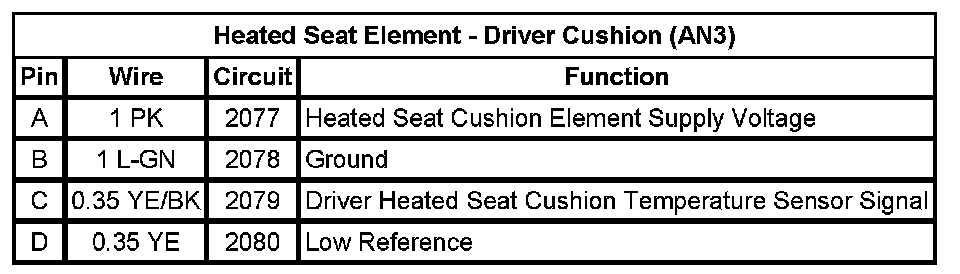

Heated Seat Element - Driver Cushion (AN3)

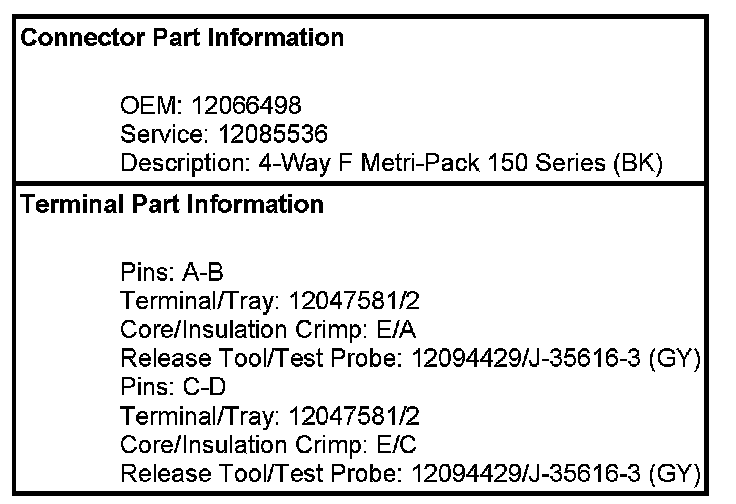

Technical service diagram




Technical service diagram




Technical service diagram

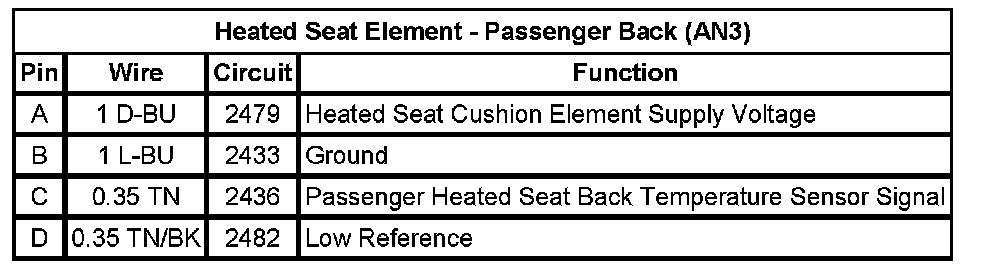

Heated Seat Element - Passenger Back (AN3)

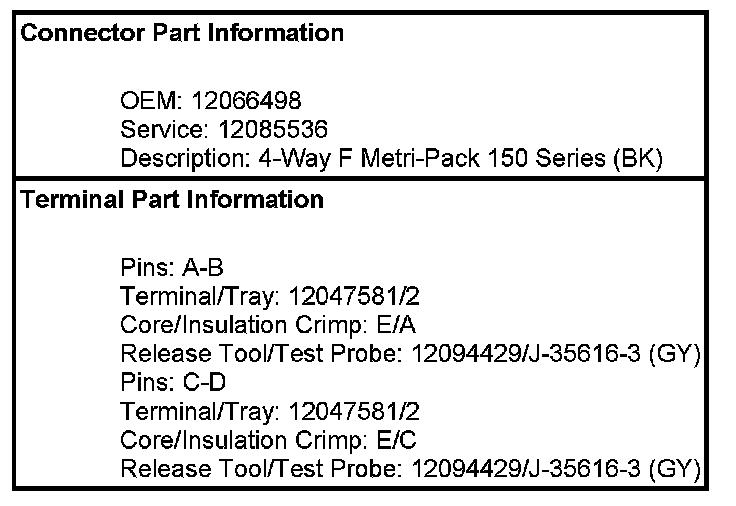

Technical service diagram




Technical service diagram




Technical service diagram

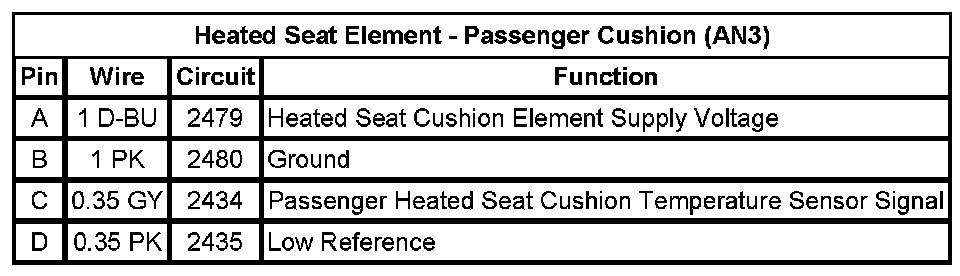

Heated Seat Element - Passenger Cushion (AN3)

Technical service diagram




Technical service diagram




Technical service diagram
